10.1 Waveguide theory and modes

3 min readLast Updated on July 22, 2024

Optical waveguides are essential for guiding light in modern optics. They use total internal reflection to confine light within a high-index core surrounded by a low-index cladding, enabling efficient transmission of optical signals over long distances.

Waveguide modes describe how light propagates in these structures. These include transverse electric (TE), transverse magnetic (TM), and hybrid modes. Understanding these modes is crucial for designing and optimizing optical waveguides for various applications.

Principles and Types of Optical Waveguides

Principles of optical waveguides

Top images from around the web for Principles of optical waveguides
Top images from around the web for Principles of optical waveguides
  • Optical waveguides guide electromagnetic waves in the optical spectrum by confining light within a specific region
    • Allow light to propagate along the waveguide axis with minimal loss of optical power

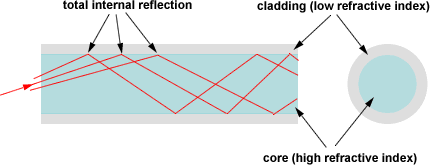

    • Utilize the principle of total internal reflection to guide light, where light is confined within the waveguide core (higher refractive index) surrounded by cladding (lower refractive index)
  • Enable efficient transmission of light signals over long distances (optical communication systems, sensors, integrated photonic devices)

Types of waveguide modes

  • Waveguide modes are specific patterns of electromagnetic field distribution that can propagate along the waveguide
  • Transverse electric (TE) modes have electric field perpendicular to the direction of propagation and the waveguide axis
    • Magnetic field has a component along the propagation direction
    • Denoted as TEmn_{mn}, where mm and nn represent the number of field variations in the transverse directions (TE01_{01}, TE11_{11})
  • Transverse magnetic (TM) modes have magnetic field perpendicular to the direction of propagation and the waveguide axis
    • Electric field has a component along the propagation direction
    • Denoted as TMmn_{mn}, similar to TE modes (TM01_{01}, TM11_{11})
  • Hybrid modes (HE and EH) occur when both electric and magnetic fields have components along the propagation direction
    • Arise in waveguides with complex geometries or inhomogeneous media (optical fibers, photonic crystal waveguides)

Electromagnetic Wave Equations and Mode Characteristics

Electromagnetic equations for guided waves

  • Maxwell's equations in a source-free, linear, and isotropic dielectric medium:
    1. ×E=Bt\nabla \times \vec{E} = -\frac{\partial \vec{B}}{\partial t}
    2. ×H=Dt\nabla \times \vec{H} = \frac{\partial \vec{D}}{\partial t}
    3. D=0\nabla \cdot \vec{D} = 0
    4. B=0\nabla \cdot \vec{B} = 0
  • Assume a time-harmonic dependence of the form ejωte^{j\omega t}
  • Derive the Helmholtz equation for the electric field E\vec{E}: 2E+k2E=0\nabla^2 \vec{E} + k^2 \vec{E} = 0, where k=ωμεk = \omega \sqrt{\mu \varepsilon} is the wavenumber
  • Apply boundary conditions at the core-cladding interface: tangential components of E\vec{E} and H\vec{H} must be continuous
  • Solve the Helmholtz equation in cylindrical or rectangular coordinates, depending on the waveguide geometry, to obtain the guided mode solutions for the electric and magnetic field components

Calculations for waveguide modes

  • Cutoff frequency is the lowest frequency at which a specific mode can propagate in the waveguide
    • Determined by the waveguide dimensions and the refractive indices of the core and cladding
    • For a rectangular waveguide with dimensions aa and bb, the cutoff frequency for TEmn_{mn} modes is given by: fc=12πμε(mπa)2+(nπb)2f_c = \frac{1}{2\pi\sqrt{\mu\varepsilon}} \sqrt{(\frac{m\pi}{a})^2 + (\frac{n\pi}{b})^2}
  • Propagation constant β\beta determines the phase velocity and wavelength of the guided mode
    • Related to the wavenumber kk and the cutoff wavenumber kck_c by: β=k2kc2\beta = \sqrt{k^2 - k_c^2}
    • Modes with β>0\beta > 0 are guided, while modes with β=0\beta = 0 are at cutoff (single-mode and multi-mode fibers)
    • Modes with imaginary β\beta are evanescent and do not propagate (mode filtering, coupling)
