Acoustic and Seismic Well Logging
Acoustic and seismic logging uses sound waves to understand rock properties beneath the surface. These methods reveal porosity, fractures, and lithology, which are critical for resource exploration and reservoir management.
Wave Propagation Fundamentals

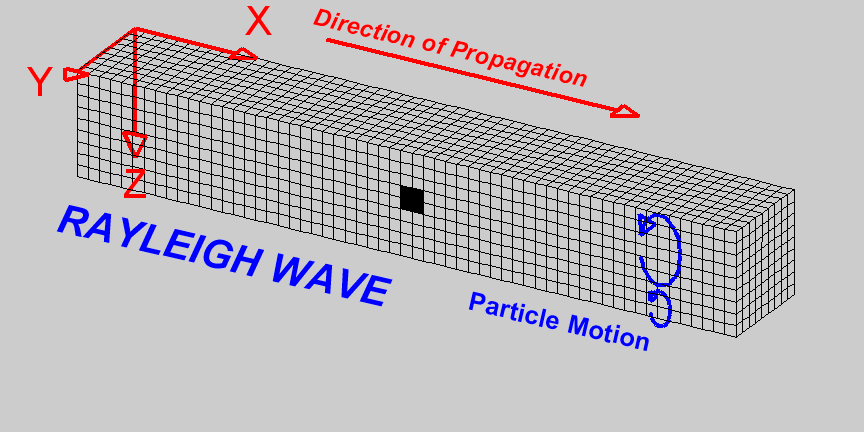

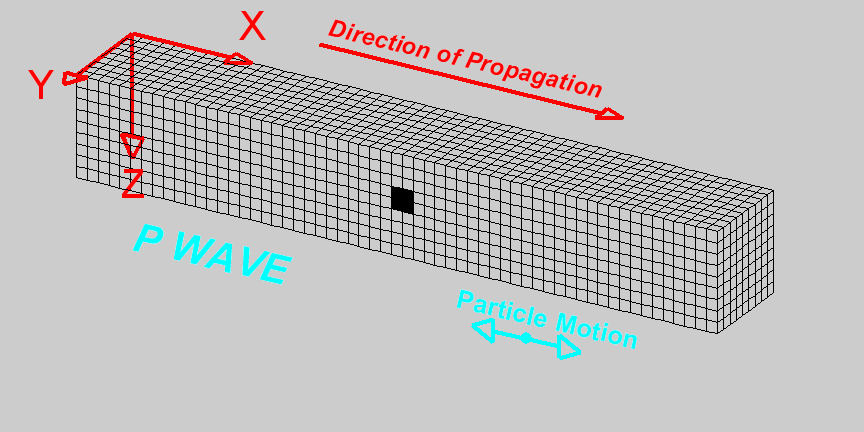

Sound waves traveling through rock behave differently depending on the material they encounter. P-waves (compressional) and S-waves (shear) each respond to density, elasticity, and fluid content in distinct ways. The velocity of these waves, how they attenuate, and how they reflect at boundaries all carry information about subsurface conditions.
P-wave velocity tends to be higher in dense, consolidated rock and lower in porous or fractured material. S-wave velocity is particularly sensitive to the rigidity of the rock matrix, since S-waves cannot propagate through fluids. The ratio between P-wave and S-wave velocities (Vp/Vs) is a key diagnostic for distinguishing rock types and saturation states.
At each interface between different rock layers, waves partially reflect and partially transmit. The acoustic impedance at a boundary (the product of rock density and wave velocity) determines how much energy reflects. Larger contrasts in impedance produce stronger reflections, which show up clearly in the logging data.
Logging Tool Design and Operation
Acoustic logging tools are lowered into the borehole on a wireline. A typical tool consists of a transmitter that generates a pulse of sound and one or more receivers spaced along the tool body that detect the arriving waveforms.
The transmitter fires a burst of acoustic energy into the formation. The sound radiates outward, interacts with the rock, and returns to the receivers after traveling through the near-borehole material. The travel time between the transmitted pulse and the received signal, along with the amplitude and waveform shape of the return, are all recorded.
Monopole tools use a single-point source and are standard for measuring compressional and shear slowness. Dipole tools add a directional source that generates flexural waves, which are especially useful for measuring shear velocity in slow formations where monopole shear arrivals may not be detectable. Array tools with multiple receivers improve the ability to separate different wave modes and reduce noise.
The spacing between transmitter and receivers matters. Wider spacing increases the depth of investigation into the formation but may reduce vertical resolution. Narrower spacing gives finer detail along the borehole wall but samples a smaller volume of rock.
Data Acquisition and Processing
Raw acoustic log data require processing to extract useful formation properties. The first step is waveform stacking, where multiple firings are combined to improve signal-to-noise ratio. Next, semblance analysis or slowness-time-coherence (STC) processing identifies the coherent arrivals corresponding to P-waves, S-waves, and Stoneley waves.
Slowness (the inverse of velocity, typically in μs/ft) is the primary measurement extracted from the data. Compressional slowness (DTc) and shear slowness (DTs) are computed from the identified arrivals. These values are then converted to velocities and used to derive mechanical and petrophysical properties.
Stoneley wave analysis provides additional information. These low-frequency waves propagate along the borehole interface and are sensitive to formation permeability. Their dispersion characteristics (how velocity changes with frequency) can be inverted to estimate near-borehole permeability.
Quality control is applied throughout. Bad data from tool eccentricity, borehole washouts, or cycle skipping are flagged and either corrected or excluded. Caliper logs (which measure borehole diameter) are used alongside the acoustic data to identify intervals where borehole conditions may have compromised the measurements.
Formation Evaluation from Acoustic Data
Acoustic data feed directly into formation evaluation. Porosity is estimated from compressional slowness using empirical relationships such as the Wyllie time-average equation, which relates transit time to the proportion of solid matrix versus pore fluid along the wave path.
Lithology identification uses the combination of DTc and DTs. Different minerals (quartz, calcite, dolomite, clay) have characteristic slowness values. Cross-plotting compressional versus shear slowness, or overlaying acoustic-derived porosity with neutron and density porosity, helps resolve ambiguous lithologies.
Mechanical properties are derived from the elastic wave velocities. Young's modulus, Poisson's ratio, bulk modulus, and shear modulus are all computed from Vp, Vs, and bulk density. These properties are essential for wellbore stability analysis, hydraulic fracture design, and sand production prediction.
Fracture detection relies on several indicators in the acoustic data. Fractured intervals often show anomalously low velocities, high attenuation, and scattered waveform energy. Shear wave splitting (where a shear wave divides into fast and slow components aligned with fracture orientation) is a direct indicator of aligned fractures or stress anisotropy. Comparing acoustic-derived fracture indicators with image log data provides a more complete fracture characterization.
Fluid substitution modeling uses the Gassner equations to predict how acoustic velocities would change if the pore fluid changed (for example, from brine to gas). This is valuable for evaluating different saturation scenarios and for calibrating seismic data with well log measurements.
Integration with Other Measurements
Acoustic logs are most powerful when combined with other logging measurements. Gamma ray logs identify shale content, which affects acoustic velocities and must be accounted for in porosity calculations. Density logs provide the bulk density needed to compute acoustic impedance and mechanical properties. Resistivity logs give independent fluid saturation information that complements the acoustic-derived properties.
Neutron-density-acoustic combinations are a standard approach for resolving porosity and lithology simultaneously. Each measurement responds differently to matrix composition and pore fluid, so combining them reduces ambiguity.
Vertical seismic profile (VSP) data tie the borehole acoustic measurements to surface seismic surveys. The acoustic log provides a detailed velocity profile along the well, which is used to build a synthetic seismogram that correlates well log features with seismic reflectors. This well-to-seismic tie is fundamental for extending borehole observations laterally across the field.
Checkshot surveys (where a surface seismic source fires into downhole receivers at selected depths) provide an independent time-depth relationship that validates the integrated acoustic velocity profile. Discrepancies between checkshot times and acoustic log transit times may indicate intervals of dispersion, near-borehole alteration, or measurement error that need correction.
