2.4 Interferometers and their applications
2 min read•july 22, 2024
Interferometers are powerful tools that use light wave interference to make precise measurements. By splitting and recombining light beams, they create patterns that reveal tiny changes in distance, refractive index, or surface flatness.
From gravitational wave detection to spectroscopy, interferometers have diverse applications. They enable scientists to measure things on incredibly small scales, analyze materials, and even probe the fundamental nature of the universe.
Interferometer Principles and Configurations
Principles of common interferometers
Top images from around the web for Principles of common interferometers

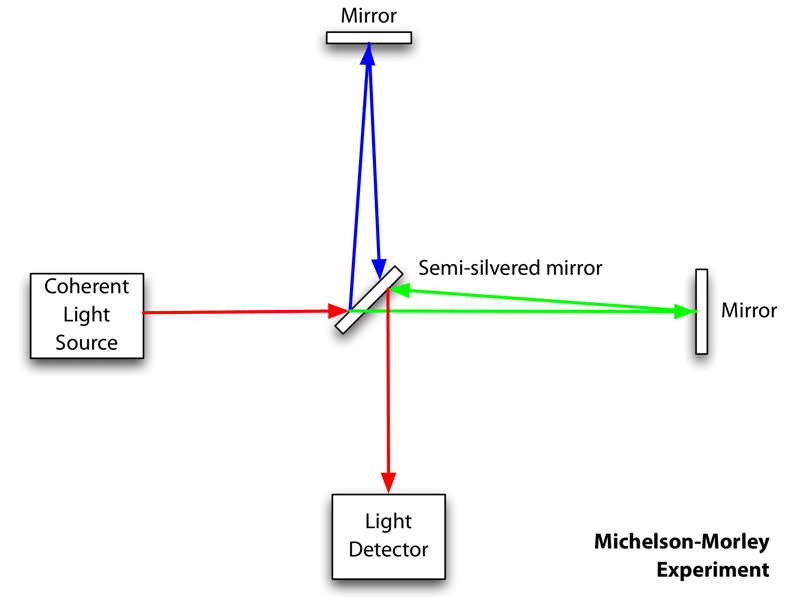

File:Michelson-morley.png - Wikimedia Commons View original
Is this image relevant?
Michelson interferometer - Wikipedia View original
Is this image relevant?
.svg.png&w=640&q=75)
Michelson–Morley experiment - Simple English Wikipedia, the free encyclopedia View original
Is this image relevant?
File:Michelson-morley.png - Wikimedia Commons View original
Is this image relevant?
Michelson interferometer - Wikipedia View original
Is this image relevant?
1 of 3
Top images from around the web for Principles of common interferometers
File:Michelson-morley.png - Wikimedia Commons View original
Is this image relevant?
Michelson interferometer - Wikipedia View original
Is this image relevant?
Michelson–Morley experiment - Simple English Wikipedia, the free encyclopedia View original
Is this image relevant?
File:Michelson-morley.png - Wikimedia Commons View original
Is this image relevant?
Michelson interferometer - Wikipedia View original
Is this image relevant?
1 of 3
- Utilize superposition and interference of light waves to create interference patterns
- Split light into two or more beams traveling different paths and recombining
- Path difference between beams leads to constructive or
- provides information about the path difference and the properties of the sample in one of the paths
- Common types include Michelson, Mach-Zehnder, and Fabry-Perot interferometers (explained in detail below)
Applications in precision measurements
- Measure distances with high accuracy by counting interference fringes
- Distance determined by wavelength of light and number of fringes observed
- Applications in , calibration, and positioning systems (nanoscale positioning)
- Measure refractive index of materials by comparing in sample to reference path
- Refractive index calculated from observed and known sample thickness
- Used in material characterization (thin films), quality control, and sensor applications (gas sensors)
- Measure surface flatness of optical components by comparing reflected to reference surface
- Deviations from flatness cause distortions in interference pattern
- Essential for production and testing of high-quality optical surfaces (mirrors, lenses)
Interferometers for gravitational wave detection
- Detect gravitational waves causing minute changes in relative distances between interferometer's mirrors
- Changes detected as variations in interference pattern
- Examples: (Laser Interferometer Gravitational-Wave Observatory), ,
- Challenges in design and operation:
- Extremely high sensitivity required to detect tiny distortions caused by gravitational waves
- Long arm lengths (several kilometers) needed to increase signal-to-noise ratio
- Isolation from seismic noise, thermal noise, and other disturbances crucial
- Advanced techniques employed to enhance sensitivity (, )
Interferometry in spectroscopy
- (FTS) uses interferometers to obtain spectral information
- Typically employs Michelson or Mach-Zehnder interferometers
- Produces interferogram by varying path difference between two beams
- Interferogram Fourier transformed to obtain spectrum of input light
- Advantages of FTS over dispersive techniques:
- Multiplex advantage (Fellgett's advantage): All wavelengths measured simultaneously, improving signal-to-noise ratio
- Throughput advantage (Jacquinot's advantage): No need for narrow slits, allowing more light to reach detector
- High spectral resolution determined by maximum path difference of interferometer
- Self-calibration: Wavelength scale determined by laser wavelength, reducing calibration errors
- Applications include chemical analysis (identifying compounds), remote sensing (atmospheric monitoring), and materials characterization (thin films)
