Survey Design Principles
Geophysical survey design is the process of selecting methods, defining parameters, and planning data acquisition strategies so that field investigations actually answer the questions they're meant to answer. Poor planning leads to gaps in coverage, wasted time, and data that can't be interpreted. A well-designed survey balances scientific goals against practical constraints like budget, terrain, and available equipment.
Selecting Appropriate Methods and Parameters
The starting point is understanding your target: its expected depth, size, geometry, and the physical property contrast that distinguishes it from surrounding material. These factors determine which geophysical methods will work and what resolution you need.
- Choose methods sensitive to the relevant physical property contrast. Seismic reflection works well for imaging deep sedimentary layers because of acoustic impedance contrasts, while ground-penetrating radar (GPR) is better suited for shallow targets like buried utilities because of dielectric permittivity contrasts.

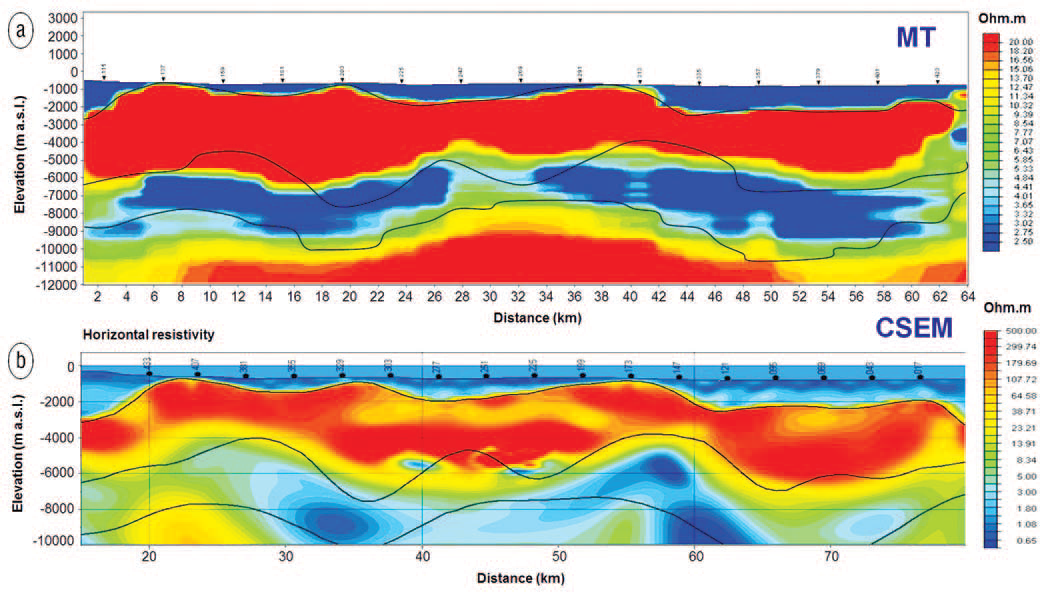

- A single method rarely tells the whole story. Combining complementary methods (e.g., seismic for structure and electrical resistivity for composition) provides independent constraints on subsurface conditions.
- Define survey parameters to match the target:
- Station spacing controls lateral resolution. Tighter spacing resolves smaller features but takes more time.
- Sampling interval (temporal) must satisfy the Nyquist criterion to avoid aliasing: sample at least twice the highest frequency of interest.
- Recording time must be long enough for signals from the deepest target to reach the receivers.
Logistics and Data Acquisition Planning
Even a scientifically sound design fails if it can't be executed in the field.
- Select equipment rated for actual site conditions (e.g., waterproof housings for wetlands, ruggedized instruments for rocky terrain, high-temperature-rated electronics for volcanic areas).
- Design the survey grid to provide optimal coverage while accounting for access routes, topographic obstacles, and potential interference sources.
- Establish clear data acquisition protocols before going to the field. These should cover measurement procedures, instrument settings, quality control checks, and documentation requirements. Consistency across the survey is what makes the data interpretable.
Factors in Survey Design
Geological and Site Considerations
Geology drives method selection. You need to understand (or at least estimate) the subsurface structure, lithology, and physical property contrasts before choosing your approach.
- Characterize the target's expected depth, geometry, and composition, along with the properties of the overburden and bedrock. Key properties include electrical resistivity, seismic velocity, density, and magnetic susceptibility.
- If the physical property contrast between the target and its surroundings is small, you'll need a more sensitive method or denser sampling to detect it.
Site conditions impose practical constraints that directly affect data quality:
- Topography: Steep slopes complicate equipment deployment and require terrain corrections (especially for gravity surveys). Elevation changes also affect seismic travel times.
- Vegetation: Dense forest or brush can limit access and interfere with GPS positioning.
- Cultural noise: Power lines generate electromagnetic interference that degrades magnetotelluric or EM data. Pipelines create magnetic anomalies. Road traffic produces seismic noise. Identify these sources during the planning stage so you can design around them.
Project Objectives and Constraints
Clear objectives are non-negotiable. "Characterize the subsurface" is too vague. Specific objectives look like:
- Map the depth to bedrock across a 500 m × 500 m site
- Detect and delineate a contamination plume at 5–20 m depth
- Identify fault zones within a sedimentary sequence to 200 m depth
The required depth of investigation and spatial resolution follow directly from these objectives. Detecting a 1 m wide void at 3 m depth demands very different parameters than mapping regional basement structure at 2 km depth.
Practical constraints shape every survey:
- Budget limits the number of methods, the survey extent, and crew size.
- Time may restrict how much data you can collect per day.
- Equipment and expertise availability can rule out certain methods entirely.
Optimization means prioritizing: focus the highest-resolution (and most expensive) methods on the most critical areas, and use reconnaissance-level methods elsewhere.
Comprehensive Survey Planning
Defining Objectives and Selecting Methods
A systematic planning process keeps the survey focused and efficient:
- Define the project objectives and identify the geophysical target(s), including expected depth, size, and relevant physical properties.
- Evaluate candidate methods against the target characteristics, site conditions, and logistical requirements. Consider each method's strengths, limitations, depth capability, and resolution.
- Select a primary method and, where the budget allows, one or more complementary methods for independent verification.
- Estimate the cost, time, and personnel requirements for each method to confirm feasibility.
Survey Geometry and Data Acquisition
Survey geometry determines what you can and cannot resolve.
- Survey area should extend beyond the expected target boundaries. Edge effects and the need for adequate spatial context mean the survey footprint is always larger than the target itself.
- Grid layout: Use 2D lines for simpler targets or reconnaissance. Use 3D grids for complex structures where out-of-plane effects would compromise 2D interpretation.
- Line orientation matters for anisotropic targets. Survey lines should run perpendicular to the expected strike of geological features (e.g., faults, bedding contacts) to maximize the anomaly signature.
- Station spacing should be no more than half the smallest feature you need to resolve (spatial Nyquist criterion). For example, resolving a 10 m wide target requires station spacing of 5 m or less.
Data acquisition parameters to specify:
- Source-receiver configurations (offsets, azimuths)
- Sampling interval and recording time/window
- Number of stacks or repeat measurements for signal-to-noise improvement
- Source parameters (energy, frequency content)
Documentation and Quality Control
Thorough documentation makes the difference between data that can be reprocessed years later and data that's effectively lost.
- Record the full survey plan: methods, parameters, equipment serial numbers, station coordinates, and any deviations from the plan.
- Include maps, diagrams, and parameter tables. Anyone picking up the documentation should be able to reproduce the survey.
- Build quality control into the daily workflow:
- Equipment checks each morning (battery levels, sensor calibration, GPS lock)
- Calibration measurements at reference stations to track instrument drift
- Repeat measurements at selected stations (typically 5–10% of total) to quantify repeatability
- Field data review at the end of each day to catch problems early
- Plan for data backup: copy data to at least two independent storage devices daily. Establish a protocol for secure transfer and long-term archiving.
Limitations and Errors in Design
Method Limitations and Site Effects
Every geophysical method has inherent limitations, and ignoring them leads to uninterpretable results.
- Seismic methods struggle in areas with high attenuation (e.g., thick dry soil, fractured rock) or where velocity inversions cause hidden layers that refraction methods cannot detect.
- Electrical resistivity methods lose sensitivity in extremely resistive environments (e.g., thick dry sand) where current injection is difficult, and in highly conductive environments where current concentrates near the surface.
- GPR penetration depth drops sharply in clay-rich or saline soils due to high conductivity.
- Gravity and magnetics measure potential fields, so solutions are inherently non-unique: different subsurface models can produce the same surface anomaly.
Site effects compound these limitations. Topographic relief requires corrections in gravity, magnetics, and seismic processing. Cultural noise sources (power lines, pipelines, traffic) can overwhelm the signal from the target if not accounted for during planning.
Survey Geometry and Parameter Selection
Errors in survey design are often more damaging than errors in processing, because you can't recover information that was never collected.
- Spatial aliasing occurs when station spacing is too coarse to sample the target's anomaly. The feature either disappears from the data or appears as a false artifact.
- Incorrect assumptions about target depth or properties can lead to choosing the wrong method or wrong parameters entirely.
- Survey orientation affects detection capability. Lines parallel to a fault's strike will show minimal anomaly, while lines perpendicular to strike maximize the signal.
- There's always a trade-off between coverage and resolution. Wider station spacing covers more ground but misses fine detail. Denser spacing resolves small features but covers less area for the same effort.
Mitigation Strategies
Good survey design anticipates problems and builds in safeguards:
- Redundant measurements: Collect reciprocal measurements (swap source and receiver positions) in resistivity surveys, or repeat measurements at control stations, to quantify data quality and identify errors.
- Multiple methods: Using two or more independent methods reduces the risk that a single method's blind spot causes you to miss the target.
- Adaptive design: Review preliminary data in the field. If early results reveal unexpected features or poor data quality, adjust parameters, shift survey lines, or expand coverage before demobilizing.
- Data processing safeguards: Apply filtering, stacking, and terrain corrections to suppress noise and artifacts. Inversion techniques can help extract subsurface models, but always assess whether the results are geologically reasonable.
- Pilot surveys: For large or expensive campaigns, run a small pilot survey first to test whether the chosen methods and parameters actually detect the target under real site conditions.
