Trusses are key structures in engineering, using interconnected members to support loads efficiently. This section explores two powerful analysis techniques: the and the . Each approach offers unique advantages for solving truss problems and determining forces.
Understanding these methods is crucial for structural analysis. The method of joints systematically examines force at each connection, while the method of sections cuts through the truss to analyze larger portions. Mastering both techniques equips engineers to tackle various truss configurations effectively.
Method of Joints vs Sections
Differences in Analysis Techniques
Top images from around the web for Differences in Analysis Techniques
File:StaticsMethodSectionQ.svg - Wikimedia Commons View original
Is this image relevant?
Trussed up - All this View original
Is this image relevant?

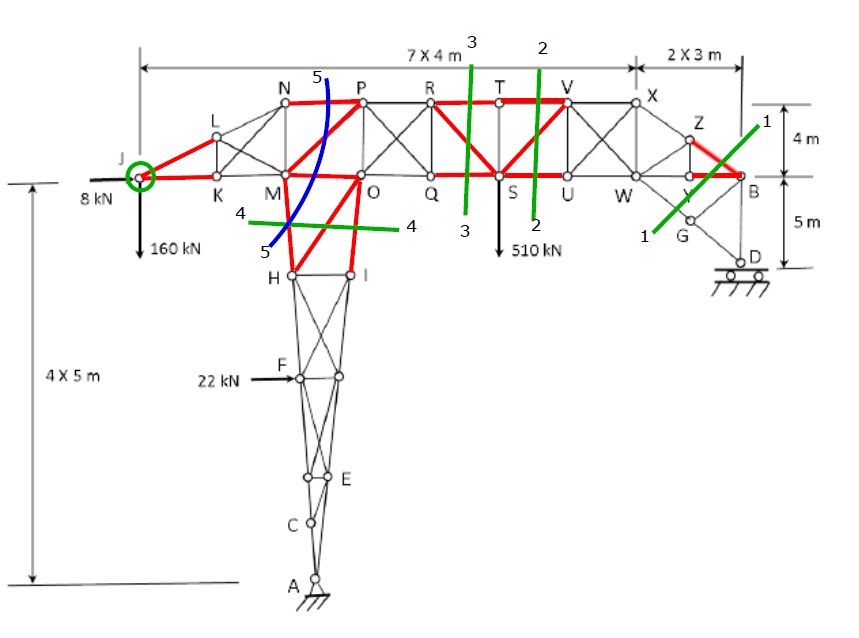

civil engineering - Loaded Truss problem - Engineering Stack Exchange View original
Is this image relevant?
File:StaticsMethodSectionQ.svg - Wikimedia Commons View original
Is this image relevant?
Trussed up - All this View original
Is this image relevant?
1 of 3
Top images from around the web for Differences in Analysis Techniques
File:StaticsMethodSectionQ.svg - Wikimedia Commons View original
Is this image relevant?
Trussed up - All this View original
Is this image relevant?
civil engineering - Loaded Truss problem - Engineering Stack Exchange View original
Is this image relevant?
File:StaticsMethodSectionQ.svg - Wikimedia Commons View original
Is this image relevant?
Trussed up - All this View original
Is this image relevant?
1 of 3
- Method of joints is a truss analysis technique that considers the equilibrium of forces at each in the truss, while method of sections analyzes the equilibrium of a portion of the truss created by an imaginary cut
- In the method of joints, equilibrium equations are written for each joint, considering forces in the members connected at that joint and any external forces or reactions applied there
- In the method of sections, equilibrium equations are written for forces and moments acting on one section of the truss
Differences in Problem Solving Approaches
- The method of joints solves for unknown forces in members by progressing in a logical order from joint to joint where there are at most two unknown member forces at each
- The method of sections can solve for forces in members that may not be solvable by inspection or the method of joints alone
- The method of joints is systematic and can be applied repeatedly until all member forces are known, while the method of sections is a more direct approach for determining the force in a specific member
- The method of joints requires that all external forces, including reactions, are known in advance, while the method of sections can be applied even if some reaction forces are unknown
Method of Joints Application
Determining External Reactions
- Draw a free body diagram of the entire truss, replacing all supports with the forces and moments that they exert on the truss
- Determine the external reactions at the supports using the equations of equilibrium (ΣFx = 0, ΣFy = 0, and ΣM = 0)
Solving for Unknown Member Forces
- Identify a joint with at most two unknown member forces, starting at a joint where most information is known (usually where external forces are applied or at the supports)
- Draw a free body diagram of the joint, representing all known and unknown forces as vectors
- Unknown forces should be assumed to act in a direction away from the joint if the member is in tension and towards the joint if in compression
- Write and solve the equilibrium equations (ΣFx = 0 and ΣFy = 0) for the joint to determine the unknown forces
- If one of the unknown forces cannot be found, move to the next joint and repeat the process until you can solve for that unknown
- Proceed to the next joint where there are at most two unknown forces, repeating the process of drawing the free body diagram, writing equilibrium equations, and solving for the unknown forces
- Continue this process, moving systematically from joint to joint until all member forces have been determined
- It may be necessary to begin at another area of the truss where additional information is known
Verifying Results
- Verify the results by checking that the equilibrium equations are satisfied at each joint
- Ensure that the determined forces do not violate the properties of the truss or its supports (e.g., a member in tension should not have a negative force value)
Method of Sections Application
Selecting the Section Cut
- Identify the member whose force needs to be determined, ensuring that this member intersects the section cut at some point along its length
- Make an imaginary cut through the truss, dividing it into two sections
- The cut should pass through no more than three members whose forces are unknown, including the desired member
- Choose one of the two sections to analyze and indicate the portion of the truss that is being removed
- It is often best to select the section that has more known forces or will result in simpler calculations
Analyzing the Section
- Draw a free body diagram of the section of the truss that remains after the cut, showing all external forces, reactions, and unknown member forces exposed by the cut
- Represent the unknown member forces as vectors, assuming they act in the positive direction (tension) until calculations reveal otherwise
- If the calculated force is negative, the member is in compression
- Write and solve the equilibrium equations (ΣFx = 0, ΣFy = 0, and ΣM = 0) for the section of the truss
- If needed, take the moment about a point where the lines of action of the other unknown forces intersect to eliminate them from the equation
- Repeat the process with additional sections and cuts as necessary to determine all required member forces
Verifying Results
- Verify the results by checking that the equilibrium equations are satisfied for all sections
- Ensure that the determined forces are consistent with the properties of the truss and its supports (e.g., a member in compression should not have a positive force value)
Truss Analysis Method Selection
Advantages of the Method of Joints
- The method of joints is most efficient for trusses with a high degree of static indeterminacy, where there are many more members than equilibrium equations available
- It is systematic and can be used to find forces in all members
- The method of joints is preferred when the external reactions can be easily determined and when there are joints with only two unknown member forces
- It is also useful for verifying the results of the method of sections
Advantages of the Method of Sections
- The method of sections is most effective for determining the force in a specific member or a small group of members without solving for all member forces
- It is particularly useful when the force in a member cannot be found by inspection or the method of joints alone
- The method of sections is advantageous when the external reactions are not easily determined, as it can be applied without knowing all reaction forces
- It is also helpful for analyzing compound trusses or trusses with complex geometries (e.g., a Pratt truss or a Howe truss)
Combining Methods
- In some cases, a combination of both methods may be necessary to fully analyze a truss
- The method of joints can be used to determine as many member forces as possible, and the method of sections can be employed to find the remaining unknown forces
- The choice of method may also depend on the specific problem requirements, such as the need to find the force in a particular member (e.g., a critical tension member) or to verify the results using a different approach
Key Terms to Review (18)
Compound truss: A compound truss is a structural framework composed of multiple smaller trusses interconnected to support larger loads or span greater distances. These trusses work together, enhancing the overall stability and strength of the structure while allowing for efficient load distribution across multiple members.
Concurrent Forces: Concurrent forces are forces that act on a single point or object and their lines of action intersect at that point. This concept is crucial for analyzing the effects of multiple forces that are applied simultaneously, allowing for the simplification of complex systems by determining the resultant force. Understanding concurrent forces helps in solving problems related to the balance of forces, stability of structures, and the conditions required for equilibrium.
Distributed Load: A distributed load is a force applied uniformly over a length of a structural element, such as a beam, rather than at a single point. This type of loading is crucial in understanding how structures respond to various forces, as it influences shear forces, bending moments, and ultimately the stability and safety of structures.
Equilibrium: Equilibrium refers to a state in which all forces and moments acting on a system are balanced, resulting in no net force or acceleration. This balance is crucial in analyzing structures and mechanical systems, as it ensures stability and prevents motion. Understanding equilibrium allows for the application of various methods to solve problems related to forces, energy, and material behavior.
Force Diagram: A force diagram is a graphical representation that illustrates all the forces acting on an object or a system. It provides a clear visualization of the direction and magnitude of each force, helping in the analysis of static structures and mechanical systems. By simplifying complex interactions into a manageable visual format, force diagrams are essential for analyzing forces in trusses and other structures.
Free-body diagram: A free-body diagram is a graphical representation used to visualize the forces acting on an object, showing all external forces and moments applied to that body while isolating it from its surroundings. This tool is essential for analyzing the equilibrium and motion of structures, facilitating the understanding of how forces interact in various scenarios.
Internal Forces: Internal forces are the forces that develop within a structure or body as a response to external loads or constraints. These forces are crucial in analyzing the behavior of materials under load, as they help to determine the stress and strain experienced by various components of a structure, ensuring safety and stability.
Joint: A joint is a connection point where two or more members of a structure meet and transfer forces between them. In trusses, joints are critical as they allow for the distribution of loads and help maintain the overall stability of the structure. Understanding the behavior of joints is essential for analyzing the forces within truss systems using various methods.
Member: In structural engineering, a member is a fundamental component of a structure, such as a beam, column, or truss element, which supports loads and contributes to the overall stability and integrity of the structure. Members are crucial in distributing forces and maintaining equilibrium within frameworks like trusses, allowing for efficient load transfer through various connections and joints.
Method of joints: The method of joints is a technique used in statics to analyze trusses by isolating each joint and applying the principles of equilibrium to determine the internal forces acting on the members. This approach relies on the idea that each joint in a truss is in static equilibrium, which means the sum of forces acting at that joint must equal zero. By systematically applying this method to each joint, it becomes possible to solve for unknown forces in the truss members, making it essential for analyzing structures under various loads.
Method of sections: The method of sections is a technique used in statics to analyze the internal forces in a truss by making a cut through the truss and applying equilibrium equations to the resulting sections. This method allows for the determination of member forces without having to analyze the entire structure, which simplifies calculations and provides a clear understanding of how loads are transferred within the truss.
Pinned support: A pinned support is a type of structural support that allows rotation but prevents translation in any direction. This means it can resist vertical and horizontal forces while allowing the connected member to rotate freely. Pinned supports are crucial in analyzing structures since they contribute to equilibrium, influence load distribution, and impact the overall stability of frameworks.
Point Load: A point load is a force applied at a specific location on a structural element, resulting in concentrated stress at that point. This type of load is crucial in analyzing how structures respond to various forces, particularly in understanding how it affects the overall stability and strength of beams, trusses, and frames.
Roller support: A roller support is a type of structural support that allows a beam or structure to rotate and move horizontally while resisting vertical loads. This flexibility enables structures to accommodate thermal expansion and other movements, making roller supports essential in various engineering applications.
Simple truss: A simple truss is a structural framework made up of triangular units connected at joints, which distributes loads effectively while maintaining stability and minimizing material use. These structures are commonly used in bridges and roofs, taking advantage of their geometric properties to resist external forces efficiently. Each member in a simple truss is assumed to carry only axial forces, either tension or compression, making analysis more straightforward.
Static Equilibrium: Static equilibrium occurs when an object is at rest and all forces acting on it are balanced, resulting in no net force or moment acting on it. This condition ensures that the object remains in a stable state without any movement or rotation, which is crucial for understanding various engineering principles such as force distribution, load analysis, and structural integrity.
Sum of forces: The sum of forces is the vector total of all the individual forces acting on a body or structure, determining its overall motion or equilibrium. This concept is fundamental in analyzing static and dynamic systems, as it helps in predicting how structures will respond to various loads. When the sum of forces equals zero, the structure is in equilibrium, which is crucial for ensuring stability and safety in engineering designs.
Sum of Moments: The sum of moments refers to the total torque or rotational effect about a point caused by forces acting on a body. It is calculated by multiplying each force by its perpendicular distance from the point of rotation and summing these products. This concept is crucial in analyzing static equilibrium, where the sum of moments must equal zero for a structure to remain stable and balanced.
