9.4 Multi-resolution Analysis Framework
4 min read•july 30, 2024
(MRA) is a powerful tool in wavelet theory, allowing signals to be broken down into different scales. It provides a systematic way to construct wavelets and analyze signals at various levels of detail, making it crucial for many signal processing tasks.
MRA's nested subspace structure and scaling/wavelet functions form the backbone of this framework. This approach enables efficient and reconstruction, leading to applications in compression, denoising, and feature extraction. Understanding MRA is key to grasping the practical uses of wavelets.
Multi-resolution analysis in wavelet theory
Fundamentals of MRA
Top images from around the web for Fundamentals of MRA

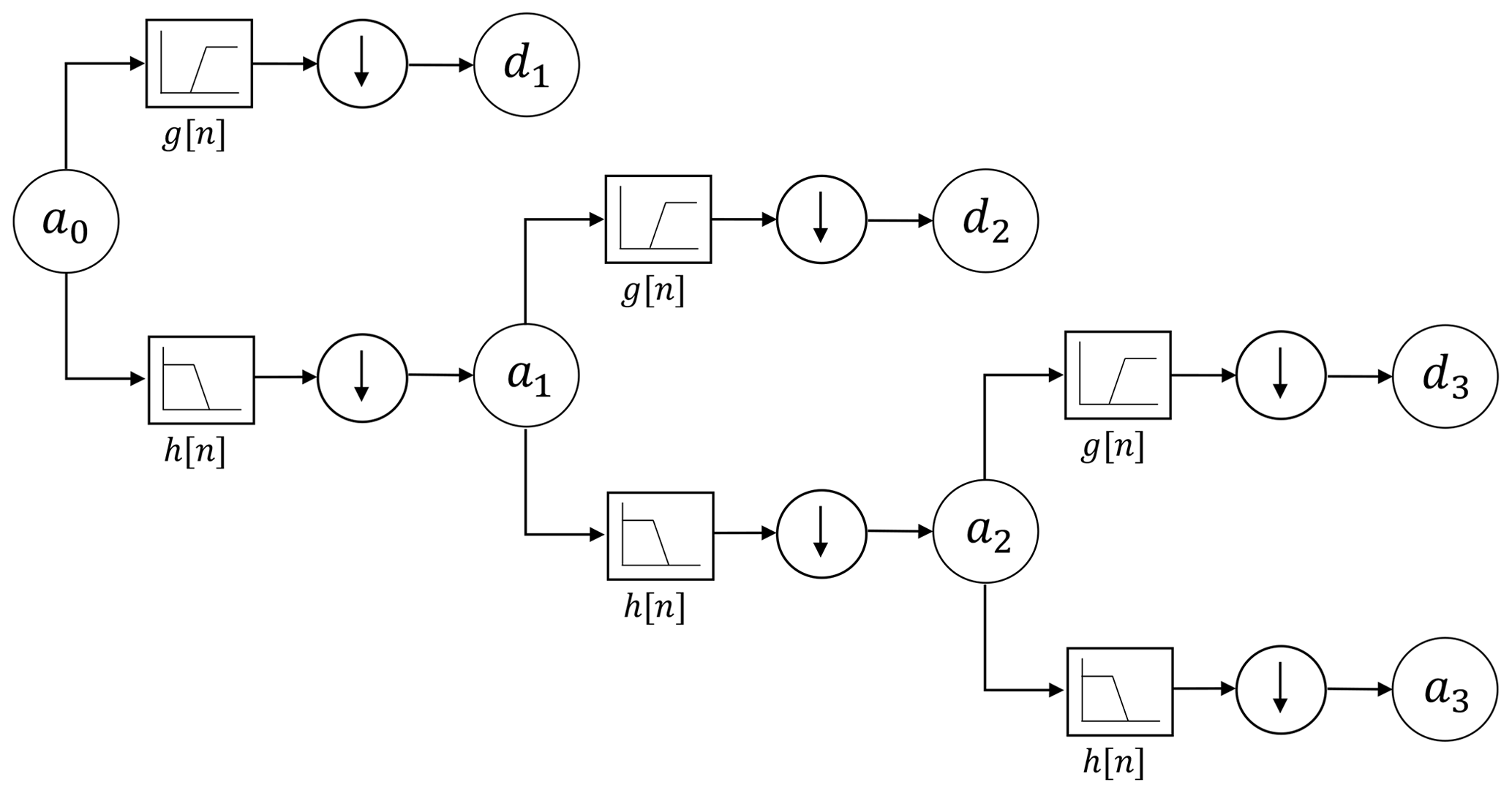

GI - Multiresolution wavelet analysis applied to GRACE range-rate residuals View original
Is this image relevant?
GI - Multiresolution wavelet analysis applied to GRACE range-rate residuals View original
Is this image relevant?

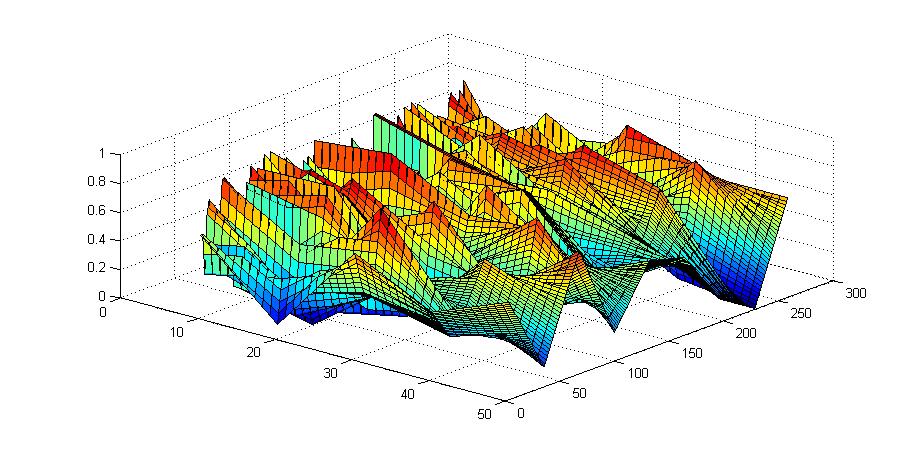

signal processing - Multiresolution Discrete Wavelet 3D Plot in Matlab - Stack Overflow View original
Is this image relevant?
GI - Multiresolution wavelet analysis applied to GRACE range-rate residuals View original
Is this image relevant?
GI - Multiresolution wavelet analysis applied to GRACE range-rate residuals View original
Is this image relevant?
1 of 3
Top images from around the web for Fundamentals of MRA
GI - Multiresolution wavelet analysis applied to GRACE range-rate residuals View original
Is this image relevant?
GI - Multiresolution wavelet analysis applied to GRACE range-rate residuals View original
Is this image relevant?
signal processing - Multiresolution Discrete Wavelet 3D Plot in Matlab - Stack Overflow View original
Is this image relevant?
GI - Multiresolution wavelet analysis applied to GRACE range-rate residuals View original
Is this image relevant?
GI - Multiresolution wavelet analysis applied to GRACE range-rate residuals View original
Is this image relevant?
1 of 3
- Multi-resolution analysis (MRA) is a mathematical framework that provides a systematic way to construct and analyze wavelets and their associated scaling functions
- MRA allows for the decomposition of a signal into a hierarchy of approximations and details at different scales or resolutions, enabling the analysis of signal features at various levels of detail
- The key components of MRA are the nested subspaces, scaling functions, and wavelet functions, which work together to provide a complete and efficient representation of the signal
- MRA forms the theoretical foundation for the construction of orthogonal and biorthogonal wavelet bases, which are widely used in signal processing (), and numerical analysis
Benefits and applications of MRA
- MRA provides a structured approach to wavelet construction and analysis, facilitating the development of efficient algorithms for signal processing tasks
- The multi-scale representation of signals in MRA allows for the extraction of relevant features and the suppression of noise or irrelevant information
- MRA has been successfully applied in various domains, such as image and video compression (JPEG2000), denoising, feature extraction, and pattern recognition
- The hierarchical nature of MRA enables the efficient computation of wavelet transforms, making it suitable for real-time applications and large-scale data processing
Nested subspace structure in MRA
Properties of nested subspaces
- In MRA, a sequence of nested subspaces {V_j}_j∈ℤ is constructed, where each subspace V_j represents the space of approximations at a particular scale or resolution j
- The nested subspace structure satisfies the following properties:
- V_j ⊂ V_{j+1} for all j∈ℤ, meaning that each subspace is contained within the next higher-resolution subspace
- ⋂_{j∈ℤ} V_j = {0}, indicating that the intersection of all subspaces is the trivial subspace containing only the zero function
- ⋃_{j∈ℤ} V_j is dense in L²(ℝ), meaning that the union of all subspaces is dense in the space of square-integrable functions
- f(x) ∈ V_j ⟺ f(2x) ∈ V_{j+1}, implying that if a function belongs to a subspace, then its scaled version belongs to the next higher-resolution subspace
Scaling and wavelet functions
- The φ(x) generates the nested subspaces and satisfies the two-scale relation: φ(x) = ∑_k h_k φ(2x-k), where h_k are the scaling function coefficients
- The scaling function acts as a low-pass filter, capturing the coarse-scale information of the signal
- Examples of scaling functions include the Haar scaling function and the Daubechies scaling functions
- The ψ(x) is derived from the scaling function and is responsible for capturing the details between successive approximation spaces
- The wavelet function satisfies the two-scale relation: ψ(x) = ∑_k g_k φ(2x-k), where g_k are the wavelet coefficients
- The wavelet function acts as a high-pass filter, capturing the fine-scale details of the signal
- Examples of wavelet functions include the and the Daubechies wavelets
- The scaling and wavelet functions form orthonormal bases for their respective subspaces, enabling the efficient decomposition and reconstruction of signals
Signal analysis using MRA
Decomposition and reconstruction
- To analyze a signal using MRA, the signal is projected onto the nested subspaces, resulting in a series of approximations and details at different scales
- The at scale j, denoted as a_j[k], represent the low-frequency or coarse-scale information of the signal and are obtained by the inner product of the signal with the scaling functions at that scale
- The at scale j, denoted as d_j[k], represent the high-frequency or fine-scale information of the signal and are obtained by the inner product of the signal with the wavelet functions at that scale
- The decomposition process can be performed iteratively, with each subsequent level providing a coarser approximation and finer details of the signal
- The approximation and detail coefficients can be used to reconstruct the original signal perfectly, as the scaling and wavelet functions form a complete basis for the signal space
Interpretation and applications
- By examining the magnitude and distribution of the approximation and detail coefficients across scales, one can gain insights into the signal's characteristics, such as its frequency content (low-frequency vs. high-frequency components), local features (edges, singularities), and regularity (smoothness)
- MRA-based signal analysis has numerous applications, including:
- Denoising: Removing noise from signals by thresholding or modifying the wavelet coefficients
- Compression: Efficiently representing signals by retaining only the most significant wavelet coefficients
- Feature extraction: Identifying and extracting relevant features from signals based on their multi-scale representation
- Pattern recognition: Classifying or clustering signals based on their wavelet coefficients and multi-scale properties
- The multi-scale representation of the signal in MRA is exploited to achieve desired objectives in these applications, leveraging the ability to separate signal components and analyze them at different resolutions
Key Terms to Review (18)
Approximation coefficients: Approximation coefficients are the values that represent the low-frequency components of a signal or function when decomposed using techniques like wavelet transforms. They provide a simplified version of the original signal, capturing its essential features while discarding high-frequency noise. This concept is crucial in various analysis frameworks that aim to represent signals effectively and maintain their important characteristics.
Audio Signal Processing: Audio signal processing involves manipulating and analyzing sound signals to enhance or extract useful information. This includes tasks like filtering noise, equalization, compression, and effects application. By transforming audio signals through various techniques, we can analyze their frequency content, localize time-frequency features, and employ multi-resolution approaches to improve audio quality and representation.
Convolution: Convolution is a mathematical operation that combines two functions to produce a third function, representing how the shape of one is modified by the other. It is particularly useful in signal processing and analysis, as it helps in understanding the effects of filters on signals, providing insights into system behavior and performance.
Daubechies Wavelet: The Daubechies wavelet is a family of wavelets that are used in signal processing and data compression, characterized by their compact support and the ability to provide a high level of smoothness with a minimal number of coefficients. These wavelets are designed to achieve orthonormality and are widely used for their effectiveness in multi-resolution analysis and feature extraction.
Detail coefficients: Detail coefficients are the values obtained from the wavelet transform that capture the high-frequency information of a signal, highlighting abrupt changes and transient features. These coefficients provide critical insights into the finer structures of the signal, enabling effective analysis in various contexts such as time-frequency localization, multi-resolution analysis, and biomedical signal processing.
Discrete Wavelet Transform (DWT): The Discrete Wavelet Transform (DWT) is a mathematical technique used to transform a discrete signal into its wavelet coefficients, enabling multi-resolution analysis. It addresses the limitations of traditional Fourier analysis by providing localized time and frequency information, allowing for better representation of non-stationary signals and images. DWT employs scaling and wavelet functions to analyze different frequency components at various resolutions, making it invaluable for tasks like image compression, watermarking, and biomedical signal analysis.
Haar wavelet: The Haar wavelet is a simple, step-like wavelet used in signal processing and image compression, characterized by its ability to represent data with sharp discontinuities. It is the first and simplest wavelet, making it foundational for understanding more complex wavelets and their applications in various analysis techniques.
Image compression: Image compression is the process of reducing the amount of data required to represent a digital image, allowing for efficient storage and transmission. It is essential for minimizing file sizes while maintaining acceptable visual quality, making it crucial for applications like digital photography, web graphics, and video streaming.
Interpolation: Interpolation is the process of estimating unknown values that fall within a range of known data points. This technique is essential for reconstructing signals or images from sampled data, allowing us to fill in gaps and create continuous representations. By connecting discrete samples, interpolation ensures smoother transitions in reconstructed signals and helps maintain fidelity to the original data.
Inverse Discrete Wavelet Transform (IDWT): The Inverse Discrete Wavelet Transform (IDWT) is a mathematical operation that reconstructs a signal from its wavelet coefficients, effectively reversing the process of the Discrete Wavelet Transform (DWT). This transform plays a crucial role in multi-resolution analysis, allowing the original signal to be retrieved from its decomposed components at various levels of detail, which is essential for applications such as signal processing and image compression.
Localization: Localization refers to the process of analyzing signals in both time and frequency domains, allowing for the examination of signal characteristics at different scales. This concept is crucial as it enables the identification of specific features in signals, which can vary across time and frequency, thus making it fundamental for effective signal processing techniques.
Mallat's Theorem: Mallat's Theorem provides a framework for understanding the relationship between wavelets and multiresolution analysis. It establishes how a signal can be decomposed into different levels of resolution using wavelet coefficients, enabling efficient representation and analysis of data at various scales. This theorem is foundational in connecting the concepts of wavelet bases and the multi-resolution structure of signals, highlighting their applications in compression and feature extraction.
Multi-resolution Analysis: Multi-resolution analysis is a mathematical framework that allows for the representation of signals at multiple levels of detail or resolution. This approach is crucial for analyzing data that has varying characteristics over different scales, facilitating the simultaneous examination of global and local features in a signal or image.
Orthogonality: Orthogonality refers to the concept of perpendicularity in a vector space, where two functions or signals are considered orthogonal if their inner product equals zero. This property is essential in signal processing and analysis as it enables the decomposition of signals into independent components, allowing for clearer analysis and representation.
Scaling Function: A scaling function is a mathematical function used in wavelet theory that helps define the way signals are represented at different resolutions. It acts as a basis for constructing multiresolution analysis, allowing for the decomposition of signals into various frequency components and enabling the representation of data at different scales.
Signal decomposition: Signal decomposition is the process of breaking down a complex signal into simpler, more manageable components. This technique allows for a better understanding of the underlying structures and patterns within the signal, facilitating analysis and processing tasks. By separating a signal into its constituent parts, one can more easily extract features, identify characteristics, and apply various transformations or filters to enhance signal processing techniques.
Signal reconstruction: Signal reconstruction is the process of creating an original signal from its sampled or transformed representation. This process is essential for recovering signals accurately after they have been altered, compressed, or sampled, ensuring that the important information is preserved.
Wavelet function: A wavelet function is a mathematical function that is used to represent data or signals in a multi-resolution framework, allowing for analysis at various scales. Unlike traditional Fourier analysis that decomposes signals into sine and cosine functions, wavelets provide localized frequency information, making them particularly useful for processing non-stationary signals. This unique ability connects wavelet functions to the exploration of different scales and details in signals, enhancing signal representation and analysis.
