12.1 Orthogonal and Biorthogonal Wavelets
5 min read•july 30, 2024
Orthogonal and biorthogonal wavelets are powerful tools in signal processing. They offer different ways to analyze and manipulate signals, each with unique strengths. Orthogonal wavelets provide non-redundant representations, while biorthogonal wavelets offer more flexibility and symmetry.
These wavelets play a crucial role in various applications, from to . Understanding their properties and trade-offs helps in choosing the right wavelet for specific tasks, balancing factors like reconstruction quality, computational efficiency, and signal characteristics.
Orthogonal vs Biorthogonal Wavelets
Properties and Construction Methods
Top images from around the web for Properties and Construction Methods

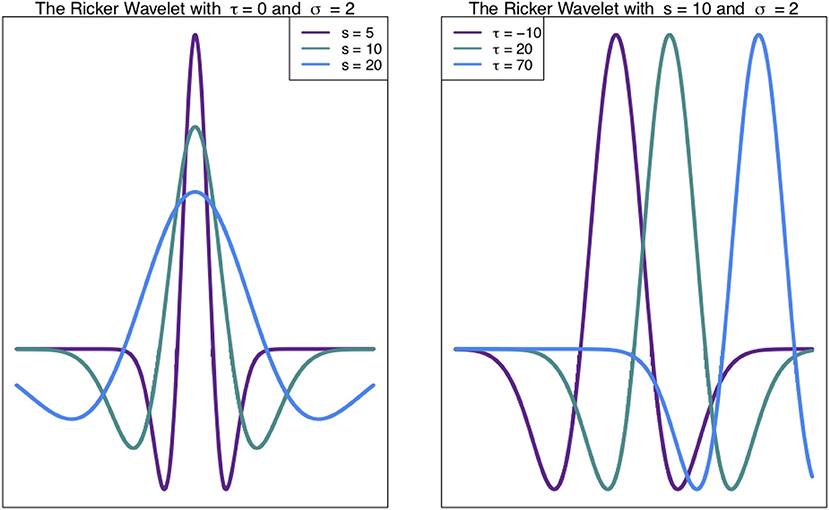

Frontiers | Wavelet-Based Genomic Signal Processing for Centromere Identification and Hypothesis ... View original
Is this image relevant?
signal processing - Wavelets: Cone Of Influence - Mathematics Stack Exchange View original
Is this image relevant?
Frontiers | Wavelet-Based Genomic Signal Processing for Centromere Identification and Hypothesis ... View original
Is this image relevant?
signal processing - Wavelets: Cone Of Influence - Mathematics Stack Exchange View original
Is this image relevant?
1 of 2
Top images from around the web for Properties and Construction Methods
Frontiers | Wavelet-Based Genomic Signal Processing for Centromere Identification and Hypothesis ... View original
Is this image relevant?
signal processing - Wavelets: Cone Of Influence - Mathematics Stack Exchange View original
Is this image relevant?
Frontiers | Wavelet-Based Genomic Signal Processing for Centromere Identification and Hypothesis ... View original
Is this image relevant?
signal processing - Wavelets: Cone Of Influence - Mathematics Stack Exchange View original
Is this image relevant?
1 of 2
- Orthogonal wavelets exhibit orthogonality property where the inner product of any two wavelets from different scales or translations equals zero, resulting in a non-redundant signal representation
- Constructed using a single and a single wavelet function, orthogonal to each other and their integer translations
- Biorthogonal wavelets relax the orthogonality constraint, allowing the use of two different scaling functions and two different wavelet functions for decomposition and reconstruction
- Decomposition and reconstruction functions are orthogonal to their integer translations but not necessarily to each other
- Enables the construction of symmetric wavelets, which is not possible with orthogonal wavelets (Daubechies wavelets)
- Offer more flexibility in filter design, with different filter lengths and for decomposition and reconstruction filters ()
- Perfect reconstruction property is maintained in both types, ensuring original signal can be reconstructed from its wavelet coefficients without information loss
Comparison and Trade-offs
- Orthogonal wavelets provide a non-redundant signal representation, leading to more efficient compression and denoising algorithms
- Orthogonality ensures uncorrelated wavelet coefficients, simplifying statistical analysis and modeling of transformed signals
- Lack symmetry, which can introduce phase distortions in processed signals, problematic in applications like image processing where edge artifacts may occur ()
- Biorthogonal wavelets offer symmetry, crucial in preserving visual quality of processed images and reducing edge artifacts
- Increased flexibility in filter design allows construction of wavelets with desired properties, such as higher vanishing moments or better frequency selectivity, beneficial in specific applications
- Redundancy introduced by biorthogonal wavelets can be advantageous for robustness to noise or data loss, as redundant information aids in signal recovery
- However, redundancy also leads to increased computational complexity and memory requirements compared to orthogonal wavelets
Wavelet Advantages and Limitations
Advantages in Signal Processing
- Orthogonal wavelets provide a non-redundant representation of signals, leading to more efficient compression and denoising algorithms ()
- Orthogonality ensures uncorrelated wavelet coefficients, simplifying statistical analysis and modeling of transformed signals
- Biorthogonal wavelets offer symmetry, crucial in preserving visual quality of processed images and reducing edge artifacts ()
- Increased flexibility in filter design allows construction of wavelets with desired properties, such as higher vanishing moments or better frequency selectivity, beneficial in specific applications
- Redundancy introduced by biorthogonal wavelets can be advantageous for robustness to noise or data loss, as redundant information aids in signal recovery
Limitations and Challenges
- Orthogonal wavelets lack symmetry, which can introduce phase distortions in processed signals, problematic in applications like image processing where edge artifacts may occur
- Redundancy in biorthogonal wavelets leads to increased computational complexity and memory requirements compared to orthogonal wavelets
- Choice between orthogonal and biorthogonal wavelets depends on specific requirements and constraints of the signal processing task
- Computational complexity and memory requirements of the chosen wavelet family should be considered, especially in real-time or resource-constrained applications
- Selection of orthogonal or biorthogonal wavelets should be based on careful analysis of signal characteristics, desired processing objectives, and trade-offs between performance metrics (reconstruction quality, compression ratio, computational complexity)
Wavelet Decomposition and Reconstruction
Discrete Wavelet Transform (DWT)
- Decomposes signals into different frequency bands or scales using orthogonal or biorthogonal wavelets
- Implemented using a filter bank structure, where the signal is passed through a series of low-pass and high-pass filters followed by downsampling operations
- Results in a set of wavelet coefficients representing the signal's information at different scales and frequencies (approximation and detail coefficients)
- Can be applied to various domains, such as time, frequency, and space, depending on the nature of the signal and desired analysis or processing tasks
- In the time domain, wavelets can be used for tasks such as signal denoising, compression, and feature extraction, by manipulating wavelet coefficients based on specific criteria or thresholds
- In the frequency domain, wavelets provide spectral analysis, with coefficients providing information about the signal's frequency content at different scales, enabling identification of localized frequency components or transient events
Inverse Discrete Wavelet Transform (IDWT)
- Reconstructs the original signal from its wavelet coefficients
- Involves upsampling the wavelet coefficients and passing them through a series of reconstruction filters
- Reconstructed signal is obtained by summing the outputs of the reconstruction filters at each scale
- Perfect reconstruction property of orthogonal and biorthogonal wavelets ensures that the original signal can be reconstructed from its wavelet coefficients without loss of information
- Reconstruction process is critical in applications such as data compression, where the goal is to recover the original signal with minimal distortion
- Choice of wavelet family and decomposition levels affects the quality of the reconstructed signal and the computational complexity of the reconstruction process
Wavelet Suitability for Signal Processing
Application-Specific Considerations
- Choice between orthogonal and biorthogonal wavelets depends on specific requirements and constraints of the signal processing task
- For tasks prioritizing compression efficiency and requiring a non-redundant representation, orthogonal wavelets may be more suitable due to their orthogonality property and ability to produce uncorrelated coefficients (audio compression)
- Applications demanding perfect reconstruction and tolerating some redundancy, such as lossless compression or data encryption, may benefit from biorthogonal wavelets
- In image processing tasks (compression, denoising, enhancement), biorthogonal wavelets are often preferred due to their symmetry property, which helps reduce visual artifacts and preserve edge information (JPEG2000)
- For analyzing non-stationary signals or signals with transient components (biomedical signal processing, seismic data analysis), the localization properties of wavelets in both time and frequency domains can be exploited using either orthogonal or biorthogonal wavelets, depending on application-specific requirements
Performance Metrics and Trade-offs
- Computational complexity and memory requirements of the chosen wavelet family should be considered, especially in real-time or resource-constrained applications, where the efficiency of the implementation is critical
- Selection of orthogonal or biorthogonal wavelets should be based on careful analysis of signal characteristics, desired processing objectives, and trade-offs between various performance metrics
- Reconstruction quality: Measure of how closely the reconstructed signal resembles the original signal, often assessed using metrics such as mean squared error (MSE) or peak signal-to-noise ratio (PSNR)
- Compression ratio: Ratio of the size of the original signal to the size of the compressed signal, indicating the amount of data reduction achieved through wavelet-based compression
- Computational complexity: Measure of the time and resources required to perform , processing, and reconstruction, which can impact the feasibility of real-time applications or processing of large datasets
- Ultimately, the choice of wavelet family should strike a balance between the desired performance metrics and the constraints imposed by the specific application and available computational resources
