Fundamentals of embedded design

  • Embedded design forms a crucial component of Advanced Communication Research Methods by enabling the creation of specialized, compact computing systems for various communication applications
  • Understanding embedded design principles allows researchers to develop efficient and tailored solutions for data collection, processing, and transmission in communication studies

Definition and characteristics

Top images from around the web for Definition and characteristics

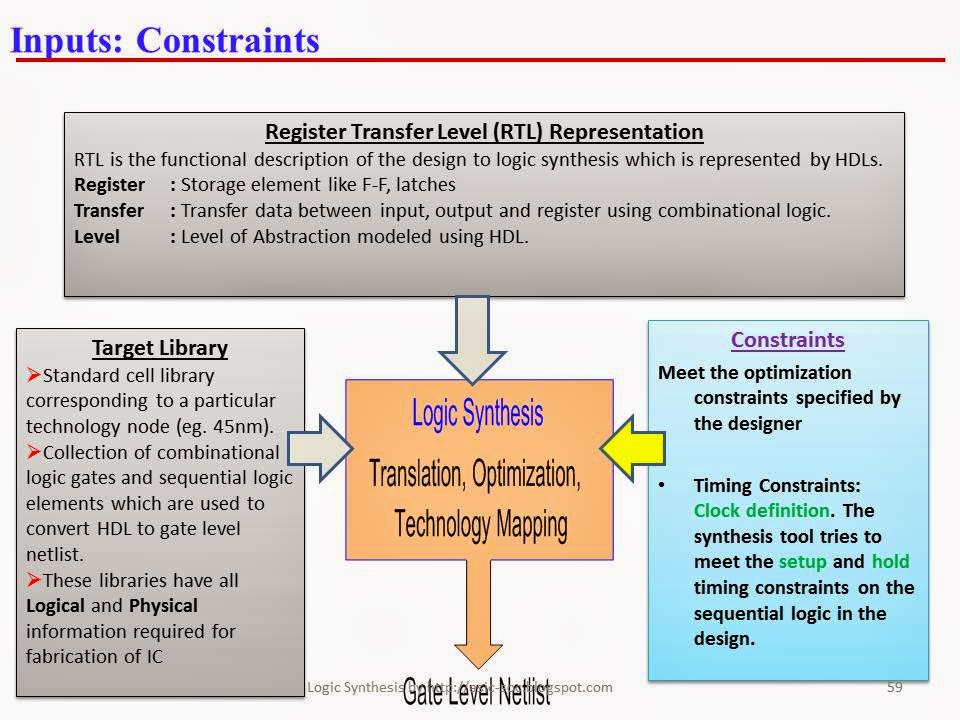

  • ASIC-System on Chip-VLSI Design: Constraints: Clock, Logical DRC, Area, Power View original

    Is this image relevant?

  • ASIC-System on Chip-VLSI Design: Constraints: Clock, Logical DRC, Area, Power View original

    Is this image relevant?

1 of 2

Top images from around the web for Definition and characteristics

  • ASIC-System on Chip-VLSI Design: Constraints: Clock, Logical DRC, Area, Power View original

    Is this image relevant?

  • ASIC-System on Chip-VLSI Design: Constraints: Clock, Logical DRC, Area, Power View original

    Is this image relevant?

1 of 2
  • Embedded systems consist of dedicated computer systems designed for specific functions within larger mechanical or electrical systems
  • Key characteristics include real-time operation, resource constraints (memory, power, processing), and long-term reliability
  • Typically operate without human intervention, often in harsh environments or with limited maintenance access
  • Embedded systems range from simple microcontroller-based designs to complex multi-processor systems-on-chip (SoCs)

Applications in communication systems

  • Wireless sensor networks for environmental monitoring and data collection in research settings
  • Signal processing units in cellular base stations for efficient spectrum utilization
  • Embedded controllers in satellite communication systems for precise orbital adjustments
  • Voice over IP (VoIP) devices for real-time audio communication and analysis
  • Smart home automation systems for studying human-computer interaction patterns

Hardware vs software components

  • Hardware components include microcontrollers, sensors, actuators, and communication interfaces
  • Software components consist of firmware, operating systems, and application-specific code
  • Hardware-software interaction occurs through drivers and abstraction layers
  • Trade-offs between hardware and software implementations impact system performance, cost, and flexibility
    • Hardware implementations often provide better performance but less flexibility
    • Software implementations offer easier updates and modifications but may have higher power consumption

Embedded system architecture

  • Embedded system architecture defines the overall structure and organization of hardware and software components in a system
  • Understanding architecture is essential for researchers to design efficient and scalable communication systems for data collection and analysis

Microcontrollers and microprocessors

  • Microcontrollers integrate CPU, memory, and peripherals on a single chip for compact, low-power designs
  • Microprocessors offer higher performance and flexibility but require additional external components
  • ARM-based processors dominate the embedded market due to their power efficiency and scalability
  • RISC-V architecture gains popularity for its open-source nature and customization options
  • Specialized processors (DSPs, GPUs) enhance performance for specific tasks (signal processing, machine learning)

Memory types and organization

  • ROM (Read-Only Memory) stores boot code and critical system parameters
  • RAM (Random Access Memory) provides temporary storage for program execution and data processing
  • Flash memory serves as non-volatile storage for firmware and user data
  • Memory hierarchy optimizes performance and power consumption
    • Cache memory reduces access times to frequently used data
    • Memory management units (MMUs) handle virtual memory and protection

Input/output interfaces

  • General-purpose input/output (GPIO) pins for simple digital signaling
  • Analog-to-digital converters (ADCs) and digital-to-analog converters (DACs) for interfacing with analog sensors and actuators
  • Communication interfaces (UART, SPI, I2C) for connecting to external devices and sensors
  • High-speed interfaces (USB, Ethernet) for data transfer and network connectivity
  • Specialized interfaces (CAN, LVDS) for automotive and industrial applications

Real-time operating systems

  • Real-time operating systems (RTOS) play a crucial role in Advanced Communication Research Methods by ensuring timely and predictable execution of tasks in data acquisition and processing systems
  • RTOS enables researchers to develop reliable and responsive communication systems for time-critical applications

RTOS vs general-purpose OS

  • RTOS prioritizes deterministic behavior and low latency for time-critical tasks
  • General-purpose OS focuses on fairness and overall system throughput
  • RTOS provides finer-grained control over task scheduling and resource allocation
  • Memory footprint of RTOS is typically smaller, suitable for resource-constrained embedded systems
  • RTOS offers specialized features for embedded applications (watchdog timers, interrupt handling)

Task scheduling algorithms

  • Priority-based scheduling assigns higher priority to critical tasks
  • Round-robin scheduling allocates equal time slices to tasks of the same priority
  • Rate monotonic scheduling assigns priorities based on task periods
  • Earliest Deadline First (EDF) dynamically prioritizes tasks based on approaching deadlines
  • Time-triggered scheduling executes tasks at predetermined time intervals for predictable behavior

Inter-task communication methods

  • Semaphores control access to shared resources and synchronize task execution
  • Message queues facilitate data exchange between tasks with built-in synchronization
  • Mailboxes provide a mechanism for passing messages or data between tasks
  • Event flags enable tasks to signal and wait for specific conditions
  • Mutexes ensure exclusive access to shared resources, preventing race conditions

Embedded software development

  • Embedded software development is integral to Advanced Communication Research Methods as it enables the creation of specialized algorithms and protocols for data processing and transmission
  • Researchers must understand embedded software development techniques to implement and optimize communication systems for their studies

Programming languages for embedded systems

  • C remains the most widely used language due to its efficiency and low-level hardware control
  • C++ offers object-oriented programming features while maintaining performance
  • Assembly language used for performance-critical sections and direct hardware manipulation
  • Python gains popularity for rapid prototyping and high-level embedded applications
  • Domain-specific languages (DSLs) simplify development for specific embedded applications (LabVIEW, MATLAB)

Cross-compilation techniques

  • Cross-compilers generate executable code for a target architecture different from the host system
  • Toolchains include cross-compiler, linker, and libraries for the target platform
  • Build systems (Make, CMake) automate the cross-compilation process
  • Integrated Development Environments (IDEs) often provide built-in support for cross-compilation
  • Emulators and simulators allow testing of cross-compiled code without physical hardware

Debugging and testing strategies

  • In-circuit emulators (ICE) provide real-time debugging capabilities on target hardware
  • JTAG interfaces enable on-chip debugging and programming
  • Logic analyzers capture and analyze digital signals for hardware-software integration issues
  • Unit testing frameworks (Unity, Google Test) validate individual software components
  • Hardware-in-the-loop (HIL) testing simulates real-world conditions for system-level verification
  • Code coverage tools ensure thorough testing of embedded software

Hardware-software co-design

  • Hardware-software co-design is a critical aspect of Advanced Communication Research Methods, enabling researchers to optimize system performance and resource utilization in communication devices
  • This approach allows for the development of efficient and tailored solutions for specific research requirements

Partitioning of functionalities

  • Analyze system requirements to determine optimal hardware-software split
  • Hardware acceleration for computationally intensive tasks (signal processing, encryption)
  • Software implementation for flexibility and ease of updates (user interfaces, protocol stacks)
  • Consider trade-offs between performance, power consumption, and development time
  • Utilize profiling tools to identify bottlenecks and guide partitioning decisions

Interface design considerations

  • Define clear hardware-software interfaces to ensure modularity and maintainability
  • Memory-mapped I/O for efficient communication between hardware and software components
  • Interrupt-driven designs for responsive handling of asynchronous events
  • DMA (Direct Memory Access) for high-speed data transfer without CPU intervention
  • Standardized interfaces (AMBA, AXI) facilitate integration of IP cores and modules

Performance optimization techniques

  • Pipelining to increase throughput in both hardware and software implementations
  • Parallelism exploitation through multi-core processors or custom hardware accelerators
  • Memory hierarchy optimization to reduce access latencies and power consumption
  • Compiler optimizations for efficient code generation (loop unrolling, function inlining)
  • Dynamic voltage and frequency scaling (DVFS) to balance performance and power consumption

Communication protocols in embedded systems

  • Communication protocols in embedded systems are fundamental to Advanced Communication Research Methods, enabling data exchange and connectivity in research environments
  • Understanding these protocols allows researchers to design effective data collection and transmission systems for their studies

Serial communication interfaces

  • UART (Universal Asynchronous Receiver/Transmitter) for simple point-to-point communication
  • SPI (Serial Peripheral Interface) enables high-speed, full-duplex communication with multiple devices
  • I2C (Inter-Integrated Circuit) supports multi-master, multi-slave configurations on a two-wire bus
  • CAN (Controller Area Network) provides robust communication in noisy environments (automotive)
  • MIDI (Musical Instrument Digital Interface) for real-time communication in audio applications

Wireless protocols for embedded devices

  • Bluetooth Low Energy (BLE) for short-range, low-power communication in IoT devices
  • Wi-Fi enables high-bandwidth wireless connectivity for embedded systems
  • ZigBee supports low-power mesh networking for sensor networks and home automation
  • LoRaWAN provides long-range, low-power communication for IoT applications
  • NFC (Near Field Communication) enables short-range, high-frequency wireless communication

Network stacks for embedded systems

  • lwIP (lightweight IP) provides a compact TCP/IP stack for resource-constrained devices
  • uIP (micro IP) offers a minimal TCP/IP implementation for 8-bit and 16-bit microcontrollers
  • FreeRTOS+TCP integrates a TCP/IP stack with the FreeRTOS real-time operating system
  • Mbed TLS enables secure communication for embedded devices with limited resources
  • MQTT (Message Queuing Telemetry Transport) facilitates publish-subscribe messaging for IoT devices

Power management in embedded design

  • Power management in embedded design is crucial for Advanced Communication Research Methods, enabling the development of long-lasting and energy-efficient data collection and communication systems
  • Effective power management techniques allow researchers to deploy remote sensing and communication devices for extended periods without frequent maintenance

Low-power design techniques

  • Clock gating disables unused clock domains to reduce dynamic power consumption
  • Power gating cuts off power supply to inactive circuit blocks
  • Dynamic voltage and frequency scaling (DVFS) adjusts processor performance based on workload
  • Sleep modes (idle, standby, hibernate) reduce power consumption during inactive periods
  • Peripheral management powers down unused peripherals and optimizes their usage

Battery management systems

  • Fuel gauging algorithms accurately estimate remaining battery capacity
  • Charge controllers optimize charging processes to extend battery lifespan
  • Battery protection circuits prevent overcharging, over-discharging, and short circuits
  • Smart battery systems provide communication between battery and host device
  • Battery balancing techniques ensure even charge distribution in multi-cell batteries

Energy harvesting methods

  • Solar energy harvesting using photovoltaic cells for outdoor applications
  • Piezoelectric energy harvesting converts mechanical vibrations into electrical energy
  • Thermoelectric generators exploit temperature differences to generate power
  • RF energy harvesting captures ambient radio frequency signals for power generation
  • Kinetic energy harvesting from human motion or environmental sources (wind, water flow)

Security considerations

  • Security considerations in embedded systems are essential for Advanced Communication Research Methods to ensure data integrity, confidentiality, and system reliability in research environments
  • Implementing robust security measures protects sensitive research data and prevents unauthorized access or tampering of communication systems

Secure boot and firmware updates

  • Secure boot process verifies integrity of firmware before execution
  • Chain of trust established through cryptographic signatures and hardware root of trust
  • Secure firmware update mechanisms prevent unauthorized or malicious updates
  • Rollback protection prevents downgrading to vulnerable firmware versions
  • Secure storage for cryptographic keys and sensitive configuration data

Encryption in embedded systems

  • Symmetric encryption algorithms (AES, ChaCha20) for efficient data protection
  • Public key cryptography (RSA, ECC) for secure key exchange and digital signatures
  • Authenticated encryption modes (GCM, CCM) provide confidentiality and integrity
  • Lightweight cryptographic algorithms optimized for resource-constrained devices
  • Hardware acceleration for cryptographic operations to improve performance and security

Hardware security modules

  • Dedicated cryptographic coprocessors for secure key storage and operations
  • Trusted Platform Modules (TPM) provide hardware-based security functions
  • Secure elements store sensitive data and perform cryptographic operations
  • Physical Unclonable Functions (PUFs) generate unique device identifiers
  • Side-channel attack resistance through power analysis countermeasures

Reliability and fault tolerance

  • Reliability and fault tolerance are critical aspects of Advanced Communication Research Methods, ensuring the continuous operation of data collection and communication systems in challenging environments
  • Implementing robust fault tolerance mechanisms enables researchers to conduct long-term studies with minimal interruptions and data loss

Redundancy techniques

  • Hardware redundancy through duplicate components or systems (triple modular redundancy)
  • Software redundancy using diverse implementations of critical algorithms
  • Information redundancy with error-correcting codes for data storage and transmission
  • Time redundancy through repeated execution of critical tasks
  • Functional redundancy by providing alternative means to accomplish critical functions

Error detection and correction

  • Cyclic Redundancy Check (CRC) for detecting transmission errors in communication systems
  • Error-Correcting Codes (ECC) for memory and storage systems (Hamming codes, Reed-Solomon)
  • Parity bits for simple error detection in data storage and transmission
  • Checksums for verifying data integrity in file systems and network protocols
  • Forward Error Correction (FEC) for improving reliability in noisy communication channels

Watchdog timers and system resets

  • Hardware watchdog timers detect software hang-ups and trigger system resets
  • Software watchdog implementations for monitoring specific tasks or processes
  • Hierarchical watchdog systems for complex multi-processor designs
  • Graceful degradation strategies to maintain partial functionality during failures
  • System reset management to ensure proper initialization and recovery procedures

Embedded design for IoT

  • Embedded design for IoT is a crucial area in Advanced Communication Research Methods, enabling the development of interconnected devices for data collection and analysis in various research domains
  • Understanding IoT-specific embedded design principles allows researchers to create scalable and efficient systems for large-scale studies and real-time data processing

Edge computing concepts

  • Distributed computing model that brings processing closer to data sources
  • Reduces latency and bandwidth requirements by processing data locally
  • Enhances privacy and security by minimizing data transmission to the cloud
  • Enables real-time decision-making and responsive system behavior
  • Supports offline operation and resilience to network disruptions

Cloud connectivity for embedded devices

  • MQTT protocol for lightweight publish-subscribe messaging in IoT devices
  • CoAP (Constrained Application Protocol) for resource-constrained devices in IoT networks
  • HTTP/HTTPS for RESTful communication with cloud services
  • WebSocket protocol for full-duplex, real-time communication
  • TLS/DTLS for securing communication between embedded devices and cloud services

Data processing at the edge

  • Local data aggregation and filtering to reduce cloud communication overhead
  • On-device machine learning for real-time inference and decision-making
  • Time series analysis for trend detection and anomaly identification
  • Signal processing algorithms for sensor data conditioning and feature extraction
  • Data compression techniques to optimize storage and transmission efficiency
  • Future trends in embedded design shape the direction of Advanced Communication Research Methods by introducing new technologies and methodologies for data collection, processing, and analysis
  • Staying informed about these trends enables researchers to develop cutting-edge communication systems and explore novel research opportunities

AI and machine learning integration

  • On-device neural network inference for real-time decision-making and pattern recognition
  • TinyML frameworks enable machine learning on resource-constrained embedded devices
  • Hardware accelerators for AI workloads (NPUs, TPUs) in embedded systems
  • Federated learning techniques for distributed model training across embedded devices
  • Edge AI for privacy-preserving and reduced cloud dependence

Quantum computing in embedded systems

  • Quantum sensors for ultra-precise measurements in communication and navigation systems
  • Quantum key distribution (QKD) for secure communication in embedded devices
  • Hybrid classical-quantum algorithms for optimization problems in embedded systems
  • Quantum-resistant cryptography to protect against future quantum computer attacks
  • Quantum-inspired algorithms for solving complex problems on classical embedded hardware

Emerging embedded architectures

  • Neuromorphic computing architectures mimicking brain function for efficient AI processing
  • Photonic computing for high-speed, low-power data processing in embedded systems
  • DNA-based computing for ultra-dense data storage and parallel processing
  • 3D-stacked chip architectures for improved performance and reduced form factors
  • Reconfigurable computing platforms (FPGAs, CGRAs) for adaptive embedded systems

Key Terms to Review (18)

Concurrent triangulation: Concurrent triangulation is a mixed-method research approach that involves the simultaneous collection and analysis of qualitative and quantitative data to gain a comprehensive understanding of a research question. This method allows researchers to validate and enhance their findings by comparing insights gained from different data sources, thus enriching the overall interpretation of the results.
Contextualization: Contextualization is the process of placing information within its relevant framework or setting to enhance understanding. It allows researchers to interpret data and events in light of the surrounding circumstances, culture, and historical background, which is crucial for making sense of complex phenomena. This practice ensures that findings are not viewed in isolation but rather as part of a larger narrative that includes multiple perspectives and dimensions.
Convergent design: Convergent design is a mixed methods research approach that involves the simultaneous collection and analysis of both qualitative and quantitative data, with the goal of integrating the findings to provide a comprehensive understanding of a research problem. This approach allows researchers to triangulate results, validating and enriching the overall conclusions drawn from the study by drawing on the strengths of both data types.
Data analysis: Data analysis is the process of inspecting, cleansing, transforming, and modeling data with the goal of discovering useful information, informing conclusions, and supporting decision-making. It involves using statistical and computational techniques to interpret and visualize data, which can enhance understanding and provide insights that influence various research designs and approaches.
Data collection: Data collection refers to the systematic process of gathering, measuring, and analyzing information from various sources to answer research questions or evaluate outcomes. This process is crucial in various research designs, ensuring the integrity and relevance of findings by employing specific methods tailored to the study's objectives.
David L. Morgan: David L. Morgan is a prominent figure in qualitative research, particularly known for his contributions to mixed methods research and design. His work emphasizes the importance of integrating qualitative and quantitative approaches to enhance the richness and depth of research findings, particularly in complex social settings. He has developed various frameworks that help researchers understand how to effectively combine different methods to achieve comprehensive insights.
Depth of understanding: Depth of understanding refers to the thoroughness and complexity of knowledge that a person has about a subject, going beyond surface-level facts to grasp underlying principles and relationships. This concept is crucial when assessing how well information is integrated and applied in various contexts, allowing for richer insights and more informed decisions.
Education research: Education research is the systematic investigation of teaching, learning, and educational processes to improve educational outcomes and inform policy decisions. It encompasses various methodologies to explore how educational systems operate, assess educational practices, and evaluate the effectiveness of programs and interventions.
Embedded Experimental Design: Embedded experimental design refers to a research framework where experimental elements are integrated within a larger, often non-experimental study. This approach allows researchers to assess causal relationships while considering the complexities of real-world settings, making it a valuable tool for gathering nuanced insights and data.
Health communication: Health communication refers to the study and practice of how information is conveyed and understood in the context of health and healthcare. It involves the exchange of information between patients, healthcare providers, and the public to promote health awareness, encourage healthy behaviors, and improve healthcare outcomes. This term encompasses various strategies, including messaging, public health campaigns, and interpersonal communication.
Integration challenges: Integration challenges refer to the difficulties faced when attempting to combine different methodologies, data sources, or systems within a research framework. These challenges often arise in the context of ensuring that the various components of a study work harmoniously together, maintaining the integrity and quality of the research outcomes while navigating issues like data compatibility and methodological consistency.
Jennifer C. Greene: Jennifer C. Greene is a prominent scholar known for her significant contributions to the field of mixed methods research, particularly in education and social science. Her work emphasizes the importance of integrating qualitative and quantitative approaches to enhance research findings, making them more comprehensive and applicable. Greene's insights have influenced various research designs and have established frameworks that help researchers understand when and how to effectively combine different methodologies.
Mixed methods: Mixed methods refers to a research approach that combines both quantitative and qualitative techniques in order to gain a more comprehensive understanding of a research problem. This method allows researchers to leverage the strengths of both types of data, providing richer insights and validating findings through triangulation. It connects well with various philosophical frameworks and designs, enhancing the research process.
Nested sampling: Nested sampling is a statistical method used for estimating the likelihood of a model given observed data, often utilized in complex systems where traditional methods struggle. This technique involves creating layers or 'nested' sets of samples that allow researchers to explore the parameter space effectively, providing improved estimates of the posterior distribution and evidence for model comparison. It is especially useful in Bayesian inference, where understanding the likelihood function is critical.
Pragmatism: Pragmatism is a philosophical approach that evaluates theories or beliefs based on their practical consequences and applications rather than their abstract principles. It emphasizes the importance of action and the practical implications of ideas, which aligns with the understanding that knowledge is often shaped by experiences and outcomes in real-world contexts.
Qualitative-quantitative integration: Qualitative-quantitative integration is a research approach that combines qualitative and quantitative methods to provide a more comprehensive understanding of a research problem. This integration helps leverage the strengths of both methodologies, where qualitative data offers in-depth insights and contextual understanding, while quantitative data provides measurable and generalizable results.
Triangulation: Triangulation is a method used in research to enhance the credibility and validity of study findings by combining multiple perspectives, data sources, or methodologies. This approach allows researchers to cross-verify results, providing a more comprehensive understanding of the research problem and reducing biases that may arise from relying on a single method or source.
Validity Issues: Validity issues refer to the concerns regarding the accuracy and credibility of a research study's findings. They highlight whether the research truly measures what it claims to measure, and whether the results can be generalized to broader contexts. These issues are essential for establishing the integrity of research conclusions and ensuring that the methods used align with the intended objectives.
© 2024 Fiveable Inc. All rights reserved.
AP® and SAT® are trademarks registered by the College Board, which is not affiliated with, and does not endorse this website.
Back
Practice QuizGlossary
Practice QuizGlossary
Next guide
