Current divider rule

Definition

The current divider rule is a principle used in electrical engineering to determine how current is distributed among parallel branches in a circuit. It states that the current flowing through a particular branch is proportional to the inverse of its resistance when connected in parallel with other resistances. This concept is crucial for analyzing circuits and helps to simplify calculations when dealing with multiple paths for current flow.

5 Must Know Facts For Your Next Test

1. The current divider rule can be expressed mathematically as $$I_x = I_{total} \times \frac{R_{total}}{R_x}$$, where $$I_x$$ is the current through branch x, $$I_{total}$$ is the total current entering the parallel network, $$R_{total}$$ is the total equivalent resistance of the parallel circuit, and $$R_x$$ is the resistance of branch x.
2. In a simple parallel circuit with two resistors, if one resistor has half the resistance of the other, it will carry twice as much current according to the current divider rule.
3. The current divider rule only applies to parallel circuits; it cannot be used for series circuits where current remains constant throughout.
4. When applying the current divider rule, it's important to remember that the total current entering a junction equals the sum of the currents flowing through each branch.
5. Using the current divider rule simplifies complex circuit analysis by allowing you to quickly determine how much current flows through each branch without having to calculate voltages.

Review Questions

• How does the current divider rule help in analyzing parallel circuits compared to other methods?
  • The current divider rule provides a straightforward way to calculate how much current flows through each resistor in a parallel circuit without needing to find voltage drop across each component. Instead of using complicated equations, it uses resistance values and total current, making it simpler and faster. This efficiency is particularly useful when dealing with circuits that have multiple branches and helps avoid errors in calculations.

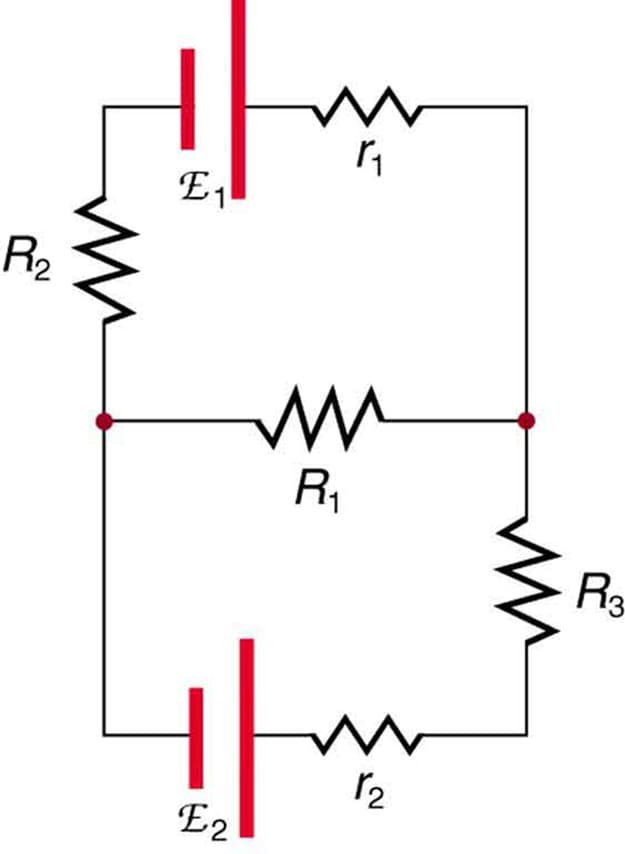

• Explain how Kirchhoff's Current Law and the current divider rule are interconnected in circuit analysis.
  • Kirchhoff's Current Law states that the total current entering a junction equals the total current leaving it, which lays the foundation for using the current divider rule. When applying this law in a parallel circuit, you can use the current divider rule to determine how much of that total current splits among different branches. The interconnectedness of these two principles allows engineers to analyze complex networks effectively by first ensuring conservation of charge and then calculating specific branch currents.
• Evaluate a scenario where understanding the current divider rule impacts design decisions for an RLC circuit.
  • In designing an RLC circuit, knowledge of the current divider rule can significantly impact component selection and placement. For instance, if an engineer wants certain components to receive specific amounts of current for optimal performance, they can manipulate resistor values accordingly. By using this rule, they can ensure that sensitive components get just enough power while preventing overheating or damage. This evaluation not only aids in meeting performance criteria but also contributes to overall circuit reliability and efficiency.

Related terms

Ohm's Law:

A fundamental relationship in electronics stating that the current through a conductor between two points is directly proportional to the voltage across the two points and inversely proportional to the resistance.

Kirchhoff's Current Law:

A principle stating that the total current entering a junction in an electrical circuit must equal the total current leaving the junction.

Parallel Circuit:

A type of electrical circuit where two or more components are connected across the same voltage source, resulting in multiple paths for current to flow.
