8.4 Experimental modal analysis techniques
3 min read•july 30, 2024
Experimental modal analysis techniques are crucial for understanding how structures behave under dynamic loads. These methods involve exciting structures and measuring their responses to determine natural frequencies, damping, and .
From to , engineers use various approaches to gather data. This information helps optimize designs, monitor structural health, and validate computer models across industries like aerospace and civil engineering.
Experimental Modal Analysis Techniques
Impact and Shaker Testing Methods
Top images from around the web for Impact and Shaker Testing Methods

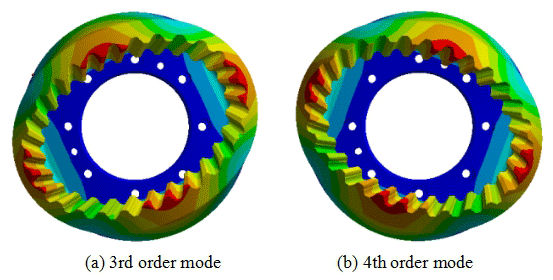

MS - Dynamic modal analysis of double-sided meshing nutation drive with double circular arc ... View original
Is this image relevant?
MS - Dynamic modal analysis of double-sided meshing nutation drive with double circular arc ... View original
Is this image relevant?
WES - A novel rotor blade fatigue test setup with elliptical biaxial resonant excitation View original
Is this image relevant?
MS - Dynamic modal analysis of double-sided meshing nutation drive with double circular arc ... View original
Is this image relevant?
MS - Dynamic modal analysis of double-sided meshing nutation drive with double circular arc ... View original
Is this image relevant?
1 of 3
Top images from around the web for Impact and Shaker Testing Methods
MS - Dynamic modal analysis of double-sided meshing nutation drive with double circular arc ... View original
Is this image relevant?
MS - Dynamic modal analysis of double-sided meshing nutation drive with double circular arc ... View original
Is this image relevant?
WES - A novel rotor blade fatigue test setup with elliptical biaxial resonant excitation View original
Is this image relevant?
MS - Dynamic modal analysis of double-sided meshing nutation drive with double circular arc ... View original
Is this image relevant?
MS - Dynamic modal analysis of double-sided meshing nutation drive with double circular arc ... View original
Is this image relevant?
1 of 3
- Experimental modal analysis (EMA) determines dynamic characteristics of structures through physical testing and measurement
- Impact testing excites the structure with a calibrated impact hammer and measures response with accelerometers
- applies controlled excitation forces to the structure over a range of frequencies using electrodynamic or hydraulic shakers
- Roving hammer and roving techniques obtain mode shapes for larger structures
- (MIMO) testing captures complex mode shapes and closely spaced modes through simultaneous excitation at multiple points
Advanced Modal Analysis Approaches
- Operational modal analysis (OMA) uses only output responses of a structure under normal operating conditions without artificial excitation
- Applications of EMA include structural health monitoring, finite element model updating, and vibration control system design
- Industries utilizing EMA encompass aerospace, automotive, and civil engineering (bridges, buildings)
- EMA techniques aid in identifying potential structural weaknesses, optimizing designs, and validating computer models
Designing Modal Analysis Experiments
Excitation and Sensor Configuration
- Select appropriate excitation methods (impact, shaker, operational) based on structure characteristics and test objectives
- Determine optimal sensor locations using techniques like effective independence (EfI) or (MAC)
- Configure systems by setting appropriate sampling rates, anti-aliasing filters, and measurement durations
- Implement proper boundary conditions to simulate free-free or fixed support conditions (suspended structures, bolted connections)
- Execute pre-test analysis to estimate frequency ranges of interest and required excitation levels
Signal Processing and Data Quality
- Apply windowing techniques (exponential, force-exponential) to minimize leakage and improve signal quality
- Utilize averaging techniques to improve signal-to-noise ratio and ensure repeatability of measurements
- Implement proper grounding and shielding to reduce electromagnetic interference in sensor signals
- Conduct preliminary frequency sweeps to identify resonance frequencies and adjust excitation levels accordingly
Interpreting Experimental Modal Data
Frequency Domain Analysis
- Compute frequency response functions (FRFs) or (PSDs) from time-domain data using (FFT) algorithms
- Apply (, Polyreference Time Domain) to extract modal frequencies and damping ratios
- Utilize methods (Least Squares Complex Exponential, ) for accurate mode shape extraction
- Implement Modal Assurance Criterion (MAC) to assess orthogonality and consistency of extracted mode shapes
- Evaluate to determine quality and linearity of measured data
Mode Shape Visualization and Validation
- Apply to distinguish between physical and computational modes in curve-fitting process
- Interpret mode shapes using animation tools to visualize and understand structural deformation patterns
- Utilize to assess the presence of non-proportional damping or non-linear behavior
- Implement to verify the consistency of extracted modal parameters across multiple measurement locations
Experimental vs Theoretical Modal Analysis
Comparative Analysis Techniques
- Calculate percentage differences between experimentally measured and theoretically predicted natural frequencies and damping ratios
- Utilize Modal Assurance Criterion (MAC) to quantify correlation between experimental and theoretical mode shapes
- Apply model updating techniques (sensitivity-based methods, direct matrix updating) to improve agreement between experimental and analytical results
- Assess impact of boundary conditions, material properties, and geometric uncertainties on discrepancies between experimental and theoretical results
Model Validation and Refinement
- Evaluate validity of simplifying assumptions made in theoretical model based on experimental observations
- Implement error analysis and uncertainty quantification techniques to establish confidence intervals for experimental results
- Develop validated reduced-order models for subsequent dynamic analysis and design optimization based on experimental findings
- Conduct sensitivity studies to identify critical parameters influencing the correlation between experimental and theoretical results
