Different damping types have unique characteristics and applications. Viscous damping is velocity-dependent, while Coulomb damping relies on friction. Advanced mechanisms like thermoelastic and offer specialized solutions for specific engineering challenges in vibration management.

Damping Mechanisms in Vibrating Systems

Common Damping Types

Top images from around the web for Common Damping Types

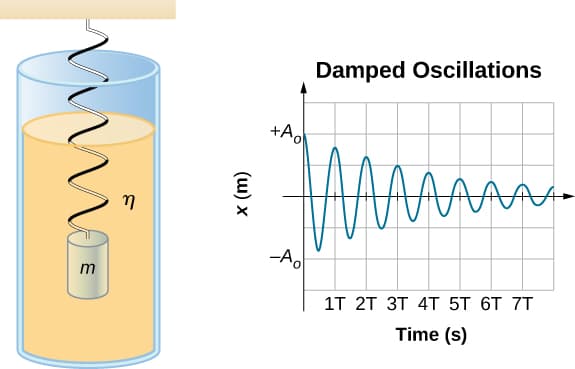

  • Damped Harmonic Motion | Physics View original

    Is this image relevant?

  • Frontiers | A Method to Estimate Effective Viscous Damping Ratio and Restoring Force From the ... View original

    Is this image relevant?

  • Damped Harmonic Motion | Physics View original

    Is this image relevant?

1 of 3

Top images from around the web for Common Damping Types

  • Damped Harmonic Motion | Physics View original

    Is this image relevant?

  • Frontiers | A Method to Estimate Effective Viscous Damping Ratio and Restoring Force From the ... View original

    Is this image relevant?

  • Damped Harmonic Motion | Physics View original

    Is this image relevant?

1 of 3
  • Viscous damping dissipates energy through fluid resistance (hydraulic shock absorbers)
  • Coulomb damping occurs due to sliding friction between solid surfaces (brake pads)
  • results from internal friction within the material of a vibrating structure (airplane wings)
  • involves energy dissipation through movement of a structure through a fluid medium (underwater structures)
  • caused by molecular-level mechanisms within materials (dislocation motion in metals)
  • utilizes electromagnetic fields to dissipate energy in conductive materials (eddy current brakes)
  • involves collision and friction of particles within a cavity attached to a vibrating structure (particle impact dampers)

Advanced Damping Mechanisms

  • Thermoelastic damping occurs due to temperature gradients induced by mechanical deformation (MEMS devices)
  • Piezoelectric damping converts mechanical energy into electrical energy through piezoelectric materials (vibration control in smart structures)
  • combines viscous and elastic properties to dissipate energy (automotive engine mounts)
  • use additional mass-spring systems to absorb vibration energy (skyscrapers)
  • use sensors and actuators to counteract vibrations in real-time (vehicle suspension systems)

Physical Principles of Damping

Fundamental Laws and Equations

  • Viscous damping governed by Newton's law of viscosity Fd=−cx˙F_d = -c\dot{x} where FdF_d damping force, cc damping coefficient, x˙\dot{x} velocity
  • Coulomb damping follows Coulomb's law of friction Fd=−μNsgn(x˙)F_d = -\mu N \text{sgn}(\dot{x}) where μ\mu friction coefficient, NN normal force
  • Structural damping described by complex modulus approach E∗=E(1+iη)E^* = E(1+i\eta) where E∗E^* complex modulus, EE elastic modulus, η\eta loss factor
  • Fluid damping based on fluid dynamics principles including drag forces Fd=12ρv2CdAF_d = \frac{1}{2}\rho v^2 C_d A where ρ\rho fluid density, vv velocity, CdC_d drag coefficient, AA cross-sectional area

Energy Dissipation Mechanisms

  • Material damping involves microscopic energy dissipation through thermoelastic effects, dislocation movement, and grain boundary sliding
  • Magnetic damping relies on Faraday's law of induction and Lenz's law generating eddy currents that oppose motion of conductive material
  • Particle damping governed by principles of impact mechanics and friction between particles and cavity walls
  • Viscoelastic damping combines viscous and elastic behaviors described by complex modulus G∗=G′+iG′′G^* = G'+ iG'' where G∗G^* complex shear modulus, G′G' storage modulus, G′′G'' loss modulus

Effects of Damping on Vibration

Free Vibration Response

  • Viscous damping produces exponential decay of free vibrations x(t)=Ae−ζωntcos⁡(ωdt+ϕ)x(t) = Ae^{-\zeta \omega_n t} \cos(\omega_d t + \phi) where ζ\zeta , ωn\omega_n , ωd\omega_d damped natural frequency
  • Coulomb damping leads to linear decay of free vibrations causing stick-slip behavior in certain systems
  • Structural damping effects approximated as equivalent viscous damping for analysis purposes
  • Particle damping effectiveness varies with vibration amplitude and frequency often providing higher damping at lower frequencies

Forced Vibration Response

  • Viscous damping reduces amplitudes in forced vibrations modifying frequency response function
  • Fluid damping significantly alters natural frequencies and mode shapes of structures particularly in submerged or fluid-filled systems
  • Material damping exhibits nonlinear behavior strongly dependent on factors such as temperature, frequency, and strain amplitude
  • Magnetic damping provides non-contact energy dissipation effective for conductive materials vibrating in strong magnetic fields

Characteristics of Damping Mechanisms

Comparative Analysis

  • Viscous damping linear and velocity-dependent while Coulomb damping nonlinear and independent of velocity magnitude
  • Structural damping inherent to material and structure whereas viscous and Coulomb damping often require additional components (dashpots)
  • Fluid damping highly dependent on surrounding medium unlike material damping which intrinsic property of structure itself
  • Magnetic damping offers non-contact energy dissipation in contrast to contact-based mechanisms (Coulomb damping)
  • Particle damping easily tuned by adjusting particle properties and cavity design offering more flexibility compared to inherent material damping

Frequency and Amplitude Dependence

  • Viscous and fluid damping generally more effective at higher frequencies demonstrated by increased energy dissipation
  • Coulomb and particle damping tend to be more effective at lower frequencies due to larger relative displacements
  • Material and structural damping often challenging to model accurately due to complex frequency-dependent nature
  • Viscoelastic damping exhibits strong frequency and temperature dependence described by master curves and time-temperature superposition principles

Key Terms to Review (26)

Active damping systems: Active damping systems are advanced control mechanisms that actively adjust their damping characteristics in response to the vibrations or oscillations occurring within a mechanical system. Unlike passive damping systems that rely solely on fixed materials to absorb energy, active damping systems use sensors and actuators to dynamically modify their behavior, providing real-time feedback and allowing for greater control over vibrations. This technology is particularly useful in applications where precise vibration control is critical, such as in aerospace, automotive, and structural engineering.
Automotive suspensions: Automotive suspensions are systems in vehicles designed to support the vehicle's weight, absorb shocks from the road, and maintain tire contact for better handling and comfort. These systems play a crucial role in providing stability, improving ride quality, and ensuring safety by managing the forces between the vehicle and the road surface. Understanding these systems involves exploring how they operate under various conditions and how different types of damping mechanisms are employed to optimize performance.
Coulomb Damping: Coulomb damping refers to the type of damping that occurs due to the frictional forces between surfaces in contact. This form of damping is characterized by a constant resistive force that opposes the motion, regardless of the velocity of the system. It plays an essential role in understanding various mechanical systems, especially in relation to free vibrations, types of damping mechanisms, and the design of isolators.
Critical Damping: Critical damping is a damping condition in which a system returns to its equilibrium position in the shortest possible time without oscillating. This concept is essential for understanding how different damping mechanisms affect the behavior of mechanical systems, particularly in terms of stability and responsiveness.
Critically damped: Critically damped refers to a specific condition in a damping system where the damping is just enough to prevent oscillations while allowing the system to return to its equilibrium position in the shortest possible time. In this state, the system is on the verge of being overdamped and underdamped, leading to optimal performance in applications like suspension systems and control systems.
Damping Equation: The damping equation describes how oscillations in a mechanical system decrease in amplitude over time due to the presence of damping forces. This equation is essential for understanding the dynamics of vibrating systems, as it quantifies the effects of different types of damping mechanisms that can dissipate energy, leading to a reduction in motion. Damping plays a crucial role in stabilizing systems and is vital for engineering applications where control over vibrations is needed.
Damping Ratio: The damping ratio is a dimensionless measure that describes how oscillations in a mechanical system decay after a disturbance. It indicates the level of damping present in the system and is crucial for understanding the system's response to vibrations and oscillatory motion.
Dissipative Forces: Dissipative forces refer to the forces that cause energy to be lost from a mechanical system, usually in the form of heat or sound, due to friction or other resistive effects. These forces play a crucial role in damping mechanisms by reducing the amplitude of vibrations over time, helping systems return to equilibrium after being disturbed.
Energy Loss: Energy loss refers to the dissipation of mechanical energy in a vibrating system, primarily due to damping effects. In mechanical systems, this energy is often converted into heat or sound, reducing the amplitude of vibrations over time. Understanding energy loss is crucial for analyzing damped vibrations, determining damping ratios, and identifying various damping mechanisms that influence how systems respond to oscillations.
Fluid Damping: Fluid damping is a mechanism by which motion is resisted and energy is dissipated through the movement of a fluid, typically a liquid or gas, within a mechanical system. This damping effect helps reduce vibrations and oscillations by converting kinetic energy into thermal energy, thus stabilizing the system. Fluid damping is essential in various applications, including automotive suspensions, seismic isolation systems, and vibration absorbers.
Forced Vibration: Forced vibration occurs when an external force or periodic input is applied to a mechanical system, causing it to oscillate at a frequency that may differ from its natural frequency. This phenomenon is crucial in understanding how systems respond to external influences, which connects to various aspects of vibration analysis, including the characteristics of oscillatory motion, damping mechanisms, and the response of multi-degree-of-freedom systems.
Harmonic Oscillator: A harmonic oscillator is a system that experiences a restoring force proportional to the displacement from its equilibrium position, causing it to oscillate back and forth around that position. This behavior is characterized by simple harmonic motion, where the system's displacement can be described by sine or cosine functions. Understanding harmonic oscillators is essential as they play a crucial role in various physical systems, including mechanical vibrations and resonance phenomena.
Magnetic Damping: Magnetic damping is a mechanism that reduces oscillations and vibrations in a system through the use of magnetic fields. This form of damping relies on the interaction between a magnetic field and a conductive material, which generates eddy currents that oppose the motion, leading to energy dissipation. Magnetic damping is particularly effective in applications where traditional methods may be less effective or impractical.
Material Damping: Material damping refers to the intrinsic ability of a material to dissipate energy when subjected to dynamic loading, which reduces the amplitude of vibrations in mechanical systems. This phenomenon occurs due to internal friction and other energy loss mechanisms within the material, leading to a gradual decrease in oscillation over time. Understanding material damping is crucial for designing components that can effectively manage vibrations and prolong their lifespan.
Mechanical Systems: Mechanical systems are assemblies of interconnected components that work together to perform a specific function, often involving motion and forces. These systems can range from simple machines, like levers and pulleys, to complex mechanisms like engines and robots. The understanding of mechanical systems is crucial for analyzing vibrations and ensuring efficiency and stability in various applications.
Natural Frequency: Natural frequency is the frequency at which a system tends to oscillate in the absence of any external forces. It is a fundamental characteristic of a mechanical system that describes how it responds to disturbances, and it plays a crucial role in the behavior of vibrating systems under various conditions.
Overdamped: Overdamped refers to a condition in a mechanical system where the damping force is so strong that the system returns to equilibrium without oscillating. This phenomenon occurs in systems with a damping ratio greater than one, leading to slower motion and longer settling times compared to critically damped or underdamped systems. Understanding overdamping is crucial as it relates to various damping mechanisms, how energy is dissipated in motion, and the behavior of single degree-of-freedom systems under external influences.
Particle damping: Particle damping is a type of energy dissipation mechanism that involves the movement of discrete particles within a container to absorb vibrational energy. As the system vibrates, these particles collide with the walls of the container and with each other, converting kinetic energy into thermal energy, thus reducing the amplitude of vibrations. This method is particularly useful in applications where traditional damping methods may be insufficient or impractical.
Piezoelectric Damping: Piezoelectric damping is a mechanism that utilizes the piezoelectric effect to convert mechanical energy into electrical energy, thereby reducing vibrations in mechanical systems. This form of damping is particularly valuable because it not only dissipates energy but can also harness it for useful applications, enhancing overall system performance and stability.
Shock Absorbers: Shock absorbers are mechanical devices designed to absorb and dissipate energy from vibrations and shocks, thereby improving comfort and stability in various systems, especially vehicles. They play a critical role in damped free vibrations by reducing oscillations, allowing for smoother operation. By utilizing different damping mechanisms, shock absorbers help control the motion of components in mechanical systems and contribute to vibration transmissibility, ensuring that disturbances are minimized across the system.
Structural Damping: Structural damping refers to the energy dissipation within a structure due to internal friction when subjected to vibrations. It plays a crucial role in the response of mechanical systems, particularly in reducing amplitude and enhancing stability by absorbing vibrational energy.
Tuned Mass Dampers: Tuned mass dampers are devices used to reduce vibrations in mechanical systems by using a secondary mass that oscillates out of phase with the primary structure. By tuning the mass and stiffness of the damper to match the natural frequency of the vibrating system, it effectively absorbs and dissipates energy, minimizing unwanted motion. This concept is crucial for maintaining stability in structures and machinery, especially in scenarios involving damping mechanisms, passive vibration control techniques, and vibrations in rotating machinery.
Underdamped: Underdamped refers to a specific condition in a dynamic system where the system oscillates with decreasing amplitude over time, due to insufficient damping to prevent oscillation. This phenomenon is characterized by oscillations that occur before the system eventually comes to rest, typically resulting from a balance between inertia and restoring forces that isn't strong enough to eliminate motion quickly. Understanding underdamping is crucial for analyzing how systems respond to disturbances and can influence concepts like resonance, logarithmic decrement, and various types of damping mechanisms.
Vibration isolation: Vibration isolation is a technique used to reduce the transmission of vibrations from one object to another, thereby protecting sensitive equipment or structures from potentially damaging oscillations. This concept is important for minimizing the effects of vibrations generated by machinery, traffic, or environmental sources on adjacent structures and systems.
Viscoelastic Damping: Viscoelastic damping refers to the energy dissipation mechanism in materials that exhibit both viscous and elastic characteristics when subjected to deformation. This type of damping is crucial in reducing vibrations in mechanical systems by allowing materials to absorb energy, which helps mitigate oscillations and enhance stability in structures. Viscoelastic materials behave differently under varying frequencies of loading, making them essential in applications where vibration control is necessary.
Viscous Damping: Viscous damping is a type of damping that occurs when a vibrating system experiences resistance proportional to its velocity, typically modeled as a linear force opposing motion. This phenomenon plays a crucial role in controlling vibrations in various mechanical systems, influencing how they respond to dynamic loads and how energy is dissipated during oscillations.
