12.2 Semi-active control methods
3 min read•july 30, 2024
Semi-active control methods offer a smart middle ground in vibration control. They adjust system properties in real-time without adding energy, combining the simplicity of passive systems with the adaptability of active ones.
These methods use devices like variable dampers to modify stiffness or damping based on sensor inputs. They're more stable and energy-efficient than active systems, but can't directly counteract forces like passive ones.
Semi-active Control Mechanisms
Adaptive Control Techniques
Top images from around the web for Adaptive Control Techniques
MS - Novel semiactive suspension using a magnetorheological elastomer (MRE)-based absorber and ... View original
Is this image relevant?

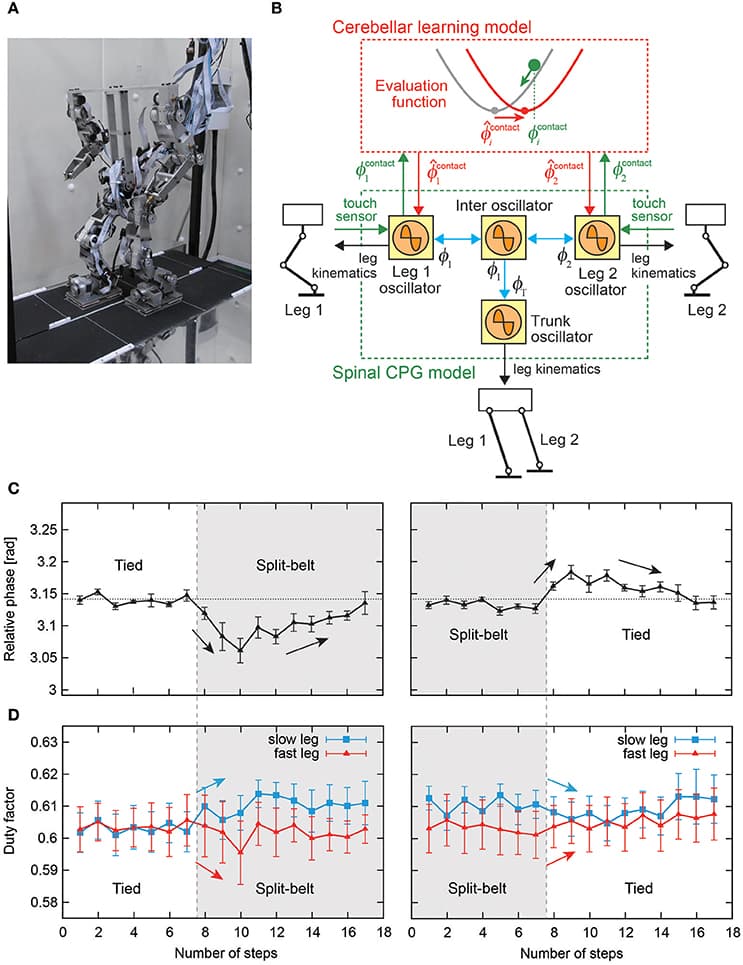

Frontiers | Adaptive Control Strategies for Interlimb Coordination in Legged Robots: A Review View original
Is this image relevant?
MS - Novel semiactive suspension using a magnetorheological elastomer (MRE)-based absorber and ... View original
Is this image relevant?
Frontiers | Adaptive Control Strategies for Interlimb Coordination in Legged Robots: A Review View original
Is this image relevant?
1 of 2
Top images from around the web for Adaptive Control Techniques
MS - Novel semiactive suspension using a magnetorheological elastomer (MRE)-based absorber and ... View original
Is this image relevant?
Frontiers | Adaptive Control Strategies for Interlimb Coordination in Legged Robots: A Review View original
Is this image relevant?
MS - Novel semiactive suspension using a magnetorheological elastomer (MRE)-based absorber and ... View original
Is this image relevant?
Frontiers | Adaptive Control Strategies for Interlimb Coordination in Legged Robots: A Review View original
Is this image relevant?
1 of 2
- Semi-active control methods adjust dynamic properties of a system in real-time without adding external energy
- Modify system parameters (stiffness or damping) in response to measured excitations or structural responses
- Utilize devices such as variable orifice dampers and controllable fluid dampers (magnetorheological and electrorheological)
- Implement to determine adjustments based on sensor inputs and predefined control laws
- Require sensors to measure system responses, controllers to process data, and actuators to implement control actions
Energy and Operational Characteristics
- Demand low energy requirements, only needing power to modulate device properties
- Offer a compromise between passive system simplicity and active system performance
- Maintain stability and fail-safe operation compared to fully active systems
- Operate by changing system properties rather than directly counteracting forces
- Adapt to changing conditions similar to active systems, but cannot add energy to the system like passive systems
Semi-active vs Active and Passive Control
Comparison of Control Systems
- Passive control uses fixed devices (tuned mass dampers, base isolators) without external power or control input
- Active control applies forces directly to the structure, requiring significant external power
- Semi-active control adapts to changing conditions without adding energy to the system
- Energy consumption ranks highest in active systems, minimal in passive systems, and moderate in semi-active systems
- Reliability and fail-safe operation decreases from passive to semi-active to active systems
- Performance potential increases from passive to semi-active to active systems
Implementation Considerations
- Active control potentially destabilizes systems if improperly designed, while passive and semi-active controls remain inherently stable
- Complexity and cost of implementation increase from passive to semi-active to active control systems
- Passive systems offer the highest reliability but lowest adaptability
- Active systems provide the highest performance but with potential instability risks
- Semi-active systems balance performance, reliability, and adaptability
Semi-active Control for Vibration Mitigation
System Design and Implementation
- Begin with system modeling and identification of critical vibration modes and frequencies
- Select appropriate semi-active devices based on specific application and control objectives (MR dampers, variable stiffness systems)
- Design control algorithms (skyhook, groundhook, optimal control strategies) to determine desired control forces or parameter adjustments
- Integrate sensors (accelerometers, displacement sensors) to measure structural responses and external excitations in real-time
- Develop control system architecture, including signal processing, control law implementation, and device actuation mechanisms
- Tune and optimize control parameters through simulation and experimental testing
Practical Considerations
- Account for sensor placement, actuator limitations, and computational requirements in control system design
- Address challenges in real-time data processing and control implementation
- Consider the trade-offs between control performance and system complexity
- Evaluate the scalability of the control system for different structure sizes and types
- Assess the compatibility of semi-active devices with existing structural systems
- Analyze the impact of control system latency on overall performance
Effectiveness of Semi-active Control in Practice
Performance Evaluation
- Measure vibration reduction through metrics such as peak acceleration, RMS displacement, or frequency response functions
- Analyze robustness and adaptability to varying excitation levels, frequencies, and structural changes
- Assess reliability and fail-safe performance during power loss or component failure
- Compare semi-active control effectiveness with alternative strategies (passive dampers, active control)
- Evaluate the impact on occupant comfort in or vehicle ride quality
Implementation and Long-term Considerations
- Consider implementation costs, including initial installation, maintenance requirements, and operational energy consumption
- Analyze the scalability for different structure sizes and types (small machines to large civil structures)
- Evaluate long-term durability and performance degradation in real-world environmental conditions
- Assess the need for periodic recalibration or adjustment of control parameters
- Consider the integration of semi-active control with structural health monitoring systems
- Analyze the potential for retrofitting existing structures with semi-active control systems
Key Terms to Review (18)
Automotive suspension systems: Automotive suspension systems are mechanical systems that connect a vehicle's body to its wheels, allowing for relative motion between them while providing comfort and stability during movement. These systems play a critical role in managing vehicle vibrations and impacts from the road, ensuring that passengers experience a smooth ride while maintaining control and handling of the vehicle. By effectively isolating vibrations from road irregularities, these systems also contribute to enhanced safety and performance.
Bridges: In the context of mechanical systems, bridges refer to structures that support loads while allowing for movement or transfer of energy, often seen in the design and implementation of vibration control methods. They play a critical role in connecting different elements, enabling semi-active control strategies and tuned mass dampers to effectively reduce vibrations and enhance stability in structures like buildings and bridges.
Buildings: Buildings are structures designed for human occupancy and use, serving various functions such as residential, commercial, industrial, or institutional purposes. They are crucial in the study of semi-active control methods as their design and material selection can significantly affect their ability to respond to vibrations, making them susceptible to dynamic loads like earthquakes and wind.
Control Algorithms: Control algorithms are mathematical procedures or sets of rules designed to manage and manipulate the behavior of dynamic systems in response to changing conditions. They play a crucial role in systems where precise control is needed, such as in vibration isolation and semi-active control methods, allowing for real-time adjustments that enhance performance and stability.
Damping Ratio: The damping ratio is a dimensionless measure that describes how oscillations in a mechanical system decay after a disturbance. It indicates the level of damping present in the system and is crucial for understanding the system's response to vibrations and oscillatory motion.
Dynamic response: Dynamic response refers to how a mechanical system reacts to external forces or disturbances over time. It encompasses the behavior of a system as it experiences vibrations and oscillations, which can be critical for evaluating performance and stability in various applications. Understanding dynamic response is essential for designing effective measurement tools, implementing control systems, and improving system performance in real-world scenarios.
Feedback control: Feedback control is a process used in systems to automatically adjust outputs based on differences between desired and actual performance. This method continuously monitors system behavior, allowing for real-time corrections and improvements, ensuring stability and desired performance in dynamic environments. Feedback control plays a crucial role in enhancing the accuracy and effectiveness of various control strategies applied to mechanical vibrations.
Hysteresis: Hysteresis refers to the phenomenon where the response of a material or system to an external stimulus depends on its past states, meaning it exhibits a lag between input and output. This characteristic is commonly observed in mechanical and control systems, where the behavior of the system changes based on its previous conditions. Hysteresis is critical in understanding how semi-active control methods adapt to varying conditions and how smart materials utilize this property for effective vibration control.
Linear Quadratic Regulator: A Linear Quadratic Regulator (LQR) is a feedback control strategy used to determine the optimal control input that minimizes a cost function for a linear dynamic system. It balances performance and control effort by considering both the state of the system and the control inputs, leading to efficient responses to disturbances. LQR is particularly relevant in semi-active control methods, where systems can dynamically adjust their response based on real-time feedback.
Lyapunov Stability: Lyapunov stability refers to the property of a dynamical system where, if the system starts near an equilibrium point, it will remain close to that point over time. This concept is crucial for understanding how systems behave under small perturbations and plays a key role in analyzing the stability of vibrating systems, designing active vibration control systems, and implementing semi-active control methods to maintain desired performance in the presence of disturbances.
Magnetorheological damping: Magnetorheological damping refers to a semi-active control technique that utilizes a fluid whose viscosity can be changed in response to a magnetic field, allowing for adjustable damping characteristics in mechanical systems. This technology provides a way to enhance vibration control by altering the fluid's properties in real-time, which can improve system performance and responsiveness under varying conditions.
Maximum displacement: Maximum displacement refers to the greatest distance a point on a vibrating system moves from its equilibrium position during motion. This concept is crucial in understanding the behavior of mechanical systems under vibration and is directly related to how effectively semi-active control methods can mitigate excessive movements in structures or components.
Natural Frequency: Natural frequency is the frequency at which a system tends to oscillate in the absence of any external forces. It is a fundamental characteristic of a mechanical system that describes how it responds to disturbances, and it plays a crucial role in the behavior of vibrating systems under various conditions.
Root Mean Square Error: Root Mean Square Error (RMSE) is a widely used statistical measure that quantifies the differences between predicted values and observed values in a dataset. It provides an aggregate measure of how accurately a model predicts outcomes, with lower values indicating better predictive accuracy. In the context of semi-active control methods, RMSE helps assess how well a control strategy minimizes vibrations or deviations from desired performance metrics.
Seismic isolation systems: Seismic isolation systems are engineering techniques designed to protect structures from the damaging effects of seismic events by decoupling the building from ground motion. This is achieved through the use of flexible bearings or isolators that absorb and dissipate seismic energy, allowing the structure to move independently of the ground shaking. These systems play a critical role in enhancing the safety and performance of buildings during earthquakes.
State-space representation: State-space representation is a mathematical modeling technique used to describe dynamic systems in terms of state variables and their relationships. It provides a systematic way to represent systems of differential equations as a set of first-order equations, which is particularly useful for analyzing and designing control systems. This approach is essential for capturing the behavior of vibrating systems, including those with viscous damping, multi-degree-of-freedom (MDOF) configurations, and semi-active control methods.
Variable Friction Dampers: Variable friction dampers are devices used in semi-active control systems to reduce vibrations by adjusting the frictional force in response to dynamic conditions. These dampers can adaptively modify their resistance to motion based on real-time inputs, enabling them to optimize energy dissipation and improve system stability. This adjustability makes them particularly useful in managing vibrations in structures and mechanical systems subjected to varying loads and disturbances.
Vibration mitigation: Vibration mitigation refers to the techniques and strategies employed to reduce or control unwanted vibrations in mechanical systems. This can involve various methods, such as the use of damping devices, isolation systems, or active and semi-active control methods that adjust to changing conditions to minimize the impact of vibrations on structures and components. Effectively managing vibrations is crucial to enhancing system performance, extending equipment lifespan, and improving user comfort.
