7.2 Methods of deflection calculation (integration, moment-area, conjugate beam)

3 min readaugust 9, 2024

Calculating beam deflections is crucial in structural analysis. This section covers three main methods: integration, moment-area, and conjugate beam. Each approach offers unique advantages for different beam configurations and loading conditions.

These methods build on earlier concepts of beam behavior and internal forces. They provide engineers with tools to predict and analyze how beams deform under various loads, essential for designing safe and efficient structures.

Integration and Moment-Area Methods

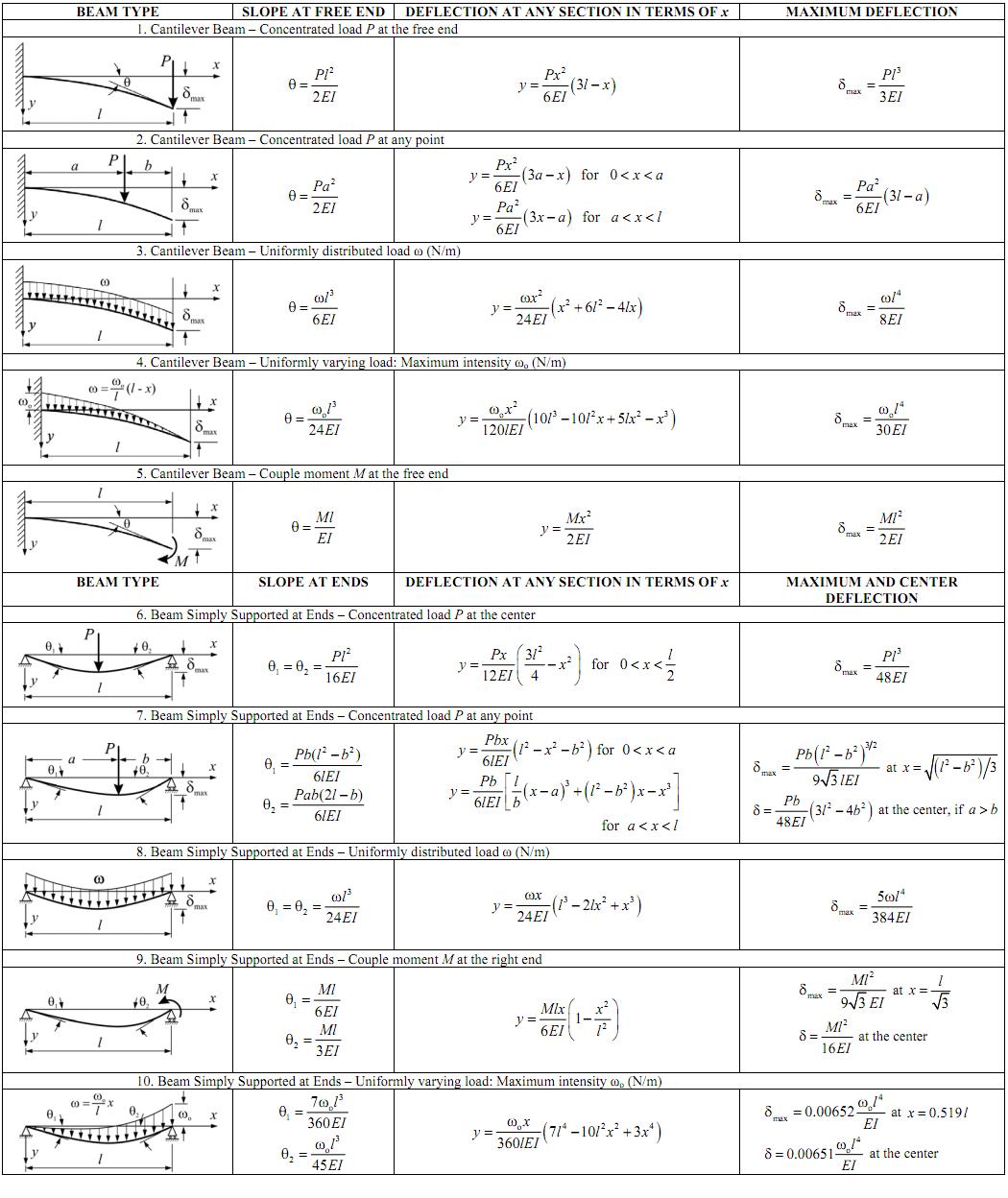

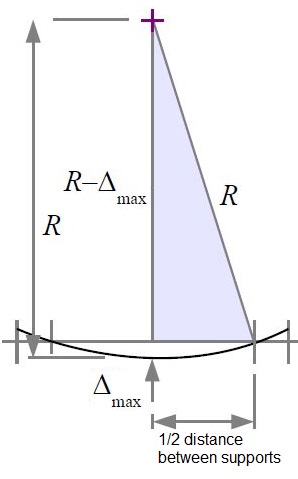

Double Integration Method

Top images from around the web for Double Integration Method
Top images from around the web for Double Integration Method
  • Calculates beam deflections using the relationship between load, shear, moment, and deflection
  • Involves integrating the moment equation twice to obtain the deflection equation
  • Requires known boundary conditions to determine integration constants
  • Yields exact solutions for simple beam configurations
  • Can become mathematically complex for beams with varying cross-sections or multiple loads

Moment-Area Theorems

  • First moment-area theorem relates slope change between two points on a beam
  • Slope change equals area under the M/EI diagram between the two points
  • Second moment-area theorem calculates of one point relative to the tangent line at another point
  • Vertical deflection equals the first moment of the area under the M/EI diagram about the point of interest
  • Provides a graphical approach to beam deflection analysis
  • Particularly useful for beams with varying cross-sections or complex loading conditions

Application of Moment-Area Method

  • Involves dividing the beam into segments for analysis
  • Calculates areas and centroids of M/EI diagram segments
  • Applies theorems sequentially from a known point (support) to the point of interest
  • Yields both slope and deflection at various points along the beam
  • Allows for easier visualization of beam behavior compared to pure mathematical approaches
  • Can be combined with superposition for beams with multiple loads

Conjugate Beam Method

Conjugate Beam Concept

  • Utilizes an imaginary beam (conjugate beam) to solve deflections of the real beam
  • Real beam's M/EI diagram becomes the load diagram for the conjugate beam
  • Conjugate beam supports differ from real beam (simply supported becomes fixed, etc.)
  • Shear in conjugate beam represents rotation in real beam
  • Moment in conjugate beam represents deflection in real beam
  • Simplifies deflection calculations by converting to a more familiar structural analysis problem

Elastic Weights and Load Application

  • M/EI diagram values treated as "elastic weights" applied to conjugate beam
  • Distributed loads on conjugate beam represent varying moment regions in real beam
  • Concentrated loads on conjugate beam represent moment discontinuities in real beam
  • Sign convention crucial (positive moments create downward elastic weights)
  • Requires careful consideration of units (ensure consistency between M, E, and I)
  • Allows for intuitive understanding of beam behavior through familiar static analysis

Solving Conjugate Beam Problems

  • Analyze conjugate beam using standard structural analysis techniques
  • Calculate reactions at conjugate beam supports
  • Develop shear and moment diagrams for conjugate beam
  • Interpret conjugate beam results to determine real beam deflections and slopes
  • Particularly effective for beams with varying cross-sections or complex support conditions
  • Can be extended to analyze deflections in frames and other structural systems

Mohr's Analogy and Singularity Functions

Mohr's Analogy Principles

  • Establishes relationship between beam deflection curve and funicular polygon of loading
  • Treats M/EI diagram as a load diagram acting on an imaginary
  • Deflection of real beam at any point equals moment in imaginary beam at that point
  • Slope of real beam at any point equals shear in imaginary beam at that point
  • Provides a graphical method for visualizing and calculating beam deflections
  • Especially useful for beams with discontinuities or complex loading patterns

Singularity Functions in Beam Analysis

  • Mathematical functions used to represent various types of loads and discontinuities
  • Allow for compact representation of complex loading scenarios
  • Include step functions for concentrated loads and ramp functions for distributed loads
  • Enable representation of moment and shear discontinuities
  • Facilitate integration of beam equations across discontinuities
  • Simplify analysis of beams with multiple load types and support conditions
  • Can be combined with other methods (integration, moment-area) for comprehensive beam analysis
  • Require careful attention to function limits and integration bounds
  • Provide a powerful tool for analyzing beams with varying cross-sections or material properties

Key Terms to Review (20)

Cantilever beam: A cantilever beam is a beam that is fixed at one end and free at the other, allowing it to extend outward without additional support. This unique setup creates specific loading conditions that affect how the beam deflects and how forces are distributed along its length. Understanding the behavior of cantilever beams is crucial for analyzing deflections, slopes, and boundary conditions in structural engineering.
Conjugate Beam Method: The conjugate beam method is a structural analysis technique used to determine the deflection and slope of beams by transforming the actual beam into an imaginary conjugate beam. This method leverages the relationships between the bending moments in the original beam and the slopes and deflections in the conjugate beam, making it particularly useful for analyzing complex beam systems, including continuous beams.
Deflection Formula: The deflection formula is a mathematical expression used to calculate the displacement of a structural element under load, providing insight into how much it bends or deforms. Understanding this concept is crucial for ensuring that structures can withstand applied loads without experiencing excessive deflection, which could lead to structural failure or serviceability issues. Different methods exist to derive and apply these formulas, each suitable for various types of loading and support conditions.
Distributed load: A distributed load is a type of loading that spreads over a certain length of a structural element, rather than being concentrated at a single point. This load is typically measured in force per unit length, like pounds per foot or newtons per meter, and it plays a significant role in the behavior of structures by influencing how forces are distributed and how members respond.
Elastic Curve: The elastic curve represents the deflected shape of a beam under load, showing how it bends and deforms elastically within its elastic limit. This curve is crucial for understanding how structures behave under various loading conditions and is often analyzed using different methods to determine deflections and moments in beams. The elastic curve helps visualize how structural elements respond to forces, which is essential when evaluating the performance of continuous beams and other structural systems.
Euler-Bernoulli Beam Equation: The Euler-Bernoulli beam equation is a fundamental equation used in structural analysis that relates the bending of beams to the applied loads and the beam's material properties. It establishes a relationship between the deflection of a beam and the bending moment acting on it, enabling engineers to predict how beams will deform under various loading conditions. This equation is critical for analyzing beam deflections and slopes, applying methods of deflection calculation, and utilizing the force method in beam and frame analysis.
Inches: Inches are a unit of measurement used in the imperial system, commonly applied in engineering and construction to express dimensions, lengths, and distances. This term is crucial in various calculations, including deflection methods, where precise measurements are essential for determining how structures respond to loads. Understanding how inches relate to other units can help in converting measurements and applying them effectively in practical scenarios.
Integration Method: The integration method is a mathematical technique used in structural analysis to determine the deflections of beams and frames by integrating the equations that describe the relationship between load, moment, and curvature. This approach involves deriving expressions for deflection based on the principles of equilibrium and the material properties of the structure, allowing for accurate predictions of how a structure will respond under various loading conditions.
Lateral deflection: Lateral deflection refers to the sideways displacement of a structural element under load, which is crucial in assessing its stability and performance. Understanding lateral deflection helps engineers ensure that structures can withstand horizontal forces, such as wind and seismic activity. By calculating lateral deflection accurately, engineers can use methods such as integration, moment-area, and conjugate beam to predict how much a beam or frame will sway or shift from its original position when subjected to lateral loads.
Leonhard Euler: Leonhard Euler was an influential Swiss mathematician and physicist who made significant contributions to a variety of mathematical fields, particularly in the development of mechanics and structural analysis. His work laid the groundwork for modern engineering principles, and his methods continue to be used in analyzing statically determinate structures and calculating deflections in beams, making him a pivotal figure in the field.
Millimeters: Millimeters are a unit of measurement in the metric system, equivalent to one-thousandth of a meter. They are commonly used in engineering and structural analysis to express dimensions, tolerances, and deflections of structural elements. Understanding the millimeter scale is crucial when calculating deflections, as precise measurements directly impact the integrity and safety of structures.
Modulus of Elasticity: The modulus of elasticity is a material property that measures a material's ability to deform elastically (i.e., non-permanently) when a stress is applied. It indicates how much a material will stretch or compress under load, which is crucial for understanding how structures respond to various forces and loads during analysis.
Moment of Inertia: The moment of inertia is a measure of an object's resistance to rotational motion about a specific axis. It depends on the mass distribution relative to that axis and plays a crucial role in calculating deflections, analyzing stresses, and designing structures, especially in the context of beams and frames.
Moment-area method: The moment-area method is a technique used to calculate the deflection and slope of beams by analyzing the areas formed by the moment diagrams. This method connects the concept of bending moments to beam deflections, offering a graphical approach to understanding how beams behave under load. It provides a straightforward way to find both the maximum deflection and the slopes at any points along the beam, linking it effectively with various calculation methods.
Point Load: A point load is a concentrated force applied at a specific location on a structure, which can lead to significant stress and deformation in the structural elements. Understanding how point loads interact with different structures is crucial for assessing stability and strength in various designs, as they impact reaction forces, internal forces, and overall structural behavior.
Pounds per foot: Pounds per foot is a unit of measurement that expresses the weight or force exerted by an object distributed along a linear length. This measurement is essential in structural analysis as it helps engineers determine loads acting on beams, cantilevers, and other structural elements. By understanding how weight is distributed, it's easier to calculate deflection and design structures that can support expected loads.
S. Timoshenko: S. Timoshenko was a prominent engineer and educator known as the father of modern engineering mechanics, particularly in structural analysis and vibration theory. His work laid the foundation for various methods used in calculating deflections and understanding the behavior of structures under loads, which is essential for accurate design and analysis in civil engineering.
Simply supported beam: A simply supported beam is a structural element that is supported at its ends by external supports, allowing it to freely rotate and translate vertically under the action of loads. This type of beam experiences bending and shear forces as it carries loads, and its behavior is crucial in understanding different loading conditions, beam deflection, and slope calculations.
Superposition Principle: The superposition principle states that in a linear system, the total response at any point is equal to the sum of the individual responses caused by each load acting independently. This concept helps simplify the analysis of structures by allowing engineers to assess the effects of multiple loads separately before combining their effects to understand the overall behavior of the structure.
Vertical deflection: Vertical deflection refers to the displacement or bending of a structural element, such as a beam, under load along the vertical direction. It is an important aspect in structural analysis as it affects the performance, safety, and serviceability of structures. Understanding how vertical deflection occurs and can be calculated using various methods helps engineers design safe and efficient structures that meet specific performance criteria.
