10.1 Slope-deflection method

3 min read•august 9, 2024

The is a powerful tool for analyzing indeterminate structures. It relates end moments to joint rotations and displacements, allowing engineers to solve complex structural problems. This method forms the foundation for understanding how loads and deformations interact in frames and beams.

By using slope-, we can determine internal forces and moments in structural members. This approach is crucial for designing safe and efficient structures, as it helps predict how buildings and bridges will behave under various loading conditions.

Slope-Deflection Equations and Moments

Derivation and Application of Slope-Deflection Equations

Top images from around the web for Derivation and Application of Slope-Deflection Equations

  • An application of Castigliano's Second Theorem with Octave - All this View original

    Is this image relevant?

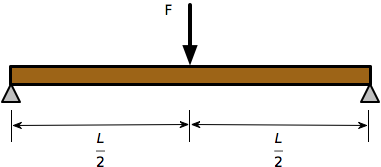

  • Beam Deflection – Strength of Materials Supplement for Power Engineering View original

    Is this image relevant?

  • An application of Castigliano's Second Theorem with Octave - All this View original

    Is this image relevant?

1 of 3

Top images from around the web for Derivation and Application of Slope-Deflection Equations

  • An application of Castigliano's Second Theorem with Octave - All this View original

    Is this image relevant?

  • Beam Deflection – Strength of Materials Supplement for Power Engineering View original

    Is this image relevant?

  • An application of Castigliano's Second Theorem with Octave - All this View original

    Is this image relevant?

1 of 3
  • Slope-deflection equations relate end moments to joint rotations and displacements
  • Derived from elastic curve equation considering bending moment distribution
  • General form: MAB=2EIL(2θA+θB−3ψ)+FEMABM_{AB} = \frac{2EI}{L}(2\theta_A + \theta_B - 3\psi) + FEM_{AB}
  • EE represents , II moment of inertia, LL member length
  • θA\theta_A and θB\theta_B denote rotations at ends A and B respectively
  • ψ\psi accounts for relative displacement between ends (chord rotation)
  • Applicable to both prismatic and non-prismatic members

End Moments and Their Significance

  • End moments result from applied loads, support movements, and member deformations
  • Calculated using slope-deflection equations for each member end
  • Positive end moments follow right-hand rule convention
  • Sum of end moments for a member equals the total applied moment
  • End moments influence internal force distribution and member stresses
  • Used to determine shear forces and axial loads in frame analysis

Fixed-End Moments and Load Cases

  • (FEM) represent end moments when both ends are fully restrained
  • Calculated for various load cases (point loads, distributed loads, moments)
  • Common FEM formulas:
    • Uniformly distributed load: FEM=wL212FEM = \frac{wL^2}{12}
    • Concentrated load at midspan: FEM=PL8FEM = \frac{PL}{8}
  • FEM values are added to slope-deflection equations
  • Superposition principle allows combining multiple load cases
  • FEM tables available for complex loading scenarios

Joint and Frame Behavior

Joint Rotations and Their Effects

  • Joint rotations occur when moments are applied to structural connections
  • Measured in radians, typically small angles in elastic analysis
  • Positive rotation follows right-hand rule convention
  • Influences moment distribution in connected members
  • Calculated using equations at each joint
  • Joint stiffness affects magnitude of rotation (stiffer joints rotate less)
  • Consideration of joint flexibility improves analysis accuracy

Sway Mechanisms and Lateral Stability

  • Sway refers to lateral displacement of a structure under horizontal loads
  • Causes include wind forces, seismic activity, and eccentric vertical loads
  • Sway increases moments in columns and affects frame stability
  • P-Delta effects amplify sway in tall structures
  • Sway resistance provided by moment frames, braced frames, or shear walls
  • Analysis considers both first-order and second-order effects
  • Drift limits specified in building codes to ensure serviceability

Non-Sway Frames and Their Characteristics

  • Non-sway frames resist lateral loads without significant horizontal displacement
  • Achieved through bracing systems or rigid connections
  • Simplifies analysis by eliminating sway terms in slope-deflection equations
  • Reduces moment magnification in columns
  • Examples include braced frames and structures with stiff shear walls
  • Design considerations focus on vertical load effects and local member behavior
  • Non-sway assumption valid for low-rise structures or those with adequate lateral stiffness

Structural Analysis Principles

Equilibrium Equations and Force Balance

  • equations ensure force and moment balance in structures
  • Three equations for 2D analysis: ∑Fx=0\sum F_x = 0, ∑Fy=0\sum F_y = 0, ∑M=0\sum M = 0
  • Six equations for 3D analysis (three force, three moment)
  • Applied at joints, members, and the entire structure
  • Used to determine unknown forces and reactions
  • Statical determinacy assessed by comparing equations to unknowns
  • Equilibrium must be satisfied in both undeformed and deformed states

Compatibility Equations and Geometric Constraints

  • Compatibility equations ensure geometric consistency of deformations
  • Relate displacements and rotations of connected elements
  • Essential for analyzing indeterminate structures
  • Types include displacement compatibility and rotation compatibility
  • Displacement compatibility: δA=δB\delta_{A} = \delta_{B} for connected points A and B
  • Rotation compatibility: θ1=θ2\theta_{1} = \theta_{2} for members sharing a joint
  • Number of compatibility equations equals degree of indeterminacy
  • Combined with equilibrium equations to solve for unknown forces and displacements

Key Terms to Review (18)

Compatibility: Compatibility in structural analysis refers to the condition where the deformations and displacements in a structure are consistent and coordinated throughout, ensuring that all parts of the structure work together effectively under loads. It emphasizes the importance of matching internal deformations with external constraints, enabling accurate calculations and predictions of structural behavior under various loading conditions.
Dead Load: Dead load refers to the permanent static loads that are applied to a structure, including the weight of the structural components, fixtures, and any other materials that are permanently attached. Understanding dead loads is crucial for analyzing structural integrity, as they influence the design considerations, types of structures, and how forces are distributed throughout a system.
Deflection Equations: Deflection equations are mathematical expressions used to determine the amount of displacement or bending a structural member experiences when subjected to loads. These equations are crucial for ensuring that structures remain safe and functional by allowing engineers to analyze and predict how beams and frames will deform under various loading conditions.
Equilibrium: Equilibrium refers to a state in which all the forces and moments acting on a structure are balanced, resulting in no net movement or rotation. This fundamental condition is crucial for maintaining the stability and integrity of various structures, ensuring that they can withstand applied loads without deforming or collapsing.
Fixed support: A fixed support is a type of structural connection that prevents both translation and rotation at the point of support, effectively restraining a beam or structure from moving in any direction. This means that a structure with a fixed support will have zero displacement and zero rotation at that point, which is crucial for analyzing forces, reactions, and deflections in beams and frames.
Fixed-end Moments: Fixed-end moments are the bending moments that occur at the ends of a beam or frame when it is fixed in place and subjected to external loads. These moments are crucial in analyzing structures because they represent the internal stresses that resist the applied loads, helping to determine how the structure will behave under various loading conditions.
Flexural Rigidity: Flexural rigidity is a measure of a beam's ability to resist bending when subjected to external loads. It is defined as the product of the modulus of elasticity and the moment of inertia of the beam's cross-section, represented mathematically as EI, where E is the modulus of elasticity and I is the moment of inertia. This property is critical when analyzing structures for deflection and strength, as it directly influences how structures respond to bending moments and shear forces.
Hibbeler: Hibbeler refers to the renowned author of several widely used textbooks in civil and structural engineering, particularly noted for his clear explanations and practical examples. His books, such as 'Structural Analysis,' provide essential methodologies and tools for analyzing structures, including the slope-deflection method, which helps engineers calculate displacements and internal forces in continuous beams and frames.
Joint rotation: Joint rotation refers to the relative angular displacement of structural members at a connection point, or joint, due to applied loads or moments. It plays a critical role in analyzing how structures deform under various forces, which is essential for understanding the overall behavior and stability of beams and frames under load.
Live Load: Live load refers to the temporary or movable loads that a structure experiences during its use, such as the weight of people, furniture, vehicles, and other objects. These loads vary over time and can change based on occupancy and usage, making them crucial in the design and analysis of structures.
McCormac: McCormac refers to a prominent approach in structural analysis, particularly associated with the development of the slope-deflection method. This method is used to analyze continuous beams and frames, allowing engineers to determine the relationships between the angles of rotation at joints and the displacements within the structure. The McCormac methodology emphasizes the importance of considering moments and rotations to accurately model and solve for structural behavior under load.
Modulus of Elasticity: The modulus of elasticity is a material property that measures a material's ability to deform elastically (i.e., non-permanently) when a stress is applied. It indicates how much a material will stretch or compress under load, which is crucial for understanding how structures respond to various forces and loads during analysis.
Moment Distribution Method: The moment distribution method is a structural analysis technique used to analyze indeterminate structures by distributing moments at the joints until equilibrium is achieved. This method allows for the consideration of both fixed and pinned supports, enabling engineers to solve for internal forces and moments in continuous beams and frames effectively.
Moment Equations: Moment equations are mathematical expressions used to calculate the bending moments acting on structural elements, which are crucial for understanding the behavior and stability of structures under loads. These equations help determine how forces are distributed throughout a structure, allowing engineers to design safe and effective systems. By applying moment equations, engineers can ensure that structures can withstand external forces without failing or deforming excessively.
Poisson's Ratio: Poisson's ratio is a measure of the proportional relationship between lateral strain and axial strain in a material when it is subjected to axial loading. It quantifies how much a material deforms in the direction perpendicular to the applied load relative to the deformation in the direction of the load. This ratio is significant in structural analysis, especially in understanding how materials behave under stress and their overall stability when using methods such as the slope-deflection method.
Shear Force: Shear force is the internal force that acts along a cross-section of a structural element, perpendicular to its length, resulting from external loads applied to the structure. Understanding shear force is crucial for analyzing how structures respond to various loads and ensuring their stability and safety under different loading conditions.
Simply Supported: Simply supported refers to a structural condition where a beam or a frame is supported at two points, allowing it to rotate freely but not translating vertically. This setup is fundamental in structural analysis, as it simplifies the calculations for bending moments and shear forces, making it easier to predict how structures will behave under loads.
Slope-deflection method: The slope-deflection method is a structural analysis technique used to determine the displacements and internal moments in continuous beams and frames. This method is based on the relationships between angles of rotation, deflections, and bending moments at the joints of a structure, allowing engineers to analyze complex structures more effectively.
