13.1 Footwear biomechanics and design
5 min read•july 30, 2024
Footwear biomechanics and design play a crucial role in sports performance and injury prevention. From to , every aspect of a shoe's construction impacts an athlete's movements and efficiency.
This topic explores how advanced materials, custom designs, and smart technologies are revolutionizing sports footwear. Understanding these concepts helps create shoes that enhance performance, reduce injury risk, and adapt to individual needs across various sports.
Biomechanics in Footwear Design
Force Distribution and Energy Return
Top images from around the web for Force Distribution and Energy Return
8.3 Stability – Biomechanics of Human Movement View original
Is this image relevant?

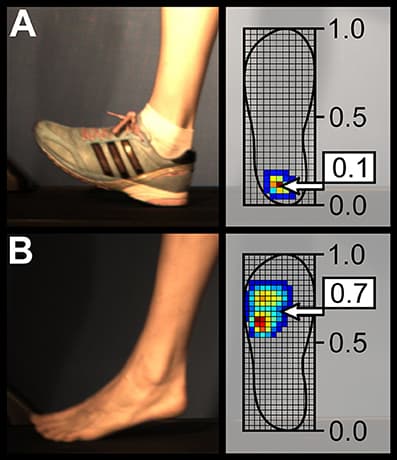

Frontiers | The Influence of Footwear on the Modular Organization of Running | Physiology View original
Is this image relevant?
Frontiers | Force Analysis and Energy Harvesting for Innovative Multi-functional Shoes View original
Is this image relevant?
8.3 Stability – Biomechanics of Human Movement View original
Is this image relevant?
Frontiers | The Influence of Footwear on the Modular Organization of Running | Physiology View original
Is this image relevant?
1 of 3
Top images from around the web for Force Distribution and Energy Return
8.3 Stability – Biomechanics of Human Movement View original
Is this image relevant?
Frontiers | The Influence of Footwear on the Modular Organization of Running | Physiology View original
Is this image relevant?
Frontiers | Force Analysis and Energy Harvesting for Innovative Multi-functional Shoes View original
Is this image relevant?
8.3 Stability – Biomechanics of Human Movement View original
Is this image relevant?
Frontiers | The Influence of Footwear on the Modular Organization of Running | Physiology View original
Is this image relevant?
1 of 3
- Force distribution and pressure management affect stability, comfort, and performance across sports
- Distribute forces evenly to prevent hotspots and improve comfort
- Manage pressure points to enhance stability during quick movements
- Energy return in footwear influences propulsion and efficiency in running and jumping
- Utilize materials with high energy return (foam compounds, )
- Design midsole geometry to maximize energy storage and release during gait cycle
- Traction and grip mechanisms vary based on sport-specific requirements
- Implement different outsole patterns for various surfaces (court, grass, track)
- Consider multidirectional traction for sports with rapid direction changes (basketball, tennis)
Pronation Control and Shock Absorption
- addresses overpronation and supination issues
- Design medial support structures to limit excessive inward foot roll
- Use firmer materials on the medial side for stability in
- and impact attenuation reduce injury risk in high-impact sports
- Incorporate cushioning technologies in heel and forefoot areas
- Utilize gel inserts or air pockets to disperse impact forces
- Weight distribution and affect balance and agility
- Optimize shoe weight distribution for sport-specific movements
- Design low-profile shoes for activities requiring quick foot placement
Sport-Specific Structural Support
- Biomechanical analysis of movements informs structural support elements
- Implement for increased stability during lateral movements
- Use to enhance torsional rigidity in running shoes
- Sport-specific design considerations
- Reinforce toe box for sports with frequent toe drags (skateboarding)
- Design for sports with high risk of ankle sprains (basketball)
Footwear Materials and Performance
Advanced Polymer Technologies
- Midsole construction using and affects energy return and cushioning
- EVA provides lightweight cushioning with good energy return
- Polyurethane offers and consistent performance over time
- Carbon fiber plates impact energy transfer and propulsion
- Enhance forward propulsion in distance running shoes
- Improve energy efficiency by reducing energy loss at toe-off
- Upper materials influence thermoregulation and comfort
- Use to manage sweat (synthetic mesh, knit materials)
- Implement for improved airflow
Traction and Weight Considerations
- affect traction on various surfaces
- Soft rubber compounds for indoor court sports (volleyball, basketball)
- Harder rubber for durability in long-distance running shoes
- Footwear weight impacts metabolic cost and fatigue in endurance sports
- Reduce shoe weight to lower energy expenditure during prolonged activity
- Balance protection and performance when designing lightweight shoes
Biomechanical Design Elements
- Heel-to-toe drop influences running mechanics and stability
- Lower drops (0-4mm) promote midfoot striking
- Higher drops (8-12mm) provide more heel cushioning for heel strikers
- affects ground feel and overall stability
- Higher stack heights offer more cushioning but may reduce
- Lower stack heights enhance ground feel but provide less impact protection
- affects biomechanical alignment and pressure distribution
- Design shoes with removable insoles for custom orthotic compatibility
- Integrate features for improved biomechanical efficiency
Foot Anatomy and Gait in Footwear
Foot Anatomy and Footwear Design
- Functional anatomy of the foot informs last design and fit
- Consider when designing midfoot support structures
- Accommodate toe splay in forefoot design for natural foot function
- Impact of foot types on footwear selection and design features
- Design motion control features for overpronators ()
- Provide extra cushioning for high arched feet ()
- influences footwear design
- Account for typically narrower heels and wider forefeet in women's shoes
- Adjust last shapes to accommodate differences in arch height between genders
Gait Analysis and Biomechanical Adaptations
- applies to sport-specific footwear design
- Design heel cushioning for initial contact phase in running shoes
- Optimize forefoot for toe-off in sprinting spikes
- consideration in running and jumping footwear
- Design shoes to allow natural arch rise during toe extension
- Implement stiff midsoles to enhance the windlass effect in sprinting shoes
- Neuromuscular adaptations to footwear affect long-term gait patterns
- Consider gradual transitions when changing to minimalist footwear
- Design footwear that promotes natural foot strength and mobility
Proprioception and Sensory Feedback
- Proprioception and influence balance and coordination
- Design thin, flexible soles for enhanced ground feel in trail running shoes
- Implement textured insoles to increase sensory input in balance-critical sports
- Footwear design can enhance or impair proprioceptive functions
- Use minimal cushioning in weightlifting shoes for stability and ground connection
- Design shoes with wider bases to improve balance in court sports
Footwear Customization Effectiveness
3D Technologies and Pressure Mapping
- and printing create personalized lasts and midsoles
- Scan individual foot shape to create custom-fit uppers
- 3D print midsoles with variable densities for personalized cushioning
- develops customized footwear solutions
- Analyze pressure distribution during sport-specific movements
- Design custom insoles to address individual pressure points
Modular Systems and AI Integration
- adapt to different terrains or requirements
- Implement interchangeable outsoles for various surface conditions
- Design shoes with removable support structures for customizable stability
- AI and machine learning predict optimal footwear designs
- Utilize biomechanical data to recommend personalized shoe features
- Develop algorithms to optimize shoe design based on performance goals
Smart Footwear and Customization Analysis
- Smart footwear with embedded sensors provide real-time feedback
- Monitor gait patterns and provide coaching cues through connected apps
- Implement adaptive cushioning systems that adjust to running style
- Cost-benefit analysis of mass customization techniques
- Evaluate production costs of personalized footwear vs. traditional manufacturing
- Assess performance benefits and injury reduction potential of custom shoes
Key Terms to Review (44)
3D Printing: 3D printing is a manufacturing process that creates three-dimensional objects layer by layer from a digital file. This technology allows for the customization and rapid production of complex shapes, making it particularly valuable in various fields, including sports where personalized gear and equipment can enhance performance and comfort.
3D Scanning: 3D scanning is a technology that captures the physical dimensions and surface geometry of an object by creating a digital representation of it in three dimensions. This process allows for detailed analysis and measurements, which can be crucial in optimizing product design, like footwear, for enhanced performance and comfort.
AI Integration: AI integration refers to the incorporation of artificial intelligence technologies and systems into various processes and applications, enhancing their efficiency, effectiveness, and adaptability. In the realm of footwear biomechanics and design, AI integration is used to analyze data from movement patterns, optimize shoe designs, and create personalized footwear solutions that cater to individual performance needs.
Ankle support systems: Ankle support systems are mechanisms designed to provide stability and protection to the ankle joint during physical activities. They play a critical role in injury prevention and rehabilitation by stabilizing the ankle, controlling excessive movements, and allowing athletes to perform optimally without compromising safety. Properly designed ankle support systems can enhance performance by improving proprioception and confidence in movement, particularly in sports with high demands on the lower extremities.
Arch height: Arch height refers to the vertical distance from the highest point of the arch of the foot to a horizontal line drawn between the two ends of the arch. This measurement is crucial as it directly influences the biomechanics of walking and running, affecting how forces are distributed through the foot and ultimately impacting footwear design and performance. The proper arch height can enhance comfort, stability, and athletic performance while minimizing the risk of injury.
Arch support: Arch support refers to the structural element in footwear designed to maintain the natural arch of the foot, providing stability and comfort during movement. This support helps distribute body weight evenly across the foot, reduces strain on ligaments and muscles, and can prevent common foot problems such as plantar fasciitis. Effective arch support is crucial for athletic performance and can significantly influence an individual's biomechanics while walking or running.
Carbon fiber plates: Carbon fiber plates are lightweight, high-strength components used in footwear design to enhance performance, particularly in running shoes. These plates are strategically placed within the shoe's midsole to provide stiffness, improve energy return, and facilitate a more efficient gait. The unique properties of carbon fiber allow for greater propulsion with each step, significantly impacting athletic performance.
Center of Gravity: The center of gravity is the point in a body where its weight is evenly distributed and acts vertically downward. This concept is essential in biomechanics as it influences balance, stability, and movement efficiency, especially in footwear design, where proper alignment of the center of gravity can enhance performance and reduce injury risk during physical activities.
Cleats: Cleats are specialized footwear designed with protruding lugs or studs on the outsole to enhance traction and grip on various playing surfaces. This unique design helps athletes maintain stability and prevent slipping during dynamic movements, which is crucial for performance in sports like soccer, football, and baseball.
Dr. Benno Nigg: Dr. Benno Nigg is a renowned expert in the field of biomechanics, particularly known for his pioneering work in footwear biomechanics and the design of athletic shoes. His research has significantly influenced the understanding of how footwear affects human movement, injury prevention, and performance enhancement in sports and physical activities.
Dr. Daniel Lieberman: Dr. Daniel Lieberman is an evolutionary biologist and anthropologist known for his research on human locomotion and the biomechanics of running. He has significantly contributed to understanding how footwear design can affect running mechanics, injury risk, and overall performance by examining the evolution of human feet and gait patterns.
Durability: Durability refers to the ability of a material or product to withstand wear, pressure, or damage over time. In footwear biomechanics and design, durability is crucial as it determines how long a shoe will last under various conditions and the extent to which it can protect and support the foot during physical activities. Factors such as material quality, construction techniques, and design features all contribute to a shoe's overall durability.
Dynamic pressure mapping: Dynamic pressure mapping is a technique that measures and visualizes the distribution of pressure across a surface during movement, providing insights into biomechanics and interactions between the foot and the ground. This technology captures real-time pressure data, allowing for a detailed analysis of how forces are distributed during activities like walking, running, or jumping, which is crucial for understanding performance and injury prevention.
Energy return: Energy return refers to the ability of a material, especially in footwear, to absorb energy during impact and then efficiently return that energy to the athlete during movement. This concept is crucial in designing athletic shoes that enhance performance by maximizing energy efficiency, reducing fatigue, and improving overall biomechanics during activities like running and jumping.
Eva: Eva, or ethylene-vinyl acetate, is a type of copolymer widely used in footwear design and manufacturing. It is known for its lightweight, flexible, and shock-absorbing properties, making it an ideal material for shoe midsoles and outsoles. Its versatility allows it to be molded into various shapes and densities, enhancing comfort and performance in athletic and casual footwear.
Flexibility: Flexibility refers to the ability of a joint or group of joints to move through an unrestricted, pain-free range of motion. This quality is crucial in sports performance, as it allows athletes to execute movements with optimal technique and efficiency. In individual sports like golf and tennis, flexibility plays a significant role in enhancing performance by improving swing mechanics and stroke production, while in footwear design, it affects comfort, fit, and overall functionality.
Foot strike pattern: Foot strike pattern refers to the way the foot contacts the ground during walking or running, specifically focusing on the part of the foot that makes initial contact. This can significantly influence biomechanics, injury risk, and performance, especially in relation to footwear design and function.
Force Distribution: Force distribution refers to how forces are spread across a surface or body during movement or impact. Proper force distribution is crucial in optimizing performance, minimizing injury risk, and enhancing comfort, especially in areas such as footwear design, sports equipment ergonomics, and protective gear.
Gait analysis: Gait analysis is the systematic study of human walking patterns, used to assess and improve movement efficiency, diagnose injuries, and enhance athletic performance. It connects various aspects of biomechanics, including motion capture, kinematics, dynamics, and the impact of footwear and technology on movement.
Gait cycle analysis: Gait cycle analysis is the systematic examination of the phases of walking or running to understand how the body moves during these activities. This analysis helps in identifying patterns, abnormalities, and the efficiency of movement, which can significantly influence footwear design and performance. By studying the gait cycle, we can determine how various aspects like force distribution and joint motion affect an athlete’s performance and injury risk.
Gender-specific foot anatomy: Gender-specific foot anatomy refers to the anatomical and physiological differences in feet between males and females, which can impact biomechanics and footwear design. These differences can include variations in arch height, foot width, and toe shape, all of which influence how individuals walk, run, and interact with various types of footwear. Understanding these distinctions is crucial for creating effective footwear that accommodates the unique needs of different genders.
Heel counters: Heel counters are structural components found in the rear part of a shoe, designed to provide stability and support to the heel during activities such as walking, running, or sports. They help maintain the shape of the shoe and control excessive movement of the foot, playing a vital role in overall footwear biomechanics and design.
Heel drop: Heel drop refers to the difference in height between the heel and the forefoot of a shoe, typically measured in millimeters. This feature plays a significant role in determining the shoe's cushioning, stability, and overall performance during activities like running. Understanding heel drop is crucial for athletes, as it influences foot mechanics and can affect injury risk.
Midfoot shanks: Midfoot shanks refer to the structural elements in footwear that connect the forefoot to the rearfoot, providing stability and support during movement. These components play a crucial role in the biomechanics of running and walking, influencing energy transfer, foot flexibility, and overall performance.
Midsole cushioning: Midsole cushioning refers to the material and design features located in the midsole section of footwear, specifically engineered to absorb shock and provide comfort during physical activities. This cushioning plays a critical role in reducing impact forces on the feet and joints, enhancing performance, and minimizing the risk of injuries.
Modular footwear systems: Modular footwear systems are innovative designs that allow for the customization and interchangeability of shoe components to enhance performance, comfort, and adaptability for various activities. These systems can include interchangeable soles, uppers, and other elements that can be easily swapped out depending on the user's needs, making them versatile for different sports or activities. This flexibility not only improves functionality but also addresses individual biomechanical requirements.
Moisture-wicking fabrics: Moisture-wicking fabrics are specialized textiles designed to draw sweat and moisture away from the body to the fabric's outer surface, where it can evaporate more easily. These fabrics are typically made from synthetic materials such as polyester or nylon, which have inherent properties that facilitate moisture transport. This characteristic is crucial for athletes and individuals engaged in physical activities, as it helps regulate body temperature and enhances comfort during exercise.
Momentum: Momentum is defined as the quantity of motion an object possesses, which is a product of its mass and velocity. This concept is critical in understanding how forces influence movement in sports, especially when considering how different footwear designs can affect an athlete's ability to generate or control momentum. Additionally, analyzing the momentum of sports implements can provide insights into their performance enhancement capabilities and how they interact with an athlete's movement.
Orthotic integration: Orthotic integration refers to the process of incorporating orthotic devices, such as insoles or braces, into footwear design to enhance comfort, performance, and injury prevention. This integration considers the biomechanics of the foot and lower extremities, ensuring that the footwear supports natural movement patterns while accommodating any specific foot conditions. Effective orthotic integration can lead to improved athletic performance and decreased risk of injuries during physical activities.
Outsole rubber compounds: Outsole rubber compounds are specialized materials used in the outer sole of footwear, designed to provide traction, durability, and performance across various surfaces. These compounds can be formulated with different properties to enhance grip, flexibility, and wear resistance, making them crucial for footwear performance in sports and other physical activities.
Pes cavus: Pes cavus is a foot condition characterized by an excessively high arch, leading to an abnormal foot structure that can affect weight distribution and overall biomechanics. This condition can influence how forces are transmitted through the foot during movement, impacting both footwear design and the likelihood of injuries.
Pes planus: Pes planus, commonly known as flat feet, is a condition characterized by the absence of a normal arch in the foot, resulting in the entire sole making contact with the ground. This structural change can influence how forces are distributed during walking and running, significantly impacting biomechanics and injury risk. Understanding pes planus is essential when considering footwear design and the biomechanical factors that may lead to common injuries in athletes.
Polyurethane: Polyurethane is a versatile polymer made by reacting a polyol with an isocyanate, forming a material that can be flexible or rigid depending on its formulation. This compound is widely used in various applications, especially in footwear, where it provides cushioning, durability, and support, enhancing performance and comfort for athletes.
Pressure mapping: Pressure mapping is a technique used to visualize and quantify the pressure distribution across a surface, often employing specialized sensors or mats. This technology helps in understanding how forces are applied during activities, providing critical data for optimizing design and functionality. By illustrating pressure points, it becomes easier to analyze performance, comfort, and potential injury risks in various applications, including footwear and sports equipment.
Pronation Control: Pronation control refers to the management of the foot's natural inward rolling motion that occurs during walking or running. This movement is crucial for absorbing shock and distributing forces, but excessive pronation can lead to injuries. Footwear designed with effective pronation control aims to stabilize the foot, enhance comfort, and support proper alignment, making it an essential feature in athletic and everyday shoes.
Proprioception: Proprioception is the body's ability to sense its position, movement, and spatial orientation in relation to its environment. It involves sensory feedback from muscles, tendons, and joints, allowing individuals to make adjustments during physical activities, enhancing coordination and balance.
Running shoes: Running shoes are specialized footwear designed to provide support, cushioning, and stability to runners during their activity. These shoes aim to enhance performance while minimizing the risk of injury by accommodating the unique biomechanics of running and the varying needs of individual runners.
Sensory feedback: Sensory feedback refers to the information received by the body from sensory receptors about internal and external environments, which influences motor control and movement. This feedback is crucial for adjusting movements in real-time, enhancing performance, and preventing injuries. In footwear biomechanics, sensory feedback plays a key role in how athletes perceive and interact with their footwear during activities.
Shock absorption: Shock absorption refers to the ability of a material or system to dampen and disperse energy generated by impacts or forces, reducing the risk of injury and enhancing comfort. This concept is essential in various applications, particularly in footwear design and the functionality of connective tissues, where managing the forces exerted on the body is crucial for performance and injury prevention.
Stack height: Stack height refers to the total thickness of the shoe midsole and outsole between the foot and the ground. This measurement plays a crucial role in footwear design, influencing cushioning, stability, and overall performance. A higher stack height typically provides more cushioning but can affect balance and proprioception, while a lower stack height promotes ground feel and stability.
Stride Length: Stride length refers to the distance covered in one complete gait cycle, from the point of initial contact of one foot to the point of initial contact of the same foot in the next step. This measure is crucial as it directly impacts running efficiency, speed, and overall biomechanics, influencing how a runner interacts with the ground and utilizes energy. Understanding stride length is key for analyzing running mechanics, optimizing performance, and designing appropriate footwear.
Toe box reinforcement: Toe box reinforcement refers to the structural support provided in the front part of a shoe, specifically designed to protect the toes and maintain the shape of the footwear. This feature is crucial for enhancing durability, comfort, and safety in various types of footwear, especially athletic shoes. By reinforcing the toe box area, manufacturers can prevent deformation and provide better impact protection, which is essential for both everyday wear and high-performance activities.
Ventilation Zones: Ventilation zones refer to specific areas within footwear designed to enhance breathability and moisture management during physical activity. These zones are strategically placed in shoes to promote airflow, reduce overheating, and improve overall comfort for athletes and active individuals. Proper ventilation is crucial in footwear biomechanics as it affects thermal regulation and can significantly influence performance and injury prevention.
Windlass mechanism: The windlass mechanism refers to the anatomical and functional process in the foot where the plantar fascia acts as a tensioning structure during the toe-off phase of walking or running, facilitating efficient propulsion. This mechanism plays a crucial role in transferring forces through the foot, supporting the arch, and enhancing stability, especially during dynamic activities. It effectively converts the energy from muscle contractions into movement, making it integral to understanding how footwear design can influence athletic performance and injury prevention.
