8.4 Instrumentation and sample preparation
3 min read•august 9, 2024
is all about measuring how light interacts with samples. The instruments use special lamps, filters, and detectors to shine light through your sample and measure what comes out the other side. It's like shining a flashlight through colored water.
Getting your sample ready is crucial for accurate results. You'll need to pick the right container () and solvent for your sample. The matters too - you want it just right, not too strong or weak. It's like making the perfect cup of tea!
Instrumentation

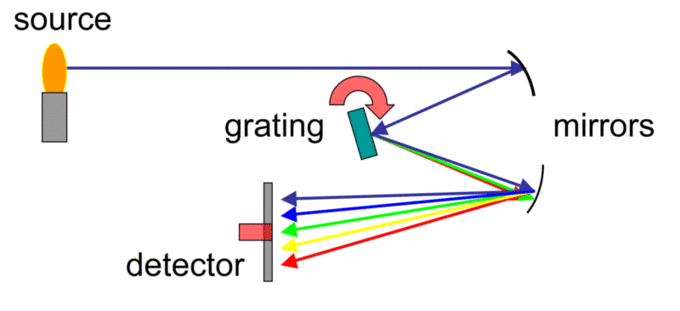

Components of UV-Vis Spectrometer
Top images from around the web for Components of UV-Vis Spectrometer
Heterogeneous photocatalysts: an overview of classic and modern approaches for optical ... View original
Is this image relevant?
Microreactors with integrated UV/Vis spectroscopic detection for online process analysis under ... View original
Is this image relevant?
Applications of Wave Optics | Boundless Physics View original
Is this image relevant?
Heterogeneous photocatalysts: an overview of classic and modern approaches for optical ... View original
Is this image relevant?
Microreactors with integrated UV/Vis spectroscopic detection for online process analysis under ... View original
Is this image relevant?
1 of 3
Top images from around the web for Components of UV-Vis Spectrometer
Heterogeneous photocatalysts: an overview of classic and modern approaches for optical ... View original
Is this image relevant?
Microreactors with integrated UV/Vis spectroscopic detection for online process analysis under ... View original
Is this image relevant?
Applications of Wave Optics | Boundless Physics View original
Is this image relevant?
Heterogeneous photocatalysts: an overview of classic and modern approaches for optical ... View original
Is this image relevant?
Microreactors with integrated UV/Vis spectroscopic detection for online process analysis under ... View original
Is this image relevant?
1 of 3
- measures absorption or transmission of light through a sample
- generates electromagnetic radiation in UV and visible range
- produces UV light (190-400 nm)
- emits visible light (400-800 nm)
- separates polychromatic light into individual wavelengths
- Consists of , ( or ), and
- Allows selection of specific wavelengths for analysis
- securely positions the sample in the light path
- Typically accommodates standard cuvettes or specialized cells
- Maintains consistent positioning for accurate measurements
- converts light intensity into electrical signal
- offer high sensitivity for low light levels
- enable simultaneous detection of multiple wavelengths
Types of UV-Vis Instruments
- measures sample and reference separately
- Simpler design with lower cost
- Requires manual switching between sample and reference
- More susceptible to drift and fluctuations in light source intensity
- measures sample and reference simultaneously
- Splits light beam into two paths using a chopper or beam splitter
- One path passes through the sample, the other through the reference
- Provides improved stability and accuracy by compensating for fluctuations
- Allows real-time background correction
Sample Preparation
Cuvette Selection and Handling
- Cuvettes serve as containers for liquid samples in UV-Vis spectroscopy
- Material selection depends on wavelength range of analysis
- transmit light across entire UV-Vis range (190-900 nm)
- suitable for visible region only (>340 nm)
- offer cost-effective option for visible region measurements
- Cuvette affects absorbance measurements
- Standard path length of 10 mm commonly used
- Shorter path lengths (1-5 mm) useful for highly absorbing samples
- Longer path lengths (20-100 mm) increase sensitivity for dilute solutions
- Proper handling and cleaning of cuvettes ensures accurate results
- Avoid touching optical surfaces to prevent fingerprints and scratches
- Clean cuvettes thoroughly between measurements to prevent cross-contamination
Solvent and Sample Considerations
- impacts quality of UV-Vis measurements
- Choose solvents with minimal absorption in wavelength range of interest
- Common include water, ethanol, and hexane
- Consider solubility of analyte and potential chemical interactions
- Sample concentration must fall within linear range of instrument
- Dilute highly concentrated samples to avoid saturation
- Concentrate dilute samples to improve signal-to-noise ratio
- accounts for background absorption and instrument effects
- Measure blank solution (solvent without analyte) as reference
- Subtract blank spectrum from sample spectrum to isolate analyte signal
- Helps compensate for cuvette imperfections and solvent absorption
Key Terms to Review (29)
Baseline correction: Baseline correction is a technique used in spectroscopy to remove background signals or noise from the measured data, allowing for more accurate identification and quantification of analyte signals. This process is essential for ensuring that the analytical results reflect only the contribution from the sample of interest, rather than any interfering signals that may be present due to the instrument or other environmental factors. By adjusting the baseline, it becomes easier to interpret spectra and focus on the relevant features.
Beer-Lambert Law: The Beer-Lambert Law is a principle that describes the relationship between the absorption of light by a substance and its concentration in a solution, stating that absorbance is directly proportional to both the concentration of the absorbing species and the path length of the light. This law connects fundamental concepts of light interaction with matter to quantitative analysis in spectroscopy, allowing for the determination of concentrations in various applications.
Concentration: Concentration refers to the amount of a substance in a given volume of solution, often expressed in terms of molarity, molality, or percentage. Understanding concentration is crucial because it directly influences the interaction between molecules during spectroscopic analysis and affects the results obtained from various instrumentation techniques.
Cuvette: A cuvette is a small, transparent container designed to hold liquid samples for analysis in spectroscopic experiments. These containers are typically made from materials such as glass or quartz, which allow light to pass through without significant absorption or scattering. The dimensions and path length of the cuvette are crucial, as they directly affect the measurement of absorbance and transmission of light during spectroscopic analysis.
Cuvette Selection: Cuvette selection refers to the process of choosing the appropriate cuvette for holding samples in spectroscopy experiments, which is crucial for obtaining accurate and reliable measurements. Factors such as the material, path length, and optical properties of the cuvette can significantly affect the results, influencing how light interacts with the sample. Proper cuvette selection ensures that the sample is analyzed in an optimal environment, thereby enhancing the quality of data collected during the spectroscopic analysis.
Detector: A detector is a device that identifies and measures the presence of a specific type of radiation or signal, converting it into a readable output. In spectroscopy, detectors are crucial as they capture the light that interacts with a sample and produce data that can be analyzed to understand the sample's composition and properties. Their efficiency and sensitivity directly influence the accuracy of spectral measurements and the ability to distinguish between closely related compounds.
Deuterium Lamp: A deuterium lamp is a type of light source that emits ultraviolet (UV) radiation, specifically designed for use in various spectroscopic applications. This lamp produces light through the excitation of deuterium gas, which allows it to cover a broad UV spectrum ranging from approximately 160 nm to 400 nm. Its efficiency and stability make it essential in instrumentation where precise UV light is needed for analyzing samples and obtaining accurate spectral data.
Dilution: Dilution is the process of reducing the concentration of a solute in a solution, typically by adding more solvent. This fundamental technique is essential in preparing samples for analysis, ensuring that the concentration of analytes falls within the optimal range for accurate and reliable measurement. Proper dilution can enhance the sensitivity of detection methods while minimizing interference from other components in a sample.
Dispersing Element: A dispersing element is a crucial component in optical instruments that separates light into its constituent wavelengths, enabling the analysis of the spectral composition of light. This element can take various forms, such as prisms or diffraction gratings, and is essential for producing spectra that allow scientists to identify materials and their properties based on their interaction with light.
Double-beam instrument: A double-beam instrument is a type of optical spectroscopy device that uses two separate paths for light, allowing for simultaneous comparison between a sample and a reference. This design enhances measurement accuracy by compensating for fluctuations in the light source and environmental conditions, ultimately improving the reliability of spectral data. The use of two beams enables real-time monitoring of changes in the sample's absorbance or transmittance against a constant reference, making it particularly useful in quantitative analyses.
Entrance Slit: An entrance slit is a narrow opening in a spectrometer that allows light to enter the instrument for analysis. This critical component determines the amount of light that can pass through to the optical system, affecting the resolution and intensity of the resulting spectral data. The size and shape of the entrance slit can be adjusted to optimize performance for different types of samples and measurements.
Exit slit: An exit slit is a narrow opening in a spectroscopic instrument that allows light to pass through after it has been dispersed by a grating or prism. This component is essential for determining the resolution and spectral bandwidth of the instrument, as it controls the amount of light that reaches the detector. The size and position of the exit slit directly influence the quality of the spectral data collected.
Glass cuvettes: Glass cuvettes are small, transparent containers used to hold liquid samples for analysis in spectroscopic experiments. They are designed to allow light to pass through without interference, ensuring accurate readings of the sample's absorbance, transmittance, or fluorescence. The choice of cuvette material and its dimensions can significantly affect the quality of spectroscopic measurements, as they directly influence how light interacts with the sample.
Grating: A grating is an optical device used to disperse light into its component wavelengths, commonly utilized in spectroscopy. It consists of a reflective or transmissive surface with a series of closely spaced lines or grooves that cause light to diffract, allowing for the separation of different wavelengths. This property is essential in various analytical techniques, as it enables the identification and analysis of substances based on their spectral characteristics.
Light source: A light source is a device or material that emits light, playing a crucial role in spectroscopy by providing the necessary illumination for the analysis of samples. The type of light source used can significantly affect the quality and type of data obtained, making it essential for optimal performance in various spectroscopic techniques. Understanding the properties and characteristics of different light sources is key to effective instrumentation and sample preparation.
Monochromator: A monochromator is an optical device that isolates specific wavelengths of light from a broader spectrum, allowing for the selection of a single wavelength to be analyzed. This capability is crucial in various types of spectroscopy, enabling precise measurements by eliminating unwanted wavelengths and enhancing signal clarity. Monochromators typically utilize components like prisms or diffraction gratings to achieve wavelength separation.
Path Length: Path length refers to the distance that light travels through a sample or medium before it is detected. It plays a crucial role in determining the amount of light absorbed or transmitted by a sample, directly influencing the results obtained from spectroscopic measurements. Understanding path length is essential for proper instrumentation and sample preparation, as it affects the sensitivity and accuracy of spectral data collection.
Photodiode Arrays: Photodiode arrays are electronic devices that consist of a series of photodiodes arranged in a grid or linear format, which convert light into electrical signals. These arrays are crucial in various applications such as spectroscopy, as they allow for simultaneous detection of multiple wavelengths, enhancing the speed and efficiency of data collection in analytical instrumentation.
Photomultiplier Tubes: Photomultiplier tubes (PMTs) are highly sensitive light detectors that convert incident photons into an electrical signal through a series of secondary electron emissions. These devices are essential in various applications, including spectroscopy, due to their ability to detect low levels of light and provide fast response times, enhancing the overall performance of analytical instruments.
Plastic cuvettes: Plastic cuvettes are optical containers made from plastic materials, used to hold liquid samples for analysis in various types of spectroscopy. They are designed to be lightweight and durable, providing a cost-effective alternative to glass cuvettes while allowing for sufficient light transmission for accurate measurement of sample absorbance and transmittance.
Prism: A prism is an optical element made of transparent material that refracts light, bending it to separate it into its component colors. It plays a crucial role in various spectroscopic techniques, as it allows for the analysis of light by breaking it into a spectrum, making it easier to study the properties of different wavelengths and their interactions with matter.
Quartz Cuvettes: Quartz cuvettes are optical glass containers specifically designed for holding samples during spectroscopic measurements. Made from high-purity quartz, these cuvettes allow for minimal light absorption and high transmittance, making them ideal for UV-Vis spectroscopy. Their construction ensures that they do not interfere with the light path, which is essential for accurate analysis of sample absorbance and fluorescence.
Sample Holder: A sample holder is a device used to securely hold a sample in place during spectroscopic analysis, ensuring that it is positioned correctly within the path of the light beam. The design and material of a sample holder can significantly affect the quality of data obtained, as it must minimize any interference or scattering while allowing for optimal interaction between the sample and the light source. Sample holders are critical in various spectroscopy techniques, where accurate sample presentation is essential for reliable measurements.
Single-beam instrument: A single-beam instrument is a type of spectroscopic equipment that measures the intensity of light passing through a sample in a single pathway, typically using one detector. This setup simplifies the measurement process by directing light from a source through a sample and then directly to the detector, allowing for straightforward analysis of sample absorption or transmission properties. By utilizing a single light path, these instruments can provide rapid results and are often used in routine analyses.
Solvent selection: Solvent selection is the process of choosing the appropriate solvent to dissolve a solute for a specific application or analytical technique. The choice of solvent is crucial because it affects the solubility of the solute, the stability of the solution, and the overall efficiency of the analytical method being employed. Additionally, the solvent can influence various spectroscopic properties, such as absorption and fluorescence, which are vital for accurate measurements and interpretations in spectroscopy.
Tungsten-halogen lamp: A tungsten-halogen lamp is a type of incandescent light bulb that contains a small amount of halogen gas, which allows it to produce bright, white light and improves its efficiency and lifespan. This lamp operates by passing an electric current through a tungsten filament, heating it until it glows, while the halogen gas helps to recycle evaporated tungsten back onto the filament, reducing blackening and maintaining brightness over time.
Uv-transparent solvents: UV-transparent solvents are solvents that do not absorb ultraviolet (UV) light within the specific wavelength range typically used in spectroscopy. These solvents are crucial because they allow for accurate analysis of samples without interference from the solvent's own absorbance, ensuring that the spectra obtained reflect only the characteristics of the analyte being studied.
Uv-vis spectrometer: A uv-vis spectrometer is an analytical instrument used to measure the absorption of ultraviolet and visible light by a sample, providing insight into its molecular composition and structure. This technique relies on the interaction between light and matter, enabling the identification and quantification of various substances in a sample by analyzing their unique absorption spectra.
Uv-vis spectroscopy: UV-Vis spectroscopy is an analytical technique that measures the absorption of ultraviolet and visible light by a sample, allowing for the determination of the electronic transitions within molecules. This technique is essential for analyzing the interaction between light and matter, providing insights into the structure and concentration of compounds in a sample.
