7.2 Ionospheric composition and chemistry

4 min read•july 31, 2024

The ionosphere's composition and chemistry are key to understanding its behavior. This complex region of Earth's upper atmosphere contains a mix of ions and neutral particles that vary with altitude. Solar radiation drives ionization processes, while and transport mechanisms shape the ionosphere's structure.

Chemical reactions in the ionosphere involve , charge exchange, and recombination. These processes, along with atmospheric dynamics like winds and waves, create distinct layers with unique compositions. Understanding these interactions is crucial for predicting ionospheric conditions and their effects on radio communications and satellite operations.

Ionospheric composition

Major ionic and neutral species

Top images from around the web for Major ionic and neutral species

  • Molecular Orbital Theory | Chemistry: Atoms First View original

    Is this image relevant?

  • Talk:Ionosphere - Wikipedia View original

    Is this image relevant?

  • Molecular Orbital Theory | Chemistry: Atoms First View original

    Is this image relevant?

1 of 3

Top images from around the web for Major ionic and neutral species

  • Molecular Orbital Theory | Chemistry: Atoms First View original

    Is this image relevant?

  • Talk:Ionosphere - Wikipedia View original

    Is this image relevant?

  • Molecular Orbital Theory | Chemistry: Atoms First View original

    Is this image relevant?

1 of 3

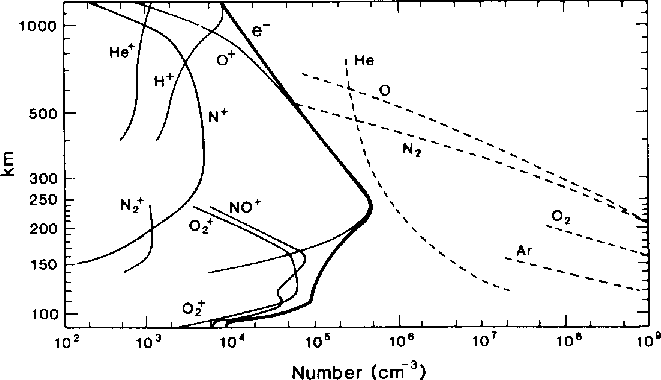

  • Ionosphere contains ionized and neutral atoms and molecules of nitrogen (+, N+), oxygen (O2+, ), and hydrogen (H+)
  • Atomic oxygen (O) dominates neutral species in F region
  • Molecular nitrogen (N2) and oxygen (O2) dominate in E and D regions
  • Minor ionic species include +, N2+, and metallic ions (Fe+, Mg+) from meteoric ablation
  • Relative abundance of ionic species varies with altitude
    • O+ dominates in F region
    • NO+ and O2+ more prevalent in E region
  • Electron density profiles exhibit distinct layers (D, E, F1, F2) with characteristic ion compositions and peak densities
  • Neutral atmospheric constituents facilitate charge exchange reactions and ion-neutral chemistry

Altitude-dependent composition

  • F region dominated by atomic ions (O+)
    • Peak electron density occurs around 300-400 km altitude
  • E region characterized by molecular ions (NO+, O2+)
    • Typical peak altitude of 90-120 km
  • D region contains complex ion chemistry
    • Exists only during daytime at altitudes of 60-90 km
  • Topside ionosphere transitions to H+ dominance above ~1000 km
  • Neutral composition shifts from molecular to atomic species with increasing altitude
    • N2 and O2 dominant below ~200 km
    • O becomes primary neutral constituent above ~200 km

Chemical processes in the ionosphere

Ion production and loss mechanisms

  • Photoionization produces ions through absorption of solar extreme ultraviolet (EUV) and X-ray radiation
  • Charge exchange reactions between ions and neutral species influence ion composition
    • Converts O+ to molecular ions (O2+, NO+)
  • of molecular ions with electrons causes plasma loss
    • Reaction rates depend on electron temperature
  • Ion-neutral reactions contribute to overall ion balance
    • O+ + N2 → NO+ + N
  • Three-body recombination processes important at lower altitudes (D and E regions)
  • Photodissociation of neutral molecules by solar radiation affects atomic species availability

Chapman production function

  • Describes altitude-dependent ion production rate
  • Considers factors such as solar zenith angle and atmospheric scale height
  • Production rate peaks where product of neutral density and solar radiation intensity maximizes
  • Mathematical expression: q(z)=qmexp⁡(1−z−sec⁡χe−z)q(z) = q_m \exp(1-z-\sec\chi e^{-z})
    • q(z) production rate at reduced height z
    • qm maximum production rate
    • χ solar zenith angle
  • Explains formation of distinct ionospheric layers
  • Provides framework for understanding diurnal and seasonal variations in ion production

Photoionization and recombination

Photoionization processes

  • Rates depend on solar flux intensity, ionization cross-sections, and neutral density profile
  • Different wavelengths ionize various neutral species
    • Leads to altitude-dependent ion composition
  • Solar cycle variations in EUV flux significantly impact photoionization rates
  • Diurnal variation caused by changing solar zenith angle
  • Seasonal effects due to Earth's axial tilt and orbital position
  • Primary reactions:
    • O + hν → O+ + e-
    • N2 + hν → N2+ + e-
    • O2 + hν → O2+ + e-

Recombination mechanisms

  • Radiative recombination for atomic ions
    • O+ + e- → O + hν
  • Dissociative recombination for molecular ions (generally faster)
    • O2+ + e- → O + O
    • NO+ + e- → N + O
  • Effective recombination coefficient combines various loss processes
    • Varies with altitude and influences plasma lifetime
  • Balance between photoionization and recombination determines diurnal electron density variation
  • Recombination rates affected by:
    • Electron temperature
    • Ion composition
    • Neutral density

Atmospheric dynamics and ionospheric composition

Neutral wind effects

  • Thermospheric winds transport ionospheric plasma along magnetic field lines
    • Alters vertical distribution of ions and electrons
  • Horizontal winds can lift or lower the
    • Affects peak electron density and height
  • Meridional winds cause interhemispheric plasma transport
  • Zonal winds contribute to longitudinal variations in ionospheric structure
  • Wind-induced plasma drift velocity: vd=usin⁡Icos⁡Iv_d = u \sin I \cos I
    • u neutral wind velocity
    • I magnetic inclination angle

Atmospheric waves and tides

  • Atmospheric tides modulate ionospheric density and composition
    • Driven by solar heating and gravitational forces
  • Gravity waves propagate energy and momentum vertically
    • Cause perturbations in neutral density and winds
  • Traveling ionospheric disturbances (TIDs) result from gravity wave effects
    • Large-scale TIDs (periods > 1 hour)
    • Medium-scale TIDs (periods 10 min - 1 hour)
  • Planetary waves (periods of days) influence global ionospheric structure
  • Wave-driven vertical motions alter neutral composition
    • Affects ion production and loss rates

Equatorial and storm-time effects

  • Equatorial fountain effect redistributes plasma
    • Driven by E×B drift at magnetic equator
    • Creates equatorial ionization anomaly (EIA) with density peaks at ±15° magnetic latitude
  • Storm-time effects alter neutral composition and temperature
    • Joule heating increases thermospheric temperature
    • Particle precipitation enhances ionization at high latitudes
  • O/N2 ratio changes significantly influence ion production and loss rates
    • Decreased O/N2 during storms leads to ionospheric negative storms
  • Seasonal variations in thermospheric circulation impact ionospheric structure
  • Vertical transport of minor species (NO) from lower thermosphere affects E and F region ion chemistry

Key Terms to Review (20)

Auroras: Auroras are natural light displays predominantly seen in high-latitude regions around the Arctic and Antarctic, caused by the interaction between charged particles from the solar wind and the Earth's magnetic field. These stunning phenomena highlight the dynamic relationship between the solar system's solar wind, Earth’s magnetic field, and atmospheric conditions.
Coronal Mass Ejections: Coronal mass ejections (CMEs) are large expulsions of plasma and magnetic field from the sun's corona, often associated with solar flares. These massive bursts can significantly affect space weather and the Earth's magnetosphere, as they carry a large amount of solar material and energy into the solar system.
D layer: The d layer, or the D region of the ionosphere, is the lowest layer of the ionosphere, situated between approximately 30 to 90 kilometers above the Earth's surface. This region is characterized by a significant presence of ionization caused primarily by solar radiation, particularly during daytime. The d layer plays a crucial role in radio wave propagation, as it can absorb and attenuate lower-frequency radio signals, affecting communication and navigation systems.
Dissociative Recombination: Dissociative recombination is a process where a molecular ion recombines with an electron, resulting in the dissociation of the molecule into two or more neutral fragments. This phenomenon is crucial in understanding the chemistry of the ionosphere, as it helps regulate the population of ions and neutrals, affecting the overall ionospheric composition and its dynamic processes.
E layer: The e layer, or E region, is a part of the Earth's ionosphere located approximately 90 to 150 kilometers above the surface. This layer plays a crucial role in radio wave propagation and reflects certain frequencies back to Earth, enabling long-distance communication. The e layer is characterized by its formation through ionization caused by solar radiation, which significantly influences its structure and behavior.
Edward Appleton: Edward Appleton was a British physicist who made significant contributions to the field of ionospheric research, particularly through his work on radio wave propagation. His discoveries led to the understanding of the ionosphere's structure and its role in radio communication, highlighting how various layers within the ionosphere affect signals transmitted from the Earth to the atmosphere and beyond.
F layer: The f layer, or F region, is the highest layer of the Earth's ionosphere, typically found at altitudes ranging from about 150 km to 1,000 km. This layer plays a crucial role in radio wave propagation and reflects high-frequency radio waves back to Earth, making long-distance communication possible. The f layer is vital for understanding the structure and behavior of the ionosphere, particularly during different solar and atmospheric conditions.
Gps signal delay: GPS signal delay refers to the time it takes for a GPS signal to travel from a satellite to a receiver on Earth. This delay is influenced by various factors, including the ionosphere's composition and the presence of free electrons that can cause signal refraction and scattering, ultimately affecting the accuracy of positioning data.
Hf radio propagation: HF radio propagation refers to the way high-frequency (HF) radio waves travel through the Earth's atmosphere, particularly how they interact with the ionosphere. This form of communication is heavily influenced by the ionospheric composition and chemistry, which affects the reflection and refraction of radio signals, allowing them to cover vast distances beyond the horizon.
Ion-molecule reactions: Ion-molecule reactions refer to the chemical interactions that occur between ions and neutral molecules, leading to the formation of new chemical species. These reactions are significant in the ionosphere, where ions generated by solar radiation interact with various neutral gases, influencing the overall composition and chemistry of this region. Understanding these reactions is crucial for grasping how atmospheric chemistry evolves, particularly in the context of solar activity and its effects on the Earth’s upper atmosphere.
Ionosonde: An ionosonde is a type of radar used to measure the electron density and height of ionospheric layers by transmitting radio waves and analyzing the reflected signals. This technology is crucial for understanding the composition and behavior of the ionosphere, which plays a vital role in radio wave propagation and various atmospheric phenomena.
Léon Foucault: Léon Foucault was a French physicist best known for his groundbreaking work on the measurement of the speed of light and the Foucault pendulum, which demonstrated the rotation of the Earth. His contributions significantly advanced our understanding of physical phenomena and have implications in various fields, including space physics, particularly regarding the behavior of charged particles in the ionosphere.
N2: N2, or nitrogen gas, is a diatomic molecule composed of two nitrogen atoms. It makes up about 78% of the Earth's atmosphere and plays a crucial role in the ionosphere's chemical composition and dynamics. In the ionosphere, N2 interacts with solar radiation and contributes to the production of other important species through various photochemical reactions.
No: In the context of ionospheric composition and chemistry, 'no' refers to nitrogen monoxide, a gas that plays a crucial role in the chemical processes occurring within the ionosphere. This molecule is significant due to its involvement in various reactions, particularly those related to the ionization and recombination processes that affect the behavior of charged particles in the atmosphere. Understanding 'no' helps in grasping how the ionosphere interacts with solar radiation and cosmic rays, impacting communication and navigation systems.
O+: O+ is a positively charged ion of oxygen, formed when an oxygen atom loses one electron. This ion is significant in the study of ionospheric composition and chemistry, particularly as it contributes to the overall ionization processes in the Earth's upper atmosphere. O+ plays a crucial role in the formation of various chemical reactions and interactions between solar wind particles and atmospheric components.
Photoionization: Photoionization is the process by which an atom or molecule absorbs a photon and subsequently ejects one or more of its electrons, resulting in the formation of ions. This process is crucial in understanding how the ionosphere is formed and structured, as the absorption of solar radiation leads to the ionization of atmospheric gases, contributing to the overall density and behavior of the ionosphere.
Plasma bubbles: Plasma bubbles are regions of low electron density within the ionosphere, typically occurring in the nighttime equatorial region. These bubbles form due to the instability of the ionospheric plasma, leading to the upward motion of ionized particles that create a void in the electron density. Understanding plasma bubbles is crucial as they contribute to ionospheric irregularities and can significantly affect radio wave propagation, satellite communications, and global positioning systems.
Radar Sounding: Radar sounding is a remote sensing technique that uses radar waves to probe the subsurface of a planetary body, providing insights into its geological features and structure. This technique is especially useful for studying the ionosphere, as it helps identify layers, boundaries, and variations in electron density, enhancing our understanding of the ionosphere's formation, composition, and dynamic processes.
Recombination: Recombination is the process where free electrons and positive ions in a plasma combine to form neutral atoms or molecules. This process is crucial for understanding the balance of charged and neutral particles in the ionosphere, influencing its composition and chemistry, as well as impacting the dynamics and electrodynamics of this region.
Solar flares: Solar flares are intense bursts of radiation originating from the release of magnetic energy associated with sunspots. These flares can impact space weather and have significant effects on both the solar system and Earth, influencing various atmospheric and technological systems.
