and are crucial elements in sound design. They determine how we perceive different tones and musical notes. Understanding these concepts helps us manipulate and create sounds with specific characteristics.
Frequency is measured in , with humans hearing between 20 Hz and 20 kHz. The sets a sound's pitch, while and shape its . These elements combine to create the unique qualities of different instruments and voices.
Frequency and Pitch
Measuring Frequency in Hertz (Hz)
Frequency measures the number of cycles or oscillations per second
The unit of frequency is Hertz (Hz), named after
1 Hz equals one cycle per second

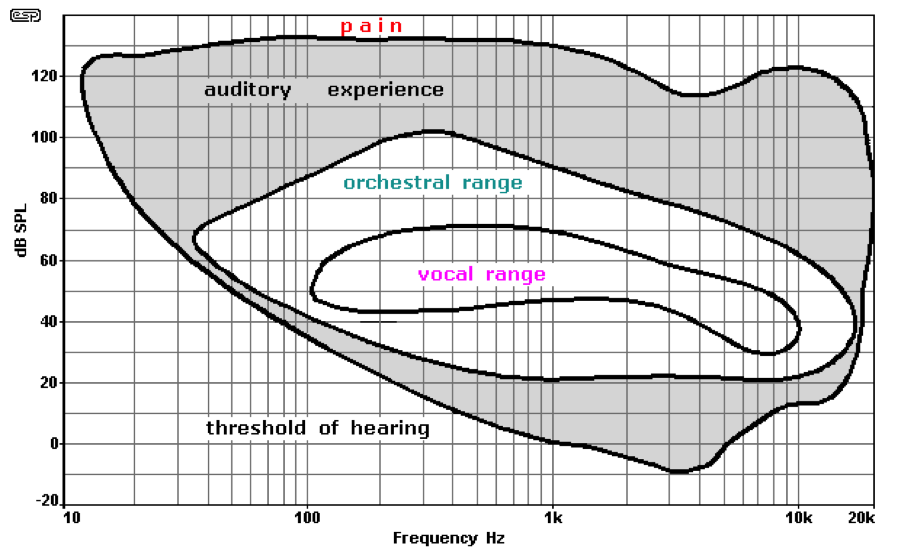

Human hearing range spans approximately 20 Hz to 20,000 Hz (20 kHz)
Higher frequencies correspond to higher pitched sounds, while lower frequencies correspond to lower pitched sounds
Fundamental Frequency and Harmonics
The fundamental frequency (f0) is the lowest frequency in a periodic waveform
Determines the pitch of a sound
Musical notes have specific fundamental frequencies (A4 = 440 Hz)
Harmonics are integer multiples of the fundamental frequency
1st harmonic = fundamental frequency (f0)
2nd harmonic = 2 * f0
3rd harmonic = 3 * f0, and so on
Octaves and Frequency Doubling
An is the interval between two frequencies with a 2:1 ratio
Doubling the frequency of a sound results in a pitch one octave higher
Halving the frequency of a sound results in a pitch one octave lower
Octaves are a fundamental concept in music theory and acoustics
The human ear perceives octaves as having a similar quality or character
Harmonic Content
Harmonics and Overtones
Harmonics are integer multiples of the fundamental frequency present in a sound
Overtones refer to any frequency above the fundamental in a sound, including both harmonics and inharmonic partials
The relative amplitudes of harmonics contribute to a sound's timbre or
Musical instruments produce different sets of harmonics, giving them distinct timbres (violin vs. flute)
Timbre and Tone Color
Timbre is the quality that distinguishes sounds with the same pitch and loudness
Determined by the relative amplitudes and phases of harmonics and overtones
Allows us to differentiate between different voices and musical instruments
Timbre is influenced by factors such as materials, shape, and size of the sound source (wooden vs. metal flute)
Synthesizers can create unique timbres by manipulating harmonic content
Inharmonicity and Complex Tones
occurs when overtones are not exact integer multiples of the fundamental frequency
Inharmonic partials contribute to the of certain instruments (piano, bells)
The degree of inharmonicity affects the perceived warmth or harshness of a sound
Inharmonicity is an important consideration in tuning and synthesizing realistic instrument sounds
Frequency Analysis
Fourier Analysis and Spectral Decomposition
is a mathematical technique that decomposes a complex waveform into its constituent frequencies
Allows for the examination of the frequency content of a sound
The Fourier transform converts a time-domain signal into a frequency-domain representation
Reveals the amplitudes and phases of individual frequency components
Fourier analysis is the foundation for many audio processing techniques (, )
Spectrum Analyzers and Frequency Domain Visualization
A is a device or software that displays the frequency content of a signal
Provides a visual representation of the amplitudes of frequency components over time
Spectrum analyzers are used for analyzing and troubleshooting audio systems (identifying feedback frequencies, room modes)
Real-time analyzers (RTAs) display the frequency spectrum in real-time, useful for live sound applications
Waterfall plots show the evolution of the frequency spectrum over time, helpful for analyzing transient sounds (percussion, speech)
Key Terms to Review (20)
Complex Tones: Complex tones are sounds made up of multiple frequencies, typically containing a fundamental frequency and various overtones or harmonics. These tones are essential in sound design, as they contribute to the richness and timbre of sounds, influencing how we perceive music and audio. Understanding complex tones helps in analyzing the frequency spectrum and recognizing how different pitches combine to form the unique characteristics of musical instruments and vocal sounds.
Equalization: Equalization is the process of adjusting the balance between frequency components of an audio signal. By altering the amplitude of specific frequency ranges, equalization shapes the sound, enhancing or reducing certain characteristics to achieve a desired tonal quality, clarity, and balance in the overall mix.
Filtering: Filtering is the process of selectively removing or enhancing certain frequency components of an audio signal while leaving others intact. This technique is essential in sound design as it shapes the overall tonal quality and clarity of sounds, allowing for more effective mixing and manipulation. By adjusting frequency ranges, filtering helps to create space within a mix and can also be used creatively to produce distinct sound textures.
Fourier Analysis: Fourier Analysis is a mathematical technique used to decompose complex signals into simpler components, specifically into sine and cosine waves. This process allows us to analyze the frequency spectrum of signals, revealing the underlying pitch and harmonic content. By transforming a time-domain signal into the frequency domain, we can better understand its characteristics, such as tone quality and resonance.
Frequency domain visualization: Frequency domain visualization refers to the graphical representation of the frequency content of a sound signal, showing how different frequencies are present and their respective amplitudes. This concept is essential in understanding the frequency spectrum, where pitches and their relationships are analyzed through visual formats like spectrograms and frequency graphs. By converting time-domain signals into the frequency domain, sound designers can more easily identify tonal characteristics, harmonics, and noise components in audio.
Frequency doubling: Frequency doubling is a phenomenon in sound where a signal oscillates at twice the frequency of its fundamental frequency. This concept is crucial for understanding how harmonics and overtones relate to pitch and how the frequency spectrum represents these relationships in sound design. Frequency doubling often influences our perception of musical intervals and contributes to the rich timbre of musical instruments.
Frequency Response: Frequency response refers to the measure of a system's output spectrum in response to a stimulus input signal, particularly how different frequencies are amplified or attenuated. It plays a crucial role in sound design, impacting how microphones capture sound and how audio signals are processed or equalized to achieve desired tonal qualities. Understanding frequency response helps in optimizing microphone placement, selecting appropriate microphone types, applying equalization effectively, and analyzing pitch relationships in audio production.
Frequency spectrum: The frequency spectrum refers to the range of different frequencies of sound that are present in a signal, which can be visualized and analyzed to understand the characteristics of the sound. This concept helps in identifying specific frequencies for tasks such as noise reduction, equalization, and sound design, allowing sound professionals to manipulate audio more effectively.
Fundamental frequency: Fundamental frequency refers to the lowest frequency of a periodic waveform and is the primary component of sound that determines its pitch. It is crucial for understanding how sounds are perceived because it establishes the base frequency upon which harmonics are built. This concept is key to analyzing the frequency spectrum of musical instruments, voices, and other sound sources.
Harmonics: Harmonics are integral multiples of a fundamental frequency, contributing to the overall timbre and character of a sound. When a sound is produced, it typically contains not just the fundamental frequency that defines its pitch, but also various higher frequencies, known as harmonics, that add richness and complexity. The presence and relative strength of these harmonics play a crucial role in determining how we perceive different sounds, making them essential for understanding the frequency spectrum and how pitch is established.
Heinrich Hertz: Heinrich Hertz was a German physicist known for his pioneering work in electromagnetism and for being the first to conclusively prove the existence of electromagnetic waves. His experiments in the late 19th century established the foundation for modern wireless communication technologies and greatly influenced the understanding of frequency, which is crucial in defining pitch and the frequency spectrum.
Hertz: Hertz (Hz) is the unit of frequency that measures the number of cycles of a periodic wave occurring in one second. This measurement is crucial for understanding various characteristics of sound, such as pitch, timbre, and how sound waves interact with the auditory system. The frequency in hertz determines how we perceive sound, influencing our musical experiences and the technical aspects of sound production, including equalization and audio processing.
Inharmonicity: Inharmonicity refers to the deviation of a musical sound from harmonic relationships, meaning that the frequencies of the overtones do not align with whole number multiples of a fundamental frequency. This phenomenon is crucial in understanding how different instruments produce unique timbres, as it affects the frequency spectrum and the perceived pitch of sounds. Inharmonicity is particularly prominent in instruments like bells or certain percussion, where the overtones are not neatly organized into harmonic series.
Octave: An octave is the interval between one musical pitch and another with half or double its frequency, effectively creating a sense of harmonic equivalence. When a sound is played at a frequency that is double or half the frequency of another sound, it is perceived as being similar in quality, even though it is higher or lower in pitch. This relationship is foundational in music theory and plays a crucial role in the organization of the frequency spectrum and pitch perception.
Overtones: Overtones are higher frequency sound waves that occur above the fundamental frequency of a sound. They contribute to the richness and timbre of musical notes, giving each sound its unique character. Understanding overtones is essential for analyzing the frequency spectrum and how different pitches interact in sound design.
Pitch: Pitch is the perceived frequency of a sound, which determines how high or low it sounds to the human ear. It's a fundamental characteristic of sound that plays a critical role in music and audio production, as it helps to establish melody and harmony. Understanding pitch is essential for sound design since it influences how sounds interact with each other and the overall audio landscape.
Spectral decomposition: Spectral decomposition is a mathematical process used to break down a complex sound signal into its individual frequency components, allowing for a clearer understanding of its structure and characteristics. This method highlights how different frequencies contribute to the overall sound, which is essential for analyzing pitch and timbre. By representing sound in the frequency domain, spectral decomposition makes it easier to visualize and manipulate sounds in various applications like synthesis, analysis, and sound design.
Spectrum analyzer: A spectrum analyzer is a device or software that measures and displays the frequency spectrum of signals, allowing users to visualize how different frequencies contribute to an overall sound. By breaking down audio signals into their component frequencies, it helps identify pitch, harmonics, and any unwanted noise within a sound. This tool is essential in sound design for analyzing audio quality and frequency distribution.
Timbre: Timbre refers to the unique quality or color of a sound that allows us to distinguish between different sources, even when they are producing the same pitch and loudness. This distinct character of sound is shaped by various factors, including the harmonic content, overtones, and the way a sound is produced, making it a crucial aspect in differentiating between instruments, voices, and sound effects.
Tone color: Tone color, also known as timbre, refers to the quality or character of a sound that distinguishes it from other sounds. It's what makes a particular instrument or voice unique, even when they play the same pitch. This quality is influenced by various factors, including the frequency spectrum, which involves the distribution of different frequencies within a sound, and how these frequencies interact to create a rich auditory experience.
