13.4 Dynamics Processing: Compression and Limiting
4 min read•august 6, 2024
and are essential tools in mixing, shaping the dynamics of audio signals. They control volume levels, add punch, and create consistency. Understanding parameters like , , , and times is crucial for effective use.
Advanced techniques like and offer creative possibilities. Limiting, a form of extreme compression, is used to maximize loudness and prevent clipping. Balancing with preserving natural character is key to professional-sounding mixes.
Compression Parameters
Threshold and Ratio
Top images from around the web for Threshold and Ratio

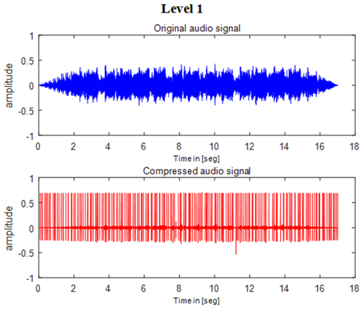

Audio Compression Using DWT and RLE Techniques View original
Is this image relevant?
Audio Compression Using DWT and RLE Techniques View original
Is this image relevant?
Audio Compression Using DWT and RLE Techniques View original
Is this image relevant?
Audio Compression Using DWT and RLE Techniques View original
Is this image relevant?
1 of 2
Top images from around the web for Threshold and Ratio
Audio Compression Using DWT and RLE Techniques View original
Is this image relevant?
Audio Compression Using DWT and RLE Techniques View original
Is this image relevant?
Audio Compression Using DWT and RLE Techniques View original
Is this image relevant?
Audio Compression Using DWT and RLE Techniques View original
Is this image relevant?
1 of 2
- Threshold determines the level at which compression begins to be applied
- Audio signals above the threshold are attenuated (reduced in level) according to the ratio setting
- Ratio specifies the amount of gain reduction applied to signals exceeding the threshold
- A ratio of 4:1 means that for every 4 dB the input signal exceeds the threshold, the output will only increase by 1 dB
- Higher ratios (8:1, 10:1, 20:1) result in more aggressive compression and a more noticeable effect on the audio
Attack and Release Times
- Attack time controls how quickly the compressor reacts to the input signal once it exceeds the threshold
- Fast attack times (1-10 ms) are useful for controlling transients and reducing sharp peaks (drums, percussion)
- Slower attack times (20-100 ms) allow the initial transient to pass through unaffected, preserving the natural attack of the sound (vocals, bass)
- Release time determines how quickly the compressor returns to its normal gain once the input signal falls below the threshold
- Fast release times (20-100 ms) can cause the compressor to follow the envelope of the audio closely, resulting in a more aggressive and noticeable effect (pumping)
- Slower release times (100-500 ms) provide a smoother, more natural-sounding compression (vocals, bass, guitar)
Knee and Makeup Gain
- refers to the transition point around the threshold where compression begins to take effect
- A hard knee (0 dB) means the compressor engages immediately once the threshold is crossed, resulting in a more abrupt change in dynamics
- A soft knee (1-10 dB) provides a more gradual transition into compression, creating a smoother and less noticeable effect
- is used to compensate for the overall reduction in level caused by compression
- Applying makeup gain allows you to bring the compressed signal back up to a desired level, ensuring consistent loudness across the mix
Advanced Compression Techniques
Side-Chain Compression
- Side-chain compression uses an external audio signal to control the compression of another signal
- The side-chain signal triggers the compressor to attenuate the main signal when it exceeds the threshold
- Commonly used for effects (kick drum triggering compression on a bass line) or creating space in a mix (lead vocal triggering compression on background vocals)
- Side-chain compression can also be used creatively for pumping effects (kick drum triggering compression on a synth pad) or rhythmic shaping of sounds
Parallel Compression
- Parallel compression (New York compression) involves blending a heavily compressed version of a signal with the original uncompressed signal
- The compressed signal is mixed in at a lower level, adding density and without sacrificing the transients and dynamics of the original sound
- Commonly used on drums, vocals, and bass to enhance presence and impact while maintaining a natural character
- Parallel compression allows you to achieve a more aggressive and punchy sound without introducing artifacts or over-compressing the main signal
Limiting
Brick Wall Limiting
- Brick wall limiting is a form of extreme compression with a very high ratio (20:1 or higher) and a fast attack time
- Designed to prevent the audio signal from exceeding a specified maximum level (ceiling) under any circumstances
- Commonly used in mastering to maximize loudness and prevent clipping or distortion
- Brick wall limiting can introduce artifacts such as pumping, breathing, or distortion if applied too aggressively
- It is important to use brick wall limiting sparingly and with careful attention to the release time and ceiling settings
Dynamic Range
- Dynamic range refers to the difference between the loudest and quietest parts of an audio signal
- A wide dynamic range allows for greater contrast and impact, while a narrow dynamic range results in a more consistent and dense sound
- Compression and limiting are used to control and shape the dynamic range of a signal
- Gentle compression (low ratios, slow attack/release) can subtly even out levels without significantly altering the dynamic range
- Aggressive compression (high ratios, fast attack/release) and brick wall limiting can dramatically reduce the dynamic range, resulting in a louder and more consistent sound (radio-ready mixes, modern pop/rock production)
- It is important to strike a balance between controlling dynamics and preserving the natural character and impact of the audio material
Key Terms to Review (20)
Analog vs. Digital Processing: Analog vs. digital processing refers to the two primary methods of manipulating audio signals. Analog processing involves using continuous signals and physical devices like compressors and equalizers, while digital processing uses discrete values and software algorithms to achieve similar effects. Both methods have unique characteristics and implications for sound quality, flexibility, and workflow.
Attack: In the context of dynamics processing, particularly with compression and limiting, attack refers to the time it takes for a compressor or limiter to respond to an incoming signal once it exceeds a specified threshold. A fast attack time can capture quick peaks in audio, while a slow attack time allows more of the transient sound to pass through before the compression occurs, affecting the overall character of the sound being processed.
Audio compressor: An audio compressor is a dynamic range processing tool that reduces the volume of loud sounds or amplifies quiet sounds by narrowing the dynamic range of an audio signal. It helps maintain a consistent level, making the overall sound more balanced and polished. This device plays a crucial role in mixing and mastering music, ensuring that all elements are audible without distortion or excessive peaks.
Compression: Compression is a dynamic processing technique used in audio production that reduces the volume of the loudest parts of a sound signal while boosting quieter parts, resulting in a more balanced and controlled sound. This helps maintain clarity in audio content and enhances storytelling by ensuring that important elements, like dialogue or key sound effects, are heard without distortion or loss of detail.
Compressor vs. Limiter: A compressor and a limiter are both dynamic range processors used in sound design to control the volume levels of audio signals. While both serve the purpose of reducing the dynamic range, a compressor provides more subtle control, allowing for a wider range of output levels, while a limiter is designed to prevent audio from exceeding a specific level, creating a hard ceiling on the signal. This distinction influences their application in mixing and mastering processes, where achieving balance and preventing distortion is crucial.
Ducking: Ducking is a dynamic audio processing technique used to automatically lower the volume of one audio signal in response to the presence of another signal. This technique is commonly applied in scenarios like voice-over recording, where background music is temporarily reduced in volume when someone speaks, ensuring clarity in communication. By allowing one sound to dominate while still retaining the overall mix, ducking enhances the listener's experience without sacrificing quality.
Dynamic range control: Dynamic range control refers to the process of managing the difference between the softest and loudest sounds in audio. This technique helps to maintain a balanced and consistent sound level, making it crucial for creating a polished final product. By utilizing tools like compression and limiting, dynamic range control enhances audio clarity and ensures that critical elements are heard clearly in various listening environments.
Input gain: Input gain refers to the adjustment of the signal level as it enters an audio processing device or a recording interface. This adjustment is crucial because it affects the dynamic range and overall sound quality of the signal, ensuring that it is neither too weak, leading to noise issues, nor too strong, which can cause distortion. Proper input gain settings are essential for effective dynamics processing, like compression and limiting, as they help maintain a balanced signal flow throughout the audio chain.
Knee: In audio dynamics processing, the knee refers to the transition area in a compressor or limiter where the signal begins to be affected by the gain reduction. A soft knee provides a gradual transition between the uncompressed and compressed levels, while a hard knee applies compression abruptly once the threshold is crossed. Understanding the knee is crucial for achieving desired dynamics in sound design and controlling how compression affects the overall audio signal.
Limiter plugin: A limiter plugin is a type of audio processing tool that restricts the dynamic range of an audio signal, preventing it from exceeding a specified threshold. This helps to control peaks in the audio, ensuring that the overall volume remains consistent and that distortion is avoided. Limiters are crucial in mixing and mastering, where maintaining clarity and loudness is essential.
Limiting: Limiting is a form of dynamic range control that prevents audio signals from exceeding a certain level, ensuring that they do not distort or clip. It is crucial in maintaining audio integrity by allowing the desired sounds to be heard clearly while keeping unwanted peaks in check. This process is essential in shaping the overall sound quality, especially when layering ambient elements and using various compression techniques.
Loudness normalization: Loudness normalization is the process of adjusting the perceived loudness of audio signals to a target level, ensuring consistent volume across different media and playback systems. This process helps maintain a balanced listening experience by preventing abrupt changes in loudness, which is especially important in environments where multiple audio sources are played together. By using standards like ITU-R BS.1770, loudness normalization plays a crucial role in dynamics processing and sound design.
Makeup gain: Makeup gain refers to the process of increasing the overall output level of a signal after it has been compressed or limited. This adjustment is crucial because compression and limiting often reduce the volume of the signal, causing it to be quieter than desired. By applying makeup gain, you can restore the signal’s loudness while retaining the benefits of dynamic processing, such as controlling peaks and enhancing overall mix balance.
Output level: Output level refers to the strength or amplitude of the signal that is produced by an audio device or system. It is an essential parameter in dynamics processing, particularly in compression and limiting, as it directly affects how sound is perceived and managed within a mix. Properly setting the output level ensures that the final sound maintains its clarity and avoids distortion, especially when dealing with varying dynamics.
Parallel Compression: Parallel compression is a mixing technique that involves blending a heavily compressed audio signal with an uncompressed or lightly compressed version of the same signal. This approach allows for maintaining the dynamic range of the original signal while enhancing its overall presence and impact in the mix. By adjusting the balance between these two signals, engineers can achieve a more powerful sound without sacrificing clarity or detail.
Ratio: In the context of dynamics processing, particularly compression and limiting, ratio refers to the relationship between the input level and output level of a signal once it exceeds a specified threshold. This term is crucial because it determines how much gain reduction is applied when the signal exceeds that threshold, affecting how dynamic range is controlled in audio processing. A higher ratio means more aggressive compression, while a lower ratio results in more subtle adjustments to the audio signal.
Release: In audio processing, release refers to the time it takes for a dynamics processor, like a compressor or limiter, to stop affecting the signal after the input signal falls below the threshold. This parameter is crucial because it determines how quickly the processor will stop reducing the gain and allows the audio signal to return to its original level. The setting of the release time can greatly influence the overall character and dynamics of the sound being processed.
Side-chain compression: Side-chain compression is a dynamic processing technique where the level of one audio signal controls the compression of another audio signal. This method is commonly used in music production to create space in a mix by allowing specific sounds, like vocals or bass, to stand out while controlling the dynamics of other elements, such as drums or synths. By utilizing side-chain compression, producers can achieve a pumping effect that enhances the rhythmic feel and clarity of a mix.
Sustain: Sustain refers to the continuation of a sound or audio signal over time, often affecting the overall texture and emotional impact of a piece. It is a critical element in both audio editing and dynamics processing, shaping how sound is perceived during playback and how it interacts with other elements in a mix. Understanding sustain helps in creating smoother transitions, controlling levels, and ensuring that sounds maintain their intended impact throughout a composition.
Threshold: Threshold refers to the specific level at which a signal is activated for processing in dynamics processing, especially in compression and limiting. It acts as a critical point that determines when the dynamics processor begins to reduce the volume of a sound signal, effectively managing audio levels and preventing distortion. The threshold influences how audio is shaped and controlled, impacting the overall sound quality and character.
