14.2 System design and component selection
3 min read•july 25, 2024
Robotic systems are complex machines that combine hardware and software components. From mechanical structures to , each element plays a crucial role in creating a functional robot. Understanding how these parts work together is key to designing effective robotic systems.
Selecting the right components is vital for a robot's performance. , , and must be chosen based on project requirements and constraints. also play a significant role, affecting a robot's strength, weight, and durability. Proper documentation through schematics and diagrams ensures clear communication of the system's design.
System Architecture and Component Selection
Architecture of robotic systems
Top images from around the web for Architecture of robotic systems

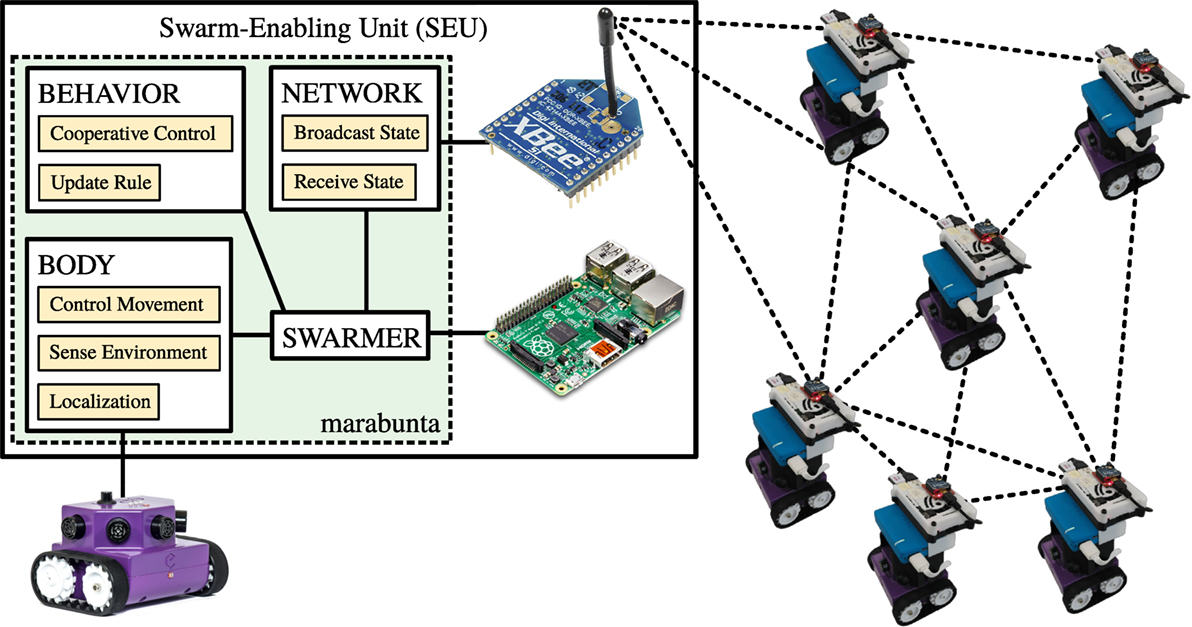

Frontiers | Swarm-Enabling Technology for Multi-Robot Systems View original
Is this image relevant?
Frontiers | A Basic Architecture of an Autonomous Adaptive System With Conscious-Like Function ... View original
Is this image relevant?
Frontiers | Internet of Robotic Things Intelligent Connectivity and Platforms View original
Is this image relevant?
Frontiers | Swarm-Enabling Technology for Multi-Robot Systems View original
Is this image relevant?
Frontiers | A Basic Architecture of an Autonomous Adaptive System With Conscious-Like Function ... View original
Is this image relevant?
1 of 3
Top images from around the web for Architecture of robotic systems
Frontiers | Swarm-Enabling Technology for Multi-Robot Systems View original
Is this image relevant?
Frontiers | A Basic Architecture of an Autonomous Adaptive System With Conscious-Like Function ... View original
Is this image relevant?
Frontiers | Internet of Robotic Things Intelligent Connectivity and Platforms View original
Is this image relevant?
Frontiers | Swarm-Enabling Technology for Multi-Robot Systems View original
Is this image relevant?
Frontiers | A Basic Architecture of an Autonomous Adaptive System With Conscious-Like Function ... View original
Is this image relevant?
1 of 3
- Hardware components form physical structure and functionality
- Mechanical structure provides framework and support (chassis, joints, linkages)
- Actuators generate motion and force (DC motors, servos)
- Sensors gather data about environment and robot state (cameras, encoders)
- delivers energy to components (batteries, power converters)
- Microcontrollers or single-board computers process information and control system (Arduino, Raspberry Pi)
- Software components enable robot intelligence and control
- manages hardware resources and provides interface (Linux, RTOS)
- facilitates communication between software modules (ROS)
- regulate robot behavior and motion (PID, adaptive control)
- interpret sensor data (computer vision, SLAM)
- Planning and determine robot actions (path planning, task scheduling)
- System integration connects hardware and software
- enable data exchange (I2C, CAN, Ethernet)
- bridge hardware and software components (device drivers, APIs)
- and considerations allow for future expansion and upgrades
- and ensure system reliability and robustness
Selection of robotic components
- Actuators generate motion and force
- convert electrical energy to mechanical motion (DC, stepper, servo)
- use fluid pressure for high-force applications
- employ compressed air for lightweight, fast motion
- include torque, speed, precision, and power consumption
- Sensors gather data about robot state and environment
- measure internal robot state (encoders, IMUs)
- detect external environment (cameras, LiDAR, ultrasonic)
- Selection criteria include accuracy, range, resolution, and update rate
- Controllers process information and control system
- Microcontrollers offer low-power, embedded control (Arduino, STM32)
- Single-board computers provide higher (Raspberry Pi, Jetson Nano)
- Industrial PLCs ensure reliability in harsh environments
- Selection criteria include processing power, , and
- Project constraints influence component selection
- Budget limitations affect component quality and features
- Size and weight restrictions impact component choices and design
- Environmental conditions determine component durability (temperature, humidity, vibration)
- Power consumption requirements influence energy efficiency of components
Materials for robotic construction
- Common materials in robotics offer various properties
- Metals provide strength and durability (aluminum, steel, titanium)
- Plastics offer lightweight and cost-effective options (ABS, PLA, PETG)
- Composites combine strength and low weight (carbon fiber, fiberglass)
- Material properties affect robot performance
- determines structural efficiency
- and impact robot dynamics and control
- influence heat dissipation and operating temperature
- affects shielding and grounding requirements
- Manufacturing considerations impact material choice
- determines ease of fabrication
- enables rapid prototyping and custom parts
- Availability and lead times affect production schedules
- Cost analysis evaluates economic feasibility
- Raw material costs vary widely between options
- Processing and fabrication costs depend on material properties
- Long-term durability and maintenance costs affect overall expenses
- Environmental impact and sustainability influence material selection
Schematics of system interconnections
- Types of diagrams illustrate different aspects of system design
- show high-level system structure
- detail electrical connections
- illustrate physical cable routing
- represent information exchange
- depict code structure
- enables mechanical design visualization
- 3D modeling tools create detailed part and assembly models (SolidWorks, Fusion 360)
- 2D drafting tools produce technical drawings (AutoCAD)
- Electrical design tools facilitate circuit creation
- layouts circuit boards (KiCad, Altium Designer)
- analyze electrical behavior (SPICE)
- Software design tools aid in code organization
- represent software structure and behavior
- visualize algorithms and processes
- ensure consistency and clarity
- IEEE standards guide diagram creation
- IEC standards define schematic symbols and layouts
- Version control and collaboration tools manage design files
