6.1 Machine learning
6 min read•august 21, 2024
Machine learning empowers robots to adapt and learn from experience, mirroring biological systems. It integrates with robotics and bioinspired systems to create smarter, more autonomous machines that can tackle complex problems in dynamic environments.
The field encompasses supervised, unsupervised, and techniques. These approaches enable robots to recognize patterns, discover hidden structures in data, and learn optimal actions through trial and error, revolutionizing problem-solving in robotics.
Overview of machine learning
- Machine learning enables robots to adapt and learn from experience, mimicking biological systems
- Integrates with robotics and bioinspired systems to create more intelligent and autonomous machines
- Revolutionizes problem-solving approaches in complex, dynamic environments
Types of machine learning
Supervised learning
Top images from around the web for Supervised learning
Frontiers | Recognition and Localization Methods for Vision-Based Fruit Picking Robots: A Review View original
Is this image relevant?
Frontiers | A Semi-supervised Learning-Based Diagnostic Classification Method Using Artificial ... View original
Is this image relevant?

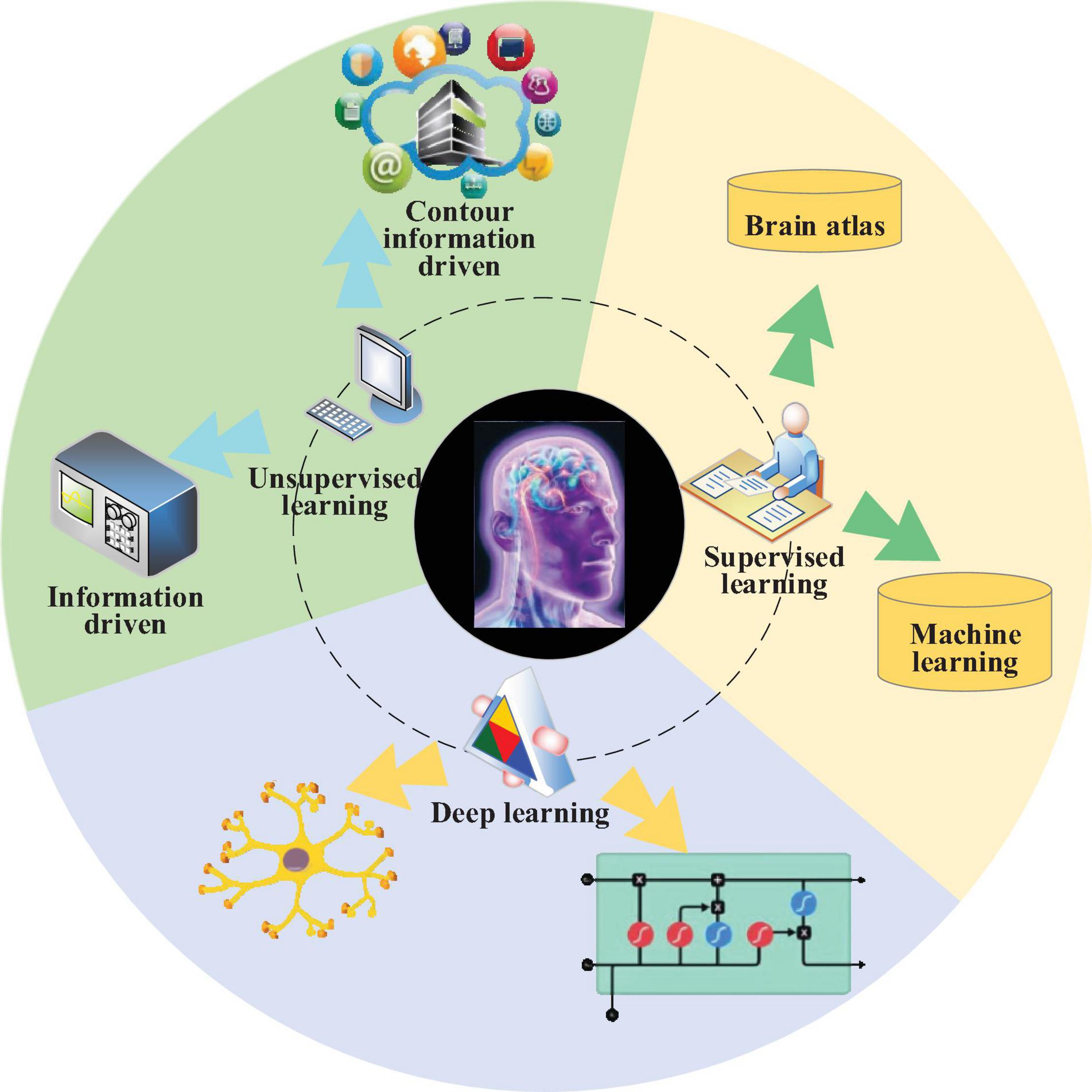

Frontiers | Semi-Supervised Support Vector Machine for Digital Twins Based Brain Image Fusion View original
Is this image relevant?
Frontiers | Recognition and Localization Methods for Vision-Based Fruit Picking Robots: A Review View original
Is this image relevant?
Frontiers | A Semi-supervised Learning-Based Diagnostic Classification Method Using Artificial ... View original
Is this image relevant?
1 of 3
Top images from around the web for Supervised learning
Frontiers | Recognition and Localization Methods for Vision-Based Fruit Picking Robots: A Review View original
Is this image relevant?
Frontiers | A Semi-supervised Learning-Based Diagnostic Classification Method Using Artificial ... View original
Is this image relevant?
Frontiers | Semi-Supervised Support Vector Machine for Digital Twins Based Brain Image Fusion View original
Is this image relevant?
Frontiers | Recognition and Localization Methods for Vision-Based Fruit Picking Robots: A Review View original
Is this image relevant?
Frontiers | A Semi-supervised Learning-Based Diagnostic Classification Method Using Artificial ... View original
Is this image relevant?
1 of 3
- Utilizes labeled to learn input-output relationships
- Algorithms predict outcomes for new, unseen data based on learned patterns
- Includes classification (predicting categories) and regression (predicting continuous values) tasks
- Common applications involve image recognition and predictive maintenance in robotics
Unsupervised learning
- Discovers hidden patterns or structures in unlabeled data
- Clustering algorithms group similar data points together
- Dimensionality reduction techniques compress high-dimensional data
- Useful for anomaly detection in robotic systems and sensor data analysis
Reinforcement learning
- Agents learn optimal actions through trial and error in an environment
- Utilizes reward signals to guide learning and decision-making processes
- Balances exploration of new actions with exploitation of known effective actions
- Applied in robot navigation, game-playing AI, and adaptive control systems
Key concepts in machine learning
Feature extraction
- Process of selecting relevant attributes from raw data
- Reduces dimensionality and improves model performance
- Techniques include Principal Component Analysis (PCA) and t-SNE
- Critical for efficient processing of sensor data in robotic systems
Training vs testing data
- Training data used to teach the model patterns and relationships
- evaluates model performance on unseen examples
- Cross-validation techniques assess model generalization
- Proper data splitting ensures robust performance in real-world robotic applications
Overfitting vs underfitting
- occurs when model learns noise in training data, performing poorly on new data
- happens when model is too simple to capture underlying patterns
- Regularization techniques help prevent overfitting
- Balancing model complexity crucial for reliable robotic decision-making systems
Bias vs variance
- represents model's systematic error in predictions
- measures model's sensitivity to fluctuations in training data
- High bias leads to underfitting, high variance leads to overfitting
- Optimal balance achieved through careful model selection and hyperparameter tuning
Common machine learning algorithms
Decision trees
- Hierarchical structures for classification and regression tasks
- Split data based on feature values to make predictions
- Easily interpretable and visualizable
- Used in robotic decision-making systems and fault diagnosis
Random forests
- Ensemble method combining multiple
- Reduces overfitting by averaging predictions from individual trees
- Improves generalization and robustness
- Applied in robotic perception and sensor fusion tasks
Support vector machines
- Finds optimal hyperplane to separate classes in high-dimensional space
- Effective for both linear and non-linear classification problems
- Kernel trick allows mapping to higher-dimensional spaces
- Utilized in robotic gesture recognition and object classification
Neural networks
- Inspired by biological neural systems
- Consist of interconnected layers of artificial neurons
- Learn complex non-linear relationships in data
- Form the basis for architectures used in advanced robotics
Deep learning
Convolutional neural networks
- Specialized for processing grid-like data (images, time series)
- Use convolutional layers to extract hierarchical features
- Pooling layers reduce spatial dimensions and computational complexity
- Widely used in robotic vision systems for object detection and recognition
Recurrent neural networks
- Process sequential data with temporal dependencies
- Maintain internal memory to capture long-term patterns
- Variants like LSTM and GRU address vanishing gradient problem
- Applied in robot language processing and time series prediction
Generative adversarial networks
- Consist of generator and discriminator networks in adversarial training
- Generate new data samples resembling training distribution
- Used for data augmentation and synthetic data generation
- Enable robots to learn from limited real-world data through simulation
Machine learning in robotics
Perception and object recognition
- Enables robots to interpret sensor data and understand their environment
- Combines computer vision techniques with machine learning algorithms
- Includes tasks like object detection, segmentation, and scene understanding
- Crucial for navigation, manipulation, and interaction in dynamic environments
Motion planning and control
- Optimizes robot movements and trajectories in complex environments
- Reinforcement learning approaches learn adaptive control policies
- Incorporates obstacle avoidance and energy efficiency considerations
- Enables smooth and precise robot movements in various applications
Human-robot interaction
- Facilitates natural and intuitive communication between humans and robots
- Includes speech recognition, gesture interpretation, and emotion detection
- Machine learning models adapt to individual user preferences and behaviors
- Enhances collaboration and safety in shared human-robot workspaces
Bioinspired machine learning
Evolutionary algorithms
- Mimic natural selection and genetic processes to optimize solutions
- Population-based approach evolves candidate solutions over generations
- Genetic operators (mutation, crossover) introduce diversity
- Applied in robot design optimization and adaptive behavior learning
Swarm intelligence
- Inspired by collective behavior of social insects and animals
- Decentralized, self-organizing systems of simple agents
- Emergent intelligence arises from local interactions and simple rules
- Used in multi-robot coordination and distributed problem-solving
Artificial immune systems
- Modeled after biological immune systems' ability to detect and respond to threats
- Adaptive learning mechanisms for anomaly detection and classification
- Self-organizing and distributed approach to problem-solving
- Applied in robotic fault detection and cybersecurity applications
Evaluation metrics
Accuracy and precision
- measures overall correctness of predictions
- quantifies the proportion of true positive predictions
- Both metrics crucial for assessing classification model performance
- Important for robotic systems requiring high reliability and safety
Recall and F1 score
- measures the proportion of actual positives correctly identified
- balances precision and recall in a single metric
- Useful for evaluating models with imbalanced datasets
- Critical in robotic applications where false negatives have high costs
ROC curves
- Visualize trade-off between true positive rate and false positive rate
- Area Under the Curve (AUC) quantifies overall model performance
- Helps in selecting optimal decision thresholds for classification tasks
- Valuable for tuning robotic perception systems' sensitivity and specificity
Challenges in machine learning
Data quality and quantity
- Insufficient or poor-quality data can lead to unreliable models
- Data collection and labeling often time-consuming and expensive
- Imbalanced datasets can bias model performance
- Synthetic data generation and address data scarcity in robotics
Interpretability of models
- Complex models (deep ) often act as black boxes
- Lack of interpretability hinders trust and adoption in critical applications
- Explainable AI techniques aim to provide insights into model decisions
- Crucial for safety-critical robotic systems and regulatory compliance
Ethical considerations
- Bias in training data can lead to unfair or discriminatory model outputs
- Privacy concerns arise from collecting and using personal data
- Accountability and transparency needed in automated decision-making systems
- Ethical guidelines and regulations evolving to address AI and robotics challenges
Future trends in machine learning
Transfer learning
- Leverages knowledge from pre-trained models for new tasks
- Reduces data requirements and training time for specialized applications
- Enables rapid adaptation of robotic systems to new environments
- Facilitates learning from simulation for real-world deployment
Federated learning
- Allows training models on distributed datasets without centralized data storage
- Preserves privacy by keeping data on local devices
- Enables collaborative learning across multiple robots or edge devices
- Addresses data sharing and privacy concerns in networked robotic systems
Quantum machine learning
- Harnesses quantum computing principles for machine learning algorithms
- Potential for exponential speedup in certain computational tasks
- Quantum-inspired algorithms applicable to classical computers
- Promising for solving complex optimization problems in robotics and AI
Key Terms to Review (32)
Accuracy: Accuracy refers to the degree to which a measured or calculated value aligns with the true or accepted value. In robotics and sensor technology, accuracy is crucial as it directly impacts the performance and reliability of systems, influencing how well they can operate in real-world scenarios and make decisions based on sensory input.
Artificial immune systems: Artificial immune systems are computational systems inspired by the biological immune system, designed to solve complex problems such as optimization, pattern recognition, and anomaly detection. By mimicking the principles of how living organisms adapt and respond to threats, these systems utilize mechanisms like learning, memory, and adaptation to improve their performance over time. This connection to biological processes allows for innovative approaches in machine learning applications.
Bias: Bias refers to a systematic error introduced into data collection or analysis, which can lead to misleading results in machine learning models. This concept plays a crucial role in determining how algorithms interpret data and make predictions, affecting their accuracy and fairness. Understanding bias is essential for improving the performance of machine learning systems and ensuring they work effectively across diverse datasets.
Convolutional neural networks: Convolutional neural networks (CNNs) are a class of deep learning algorithms specifically designed for processing structured grid data, such as images. They use convolutional layers to automatically detect patterns and features in input data, which makes them highly effective in various applications including image and video recognition, classification, and even object detection. By leveraging hierarchical feature learning, CNNs have transformed the fields of machine learning, computer vision, and object recognition, enabling machines to interpret visual information similarly to humans.
Decision Trees: Decision trees are a type of model used in machine learning for making decisions based on a series of rules derived from data. They represent decisions and their possible consequences in a tree-like structure, with branches that indicate choices and outcomes, making them useful for classification and regression tasks. This structure helps visualize the decision-making process, especially when dealing with uncertainty or complex datasets.
Deep Learning: Deep learning is a subset of machine learning that utilizes neural networks with multiple layers to model complex patterns in large amounts of data. This technique mimics the way the human brain processes information, allowing systems to learn from vast datasets and make decisions based on that learning. The power of deep learning lies in its ability to automatically extract features from raw data, reducing the need for manual feature engineering.
Evolutionary algorithms: Evolutionary algorithms are optimization techniques inspired by the process of natural selection, where solutions to problems evolve over generations to improve their performance. These algorithms simulate mechanisms such as selection, crossover, and mutation to explore the solution space and find optimal or near-optimal solutions. By mimicking biological evolution, they can solve complex problems in various fields, including machine learning and self-organization.
F1 Score: The F1 Score is a measure of a model's accuracy that balances precision and recall, often used in binary classification tasks. It is the harmonic mean of precision (the ratio of true positive predictions to the total predicted positives) and recall (the ratio of true positive predictions to the total actual positives), providing a single metric that captures both aspects of performance. This metric is particularly useful when the classes are imbalanced, as it helps to ensure that a model does not become overly focused on one class at the expense of the other.
Feature extraction: Feature extraction is the process of transforming raw data into a set of measurable characteristics that can be used for further analysis, such as classification or recognition tasks. This technique is crucial in various fields, as it helps simplify the input while preserving important information that algorithms can leverage. By identifying and isolating relevant features, systems can perform tasks like interpreting visual information, detecting objects, and recognizing gestures more efficiently.
Federated learning: Federated learning is a machine learning approach that enables training algorithms across decentralized devices while keeping the data localized on those devices. This method allows models to learn from a diverse dataset without transferring sensitive information to a central server, thus enhancing privacy and security. The training process involves aggregating model updates from multiple devices, which helps to create a robust global model while minimizing data exposure.
Generative adversarial networks: Generative adversarial networks (GANs) are a class of machine learning frameworks where two neural networks, the generator and the discriminator, are trained simultaneously through adversarial processes. The generator creates synthetic data resembling real data, while the discriminator evaluates the authenticity of the generated data. This innovative approach is widely used in various applications including image generation and object recognition.
Human-Robot Interaction: Human-robot interaction (HRI) is the interdisciplinary study of how humans and robots communicate and collaborate. It encompasses the design, implementation, and evaluation of robots that work alongside humans, focusing on how these machines can effectively interpret human behavior and facilitate productive exchanges. The dynamics of HRI are shaped by various factors such as robot mobility, sensor technologies, learning algorithms, social cues, collaboration mechanisms, and ethical considerations.
Motion planning: Motion planning is the process of determining a sequence of movements that a robot or autonomous system must take to achieve a specific goal while avoiding obstacles and constraints in its environment. This involves algorithms that enable the system to navigate efficiently and safely, often using techniques from computational geometry and optimization. Motion planning is crucial in robotics, especially in dynamic environments where real-time decision-making is necessary.
Neural networks: Neural networks are computational models inspired by the human brain, designed to recognize patterns and learn from data through interconnected layers of nodes, or 'neurons'. They are a fundamental component of machine learning, enabling systems to make decisions based on complex data inputs by simulating the way human brains process information. This capability allows them to excel in various applications, including soft sensors that interpret signals and gesture recognition systems that identify human movements.
Overfitting: Overfitting occurs when a model learns not only the underlying patterns in the training data but also the noise and random fluctuations, leading to poor performance on new, unseen data. It is a common issue in various learning algorithms, where the model becomes too complex relative to the amount of data available, which can lead to a lack of generalization. Understanding and addressing overfitting is crucial to creating robust models that perform well in real-world applications.
Precision: Precision refers to the degree of consistency and reproducibility of measurements or outputs in a system. It is crucial in various fields as it affects the reliability and accuracy of the results generated, especially when systems interact with the environment or make decisions based on data. High precision ensures that repeated measurements yield similar results, which is essential for achieving optimal performance in tasks like sensing, recognition, and learning.
Quantum machine learning: Quantum machine learning is an interdisciplinary field that combines quantum computing and machine learning techniques to analyze and interpret data. By leveraging the principles of quantum mechanics, such as superposition and entanglement, quantum machine learning algorithms can potentially outperform classical algorithms, especially in processing large datasets and solving complex problems.
Random forests: Random forests are an ensemble learning method used for classification and regression tasks that operates by constructing multiple decision trees during training and outputs the class that is the mode of the classes (classification) or mean prediction (regression) of the individual trees. This approach leverages the power of many decision trees to improve predictive accuracy and control overfitting, making it a robust choice in machine learning applications.
Recall: Recall is the ability to retrieve information or memories from the brain, specifically when it comes to recognizing or reproducing previously learned data. It's a crucial aspect of memory that influences how effectively information can be used in different applications, such as learning models, language understanding, and visual recognition. The performance of recall can be affected by various factors, including the quality of training data and the complexity of tasks.
Recurrent Neural Networks: Recurrent Neural Networks (RNNs) are a class of artificial neural networks designed to recognize patterns in sequences of data, such as time series or natural language. Unlike traditional feedforward networks, RNNs have connections that loop back on themselves, allowing them to maintain a form of memory over previous inputs. This unique architecture makes RNNs particularly effective for tasks that involve sequential data, where context from earlier inputs is crucial for making predictions or decisions.
Reinforcement Learning: Reinforcement learning is a type of machine learning where an agent learns to make decisions by taking actions in an environment to maximize cumulative reward. This process involves exploring different actions and receiving feedback in the form of rewards or penalties, helping the agent improve its decision-making over time. It connects closely with optimal control, as it seeks to find the best strategy for achieving goals, while also handling uncertainties and complexities in decision-making scenarios.
Robot perception: Robot perception refers to the capability of a robot to interpret and understand sensory information from its environment. This involves using various sensors and algorithms to detect, identify, and analyze objects, as well as understanding spatial relationships and dynamics in real-time. Effective robot perception is crucial for enabling robots to interact intelligently and safely with the world around them.
ROC Curves: ROC curves, or Receiver Operating Characteristic curves, are graphical representations used to evaluate the performance of binary classification models by plotting the true positive rate against the false positive rate at various threshold settings. These curves help in assessing how well a model distinguishes between two classes, allowing for a comprehensive view of its predictive ability across different decision thresholds.
Supervised Learning: Supervised learning is a machine learning technique where an algorithm is trained on a labeled dataset, meaning that each training example is paired with an output label. This approach allows the algorithm to learn a mapping from inputs to outputs, making it effective for tasks like classification and regression. By providing feedback on the algorithm's predictions, supervised learning enables the model to improve its accuracy over time.
Support Vector Machines: Support Vector Machines (SVM) are supervised learning models used for classification and regression analysis, where the goal is to find the optimal hyperplane that separates different classes in a dataset. SVMs are particularly powerful because they maximize the margin between the classes, making them robust against overfitting, especially in high-dimensional spaces. This makes them highly applicable in various fields, including image recognition, where clear distinctions between different objects need to be made.
Swarm Intelligence: Swarm intelligence refers to the collective behavior of decentralized, self-organized systems, typically found in nature, such as groups of animals or insects. This concept harnesses the idea that simple agents following basic rules can produce complex group behaviors, which can be applied to solve problems in various fields including robotics, optimization, and artificial intelligence.
Testing data: Testing data refers to the subset of a dataset that is used to evaluate the performance and generalization ability of a machine learning model after it has been trained. This data is crucial for assessing how well a model can make predictions on unseen data, thereby providing insights into its accuracy, robustness, and potential overfitting issues. Effective use of testing data helps ensure that a model will perform well in real-world scenarios beyond the training environment.
Training data: Training data refers to the dataset used to train a machine learning model, helping it learn patterns and make predictions. This data consists of input-output pairs where the model learns from examples, allowing it to generalize and perform well on unseen data. The quality and quantity of training data are crucial for the effectiveness and accuracy of the resulting model.
Transfer learning: Transfer learning is a machine learning technique that leverages knowledge gained from one task to improve performance on a related but different task. This approach allows models to learn more efficiently by reusing existing representations and weights, which can be especially beneficial when dealing with limited labeled data in new applications. It is widely used in various fields, including those that involve neural networks, machine learning, image processing, and object recognition.
Underfitting: Underfitting occurs when a machine learning model is too simple to capture the underlying patterns in the data, resulting in poor performance on both training and test datasets. This often happens when the model lacks sufficient complexity or when the training data is not adequately represented. Underfitting can lead to high bias, as the model fails to learn from the data and produces inaccurate predictions.
Unsupervised Learning: Unsupervised learning is a type of machine learning that involves training algorithms on data without labeled outputs, allowing them to identify patterns and structures on their own. This approach is useful for discovering hidden insights, clustering similar data points, and reducing dimensionality. Unlike supervised learning, where the model is guided by specific outputs, unsupervised learning seeks to understand the inherent structure of the input data.
Variance: Variance is a statistical measure that represents the degree of spread or dispersion in a set of values. It quantifies how far each number in a dataset is from the mean and from each other, which is essential for understanding the reliability and variability of data in predictive modeling and machine learning algorithms.
