11.1 Image processing
14 min read•august 21, 2024
Image processing is the foundation of in robotics, enabling machines to interpret visual data from their environment. By mimicking biological visual systems, it allows robots to perceive and interact with their surroundings more naturally, forming a crucial component of bioinspired systems.
Understanding digital image representation, color models, and basic operations provides the groundwork for advanced robotic vision applications. These fundamentals enable the development of sophisticated algorithms for tasks such as object recognition, navigation, and scene understanding in robotic systems.
Fundamentals of image processing
- Image processing forms the foundation for computer vision in robotics, enabling machines to interpret and analyze visual data from their environment
- In bioinspired systems, image processing mimics biological visual systems, allowing robots to perceive and interact with their surroundings more naturally
- Understanding digital image representation, color models, and basic operations provides the groundwork for advanced robotic vision applications
Digital image representation
Top images from around the web for Digital image representation

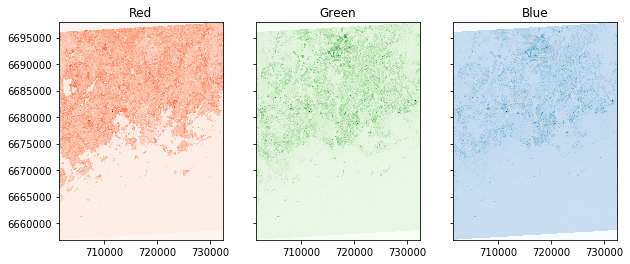

Visualizing raster layers — Intro to Python GIS CSC documentation View original
Is this image relevant?
Images and Graphics - learn with Serlo! View original
Is this image relevant?
Ciclo formatos de imagen - Valentina Oyarzún - Casiopea View original
Is this image relevant?
Visualizing raster layers — Intro to Python GIS CSC documentation View original
Is this image relevant?
Images and Graphics - learn with Serlo! View original
Is this image relevant?
1 of 3
Top images from around the web for Digital image representation
Visualizing raster layers — Intro to Python GIS CSC documentation View original
Is this image relevant?
Images and Graphics - learn with Serlo! View original
Is this image relevant?
Ciclo formatos de imagen - Valentina Oyarzún - Casiopea View original
Is this image relevant?
Visualizing raster layers — Intro to Python GIS CSC documentation View original
Is this image relevant?
Images and Graphics - learn with Serlo! View original
Is this image relevant?
1 of 3
- Represents images as 2D arrays of discrete values
- Each pixel contains intensity or color information
- determines the range of possible values for each pixel (8-bit, 16-bit, 24-bit)
- affects image detail and file size, measured in pixels per inch (PPI) or dots per inch (DPI)
- Common image file formats include , PNG, and TIFF, each with specific compression and quality characteristics
Color spaces and models
- (Red, Green, Blue) model uses additive color mixing
- Represents colors as combinations of red, green, and blue intensities
- Widely used in digital displays and cameras
- (Hue, Saturation, Value) model separates color information from intensity
- Hue represents the color, saturation the color purity, and value the brightness
- More intuitive for color selection and manipulation
- CMYK (Cyan, Magenta, Yellow, Key/Black) model uses subtractive color mixing
- Primarily used in printing processes
- YCbCr color space separates luminance (Y) from chrominance (Cb and Cr)
- Commonly used in video compression and transmission
Pixel-based operations
- Point operations modify individual pixel values without considering neighboring pixels
- Brightness adjustment adds or subtracts a constant value from all pixels
- enhancement multiplies pixel values by a scaling factor
- converts grayscale images to binary by applying a cutoff value
- adjusts image luminance using a power-law function
- Pixel-wise arithmetic operations (addition, subtraction, multiplication) combine multiple images
Image enhancement techniques
- Image enhancement improves visual quality and accentuates important features for robotic vision systems
- These techniques play a crucial role in preprocessing images for further analysis and decision-making in robotics
- Enhanced images facilitate more accurate object detection, tracking, and navigation in bioinspired robotic systems
Contrast adjustment
- Linear contrast stretching expands the range of pixel intensities to utilize the full dynamic range
- Nonlinear contrast enhancement applies functions like logarithmic or exponential transformations
- Adaptive contrast adjustment modifies contrast based on local image statistics
- Contrast Limited Adaptive (CLAHE) enhances contrast while limiting noise amplification
- Multi-scale contrast enhancement operates on different spatial frequencies separately
Histogram equalization
- Redistributes pixel intensities to achieve a more uniform histogram
- Global histogram equalization applies the same transformation to the entire image
- Local histogram equalization processes small regions independently
- Histogram matching transforms an image to match the histogram of a reference image
- Bi-histogram equalization separately equalizes the sub-histograms above and below the mean intensity
Noise reduction methods
- applies a weighted average filter to reduce high-frequency noise
- Median filtering replaces each pixel with the median value of its neighborhood
- Non-local means denoising exploits image self-similarity to preserve details
- combines spatial and intensity information to reduce noise while preserving edges
- applies thresholding in the wavelet domain to remove noise components
Spatial domain filtering
- Spatial domain filtering directly manipulates pixel values based on their local neighborhood
- These techniques form the basis for many robotic vision tasks, including and
- Understanding spatial filtering enables the development of custom filters for specific robotic applications
Convolution and kernels
- applies a kernel (small matrix) to each pixel in the image
- Kernel size and values determine the filtering effect
- Padding strategies (zero-padding, replication) handle image borders during convolution
- Separable kernels reduce computational complexity for certain filters
- 2D convolution can be decomposed into two 1D convolutions for efficiency
Smoothing vs sharpening filters
- Smoothing filters reduce noise and blur images
- Box filter applies equal weights to all pixels in the kernel
- Gaussian filter uses a 2D Gaussian function as the kernel
- Sharpening filters enhance edges and fine details
- Unsharp masking subtracts a blurred version from the original image
- High-boost filtering combines sharpening with the original image
- Bilateral filtering performs edge-preserving smoothing
- Anisotropic diffusion adapts smoothing based on local image structure
Edge detection algorithms
- Gradient-based methods compute intensity changes in x and y directions
- Sobel operator uses 3x3 kernels for horizontal and vertical edge detection
- Prewitt operator similar to Sobel but with uniform weights
- (LoG) combines Gaussian smoothing with edge detection
- algorithm includes multiple steps:
- Gaussian smoothing
- Gradient computation
- Non-maximum suppression
- Hysteresis thresholding
- Zero-crossing detection identifies edges where the second derivative changes sign
Frequency domain processing
- Frequency domain analysis reveals periodic patterns and global image characteristics
- These techniques enable efficient filtering and compression for robotic vision systems
- Understanding frequency domain processing aids in developing robust feature extraction methods for bioinspired robotics
Fourier transform in imaging
- (DFT) decomposes an image into its frequency components
- (FFT) efficiently computes the DFT
- 2D represents spatial frequencies in both x and y directions
- Magnitude spectrum shows the strength of frequency components
- Phase spectrum contains information about feature locations
- Inverse Fourier Transform reconstructs the image from its frequency representation
Low-pass vs high-pass filters
- Low-pass filters attenuate high-frequency components
- Ideal has a sharp cutoff frequency
- Butterworth low-pass filter provides a smoother transition
- High-pass filters emphasize high-frequency components
- Ideal removes low frequencies below a threshold
- Gaussian high-pass filter applies a gradual attenuation
- Band-pass and band-stop filters combine low-pass and high-pass characteristics
- Frequency domain filtering multiplies the Fourier transform with a filter function
- Filtering artifacts (ringing) can occur due to abrupt frequency cutoffs
Image compression techniques
- Lossy compression reduces file size by discarding some information
- JPEG uses discrete cosine transform (DCT) and quantization
- Wavelet-based compression (JPEG 2000) provides better quality at high compression ratios
- Lossless compression preserves all original information
- Run-length encoding compresses repeated values
- Huffman coding assigns shorter codes to more frequent symbols
- Fractal compression exploits self-similarity in images
- Vector quantization represents image blocks using a codebook of patterns
- Compression ratio measures the reduction in file size relative to the original
Morphological operations
- Morphological operations process images based on shapes and structures
- These techniques are crucial for robotic vision tasks involving object recognition and shape analysis
- Morphological operations enable robots to extract meaningful features from complex visual scenes
Erosion and dilation
- shrinks objects and removes small details
- Applies a structuring element to each pixel
- Output pixel is the minimum value within the structuring element
- expands objects and fills small holes
- Uses a structuring element similar to erosion
- Output pixel is the maximum value within the structuring element
- Structuring element shape and size determine the operation's effect
- Boundary extraction subtracts the eroded image from the original
- Hit-or-miss transform detects specific patterns in binary images
Opening and closing
- Opening combines erosion followed by dilation
- Removes small objects and smooths object boundaries
- Preserves overall object shape and size
- Closing applies dilation followed by erosion
- Fills small holes and connects nearby objects
- Smooths object contours without significantly changing their area
- Top-hat transform extracts bright features smaller than the structuring element
- Black-hat transform extracts dark features smaller than the structuring element
- computes the difference between dilation and erosion
Skeletonization and thinning
- Skeletonization reduces objects to their centerline representation
- Preserves topological properties of the original shape
- Medial axis transform computes the skeleton based on distance transforms
- Thinning iteratively removes boundary pixels while preserving connectivity
- Zhang-Suen thinning algorithm uses a set of rules for pixel removal
- Hilditch's algorithm considers a 3x3 neighborhood for thinning decisions
- Pruning removes short branches from skeletons or thinned objects
- Conditional thinning preserves specific features during the thinning process
- Applications include character recognition and blood vessel analysis in medical imaging
Feature extraction
- Feature extraction identifies distinctive characteristics in images for robotic perception
- These techniques enable robots to recognize objects, track motion, and navigate environments
- Extracted features serve as inputs for higher-level decision-making in bioinspired robotic systems
Corner and blob detection
- Harris corner detector computes local auto-correlation to identify corners
- Uses a corner response function based on eigenvalues of the structure tensor
- Non-maximum suppression selects the strongest corner responses
- Shi-Tomasi corner detector modifies the Harris method for improved stability
- FAST (Features from Accelerated Segment Test) provides efficient corner detection
- Examines pixels in a circular pattern around candidate points
- Machine learning techniques optimize the detection process
- Blob detection identifies regions with consistent properties
- Difference of Gaussians (DoG) detects blobs at multiple scales
- Laplacian of Gaussian (LoG) finds scale-space extrema
- Maximally Stable Extremal Regions (MSER) detects blob-like regions invariant to
Scale-invariant feature transform
- extracts features invariant to scale, rotation, and illumination changes
- Key steps in the SIFT algorithm:
- Scale-space extrema detection using Difference of Gaussians
- Keypoint localization and filtering
- Orientation assignment based on local gradient directions
- Keypoint descriptor computation using gradient histograms
- SIFT features enable robust object recognition and image matching
- Variants like SURF (Speeded Up Robust Features) offer faster computation
- Applications include panorama stitching, 3D reconstruction, and
Texture analysis methods
- Statistical methods analyze the spatial distribution of pixel intensities
- Gray Level Co-occurrence Matrix (GLCM) computes texture features (contrast, homogeneity)
- Local Binary Patterns (LBP) encode local texture patterns in binary strings
- Spectral methods examine frequency domain characteristics
- Gabor filters analyze textures at different scales and orientations
- Wavelet transform decomposes images into multi-resolution subbands
- Structural methods describe textures using primitive elements and placement rules
- Textons represent fundamental texture units
- Morphological operations extract texture elements
- Machine learning approaches learn texture representations from data
- Convolutional Neural Networks () automatically learn hierarchical texture features
- Support Vector Machines (SVMs) classify textures based on extracted features
Segmentation techniques
- partitions images into meaningful regions for robotic scene understanding
- These techniques enable robots to isolate objects of interest from complex backgrounds
- Segmentation forms the basis for object recognition, tracking, and manipulation in bioinspired robotic systems
Thresholding methods
- Global thresholding applies a single threshold value to the entire image
- Otsu's method automatically selects an optimal threshold
- Histogram-based approaches analyze intensity distributions
- Adaptive thresholding computes local thresholds for different image regions
- Niblack's method considers local mean and standard deviation
- Sauvola's method adapts to varying contrast and illumination
- Multi-level thresholding segments images into multiple classes
- Iterative methods optimize multiple thresholds simultaneously
- Minimum error thresholding minimizes misclassification error
- Hysteresis thresholding uses two thresholds to reduce noise sensitivity
- Color thresholding extends the concept to multiple color channels
Region-based segmentation
- Region growing starts from seed points and expands regions
- Similarity criteria determine region membership (intensity, texture, color)
- Stopping conditions prevent over-segmentation
- Split-and-merge techniques recursively divide and combine image regions
- Quadtree representation organizes the image hierarchy
- Merging criteria ensure region homogeneity
- Mean shift clustering groups pixels in feature space
- Kernel density estimation identifies modes in the feature distribution
- Adaptive bandwidth selection improves segmentation quality
- Superpixel algorithms group pixels into perceptually meaningful atomic regions
- SLIC (Simple Linear Iterative Clustering) efficiently generates compact superpixels
- Graph-based approaches use pixel similarities to form superpixels
Watershed algorithm
- Treats the image as a topographic surface with intensity representing elevation
- Simulates flooding from regional minima to form catchment basins
- Watershed lines separate adjacent catchment basins
- Marker-controlled watershed reduces over-segmentation
- User-defined or automatically generated markers guide the segmentation
- Gradient magnitude image often serves as the input topographic surface
- Hierarchical watershed produces a tree of nested segmentations
- Applications include cell segmentation in microscopy and object separation in robotics
Image registration
- Image registration aligns multiple images of the same scene taken from different viewpoints or times
- This technique is crucial for robotic mapping, localization, and sensor fusion
- Accurate registration enables robots to build coherent representations of their environment
Geometric transformations
- preserve distances and angles
- Translation moves the image without changing its shape
- Rotation turns the image around a fixed point
- Affine transformations preserve parallel lines
- Scaling changes the size of the image
- Shearing tilts the image while keeping parallel lines parallel
- Projective transformations map lines to lines but don't preserve parallelism
- Homography describes the transformation between two planes
- Non-rigid transformations allow local deformations
- Elastic registration models image deformation as a physical process
- Diffeomorphic registration ensures smooth and invertible transformations
Feature-based vs intensity-based
- Feature-based registration matches corresponding points or structures
- SIFT or SURF features provide robust keypoints for matching
- Iterative Closest Point (ICP) algorithm aligns point clouds
- RANSAC (Random Sample Consensus) removes outliers in feature matching
- Intensity-based registration optimizes a similarity metric between images
- Mutual information measures statistical dependency between image intensities
- Correlation coefficient quantifies linear relationships between pixel values
- Sum of squared differences (SSD) measures intensity differences directly
- Hybrid approaches combine feature and intensity information
- Initial alignment using features followed by intensity-based refinement
- Simultaneous optimization of feature correspondence and intensity similarity
Applications in robotics
- Visual odometry estimates camera motion from image sequences
- Tracks features across frames to compute relative pose changes
- Integrates with inertial measurements for improved accuracy
- Simultaneous Localization and Mapping (SLAM) builds maps while localizing the robot
- Visual SLAM uses camera images as the primary sensor input
- Loop closure detection identifies revisited locations
- Multi-sensor fusion combines data from different imaging modalities
- Registers visual and depth information (RGB-D) for 3D perception
- Aligns thermal and visible images for enhanced object detection
- Medical image registration aids in surgical planning and guidance
- Registers pre-operative and intra-operative images for real-time navigation
- Fuses multiple imaging modalities (MRI, CT, PET) for comprehensive diagnosis
Machine learning in image processing
- Machine learning techniques enable robots to learn complex visual patterns from data
- These approaches significantly enhance the capabilities of robotic vision systems
- Integration of machine learning with traditional image processing methods creates powerful bioinspired visual perception systems
Convolutional neural networks
- CNNs automatically learn hierarchical features from images
- Key components of CNN architecture:
- Convolutional layers apply learned filters to extract features
- Pooling layers reduce spatial dimensions and provide translation invariance
- Fully connected layers combine high-level features for classification
- Popular CNN architectures:
- AlexNet introduced deep CNNs for large-scale image classification
- VGGNet demonstrated the importance of network depth
- ResNet introduced skip connections to train very deep networks
- adapts pre-trained CNNs to new tasks with limited data
- Visualization techniques (Grad-CAM, saliency maps) interpret CNN decisions
Object detection and recognition
- Region-based CNNs (R-CNN) combine region proposals with CNN features
- Fast R-CNN improves efficiency by sharing computation across regions
- Faster R-CNN introduces a (RPN) for end-to-end training
- Single-shot detectors (SSD, YOLO) perform detection in a single forward pass
- YOLO divides the image into a grid and predicts bounding boxes and classes
- SSD uses multiple feature maps at different scales for detection
- extends object detection to pixel-level masks
- Mask R-CNN adds a branch for predicting segmentation masks
- Few-shot learning enables recognition with limited training examples
- Siamese networks compare query images with support set examples
- Meta-learning approaches learn to learn from small datasets
Semantic segmentation
- (FCN) adapt CNNs for dense pixel-wise prediction
- Encoder-decoder architectures:
- U-Net combines contracting and expanding paths with skip connections
- SegNet uses unpooling to recover spatial information
- Dilated convolutions increase receptive field without losing resolution
- DeepLab series incorporates atrous spatial pyramid pooling (ASPP) for multi-scale context
- Attention mechanisms focus on relevant image regions for improved segmentation
- Weakly supervised approaches use image-level labels or bounding boxes
- Panoptic segmentation unifies instance and semantic segmentation
- Assigns both class labels and instance IDs to each pixel
Real-time image processing
- Real-time processing is crucial for responsive robotic vision systems
- These techniques enable robots to analyze and react to visual information in dynamic environments
- Efficient algorithms and hardware acceleration are key to achieving real-time performance in bioinspired robotic systems
Hardware acceleration techniques
- Graphics Processing Units (GPUs) provide massive parallelism for image processing
- CUDA and OpenCL frameworks enable GPU programming
- Tensor cores optimize deep learning inference
- Field-Programmable Gate Arrays (FPGAs) offer customizable hardware acceleration
- High-Level Synthesis (HLS) simplifies FPGA programming
- Reconfigurable logic allows algorithm-specific optimizations
- Application-Specific Integrated Circuits (ASICs) provide maximum performance for specific tasks
- Neural Processing Units (NPUs) accelerate deep learning inference
- Vision Processing Units (VPUs) optimize computer vision pipelines
- Heterogeneous computing combines multiple acceleration technologies
- CPU-GPU-FPGA systems balance flexibility and performance
- Memory management and data transfer optimization are crucial for efficiency
Parallel processing algorithms
- Data parallelism divides image data across multiple processing units
- Image tiling processes different regions concurrently
- SIMD (Single Instruction, Multiple Data) instructions exploit CPU vectorization
- Task parallelism distributes different operations across processing units
- Pipelining executes multiple stages of an algorithm simultaneously
- Asynchronous processing allows independent tasks to run concurrently
- Parallel implementations of common image processing operations:
- Parallel convolution computes filter responses for multiple pixels simultaneously
- Parallel histogram computation uses atomic operations or per-thread histograms
- Parallel feature extraction distributes keypoint detection and description
- Load balancing ensures efficient utilization of parallel resources
- Dynamic scheduling adapts to varying computational requirements
- Work stealing balances load across processing units
Embedded systems implementation
- Resource-constrained devices require optimized algorithms and implementations
- Model compression techniques reduce computational requirements
- Pruning removes redundant network connections
- Quantization reduces numerical precision of weights and activations
- Fixed-point arithmetic improves performance on embedded processors
- Memory optimization techniques:
- In-place algorithms minimize memory usage
- Memory pooling reuses allocated buffers
- Real-time operating systems (RTOS) provide deterministic scheduling
- Priority-based scheduling ensures critical tasks meet deadlines
- Interrupt handling manages sensor inputs and actuator outputs
- Power management balances performance and energy consumption
- Dynamic voltage and frequency scaling (DVFS) adapts to workload
- Sleep modes conserve energy during idle periods
- Sensor fusion integrates multiple data sources for robust perception
- Kalman filtering combines noisy measurements from different sensors
- Time synchronization aligns data from various sources
Key Terms to Review (44)
Affine Transformations: Affine transformations are mathematical operations that preserve points, straight lines, and planes in an image while allowing for changes such as translation, rotation, scaling, and shearing. These transformations are essential in image processing as they help manipulate and analyze images by maintaining the relationships between the geometric elements within them, ensuring that shapes and structures remain intact after the transformation.
Bilateral Filtering: Bilateral filtering is a technique used in image processing that reduces noise while preserving edges by considering both the spatial distance and the intensity difference of pixels. This filter operates by averaging the pixels within a neighborhood, weighted by their spatial proximity and their color similarity to the target pixel, which helps maintain important image features. It’s especially useful in applications where detail and edge sharpness are critical, like in photography and computer vision.
Bit depth: Bit depth refers to the number of bits used to represent the color of a single pixel in an image. A higher bit depth allows for a greater range of colors and more precise representation of the image, which is crucial in areas like computer vision and image processing where detail and accuracy are paramount. By influencing the total number of colors available, bit depth impacts the quality of images and how they are analyzed or manipulated.
Canny edge detection: Canny edge detection is a multi-stage algorithm used in image processing to detect a wide range of edges in images. It uses a combination of techniques including noise reduction, gradient calculation, non-maximum suppression, and hysteresis thresholding to identify edges, making it one of the most effective edge detection methods available. The algorithm helps in highlighting significant transitions in pixel intensity, which is essential for various applications such as object detection and image segmentation.
CNNs: Convolutional Neural Networks (CNNs) are a class of deep learning algorithms specifically designed for processing structured grid data, like images. They leverage convolutional layers to automatically and adaptively learn spatial hierarchies of features from input images, making them particularly effective in tasks such as image classification, object detection, and segmentation. CNNs utilize various components like pooling layers, activation functions, and fully connected layers to enhance their performance in analyzing visual data.
Computer Vision: Computer vision is a field of artificial intelligence that enables machines to interpret and make decisions based on visual data from the world, similar to how humans process and understand images. It involves the extraction, analysis, and understanding of information from images and videos, allowing for the development of systems that can perceive their surroundings, recognize objects, and perform tasks based on visual input.
Contrast: Contrast refers to the difference in luminance or color that makes an object distinguishable from its background or surrounding elements. In image processing, contrast enhances the visibility of features within an image, allowing for better analysis and interpretation. High contrast can make an image appear more vibrant and detailed, while low contrast can result in a flat and dull appearance.
Convolution: Convolution is a mathematical operation that combines two functions to produce a third function, showing how the shape of one is modified by the other. In image processing, convolution is essential for applying filters and modifying images, as it allows for operations like blurring, sharpening, and edge detection by systematically overlaying a kernel over an image and computing weighted sums of pixel values.
Dilation: Dilation is a mathematical operation that enlarges or reduces an image by a specified scale factor, while preserving its shape and proportions. In image processing, dilation is often used to expand the boundaries of objects within a binary image, making it useful for tasks such as filling small holes or connecting disjointed parts of an object. This technique relies on structuring elements, which define how pixels are affected during the dilation process.
Discrete Fourier Transform: The Discrete Fourier Transform (DFT) is a mathematical technique used to convert a finite sequence of equally spaced samples of a function into its frequency components. This transformation allows for the analysis of signals in the frequency domain, which is essential in fields like image processing where understanding frequency content can reveal important features and patterns within images.
Edge detection: Edge detection is a technique used in image processing to identify the boundaries within images by detecting discontinuities in brightness or color. This process is crucial for analyzing and interpreting visual data, enabling systems to recognize shapes and objects within an image. By highlighting significant transitions in pixel intensity, edge detection forms the foundation for more advanced tasks such as object recognition and image segmentation.
Erosion: Erosion in image processing refers to a morphological operation that removes pixels from the boundaries of objects within an image, effectively shrinking the size of those objects. This technique is often used to eliminate small-scale noise and reduce the thickness of object edges, allowing for clearer feature extraction and analysis. It works by applying a structuring element to the image, which determines how the erosion operation affects the shape and size of the objects present.
Facial recognition: Facial recognition is a technology that can identify or verify a person by analyzing their facial features from images or video. It works by capturing a person's facial image and comparing it against a database of stored images to find matches. This technology relies on advanced algorithms and data analysis techniques to accurately recognize faces, making it a vital component in various applications like security, surveillance, and user authentication.
Fast Fourier Transform: The Fast Fourier Transform (FFT) is an efficient algorithm for computing the discrete Fourier transform (DFT) and its inverse. FFT significantly reduces the computation time required to transform signals from the time domain to the frequency domain, making it a vital tool in many areas, including image processing, where it helps in analyzing and manipulating images through frequency components.
Feature extraction: Feature extraction is the process of transforming raw data into a set of measurable characteristics that can be used for further analysis, such as classification or recognition tasks. This technique is crucial in various fields, as it helps simplify the input while preserving important information that algorithms can leverage. By identifying and isolating relevant features, systems can perform tasks like interpreting visual information, detecting objects, and recognizing gestures more efficiently.
Fourier Transform: The Fourier Transform is a mathematical operation that transforms a time-domain signal into its frequency-domain representation. It breaks down complex signals into simpler sine and cosine waves, revealing the frequency components present in the signal. This transformation is essential for analyzing and processing signals in various fields, especially when dealing with images and computer vision applications.
Fully convolutional networks: Fully convolutional networks (FCNs) are a type of deep learning architecture designed primarily for image segmentation tasks. Unlike traditional convolutional neural networks (CNNs) that output fixed-size feature vectors, FCNs operate on entire images and output segmentation maps by replacing fully connected layers with convolutional layers, allowing them to take input images of any size and generate corresponding output maps that maintain spatial information.
Gamma correction: Gamma correction is a technique used in image processing to adjust the brightness and contrast of images by applying a non-linear transformation to pixel values. This process is essential because human perception of brightness is not linear; thus, gamma correction helps ensure that the image appears more natural and balanced on various displays. By modifying the pixel values based on a gamma value, images can be optimized for better visual quality.
Gaussian smoothing: Gaussian smoothing is a technique used in image processing to reduce noise and detail in images by applying a Gaussian filter. This method helps in achieving a more visually appealing image by blurring it slightly, which can enhance further processing tasks like edge detection or object recognition. The Gaussian filter uses a bell-shaped curve, where pixels are weighted based on their distance from the center pixel, resulting in a smooth transition of pixel values.
High-pass filter: A high-pass filter is an electronic circuit or algorithm that allows signals with a frequency higher than a certain cutoff frequency to pass through while attenuating signals with frequencies lower than the cutoff. This filtering technique is crucial in various applications, particularly in image processing, as it enhances high-frequency details such as edges and textures, making them more prominent in images.
Histogram Equalization: Histogram equalization is a technique in image processing that enhances the contrast of an image by effectively redistributing the intensity levels of the pixels across the available range. This process improves the visibility of features in an image, making it easier to analyze or interpret, which is especially important in applications like computer vision where accurate image analysis is crucial.
HSV: HSV stands for Hue, Saturation, and Value, which are the three components of the HSV color model used in image processing. This model is designed to represent colors in a way that aligns more closely with human perception, making it easier to manipulate colors in images for tasks like color correction and enhancement. The HSV model simplifies color selection and editing by separating color information from brightness, allowing for more intuitive adjustments in various applications.
Image segmentation: Image segmentation is the process of partitioning an image into multiple segments or regions, making it easier to analyze and interpret the content within the image. This technique plays a crucial role in identifying and isolating objects or areas of interest, enabling more effective processing and understanding of visual data. By breaking down an image into meaningful components, it enhances applications such as object recognition, scene understanding, and image analysis.
Instance segmentation: Instance segmentation is a computer vision task that involves detecting and delineating each object instance within an image at the pixel level. It combines object detection and semantic segmentation, providing detailed information not just about what objects are present but also where they are located and how many instances of each object type exist. This enables machines to understand images in a more nuanced way, making it crucial for applications like autonomous driving, robotics, and image analysis.
Jpeg: JPEG, which stands for Joint Photographic Experts Group, is a commonly used method of lossy compression for digital images. This format is widely recognized for its ability to significantly reduce file sizes while maintaining reasonable image quality, making it ideal for web usage and digital photography. JPEG compression works by selectively discarding some image data, particularly in areas where the human eye is less sensitive to changes in color and detail.
Laplacian of Gaussian: The Laplacian of Gaussian (LoG) is an image processing technique used for edge detection, combining the Gaussian smoothing function with the Laplacian operator. This method helps in identifying areas of rapid intensity change by first smoothing the image to reduce noise and then applying the Laplacian to highlight edges. The result is an image that emphasizes regions with significant transitions, making it useful in various computer vision applications.
Low-pass filter: A low-pass filter is a signal processing technique that allows signals with a frequency lower than a certain cutoff frequency to pass through while attenuating signals with frequencies higher than this cutoff. This filtering method is widely used in image processing to reduce noise and smooth out images, which can enhance visual quality and make further analysis more accurate.
Matlab: MATLAB is a high-level programming language and interactive environment primarily used for numerical computation, visualization, and programming. It provides built-in functions and tools that simplify complex mathematical calculations and data analysis, making it essential in various fields including engineering and robotics. MATLAB's powerful capabilities allow users to design algorithms, analyze data, and create models, which are especially useful in areas like robotics and image processing.
Morphological gradient: A morphological gradient is a technique in image processing that uses mathematical morphology to analyze the shapes and structures within an image by detecting changes in the intensity of pixel values. This method helps in highlighting the boundaries of objects and identifying transitions between different regions, making it essential for tasks such as edge detection and object recognition.
Noise Reduction: Noise reduction refers to the techniques and methods used to minimize unwanted disturbances in signals captured by sensors. In the realm of robotics and bioinspired systems, effective noise reduction is crucial for improving sensor accuracy, enhancing data quality, and enabling more reliable decision-making processes. This term connects closely with various types of sensors and processing techniques, as it directly impacts the quality of information these systems gather and interpret.
Object tracking: Object tracking is the process of locating a moving object over time using a camera or other imaging devices. It involves analyzing image sequences to identify and follow the object’s position, which is essential in various applications like surveillance, robotics, and autonomous vehicles. By continuously updating the object's position frame by frame, object tracking enables systems to understand motion patterns and make decisions based on that data.
OpenCV: OpenCV, or Open Source Computer Vision Library, is an open-source software library designed for computer vision and machine learning applications. It provides a comprehensive set of tools and functions that facilitate image processing, enabling robots and systems to interpret and analyze visual data from the environment. With its vast collection of algorithms, OpenCV plays a crucial role in robot programming languages and enhances the ability of robotic systems to perform complex image analysis tasks.
Pixel: A pixel, short for 'picture element', is the smallest unit of a digital image that can be displayed or manipulated on a digital screen. Pixels are arranged in a grid format to form images, with each pixel representing a specific color and intensity. The quality and detail of an image are influenced by the number of pixels it contains, often referred to as its resolution.
PSNR: PSNR, or Peak Signal-to-Noise Ratio, is a metric used to measure the quality of reconstructed images compared to the original. It helps in evaluating how much noise is present in the image and reflects the difference in pixel values between the original and the distorted image. A higher PSNR value indicates better image quality, making it a critical tool in image processing applications.
Region Proposal Network: A Region Proposal Network (RPN) is a type of neural network used in object detection that generates candidate object bounding boxes and their associated object scores from an input image. It operates by sliding a small network over the feature map produced by a convolutional neural network, proposing regions that likely contain objects and streamlining the process of locating and classifying objects within an image.
Resolution: Resolution refers to the level of detail or clarity of an image or measurement, often quantified in terms of pixels in digital images or the sensitivity of sensors. It plays a crucial role in determining how accurately a system can detect or interpret information from its environment. In various contexts, higher resolution means more detail and better performance in tasks like object detection and recognition.
Rgb: RGB stands for Red, Green, and Blue, which are the primary colors of light used in digital imaging and color representation. By combining these three colors in various intensities, a wide spectrum of colors can be created for display on screens and in image processing. This additive color model is fundamental in technology, enabling devices to reproduce vibrant images and effects.
Rigid Transformations: Rigid transformations refer to geometric operations that preserve the shape and size of an object, ensuring that the object remains congruent before and after the transformation. These transformations include translations, rotations, and reflections, which are essential in image processing for maintaining the integrity of shapes during manipulation or analysis.
Sift: Sift is a technique used in image processing to identify and extract key features from images, particularly in the context of detecting and matching local features across different images. It involves detecting interest points or keypoints in an image, computing descriptors for these points, and matching them with descriptors from other images to establish correspondences. This method is crucial for tasks like object recognition and 3D reconstruction.
SSIM: SSIM, or Structural Similarity Index Measure, is a method for measuring the similarity between two images. It evaluates changes in structural information, luminance, and contrast, providing a more accurate representation of perceived image quality compared to traditional metrics like Peak Signal-to-Noise Ratio (PSNR). This makes SSIM particularly useful in image processing applications where maintaining visual fidelity is crucial.
Thresholding: Thresholding is a technique used in image processing to create binary images by converting grayscale or color images into two distinct classes based on pixel intensity. This method helps to isolate objects from the background, simplifying the analysis of images for further processing tasks such as segmentation and feature extraction.
Transfer learning: Transfer learning is a machine learning technique that leverages knowledge gained from one task to improve performance on a related but different task. This approach allows models to learn more efficiently by reusing existing representations and weights, which can be especially beneficial when dealing with limited labeled data in new applications. It is widely used in various fields, including those that involve neural networks, machine learning, image processing, and object recognition.
Watershed Algorithm: The watershed algorithm is an image segmentation technique that treats an image like a topographic surface, where the intensity values represent elevation. It identifies distinct regions in an image based on these elevation levels, creating boundaries or 'watershed lines' that separate different segments. This method is especially useful for separating touching objects and is commonly applied in various fields such as medical imaging and computer vision.
Wavelet denoising: Wavelet denoising is a signal processing technique used to remove noise from data by decomposing the signal into different frequency components using wavelets. This approach allows for the identification and reduction of noise while preserving important features in the data, making it particularly useful in image processing where detail and clarity are essential.
