1.2 Classification of power system stability
4 min read•august 1, 2024
Power systems are complex networks that must maintain stability to function reliably. This topic dives into the classification of power system stability, breaking it down into three main types: rotor angle, frequency, and .
Understanding these classifications is crucial for engineers to analyze and address stability issues effectively. Each type has its own characteristics and requires specific tools and techniques to maintain system equilibrium under various disturbances.
Power System Stability Classification
Defining Power System Stability
Top images from around the web for Defining Power System Stability

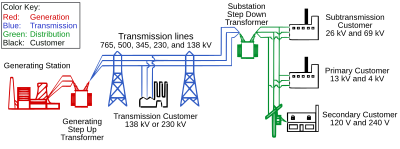

Electric power transmission - Wikipedia View original
Is this image relevant?
The Electric Power Transmission and Distribution Industry View original
Is this image relevant?
Electric power transmission - Wikipedia View original
Is this image relevant?
The Electric Power Transmission and Distribution Industry View original
Is this image relevant?
1 of 2
Top images from around the web for Defining Power System Stability
Electric power transmission - Wikipedia View original
Is this image relevant?
The Electric Power Transmission and Distribution Industry View original
Is this image relevant?
Electric power transmission - Wikipedia View original
Is this image relevant?
The Electric Power Transmission and Distribution Industry View original
Is this image relevant?
1 of 2
- Power system stability is the ability of an electric power system to regain a state of operating equilibrium after being subjected to a physical disturbance
- Most system variables remain bounded so that the entire system remains intact
- Disturbances can include faults, loss of generation, or sudden load changes
Types of Power System Stability
- Power system stability can be classified into three main categories
- : ability of synchronous machines in an interconnected power system to remain in synchronism after a disturbance
- : ability to maintain steady frequency following a severe system upset resulting in a significant imbalance between generation and load
- Voltage stability: ability to maintain steady voltages at all buses in the system after a disturbance from a given initial operating condition
- Each type of stability addresses a specific aspect of the power system's response to disturbances
Rotor Angle Stability: Small-Signal vs Transient
Small-Signal Stability
- is the ability of the power system to maintain synchronism under small disturbances
- Disturbances are considered sufficiently small that linearization of system equations is permissible for analysis purposes
- Examples of small disturbances: small variations in loads and generation
- Small-signal instability can manifest in two forms
- Increase in rotor angle through a non-oscillatory or aperiodic mode due to lack of synchronizing torque
- Rotor of increasing amplitude due to lack of sufficient damping torque ( can help)
Transient Stability
- is the ability of the power system to maintain synchronism when subjected to a severe transient disturbance
- Examples of severe disturbances: short circuit on a transmission line, loss of generation, or loss of a large load
- System response to transient disturbances involves large excursions of generator rotor angles, power flows, bus voltages, and other system variables
- Transient stability depends on both the initial operating state of the system and the severity of the disturbance
- More severe disturbances (three-phase faults) are more likely to cause instability than less severe ones (line-to-ground faults)
- Systems operating closer to their stability limits are more prone to instability
Voltage Stability: Short-Term vs Long-Term
Short-Term Voltage Stability
- involves dynamics of fast acting load components
- Examples: induction motors, electronically controlled loads, HVDC converters
- Study period for short-term voltage stability is typically several seconds
- Fast-acting voltage control devices () play a crucial role in maintaining short-term voltage stability
Long-Term Voltage Stability
- involves slower acting equipment
- Examples: tap-changing transformers, thermostatically controlled loads, generator current limiters
- Study period for long-term voltage stability extends from a few to several minutes
- Slower-acting voltage control devices () are important for long-term voltage stability
- The time frame of interest for voltage stability problems may vary from a few seconds to tens of minutes
- Different initiating events and processes are involved in each case (motor stalling vs. transformer tap-changing)
Interrelationships of Power System Stability Types
Interdependencies Among Stability Types
- The various forms of instability (rotor angle, frequency, voltage) are not independent but are interrelated
- One form of instability may lead to another or even be a consequence of the other
- Voltage declines that accompany rotor angle instability may lead to voltage instability
- Example: a generator losing synchronism can cause voltage dips in the system
- Frequency instability may result in rotor angle and voltage instability
- Declining frequency leads to further imbalance between load and generation, causing voltage and angle issues
- Voltage instability may lead to loss of synchronism as a result of cascading outages and system separation
Importance of Distinguishing Stability Types
- Distinguishing between different types of stability is important for several reasons
- Applying appropriate analysis tools specific to the problem (eigenvalue analysis for small-signal, for transient stability)
- Developing corrective measures targeted at the root cause (power system stabilizers for small-signal, fast excitation systems for transient stability)
- Implementing operating procedures tailored to the stability issue (generation redispatch for rotor angle, load shedding for voltage collapse)
- Although stability types are interdependent, identifying the dominant mechanism is crucial for effectively addressing stability problems
Key Terms to Review (21)
Automatic Voltage Regulation: Automatic voltage regulation refers to the technology and processes used to maintain the output voltage of a power system within desired limits automatically. This is crucial in ensuring that electrical equipment operates efficiently, reduces wear and tear, and prevents damage from voltage fluctuations. Effective regulation contributes significantly to overall power system stability, excitation system performance, and the prevention of voltage instability during both normal operations and transient disturbances.
Bifurcation Analysis: Bifurcation analysis is a mathematical approach used to study changes in the structure of solutions to equations, particularly when small changes in parameters lead to significant changes in behavior. In power systems, it helps identify stability boundaries and transitions between different dynamic behaviors, which are crucial for understanding how systems respond to disturbances. This analysis can reveal critical points where a system may shift from stable to unstable states or vice versa, making it vital for evaluating system performance under various conditions.
Divergence: Divergence refers to the condition in which system variables move away from their desired or stable state, indicating instability within a power system. This phenomenon is crucial in understanding the behavior of a power system when subjected to disturbances, as it can lead to either transient or steady-state instability depending on the severity and duration of the deviation from equilibrium.
Equilibrium Point: An equilibrium point is a condition in a dynamic system where the net forces acting upon it are balanced, leading to no change in its state. In power systems, this concept is crucial as it defines the operating condition where the generation and consumption of power are equal, ensuring stability. When a power system is at an equilibrium point, any small disturbance will lead to oscillations around this point rather than divergence, indicating stability or instability.
Frequency stability: Frequency stability refers to the ability of a power system to maintain a consistent frequency despite disturbances, ensuring that the balance between power supply and demand is preserved. This concept is crucial as fluctuations in frequency can lead to system instability, affecting everything from equipment performance to overall system reliability.
IEEE Standards: IEEE standards are technical specifications and guidelines developed by the Institute of Electrical and Electronics Engineers to ensure quality, reliability, and interoperability in electrical and electronic systems. These standards cover various aspects of power systems, promoting safety, efficiency, and stability across multiple applications.
Long-term voltage stability: Long-term voltage stability refers to the ability of a power system to maintain acceptable voltage levels over an extended period, even when subjected to disturbances or changes in system conditions. This type of stability is crucial for ensuring the continuous and reliable operation of electrical equipment, preventing voltage collapse, and maintaining system integrity during events like load changes or generator outages.
Lyapunov Stability: Lyapunov stability refers to the property of a dynamical system where, if the system starts close to an equilibrium point, it remains close to that point for all future times. This concept is crucial in determining how systems respond to disturbances and is pivotal for analyzing the stability of power systems, ensuring their reliability and efficiency.
NERC Reliability Standards: NERC Reliability Standards are a set of mandatory guidelines established by the North American Electric Reliability Corporation to ensure the reliability and security of the electric grid across North America. These standards cover various aspects of power system operations, including planning, operation, and maintenance, and are designed to prevent widespread outages and maintain system stability.
Oscillations: Oscillations refer to the repetitive variations in a system's state, often seen in power systems when they respond to disturbances. These variations can be due to mechanical, electrical, or thermal influences and manifest as changes in voltage, frequency, or power flow. Understanding oscillations is crucial for analyzing the stability of power systems and their ability to return to a steady state after disturbances.
Power System Damping: Power system damping refers to the mechanisms and strategies employed to reduce oscillations in power systems after disturbances, enhancing system stability and reliability. It plays a critical role in ensuring that transient disturbances, such as faults or sudden load changes, do not lead to large oscillations that can cause system instability. Effective damping helps return the system to a stable operating condition, which is vital for both short-term and long-term performance of power systems.
Power System Stabilizer: A power system stabilizer (PSS) is a control device used in electric power systems to enhance the stability of the system by providing supplementary damping to oscillations in the rotor angle of synchronous machines. It helps improve the overall performance of the power system, especially during disturbances, by adjusting the excitation of generators based on measured system parameters. This device plays a crucial role in ensuring that the power system remains stable during both small-signal and large-signal disturbances.
Rotor Angle Stability: Rotor angle stability refers to the ability of synchronous machines in a power system to maintain synchronism after being subjected to disturbances. It is critical for ensuring the reliability of power systems, as it determines the system's ability to return to a stable operating condition following disturbances such as faults or sudden changes in load. The concept encompasses both transient and steady-state stability, linking directly to control mechanisms that prevent instability in power systems.
Short-term voltage stability: Short-term voltage stability refers to the ability of a power system to maintain acceptable voltage levels following a disturbance within a short time frame, typically seconds to minutes. This concept is crucial for ensuring reliable operation of the electrical grid, as it reflects how well the system can respond to sudden changes in load or generation. Effective management of short-term voltage stability is essential for preventing voltage collapse, which can lead to widespread outages and other serious consequences.
Small-signal stability: Small-signal stability refers to the ability of a power system to maintain its equilibrium under small disturbances or fluctuations, ensuring that the system returns to its original state without experiencing significant oscillations or instability. This concept is crucial for analyzing and designing control strategies in power systems, as it involves understanding how changes in load, generation, and system parameters affect the overall stability.
Static Var Compensators: Static Var Compensators (SVCs) are devices used in power systems to control voltage levels by providing or absorbing reactive power. They enhance the stability and performance of electrical grids by dynamically adjusting the reactive power output, which helps maintain voltage stability during various load conditions and disturbances. By stabilizing voltage and improving power factor, SVCs play a critical role in ensuring that power systems operate reliably and efficiently.
Swing Equation: The swing equation is a fundamental equation used in power system stability analysis that describes the dynamics of a synchronous machine's rotor angle in relation to mechanical and electrical power. This equation is crucial for understanding the behavior of generators during disturbances, as it relates changes in rotor angle to the difference between generated and consumed electrical power. Analyzing the swing equation helps in assessing transient stability and provides insights into how power systems respond to various operating conditions.
Time-domain simulation: Time-domain simulation is a method used to analyze the dynamic behavior of power systems over time by solving differential equations that govern the system's dynamics. This approach allows engineers to study how systems respond to various disturbances, including changes in load, generation, and control actions. By simulating these interactions in the time domain, it is possible to observe transient and steady-state behaviors, which are critical for assessing stability and control strategies in power systems.
Transient Stability: Transient stability refers to the ability of a power system to maintain synchronism when subjected to a disturbance, such as a fault or sudden change in load. It focuses on the immediate response of the system after such disturbances and how well it can return to a stable operating condition. This concept is crucial in understanding system behavior during and after transient events, particularly in multi-machine environments.
Under-load Tap Changers: Under-load tap changers are devices used in transformers to regulate voltage levels while the transformer is still in operation. By adjusting the number of turns in the transformer winding, they help maintain a consistent voltage output, which is essential for system stability and reliability in power systems.
Voltage Stability: Voltage stability refers to the ability of a power system to maintain steady voltage levels at all buses in the system after being subjected to a disturbance. This concept is crucial because voltage instability can lead to voltage collapse, where voltages drop significantly, causing widespread outages and affecting system reliability.
