10.3 Frequency domain analysis using equivalent circuits
2 min read•august 9, 2024
Frequency domain analysis using equivalent circuits is a powerful tool for understanding piezoelectric energy harvesting systems. It allows us to model and predict how these devices behave across different frequencies, which is crucial for optimizing their performance.
This analysis technique uses transfer functions, resonance frequencies, and quality factors to describe system behavior. By examining , admittance, and Bode plots, we can gain valuable insights into energy storage, dissipation, and overall of piezoelectric harvesters.
Frequency Response Characteristics
Transfer Function and Frequency Response
Top images from around the web for Transfer Function and Frequency Response
Bode Diagrams - Electronics-Lab.com View original
Is this image relevant?
Bode Diagrams - Electronics-Lab.com View original
Is this image relevant?
Bode Diagrams - Electronics-Lab.com View original
Is this image relevant?
Bode Diagrams - Electronics-Lab.com View original
Is this image relevant?
Bode Diagrams - Electronics-Lab.com View original
Is this image relevant?
1 of 3
Top images from around the web for Transfer Function and Frequency Response
Bode Diagrams - Electronics-Lab.com View original
Is this image relevant?
Bode Diagrams - Electronics-Lab.com View original
Is this image relevant?
Bode Diagrams - Electronics-Lab.com View original
Is this image relevant?
Bode Diagrams - Electronics-Lab.com View original
Is this image relevant?
Bode Diagrams - Electronics-Lab.com View original
Is this image relevant?
1 of 3
- represents the mathematical relationship between input and output signals in a system
- Describes how the system responds to different input frequencies
- Frequency response derived from the transfer function shows amplitude and phase changes across frequency range
- Helps predict system behavior and performance under various operating conditions
- Can be represented graphically using magnitude and phase plots (Bode plots)
Resonance and Antiresonance Frequencies
- occurs when system's response amplitude reaches maximum value
- Results in peak energy transfer and efficiency in piezoelectric devices
- Determined by material properties and geometric dimensions of the piezoelectric element
- Antiresonance frequency follows resonance frequency in piezoelectric systems
- Characterized by minimum response amplitude and maximum electrical impedance
- Useful for designing filters and frequency-selective devices
Quality Factor and Bandwidth
- Quality factor (Q-factor) measures sharpness of resonance peak
- Higher Q-factor indicates lower energy losses and more selective frequency response
- Calculated as ratio of energy stored to energy dissipated per cycle
- Bandwidth refers to frequency range where system response remains within specified limits
- Inversely related to Q-factor: higher Q-factor results in narrower bandwidth
- Crucial for determining operating range and frequency selectivity of piezoelectric devices
Analysis Techniques
Impedance and Admittance Analysis
- Impedance analysis measures electrical resistance and reactance of piezoelectric device
- Provides insights into energy storage and dissipation characteristics
- Admittance analysis represents inverse of impedance, measuring ease of current flow
- Both techniques use vector quantities to describe magnitude and phase relationships
- Help identify resonance and antiresonance frequencies, Q-factor, and equivalent circuit parameters
- Typically performed using specialized impedance analyzers or network analyzers

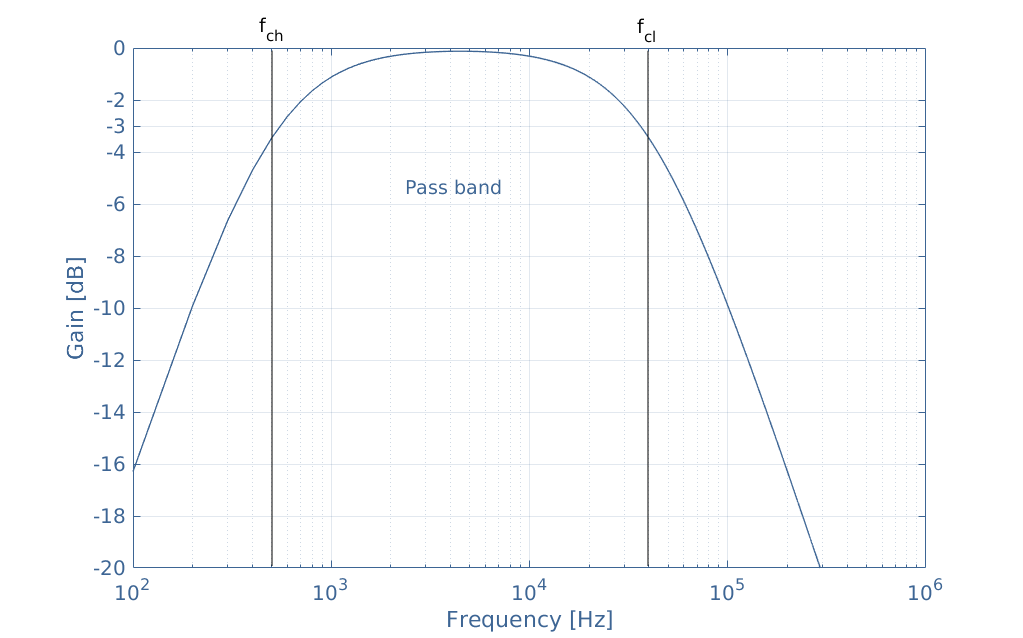

Bode Plot Analysis
- Bode plots graphically represent system's frequency response
- Consist of two separate plots: magnitude plot and phase plot
- Magnitude plot shows how output amplitude varies with input frequency (usually in decibels)
- Phase plot displays between input and output signals across frequency range
- Useful for analyzing system stability, bandwidth, and gain margin
- Helps in designing compensation networks for closed-loop control systems
- Logarithmic frequency scale allows wide frequency range analysis on single plot
Key Terms to Review (17)
Bode Plot: A Bode plot is a graphical representation used in control theory and signal processing to depict the frequency response of a system. It consists of two plots: one showing the magnitude (in decibels) and the other showing the phase (in degrees) as functions of frequency (usually in logarithmic scale). These plots help in understanding how a system responds to different frequencies, which is crucial for analyzing stability and performance, especially in equivalent circuit models.
Capacitor: A capacitor is a passive electrical component that stores energy in an electric field, created by a pair of conductive plates separated by an insulating material called a dielectric. Capacitors are essential in various applications, including energy harvesting systems, where they help manage and store the energy generated from sources like piezoelectric devices, influencing the performance of electrical circuits and energy conversion efficiency.
Efficiency: Efficiency in the context of energy harvesting refers to the ratio of useful energy output to the total energy input. It is a critical measure that helps evaluate how well a system converts mechanical, thermal, or other forms of energy into electrical energy, especially in piezoelectric materials. Understanding efficiency allows for the optimization of designs and systems to ensure maximum energy conversion and utilization.
Energy Conversion: Energy conversion is the process of changing one form of energy into another, essential for the functionality of piezoelectric materials in harvesting energy from mechanical sources. This transformation allows mechanical strain or stress applied to piezoelectric materials to generate electrical energy, showcasing the dual nature of piezoelectric effects and their applications in various energy harvesting methods.
Impedance: Impedance is a measure of how much a circuit resists the flow of alternating current (AC), combining both resistance and reactance into a single complex quantity. It plays a crucial role in determining how efficiently energy is transferred within electrical systems, influencing the performance of energy harvesters, the analysis of their equivalent circuits, and ensuring optimal energy extraction through impedance matching.
Inductor: An inductor is a passive electrical component that stores energy in a magnetic field when electrical current flows through it. Its primary function is to oppose changes in current, making it crucial in various applications, particularly in filters, oscillators, and energy storage systems. The behavior of inductors can be effectively analyzed in the frequency domain using equivalent circuits, which helps to understand their impact on overall circuit performance.
Nyquist Plot: A Nyquist plot is a graphical representation of a system's frequency response, showing the complex impedance or transfer function as a function of frequency. It helps in analyzing the stability and dynamic behavior of systems in the frequency domain by illustrating how the system responds to different input frequencies. This plot is particularly useful in control theory and signal processing, allowing engineers to assess gain and phase margins effectively.
Parallel model: The parallel model is an equivalent circuit representation used in the analysis of piezoelectric energy harvesting systems, where components are arranged in parallel to share the same voltage across them while allowing different currents to flow. This model helps to simplify the understanding of the impedance and frequency response of piezoelectric devices, enabling a clearer analysis of how they interact with the load and the driving frequency.
Phase Shift: Phase shift refers to the change in the phase angle of a sinusoidal wave as it propagates through a system or circuit. This concept is crucial in understanding how different components, such as resistors, capacitors, and inductors, interact with alternating currents and affect the overall response of the circuit. The phase shift can reveal important information about resonance, impedance, and energy transfer in various applications, including energy harvesting systems.
Piezoelectric Effect: The piezoelectric effect is the ability of certain materials to generate an electric charge in response to applied mechanical stress. This phenomenon allows for the conversion of mechanical energy into electrical energy, making piezoelectric materials highly valuable for various applications, including energy harvesting, sensors, and actuators.
Power Output: Power output refers to the rate at which energy is produced by a system, typically measured in watts (W). In the context of energy harvesting, especially piezoelectric devices, power output is critical as it determines the effectiveness of converting mechanical energy into usable electrical energy, influencing design choices, efficiency, and application viability.
PVDF: PVDF, or Polyvinylidene Fluoride, is a highly non-reactive and pure thermoplastic fluoropolymer known for its excellent piezoelectric properties. It is widely used in energy harvesting applications due to its mechanical flexibility, chemical resistance, and ability to generate electrical charge when mechanically stressed, making it a key material in the development of piezoelectric devices.
PZT: PZT stands for Lead Zirconate Titanate, which is a ceramic material known for its strong piezoelectric properties. This material is widely used in various applications, including sensors, actuators, and energy harvesting devices, due to its ability to convert mechanical stress into electrical energy and vice versa.
Resonance Frequency: Resonance frequency is the specific frequency at which a system naturally oscillates with greater amplitude due to the alignment of external forces and internal properties. This frequency plays a crucial role in maximizing energy transfer in energy harvesting systems, particularly for piezoelectric devices, allowing them to efficiently convert mechanical energy into electrical energy.
Series Model: The series model is a representation used in piezoelectric energy harvesting to analyze how components are connected in a single line, allowing the overall system to behave as a single equivalent circuit. In this model, the impedance of each component adds up, resulting in a total impedance that affects how the system responds to external forces and vibrations. Understanding the series model is crucial for evaluating energy conversion efficiency and optimizing design parameters for effective energy harvesting.
Transfer function: A transfer function is a mathematical representation that describes the relationship between the input and output of a linear time-invariant (LTI) system in the frequency domain. It is typically expressed as a ratio of the Laplace transform of the output to the Laplace transform of the input, indicating how the system modifies signals at different frequencies. This concept is essential for analyzing systems like energy harvesters, as it helps to predict their behavior under various operating conditions.
Vibration Energy Harvesting: Vibration energy harvesting refers to the process of capturing and converting mechanical vibrations from the environment into electrical energy. This method is particularly useful for powering small electronic devices, sensors, and wireless networks, utilizing piezoelectric materials, electromagnetic systems, or electrostatic principles to harness energy from dynamic sources.
