6.4 Conductors in Electrostatic Equilibrium
2 min read•june 24, 2024
Conductors in have unique properties that affect electric fields and charge distribution. Inside a conductor, the electric field is zero, while on the surface, it's perpendicular. Excess charge resides on the conductor's surface.
Charge distribution depends on the conductor's shape, with more accumulation at sharp points. Spherical conductors have uniform distribution, while irregularly shaped ones don't. Understanding these principles is crucial for grasping electrostatic equilibrium and its applications.
Conductors in Electrostatic Equilibrium
Electric fields in conductors
Top images from around the web for Electric fields in conductors
Electric Field Lines: Multiple Charges | Physics View original
Is this image relevant?

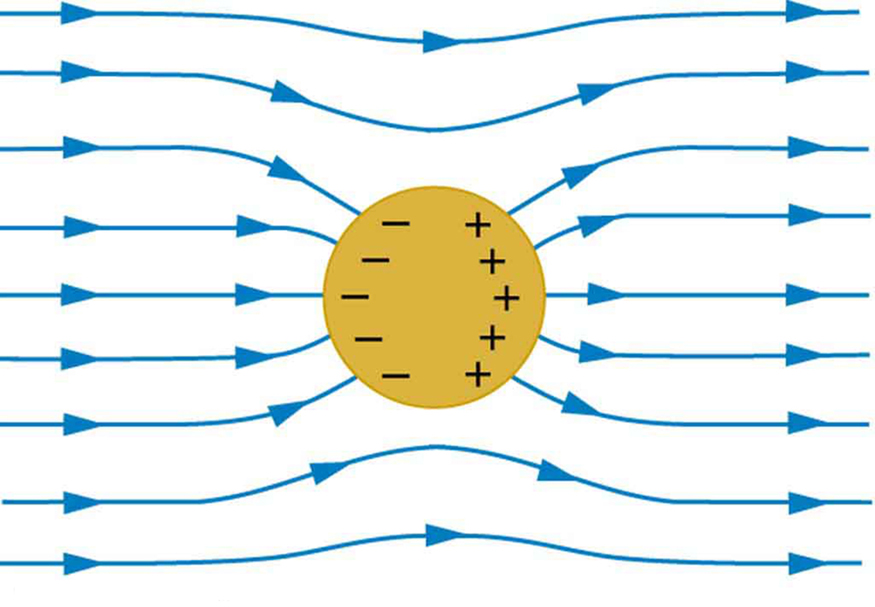

Conductors and Electric Fields in Static Equilibrium | Physics View original
Is this image relevant?
Conductors and Electric Fields in Static Equilibrium | Physics View original
Is this image relevant?
Electric Field Lines: Multiple Charges | Physics View original
Is this image relevant?
Conductors and Electric Fields in Static Equilibrium | Physics View original
Is this image relevant?
1 of 3
Top images from around the web for Electric fields in conductors
Electric Field Lines: Multiple Charges | Physics View original
Is this image relevant?
Conductors and Electric Fields in Static Equilibrium | Physics View original
Is this image relevant?
Conductors and Electric Fields in Static Equilibrium | Physics View original
Is this image relevant?
Electric Field Lines: Multiple Charges | Physics View original
Is this image relevant?
Conductors and Electric Fields in Static Equilibrium | Physics View original
Is this image relevant?
1 of 3
- Electric field inside a conductor in electrostatic equilibrium equals zero
- Charges redistribute until net electric field inside conductor becomes zero (copper wire)
- Excess charge resides on surface of conductor (metal sphere)
- Electric field on surface of conductor in electrostatic equilibrium is perpendicular to surface
- Electric field lines always perpendicular to conductor surface at every point (aluminum foil)
- Magnitude of electric field at surface given by
- represents
- represents (vacuum)
Charge distribution on conductors
- Charge distribution on conductor in electrostatic equilibrium depends on shape of conductor
- Charge accumulates at sharp points or edges with high curvature ()
- lower on flat or smooth surfaces (metal plates)
- Charge distribution uniform on surface of spherical conductor
- Electric field outside charged spherical conductor identical to point charge at its center ()
- Charge distribution non-uniform on irregularly shaped conductors
- Electric field near surface of irregularly shaped conductor stronger where curvature is higher (metal sculptures)
- can occur through when a charged object is brought near a conductor
Conditions for electrostatic equilibrium
- No net charge flow within conductor
- Electric field inside conductor must be zero
- Excess charge must be distributed on surface of conductor ()
- No net external electric field
- Conductor must be isolated from external electric fields
- If external electric field present, charges redistribute until net field inside conductor becomes zero ()
- Electrostatic potential constant throughout conductor
- All points on conductor, including surface, at same electrostatic potential (grounded objects)
- Potential difference would cause charges to flow, disrupting equilibrium
- Surface of conductor forms an equipotential surface
Properties of conductors
- determines how easily charges can move within a material
- measures a conductor's ability to store electric charge
- These properties influence a conductor's behavior in electrostatic equilibrium
Key Terms to Review (29)
Capacitance: Capacitance is the ability of a system to store charge per unit voltage. It is measured in farads (F).
Capacitance: Capacitance is a measure of the ability of a capacitor to store electric charge. It is a fundamental quantity in the study of electricity and electronics, and it plays a crucial role in various topics related to electrostatic equilibrium, electric potential, and energy storage.
Charge Density: Charge density is a measure of the amount of electric charge per unit volume or unit area in a given system. It is a fundamental concept in electrostatics that describes the distribution and concentration of electric charges within a material or space.
Conductivity: Conductivity is a measure of a material's ability to allow the flow of electric charge or current through it. It is an important property that determines how effectively a substance can conduct electricity and is a crucial factor in understanding various electrical phenomena.
Coulomb's law: Coulomb's law describes the force between two charged objects, stating that the force is directly proportional to the product of the magnitudes of the charges and inversely proportional to the square of the distance between them. This principle is crucial for understanding interactions between electric charges, influencing how charges behave in different materials, and shaping the concept of electric fields.
Divergence: Divergence is a mathematical concept that describes the density of the outward flux of a vector field from an infinitesimal volume around a given point. It quantifies the density of the outward flux of a vector field from an infinitesimal volume around a given point. Divergence is a crucial concept in the study of electric fields, as it provides a way to analyze the behavior of electric fields and their sources.
Electric potential: Electric potential is the amount of electric potential energy per unit charge at a specific point in an electric field. It is measured in volts (V).
Electric Potential: Electric potential, also known as electrostatic potential, is a scalar quantity that represents the amount of work done per unit charge in moving a test charge from an infinite distance to a specific point in an electric field. It is a measure of the potential energy per unit charge at a given location within an electric field.
Electrical conductivity: Electrical conductivity is a measure of a material's ability to conduct an electric current. It is the reciprocal of electrical resistivity and is denoted by the symbol $\sigma$.
Electrostatic Equilibrium: Electrostatic equilibrium is the state of a charged object when the net force acting on it is zero, resulting in a stable distribution of electric charge. In this state, electric charges within a conductor redistribute themselves until there is no further movement, ensuring that the electric field inside the conductor is zero. Understanding this concept is crucial for grasping how conductors and insulators behave when subjected to electric charges.
Electrostatic Induction: Electrostatic induction is the process by which an electrically charged object can create an opposite charge on a nearby neutral object without making physical contact. This phenomenon arises due to the rearrangement of charges within the neutral object in response to the presence of the charged object, leading to the creation of induced charges.
Electrostatic Shielding: Electrostatic shielding is the process of blocking or containing electric fields within a specific region by using a conductive material or surface. It is a fundamental concept in the study of conductors, electrostatic equilibrium, and equipotential surfaces.
Faraday Cage: A Faraday cage is an enclosure formed by conducting material that blocks external static and non-static electric fields by channeling the electric charges to the exterior of the enclosure. It is named after the English scientist Michael Faraday, who discovered the principle in 1836.
Gauss's Law: Gauss's law is a fundamental principle in electromagnetism that relates the electric flux through a closed surface to the total electric charge enclosed within that surface. It provides a powerful tool for calculating the electric field produced by various charge distributions.
Induced Charge: Induced charge refers to the redistribution of electric charges within a conductive material when it is placed in an external electric field. This phenomenon occurs due to the ability of conductive materials to allow the free movement of electrons, which rearrange themselves to counteract the applied electric field.
James Clerk Maxwell: James Clerk Maxwell was a renowned Scottish physicist who made significant contributions to the understanding of electromagnetism, the nature of light, and the foundations of modern physics. His work laid the groundwork for many of the key concepts and theories that are central to the topics of 2.4 Distribution of Molecular Speeds, 6.4 Conductors in Electrostatic Equilibrium, 11.1 Magnetism and Its Historical Discoveries, 12.3 Magnetic Force between Two Parallel Currents, 13.4 Induced Electric Fields, 13.5 Eddy Currents, and 16.1 Maxwell's Equations and Electromagnetic Waves.
Lightning Rods: Lightning rods are metal conductors that are strategically placed on top of buildings or other structures to provide a safe path for lightning to discharge into the ground, protecting the structure and its occupants from potential damage or harm caused by lightning strikes.
Michael Faraday: Michael Faraday was a pioneering scientist known for his groundbreaking work in electromagnetism and electrochemistry during the 19th century. His contributions, particularly in discovering electromagnetic induction and formulating Faraday's Law, laid the foundation for modern electrical engineering and technology.
Perfect Conductor: A perfect conductor is an idealized material that has zero electrical resistance, allowing electric charge and current to flow through it without any opposition or energy dissipation. This concept is central to understanding the behavior of conductors in electrostatic equilibrium.
Permittivity of Free Space: Permittivity of free space is a fundamental physical constant that measures the ability of a vacuum to permit electric field lines. It plays a crucial role in electrostatics, affecting the strength of electric fields and the behavior of charge distributions in free space.
Polarization: Polarization is the process in which an electric field causes a separation of charges within a material, aligning positive and negative charges in opposite directions. This phenomenon can occur in both conductors and insulators when exposed to an external electric field.
Shielding: Shielding refers to the process of using conductive materials to block or reduce the transfer of electric fields or electromagnetic radiation from one region to another. It is a fundamental concept in the study of conductors in electrostatic equilibrium.
Skin Effect: The skin effect is a phenomenon that occurs in conductors carrying alternating current (AC), where the current tends to flow primarily near the surface of the conductor rather than being evenly distributed throughout its cross-section. This effect is caused by the interaction between the magnetic field and the conductive material, and it has important implications in various electrical and electronic applications.
Superconductor: A superconductor is a material that exhibits the property of superconductivity, which is the ability to conduct electric current with no resistance and no energy loss. This unique characteristic is observed at extremely low temperatures, typically below a critical temperature specific to the material.
Surface charge density: Surface charge density, denoted as $\sigma$, is the amount of electric charge per unit area on a surface. It is measured in coulombs per square meter ($C/m^2$).
Surface Charge Density: Surface charge density is the amount of electric charge per unit area on the surface of a charged object. It is an important concept in understanding the behavior of electric fields and electric potentials in various contexts, including charged distributions, conductors in electrostatic equilibrium, and the calculation of electric potential.
Surface Integral: A surface integral is a mathematical operation that calculates the total value of a scalar or vector field over a given surface. It is a fundamental concept in electromagnetism, fluid mechanics, and other areas of physics, used to quantify properties like electric flux, magnetic flux, and mass flow rate across a surface.
Van de Graaff generator: A Van de Graaff generator is an electrostatic machine that uses a moving belt to accumulate electric charge on a hollow metal globe, creating very high electric potentials. It is commonly used in physics experiments to demonstrate principles of electrostatics and high voltage phenomena.
Van de Graaff Generator: A Van de Graaff generator is an electrostatic generator that produces very high voltages, up to millions of volts, using a moving belt to accumulate electric charge. It is a device that can be used to study the behavior of electric fields, conductors, and insulators in the context of electrostatic equilibrium.
