9.5 Heterojunction bipolar transistors (HBTs)
11 min read•august 20, 2024
are advanced semiconductor devices that use different materials for the emitter and base regions. They offer superior performance over traditional bipolar junction transistors, with higher , improved frequency response, and better emitter injection efficiency.
HBTs leverage unique properties of heterojunctions to achieve their advantages. Key aspects include the band diagram, emitter-base heterojunction, base-collector homojunction, and wide bandgap emitters. Understanding these fundamentals is crucial for grasping HBT operation and their role in modern electronics.
Fundamentals of heterojunction bipolar transistors
- Heterojunction bipolar transistors (HBTs) are a type of bipolar junction transistor that incorporate heterojunctions, which are junctions formed between two dissimilar semiconductor materials
- HBTs leverage the unique properties of heterojunctions to achieve superior performance compared to conventional bipolar junction transistors (BJTs)
- Understanding the band diagram, emitter-base heterojunction, base-collector homojunction, and the role of wide bandgap emitters is crucial for comprehending the operation and advantages of HBTs in the context of semiconductor device physics

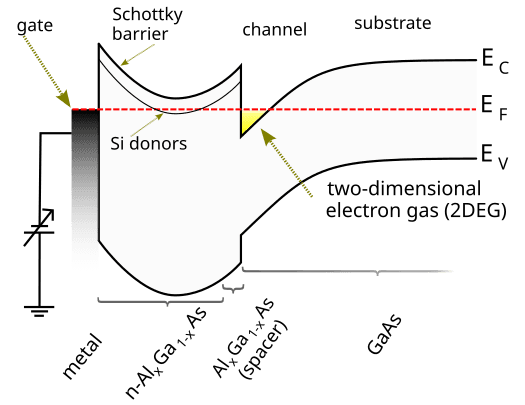

Band diagram of HBTs
Top images from around the web for Band diagram of HBTs
Heterojunction - Wikipedia View original
Is this image relevant?
High-electron-mobility transistor - Wikipedia View original
Is this image relevant?
What is the physical meaning of potential energy in a band diagram of a semiconductor? - Physics ... View original
Is this image relevant?
Heterojunction - Wikipedia View original
Is this image relevant?
High-electron-mobility transistor - Wikipedia View original
Is this image relevant?
1 of 3
Top images from around the web for Band diagram of HBTs
Heterojunction - Wikipedia View original
Is this image relevant?
High-electron-mobility transistor - Wikipedia View original
Is this image relevant?
What is the physical meaning of potential energy in a band diagram of a semiconductor? - Physics ... View original
Is this image relevant?
Heterojunction - Wikipedia View original
Is this image relevant?
High-electron-mobility transistor - Wikipedia View original
Is this image relevant?
1 of 3
- The band diagram of an HBT illustrates the energy band alignment of the emitter, base, and collector regions
- The emitter-base junction is a heterojunction, typically formed between a wide bandgap emitter and a narrower bandgap base material
- The conduction band and valence band discontinuities at the emitter-base heterojunction play a crucial role in the operation of HBTs
- The base-collector junction is usually a homojunction, formed between materials with similar bandgaps
Emitter-base heterojunction
- The emitter-base heterojunction is the key distinguishing feature of HBTs compared to BJTs
- The wider bandgap emitter material (such as AlGaAs) is used to create a potential barrier that enhances the injection of electrons from the emitter into the base
- The conduction band discontinuity at the emitter-base heterojunction helps to confine electrons in the base region, improving emitter injection efficiency
- The valence band discontinuity at the emitter-base heterojunction helps to block hole injection from the base into the emitter, reducing base current
Base-collector homojunction
- The base-collector junction in HBTs is typically a homojunction, formed between materials with similar bandgaps (such as GaAs)
- The homojunction allows for efficient collection of electrons injected from the emitter and transported across the base region
- The base-collector homojunction is designed to minimize the base transit time and enhance the frequency response of the HBT
Wide bandgap emitters in HBTs
- The use of wide bandgap materials (such as AlGaAs, InP) for the emitter region is a key feature of HBTs
- Wide bandgap emitters create a larger potential barrier at the emitter-base junction, which enhances the injection efficiency of electrons from the emitter into the base
- The higher bandgap of the emitter material compared to the base material helps to suppress hole injection from the base into the emitter, reducing base current and improving current gain
- Examples of wide bandgap emitter materials include AlGaAs in GaAs-based HBTs and InP in InGaAs-based HBTs
Advantages of HBTs vs BJTs
- HBTs offer several advantages over conventional BJTs due to their unique heterojunction design and material properties
- The incorporation of heterojunctions and wide bandgap emitters in HBTs leads to improved device performance, making them suitable for high-frequency and high-speed applications
Higher current gain in HBTs
- HBTs achieve higher current gain compared to BJTs due to the enhanced emitter injection efficiency
- The wide bandgap emitter and the conduction band discontinuity at the emitter-base heterojunction promote efficient electron injection from the emitter into the base
- The higher current gain allows for reduced power consumption and improved signal amplification in HBT-based circuits
Improved emitter injection efficiency
- The emitter injection efficiency, defined as the ratio of collector current to emitter current, is significantly higher in HBTs compared to BJTs
- The heterojunction at the emitter-base interface creates a potential barrier that favors electron injection from the emitter into the base while suppressing hole injection from the base into the emitter
- The improved emitter injection efficiency contributes to higher current gain and better performance in HBTs
Reduced base resistance
- HBTs exhibit lower base resistance compared to BJTs due to the use of heavily doped base regions
- The heavily doped base region in HBTs allows for a shorter base width, which reduces the base resistance without compromising the emitter injection efficiency
- Reduced base resistance leads to improved high-frequency performance and lower noise in HBT-based circuits
Superior frequency response of HBTs
- HBTs demonstrate superior frequency response compared to BJTs, making them suitable for high-frequency applications (microwave and RF)
- The higher and maximum oscillation frequency of HBTs are attributed to the reduced base transit time and lower base resistance
- The use of wide bandgap emitters and optimized base and collector designs in HBTs contributes to their excellent high-frequency performance
Device structure and fabrication
- The device structure and fabrication process of HBTs are crucial aspects that determine their performance and reliability
- HBTs feature a vertical device structure, with the emitter, base, and collector regions stacked on top of each other
- Various material systems and epitaxial growth techniques are employed in HBT fabrication to achieve high-quality heterojunctions and optimize device characteristics
Vertical HBT device structure
- HBTs have a vertical device structure, with the emitter, base, and collector regions grown epitaxially on a substrate
- The vertical structure allows for efficient current flow and enables the fabrication of high-density HBT arrays
- The emitter-base and base-collector junctions are formed by carefully selecting the material compositions and doping profiles during epitaxial growth
- The vertical structure also facilitates the integration of HBTs with other devices, such as field-effect transistors (FETs), for the realization of complex integrated circuits
Material systems for HBT fabrication
- HBTs can be fabricated using various material systems, depending on the desired performance characteristics and application requirements
- Common material systems for HBTs include:
- GaAs/AlGaAs: Widely used for high-frequency applications due to its high electron mobility and well-established growth and fabrication processes
- InGaP/GaAs: Offers improved reliability and reduced recombination compared to GaAs/AlGaAs HBTs
- InP/InGaAs: Provides superior high-frequency performance and is suitable for ultra-high-speed applications
- The choice of material system depends on factors such as lattice matching, bandgap engineering, and compatibility with existing manufacturing infrastructure
Epitaxial growth techniques
- Epitaxial growth techniques are employed to grow the emitter, base, and collector layers of HBTs with precise control over material composition, doping, and thickness
- (MBE) and (MOCVD) are commonly used epitaxial growth techniques for HBT fabrication
- MBE offers excellent control over layer thickness and doping profiles but has lower throughput compared to MOCVD
- MOCVD enables high-throughput growth and is widely used for commercial HBT production
- Epitaxial growth enables the formation of abrupt and high-quality heterojunctions, which are essential for the superior performance of HBTs
Self-alignment in HBT fabrication
- Self-alignment techniques are employed in HBT fabrication to minimize parasitic resistances and capacitances, thereby improving device performance
- Emitter-base self-alignment involves the use of the emitter contact as a mask for the base contact formation, ensuring precise alignment and reducing the extrinsic base resistance
- Base-collector self-alignment techniques, such as selective etching or regrowth processes, help to minimize the base-collector capacitance and improve high-frequency performance
- Self-alignment techniques contribute to the fabrication of high-performance HBTs with reduced device dimensions and parasitics
Operating principles and characteristics
- Understanding the operating principles and characteristics of HBTs is essential for designing and optimizing HBT-based circuits and systems
- The minority carrier transport, current-voltage characteristics, current gain, and breakdown voltages are key aspects that determine the performance and limitations of HBTs
Minority carrier transport in HBTs
- Minority carrier transport in HBTs involves the injection, transport, and collection of electrons in the base region
- Electrons are injected from the emitter into the base, where they diffuse across the base region as minority carriers
- The transport of electrons across the base is governed by the diffusion process, which is influenced by the base width, doping concentration, and material properties
- Efficient minority carrier transport in the base is crucial for achieving high current gain and high-frequency performance in HBTs
Current-voltage characteristics
- The current-voltage (I-V) characteristics of HBTs describe the relationship between the collector current (Ic), base current (Ib), and the applied voltages (Vbe and Vce)
- The I-V characteristics of HBTs exhibit three distinct regions: active, saturation, and cutoff
- In the active region, the collector current is controlled by the base current, and the HBT operates as an amplifier
- In the saturation region, the collector current is limited by the collector-emitter voltage, and the HBT operates as a switch
- In the cutoff region, the HBT is turned off, and the collector current is negligible
- The I-V characteristics provide insights into the gain, linearity, and switching behavior of HBTs
Gummel plot and current gain
- The Gummel plot is a graphical representation of the collector current (Ic) and base current (Ib) as a function of the base-emitter voltage (Vbe) in HBTs
- The Gummel plot is obtained by measuring Ic and Ib while sweeping Vbe, with the collector-emitter voltage (Vce) held constant
- The current gain (β) of an HBT can be extracted from the Gummel plot as the ratio of the collector current to the base current (β = Ic/Ib)
- The Gummel plot provides valuable information about the emitter injection efficiency, base transport, and recombination processes in HBTs
Cutoff and breakdown voltages
- The cutoff voltage (Vcut) and breakdown voltage (Vbr) are important parameters that define the operating limits of HBTs
- The cutoff voltage represents the base-emitter voltage at which the HBT transitions from the active region to the cutoff region, where the collector current becomes negligible
- The breakdown voltage is the maximum collector-emitter voltage that an HBT can withstand before the onset of avalanche breakdown in the collector-base junction
- Understanding the cutoff and breakdown voltages is crucial for designing HBT-based circuits that operate within safe and reliable limits
High-frequency performance
- HBTs are widely used in high-frequency applications, such as microwave and RF circuits, due to their superior frequency response compared to BJTs
- The transit time, cutoff frequency, maximum oscillation frequency, and equivalent circuit models are key factors that determine the high-frequency performance of HBTs
Transit time and cutoff frequency
- The transit time (τ) is the time required for charge carriers to traverse the base region of an HBT
- The cutoff frequency (fT) is the frequency at which the current gain of an HBT decreases to unity (0 dB)
- The cutoff frequency is inversely proportional to the transit time (fT ≈ 1/2πτ) and is a measure of the intrinsic speed of the HBT
- HBTs achieve high cutoff frequencies by minimizing the base transit time through the use of narrow base regions and optimized material properties
Maximum oscillation frequency
- The maximum oscillation frequency (fmax) is the highest frequency at which an HBT can provide power gain
- fmax is determined by the cutoff frequency (fT) and the parasitic resistances and capacitances of the HBT
- HBTs with high fmax are capable of operating as amplifiers and oscillators at microwave and millimeter-wave frequencies
- Optimization of the device structure, material properties, and fabrication processes is crucial for achieving high fmax in HBTs
Equivalent circuit models for HBTs
- Equivalent circuit models are used to represent the electrical behavior of HBTs at high frequencies
- The hybrid-π model is a commonly used equivalent circuit model for HBTs, which includes intrinsic and extrinsic elements
- Intrinsic elements represent the physical properties of the HBT, such as base-emitter and base-collector capacitances and transconductance
- Extrinsic elements account for the parasitic resistances and inductances associated with the device contacts and interconnects
- Equivalent circuit models enable the analysis and design of HBT-based high-frequency circuits using circuit simulation tools
Microwave and RF applications of HBTs
- HBTs find extensive use in microwave and RF applications due to their high-frequency performance, linearity, and power handling capabilities
- Examples of microwave and RF applications of HBTs include:
- Power amplifiers for wireless communication systems (cellular networks, satellite communications)
- Low-noise amplifiers for receivers and front-end modules
- Oscillators and frequency multipliers for signal generation
- Mixers and switches for frequency conversion and signal routing
- HBTs are often integrated with other devices, such as FETs, in monolithic microwave integrated circuits (MMICs) for complex RF system-on-chip solutions
Advanced HBT concepts
- Advanced HBT concepts involve modifications to the device structure and materials to further enhance the performance and functionality of HBTs
- Graded base HBTs, drift base HBTs, collector current blocking, and reliability considerations are examples of advanced HBT concepts that push the boundaries of HBT technology
Graded base HBTs
- Graded base HBTs incorporate a gradual variation of the bandgap energy across the base region
- The graded base profile creates a built-in electric field that accelerates electrons across the base, reducing the base transit time
- Graded base HBTs achieve higher cutoff frequencies and improved high-frequency performance compared to conventional HBTs with uniform base profiles
- The graded base profile can be realized through the use of compositionally graded alloys or doping gradients during epitaxial growth
Drift base HBTs
- Drift base HBTs employ a heavily doped and narrower base region compared to conventional HBTs
- The heavily doped drift base creates a strong electric field that accelerates electrons across the base, reducing the base transit time
- Drift base HBTs achieve higher cutoff frequencies and improved high-frequency performance by minimizing the base transit time
- The design and optimization of drift base HBTs involve careful control of the base doping profile and thickness to balance the trade-off between base resistance and transit time
Collector current blocking in HBTs
- Collector current blocking is a phenomenon observed in HBTs, where the collector current saturates or decreases at high collector-emitter voltages
- Current blocking can occur due to various mechanisms, such as electron velocity saturation, impact ionization, or heterojunction barrier effects
- Current blocking limits the maximum collector current and power handling capability of HBTs
- Advanced HBT designs employ techniques such as collector doping optimization, heterojunction engineering, and ballistic transport to mitigate current blocking and extend the usable voltage range
Reliability and degradation mechanisms
- Reliability and degradation mechanisms are critical considerations in the design and operation of HBTs
- HBTs can be subject to various degradation mechanisms, such as hot carrier injection, electromigration, and thermal instabilities
- Hot carrier injection can cause damage to the emitter-base junction, leading to increased base current and reduced current gain over time
- Electromigration can result in the formation of voids or hillocks in the metal contacts, causing increased resistance and potential device failure
- Thermal instabilities, such as self-heating effects, can lead to performance degradation and reliability issues in HBTs
- Advanced HBT designs incorporate reliability enhancement techniques, such as emitter ledge passivation, improved contact metallization, and thermal management strategies, to mitigate degradation mechanisms and ensure long-term device reliability
Key Terms to Review (18)
Bandgap alignment: Bandgap alignment refers to the relative positioning of the energy bands, specifically the valence band and conduction band, of two different semiconductor materials when they are joined together. Proper bandgap alignment is crucial in heterojunctions, such as in devices like heterojunction bipolar transistors, as it directly affects charge carrier movement, device efficiency, and overall performance.
Bipolar technology advancements: Bipolar technology advancements refer to the improvements and innovations in bipolar junction transistors (BJTs) and related semiconductor devices that enhance their performance, efficiency, and application range. These advancements often focus on materials, structures, and manufacturing processes that enable better switching speeds, lower power consumption, and higher frequency operations, making them crucial in various electronic applications.
Charge carrier mobility: Charge carrier mobility is a measure of how quickly and easily charge carriers, such as electrons and holes, can move through a semiconductor material in response to an electric field. Higher mobility indicates that carriers can travel faster, which enhances the conductivity of the material and affects the performance of semiconductor devices like transistors. This property is critical in determining the efficiency and speed of electronic components, particularly in applications involving high-frequency operations.
Current gain: Current gain is a measure of how much a transistor can amplify the input current to produce a larger output current. It is typically denoted as $$eta$$ or $$h_{fe}$$ in bipolar junction transistors (BJTs), and it represents the ratio of the output current to the input current. A higher current gain indicates a more efficient transistor, which is critical in various applications including signal amplification and switching.
Cutoff Frequency: Cutoff frequency is the frequency at which the output signal of a device or circuit is reduced to a specific level, typically 3 dB below its maximum value. This frequency is crucial because it defines the operational limits of various semiconductor devices, influencing their performance in amplification and switching applications. Understanding the cutoff frequency helps in analyzing how effectively a device can process high-frequency signals and maintain signal integrity.
Double heterojunction: A double heterojunction is a semiconductor structure that consists of two different materials, forming a junction between layers of varying bandgaps. This configuration allows for better carrier confinement and improved performance in devices like lasers and transistors, particularly enhancing efficiency and reducing leakage currents.
Electrical isolation: Electrical isolation refers to the condition where two electrical circuits or components are separated in such a way that there is no direct electrical connection between them, preventing current from flowing freely. This separation is crucial in semiconductor devices to minimize interference, ensure reliable operation, and protect sensitive components from voltage spikes or noise, particularly in devices like heterojunction bipolar transistors (HBTs). Electrical isolation contributes to the performance and stability of these transistors by enhancing their switching speeds and reducing leakage currents.
Gallium arsenide: Gallium arsenide (GaAs) is a compound semiconductor made from gallium and arsenic, known for its high electron mobility and direct bandgap, making it an ideal material for high-frequency and optoelectronic applications. This unique combination of properties allows GaAs to perform exceptionally well in devices like diodes, solar cells, and transistors, where efficiency and speed are crucial.
Graded heterojunction: A graded heterojunction is a type of semiconductor junction where the composition of the materials changes gradually, rather than abruptly, across the interface. This gradual change in composition allows for a smoother transition of electronic properties, which can enhance the performance of devices like heterojunction bipolar transistors (HBTs) by reducing defects and improving charge carrier mobility.
Heterojunction bipolar transistor: A heterojunction bipolar transistor (HBT) is a type of bipolar transistor that utilizes two different semiconductor materials to create the junctions, which allows for improved performance characteristics such as higher efficiency and faster switching speeds. This design takes advantage of the unique properties of different materials, often combining a wide bandgap semiconductor with a narrow bandgap one, leading to enhanced carrier mobility and lower power consumption.
Heterojunction Bipolar Transistors (HBTs): Heterojunction Bipolar Transistors (HBTs) are a type of bipolar transistor that utilizes different semiconductor materials for the emitter and base regions, allowing for improved performance over conventional homojunction transistors. This design enhances speed, efficiency, and overall gain, making HBTs particularly useful in high-frequency and high-power applications. The unique structure of HBTs enables them to leverage the advantages of both materials to optimize electronic properties.
High-frequency amplification: High-frequency amplification refers to the enhancement of electrical signals at high frequencies, enabling them to be transmitted over long distances or to drive other electronic devices. This process is crucial in modern communication systems and various applications, including radio frequency (RF) and microwave technologies, where maintaining signal integrity is essential for effective operation.
Indium Phosphide: Indium phosphide (InP) is a binary semiconductor material composed of indium and phosphorus, widely used in high-speed electronic devices and optoelectronics. Its direct bandgap property makes it highly effective for applications in lasers and photodetectors, especially in telecommunications and data transmission systems. InP is particularly valued for its electron mobility and performance in high-frequency applications.
Metal-organic chemical vapor deposition: Metal-organic chemical vapor deposition (MOCVD) is a process used to produce thin films of semiconductors and other materials by chemically reacting metal-organic compounds with gaseous precursors. This technique is vital in creating high-quality, uniform layers for semiconductor devices, particularly in the fabrication of heterojunction bipolar transistors (HBTs), where precise control over material properties is crucial for device performance.
Molecular Beam Epitaxy: Molecular Beam Epitaxy (MBE) is a precise method for depositing thin layers of materials, typically semiconductors, onto a substrate through the evaporation of elemental materials in a vacuum. This technique allows for the growth of high-quality crystal structures, enabling the fabrication of advanced semiconductor devices. The ability to control the thickness and composition at the atomic level makes MBE crucial for developing heterojunctions, which are essential in various electronic applications.
Power Amplification: Power amplification refers to the process of increasing the power level of a signal, allowing it to drive larger loads or produce a more significant output. In the context of semiconductor devices, this is crucial for applications like audio amplification, radio frequency transmissions, and signal processing. Power amplification plays a key role in enhancing signal strength while minimizing distortion, which is essential for maintaining the integrity of the original signal in various electronic systems.
Thermal stability: Thermal stability refers to the ability of a material or device to maintain its performance and structural integrity under varying temperature conditions. This characteristic is crucial in ensuring reliable operation in electronic devices, particularly in semiconductor applications, where temperature fluctuations can significantly affect performance and longevity.
Zhang's Theorem: Zhang's Theorem is a crucial principle in the study of heterojunction bipolar transistors (HBTs) that describes the condition for achieving optimal performance in these devices by ensuring maximum current gain and minimal base width. It connects the material properties and the physical dimensions of the device to enhance its efficiency, thus playing a vital role in the design of advanced semiconductor devices. Understanding this theorem allows engineers to predict how changes in the structure of HBTs can influence their electrical characteristics.
