11.1 Power diodes

Power diodes are crucial components in power electronics, designed to handle high currents and voltages. They come in various types, including PN junction, Schottky barrier, and PIN diodes, each with unique characteristics suited for specific applications.

Understanding power diode parameters, ratings, and packaging is essential for selecting the right device and ensuring reliable operation. Emerging technologies, like wide bandgap semiconductors and soft-switching techniques, are pushing the boundaries of power diode performance and efficiency.

Fundamentals of power diodes

• Power diodes are semiconductor devices designed to handle high currents and voltages in power electronic applications
• Understand the basic structure, doping profile, and operation of power diodes is essential for designing efficient and reliable power conversion systems

Structure and doping profile

Top images from around the web for Structure and doping profile

•

  pn junction diode - Theory articles - Electronics-Lab.com Community View original

  Is this image relevant?

•

  The Signal Diode - Electronics-Lab.com View original

  Is this image relevant?

•

  DIODES - POWER ELECTRONICS - ETO - Electro Technical Officer View original

  Is this image relevant?

•

  pn junction diode - Theory articles - Electronics-Lab.com Community View original

  Is this image relevant?

•

  The Signal Diode - Electronics-Lab.com View original

  Is this image relevant?

1 of 3

Top images from around the web for Structure and doping profile

•

  pn junction diode - Theory articles - Electronics-Lab.com Community View original

  Is this image relevant?

•

  The Signal Diode - Electronics-Lab.com View original

  Is this image relevant?

•

  DIODES - POWER ELECTRONICS - ETO - Electro Technical Officer View original

  Is this image relevant?

•

  pn junction diode - Theory articles - Electronics-Lab.com Community View original

  Is this image relevant?

•

  The Signal Diode - Electronics-Lab.com View original

  Is this image relevant?

1 of 3

• Power diodes consist of a heavily doped n+ region (cathode) and a lightly doped p region (anode)
• The n+ region provides a low-resistance path for majority carriers (electrons) during forward bias
• The p region supports a high breakdown voltage and low leakage current during reverse bias
• The doping profile is optimized to achieve a balance between low forward voltage drop and high reverse blocking capability

Forward and reverse bias operation

• Under forward bias, the diode conducts current with a low voltage drop, typically 0.7-1.2 V for silicon diodes
• The forward current is limited by the series resistance of the diode and the external circuit
• Under reverse bias, the diode blocks current flow, supporting high voltages with minimal leakage current
• The reverse breakdown voltage depends on the doping profile and the device structure

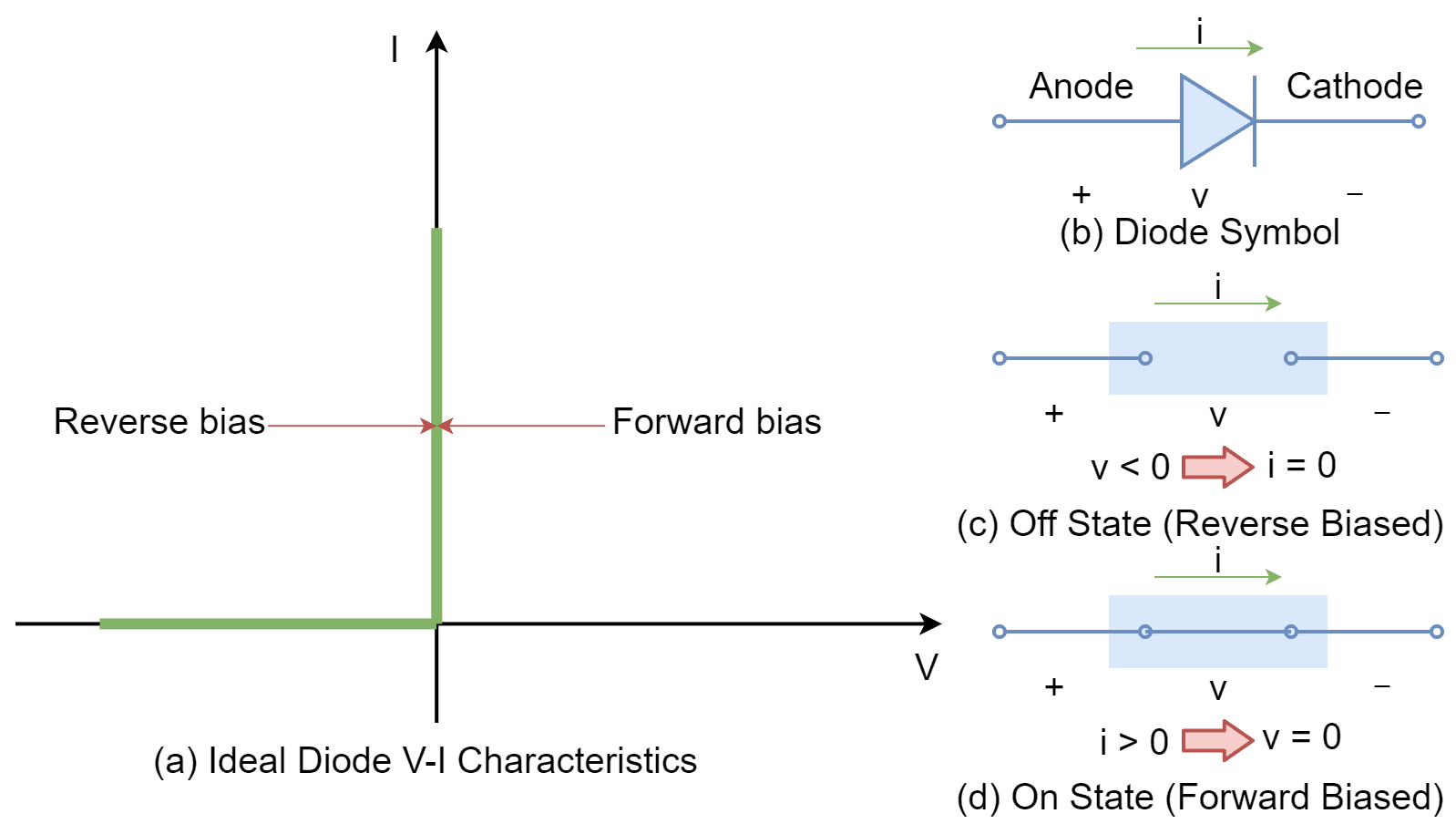

Current-voltage characteristics

• The I-V characteristics of a power diode exhibit a non-linear relationship between current and voltage
• In the forward bias region, the current increases exponentially with voltage, following the Shockley diode equation: $I_D = I_S(e^{V_D/nV_T} - 1)$
• In the reverse bias region, the current remains low until the breakdown voltage is reached, after which the current increases rapidly
• The static and dynamic characteristics of power diodes are essential for designing power conversion circuits and estimating power losses

Power diode parameters

• Understanding the key parameters of power diodes is crucial for selecting the appropriate device for a given application and ensuring reliable operation

Static parameters

• Forward voltage drop ($V_F$): The voltage across the diode during forward conduction, typically 0.7-1.2 V for silicon diodes
• Reverse breakdown voltage ($V_{BR}$): The maximum reverse voltage the diode can withstand before breakdown occurs
• Reverse leakage current ($I_R$): The small current that flows through the diode under reverse bias, typically in the range of nA to μA
• Junction capacitance ($C_J$): The capacitance of the depletion region, which varies with the applied voltage

Dynamic parameters

• Reverse recovery time ($t_{rr}$): The time required for the diode to switch from forward conduction to reverse blocking state
• Forward recovery time ($t_{fr}$): The time required for the diode to switch from reverse blocking to forward conduction state
• Reverse recovery charge ($Q_{rr}$): The charge stored in the diode during forward conduction, which must be removed during reverse recovery
• These dynamic parameters affect the switching losses and the maximum operating frequency of the diode

Thermal parameters

• Thermal resistance ($R_{th}$): The resistance to heat flow from the diode junction to the ambient environment, expressed in °C/W
• Junction temperature ($T_J$): The temperature of the diode junction, which must be kept below the maximum rated value to ensure reliable operation
• Power dissipation ($P_D$): The product of the forward voltage drop and the forward current, which determines the heat generated by the diode
• Proper thermal management is essential to prevent overheating and ensure long-term reliability of power diodes

Types of power diodes

• Several types of power diodes are available, each with unique characteristics and advantages for specific applications

PN junction diodes

• Conventional power diodes based on a p-n junction formed by diffusing or implanting dopants into a silicon wafer
• Offer a balance between low forward voltage drop, high reverse blocking voltage, and moderate switching speed
• Widely used in low to medium power applications, such as rectifiers and freewheeling diodes

Schottky barrier diodes

• Utilize a metal-semiconductor junction instead of a p-n junction, resulting in a lower forward voltage drop (0.3-0.5 V) and faster switching speed
• The lower forward voltage drop reduces conduction losses, making Schottky diodes suitable for high-efficiency applications
• However, Schottky diodes have a lower reverse breakdown voltage and higher leakage current compared to p-n junction diodes

PIN diodes

• Consist of a wide, lightly doped intrinsic (i) region sandwiched between heavily doped p+ and n+ regions
• The wide intrinsic region enables PIN diodes to support high reverse voltages and handle high peak currents
• PIN diodes have a slower switching speed compared to p-n junction and Schottky diodes due to the charge storage in the intrinsic region
• Commonly used in high-voltage applications, such as voltage clamping and pulse shaping circuits

Power diode applications

• Power diodes are essential components in a wide range of power electronic systems, enabling efficient power conversion, regulation, and protection

Rectification and power conversion

• Power diodes are used in rectifier circuits to convert AC to DC, such as in power supplies, battery chargers, and motor drives
• In single-phase and three-phase bridge rectifiers, diodes conduct during the positive half-cycles of the AC input and block during the negative half-cycles
• Schottky diodes are often used in low-voltage, high-current applications to minimize conduction losses

Voltage regulation and protection

• Power diodes are employed in voltage regulation circuits, such as Zener diode-based shunt regulators and transient voltage suppressors (TVS)
• Zener diodes maintain a constant voltage across their terminals when operated in the reverse breakdown region, providing a stable reference voltage
• TVS diodes protect sensitive electronic components from voltage spikes and surges by clamping the voltage to a safe level

High-frequency switching

• Fast-switching power diodes, such as Schottky and PIN diodes, are used in high-frequency switching applications, including switch-mode power supplies and resonant converters
• These diodes minimize switching losses and enable efficient operation at high frequencies (tens to hundreds of kHz)
• The reverse recovery characteristics of the diodes are critical in determining the maximum switching frequency and the overall efficiency of the system

Power diode ratings

• Selecting a power diode with appropriate ratings is crucial for ensuring reliable operation and preventing device failure

Current and voltage ratings

• Forward current rating ($I_F$): The maximum continuous current the diode can conduct without exceeding the maximum junction temperature
• Repetitive peak forward current ($I_{FRM}$): The maximum peak current the diode can withstand during repetitive pulses
• Reverse voltage rating ($V_R$): The maximum reverse voltage the diode can block without experiencing breakdown or excessive leakage current

Power dissipation and surge current

• Power dissipation rating ($P_D$): The maximum continuous power the diode can dissipate without exceeding the maximum junction temperature
• Surge current rating ($I_{FSM}$): The maximum non-repetitive peak current the diode can withstand for a short duration (typically 8.3 ms or 10 ms)
• Proper heat sinking and thermal management are essential to ensure the diode operates within its power dissipation limits

Reverse recovery and switching losses

• Reverse recovery time ($t_{rr}$) and charge ($Q_{rr}$) ratings: Specify the diode's switching characteristics and determine the switching losses
• Diodes with faster reverse recovery minimize switching losses and enable higher operating frequencies
• Soft recovery diodes, with a gradual reverse recovery current slope, are preferred in voltage-source converters to reduce electromagnetic interference (EMI) and voltage overshoots

Power diode packaging

• The packaging of power diodes plays a crucial role in their thermal performance, reliability, and ease of use in power electronic circuits

Through-hole vs surface-mount

• Through-hole packages (such as DO-41, DO-247) have leads that are inserted into holes on a PCB and soldered on the opposite side
• Surface-mount packages (such as D-PAK, TO-263) have leads that are soldered directly onto the surface of a PCB
• Surface-mount packages offer better thermal performance and higher power density compared to through-hole packages

Discrete vs module packaging

• Discrete packages contain a single diode, providing flexibility in circuit design and layout
• Module packages (such as bridge rectifier modules) integrate multiple diodes into a single package, simplifying assembly and reducing parasitic inductances
• Modules are commonly used in high-power applications, such as motor drives and power supplies

Thermal management considerations

• Proper thermal management is essential to ensure power diodes operate within their temperature ratings and maintain long-term reliability
• Techniques include using heat sinks, thermal interface materials, and forced air or liquid cooling
• The package's thermal resistance ($R_{th}$) and the maximum junction temperature ($T_{J,max}$) are key parameters in designing an effective thermal management solution

Power diode testing and characterization

• Testing and characterizing power diodes is essential for validating their performance, ensuring quality control, and understanding their behavior in power electronic circuits

Static characteristic measurements

• Forward voltage drop ($V_F$) measurement: Conducted by applying a constant forward current and measuring the voltage across the diode
• Reverse leakage current ($I_R$) measurement: Performed by applying a reverse voltage and measuring the leakage current
• Breakdown voltage ($V_{BR}$) measurement: Determined by gradually increasing the reverse voltage until the specified breakdown current is reached

Dynamic characteristic measurements

• Reverse recovery time ($t_{rr}$) and charge ($Q_{rr}$) measurements: Carried out using a double pulse test circuit, which switches the diode from forward conduction to reverse blocking
• Forward recovery time ($t_{fr}$) measurement: Conducted by switching the diode from reverse blocking to forward conduction and measuring the time required for the forward voltage to stabilize
• These measurements require high-speed voltage and current probes and an oscilloscope with sufficient bandwidth and sampling rate

Reliability and failure analysis

• Power cycling tests: Evaluate the diode's ability to withstand repeated thermal stress caused by power dissipation and temperature variations
• High-temperature reverse bias (HTRB) tests: Assess the diode's long-term reliability under high reverse voltage and elevated temperature conditions
• Failure analysis techniques, such as X-ray imaging, scanning electron microscopy (SEM), and energy-dispersive X-ray spectroscopy (EDS), are used to identify the root cause of failures and improve device design and manufacturing processes

Emerging technologies in power diodes

• Advances in semiconductor materials, device structures, and packaging technologies are driving the development of new power diode solutions

Wide bandgap semiconductor diodes

• Power diodes based on wide bandgap semiconductors, such as silicon carbide (SiC) and gallium nitride (GaN), offer superior performance compared to silicon diodes
• SiC and GaN diodes have higher breakdown voltages, lower on-state resistance, and faster switching speeds, enabling more efficient and compact power conversion systems
• These diodes are particularly suitable for high-voltage, high-frequency applications, such as electric vehicle chargers and renewable energy inverters

Resonant and soft-switching techniques

• Resonant and soft-switching converter topologies, such as zero-voltage switching (ZVS) and zero-current switching (ZCS), reduce the switching losses in power diodes
• These techniques utilize resonant tank circuits to shape the voltage and current waveforms during switching transitions, minimizing overlap between voltage and current
• Soft-switching enables the use of slower, more cost-effective diodes in high-frequency applications, improving overall system efficiency and reliability

Integration with power electronics systems

• The integration of power diodes with other power electronic components, such as MOSFETs and IGBTs, enables the development of compact, high-performance power modules
• Integrated power modules reduce parasitic inductances, improve thermal management, and simplify system assembly
• Examples include intelligent power modules (IPMs) and power integrated circuits (PICs), which combine multiple power devices, gate drivers, and protection circuits in a single package
