4.5 Relative Motion in One and Two Dimensions
3 min read•june 24, 2024
are essential for understanding motion. They provide a way to describe an object's position and velocity relative to a specific point. Different reference frames can yield different observations of the same motion, highlighting the importance of perspective in physics.
equations help us analyze how objects move in relation to each other. By using vector equations and diagrams, we can solve complex problems involving multiple reference frames. This approach is crucial for understanding real-world scenarios in transportation, sports, and astronomy.
Reference Frames and Relative Motion
Reference frames for relative motion
Top images from around the web for Reference frames for relative motion

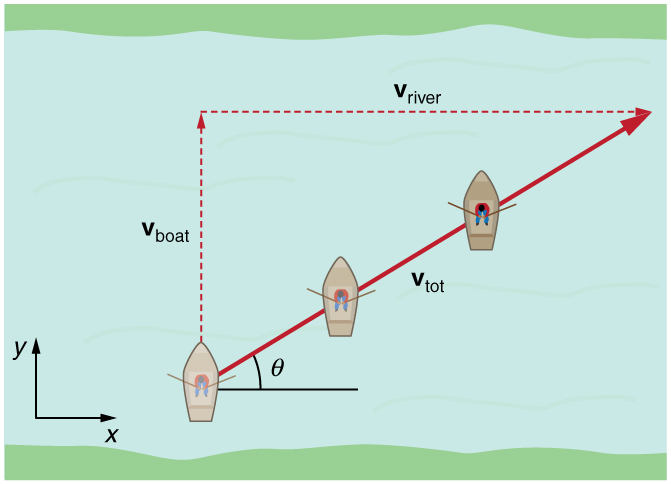

Addition of Velocities · Physics View original
Is this image relevant?
Special relativity - Wikipedia View original
Is this image relevant?
Relative Motion in One and Two Dimensions – University Physics Volume 1 View original
Is this image relevant?
Addition of Velocities · Physics View original
Is this image relevant?
Special relativity - Wikipedia View original
Is this image relevant?
1 of 3
Top images from around the web for Reference frames for relative motion
Addition of Velocities · Physics View original
Is this image relevant?
Special relativity - Wikipedia View original
Is this image relevant?
Relative Motion in One and Two Dimensions – University Physics Volume 1 View original
Is this image relevant?
Addition of Velocities · Physics View original
Is this image relevant?
Special relativity - Wikipedia View original
Is this image relevant?
1 of 3
- Reference frames are used to describe position and motion of objects
- Each has its own set of axes (x, y, z) and origin (starting point)
- An object's position and velocity are always described relative to a specific reference frame (Earth, car, train)
- Choice of reference frame affects observed motion of objects
- An object at rest in one reference frame may appear moving in another reference frame (person sitting in a moving car appears at rest to another passenger, but moving to someone standing on the sidewalk)
- Motion of an object can be simplified by choosing an appropriate reference frame (analyzing motion of passengers on a train is easier using the train as the reference frame)
- Relative motion is the motion of an object as observed from different reference frames
- Understanding relative motion is crucial for accurately describing motion of objects in various scenarios (transportation, sports, astronomy)
Inertial reference frames and Galilean relativity
- are those in which Newton's laws of motion hold true
- states that the laws of mechanics are the same in all inertial reference frames
- allows for converting observations between different reference frames
- Relative motion can be analyzed using of velocities between reference frames
Relative Motion Equations and Problem Solving
Vector equations of relative motion
- Position vector equation for relative motion:
- : position vector of object A relative to point P
- : position vector of object B relative to point P
- : position vector of object A relative to object B
- equation for relative motion:
- : of object A relative to point P
- : velocity vector of object B relative to point P
- : velocity vector of object A relative to object B
- These equations can be applied to solve problems involving relative motion in one and two dimensions
- Break down the problem into components along the coordinate axes (x and y for two dimensions)
- Apply the position and velocity vector equations to each component separately ( and )
- Combine the results to obtain the final solution (final position or velocity vector)
Diagrams of relative motion
- show relative positions of objects in a reference frame
- Represent objects as points and their positions using vectors originating from a common reference point
- Vector from one object to another represents relative position between them
- show relative velocities of objects in a reference frame
- Represent velocities of objects using vectors originating from the objects themselves
- Vector from one object's velocity to another's represents relative velocity between them
- These diagrams help visualize and understand relative motion scenarios, making problem-solving easier (train moving relative to the ground, boat moving relative to the water current)
Problem-solving in multiple reference frames
- Identify relevant reference frames and objects involved in the problem
- Determine known and unknown quantities (positions, velocities, time)
- Choose an appropriate reference frame to simplify the problem, if possible
- Apply position and velocity vector equations for relative motion
- Use component form of equations if motion is in two dimensions
- Solve for unknown quantities using given information and relative motion equations
- Interpret results in the context of the problem and chosen reference frames
Key Terms to Review (24)
$ ext{vec}{r}_{BA}$: $ ext{vec}{r}_{BA}$ is the position vector that describes the position of object B relative to object A. It represents the displacement or separation between the locations of two objects in a given coordinate system, and is an important concept in the study of relative motion in one and two dimensions.
$ ext{vec}{r}_{PB}$: $ ext{vec}{r}_{PB}$ is the position vector that represents the position of point B relative to point P. It is a fundamental concept in the study of relative motion, as it allows for the analysis of the movement of one object with respect to another.
$ ext{vec}{v}_{BA}$: $ ext{vec}{v}_{BA}$ is the relative velocity of object B with respect to object A. It represents the velocity of object B as observed from the frame of reference of object A. This term is crucial in understanding the concept of relative motion in one and two dimensions.
$ ext{vec}{v}_{PB}$: $ ext{vec}{v}_{PB}$ represents the velocity of an object P relative to another object B. It is a key concept in the study of relative motion in one and two dimensions, as it allows for the analysis of the motion of one object from the perspective of another.
$\vec{r}_{PA}$: $\vec{r}_{PA}$ represents the position vector from point P to point A in a given coordinate system. This vector indicates the direction and distance from point P to point A and is crucial for understanding relative motion between different objects or reference frames. By analyzing $\vec{r}_{PA}$, one can determine how an object at position A moves with respect to another object at position P, which is fundamental in both one and two-dimensional motion analysis.
$\vec{v}_{PA}$: $\vec{v}_{PA}$ represents the velocity of object A as observed from the perspective of object P. This concept is essential in understanding relative motion because it shows how the velocity of one object can change based on the reference frame of another object. By analyzing $\vec{v}_{PA}$, you can gain insights into how two objects move in relation to each other, which is crucial when dealing with scenarios where multiple objects are in motion simultaneously.
Coordinate Systems: A coordinate system is a mathematical framework used to uniquely identify the position of a point or object in space. It provides a standardized way to describe the location of physical entities relative to a defined origin and set of axes.
Frame of Reference Transformation: A frame of reference transformation is the mathematical process of converting the description of an object's motion or position from one coordinate system to another. It allows for the analysis of relative motion between different observers or frames of reference.
Galilean Relativity: Galilean relativity is a principle in classical physics that states the laws of mechanics are the same in all inertial frames of reference. It establishes that the motion of an object is relative to the observer, and that there is no absolute or preferred frame of reference.
Inertial Reference Frames: An inertial reference frame is a coordinate system in which a body at rest remains at rest, and a body in motion continues to move at a constant velocity, unless acted upon by an external force. This concept is fundamental to understanding relative motion in one and two dimensions.
Position Vector Diagrams: A position vector diagram is a graphical representation of the position of an object in a coordinate system. It shows the magnitude and direction of the position vector, which is a vector quantity that describes the location of an object relative to a reference point.
Reference frame: A reference frame is a coordinate system or viewpoint used to measure and observe physical phenomena, such as motion. It can be stationary or in motion relative to other reference frames.
Reference Frames: A reference frame is a set of coordinates or a viewpoint from which motion is observed and measured. It plays a critical role in understanding how velocity and acceleration are perceived differently depending on the observer's position and motion, highlighting that measurements of these quantities can vary between different reference frames.
Relative Motion: Relative motion refers to the motion of an object as observed from a specific frame of reference. It describes the change in position of an object compared to another object or point in space, rather than in an absolute sense.
Vector Addition: Vector addition is the process of combining two or more vectors to obtain a single vector that represents their combined effect. This fundamental concept is essential in understanding the behavior of physical quantities that have both magnitude and direction, such as displacement, velocity, and acceleration.
Vector Subtraction: Vector subtraction is the process of finding the difference between two vectors by subtracting the corresponding components of the vectors. It is a fundamental operation in vector algebra that allows for the manipulation and analysis of vector quantities.
Velocity vector: A velocity vector is a vector that describes both the speed and direction of an object's motion. It has both magnitude (speed) and direction, making it a fundamental quantity in kinematics.
Velocity Vector: The velocity vector is a vector quantity that describes the rate of change of an object's position with respect to time. It has both magnitude (speed) and direction, and is a fundamental concept in the study of motion and kinematics.
Velocity vector diagrams: Velocity vector diagrams are graphical representations that illustrate the direction and magnitude of velocity vectors in one or two dimensions. These diagrams allow for a visual understanding of how different velocities relate to each other, especially when considering relative motion between two or more objects. By using arrows to represent velocities, these diagrams make it easier to analyze and calculate resultant velocities in various scenarios.
X-axis: The x-axis is a horizontal line in a coordinate system that represents one dimension of motion or position, typically used to indicate the independent variable in a graph. In physics, it helps in visualizing and analyzing the motion of objects in relation to time or other quantities. It provides a clear framework for understanding the relationships between variables and facilitates the study of relative motion in one and two dimensions.
X-Component: The x-component of a vector is the projection of the vector onto the x-axis of a coordinate system. It represents the horizontal or left-right component of the vector's magnitude and direction.
Y-axis: The y-axis is the vertical line in a Cartesian coordinate system that represents the dependent variable in a graph. It is crucial for visualizing relationships between two variables, where changes in one variable (often represented on the x-axis) can be analyzed against values on the y-axis. Understanding the y-axis is essential when discussing relative motion, as it helps to illustrate how position, velocity, or acceleration changes over time or in different frames of reference.
Y-component: The y-component of a vector represents the vertical or up-down direction of the vector. It is one of the two or three components that describe the magnitude and direction of a vector in a coordinate system.
Z-axis: The z-axis is the vertical axis in a three-dimensional Cartesian coordinate system, perpendicular to both the x-axis and the y-axis. It represents the up-down direction and is used to describe the position and motion of objects in three-dimensional space.
