Rotational kinematics deals with the motion of objects rotating around a fixed axis. It's all about understanding how things spin, from wheels to planets, using equations that relate , velocity, and acceleration.
Connecting rotational and linear motion is key. By linking angular quantities to their linear counterparts, we can analyze complex motions like a car's wheels rolling down the road or a figure skater's spin on ice.
Rotational Kinematics
Rotational kinematics equations
Top images from around the web for Rotational kinematics equations
Substitute the given values into the chosen equation and solve for the unknown quantity
Pay attention to units and convert if necessary
Angular displacement in (rad)
Angular velocity in radians per second (rad/s)
Angular acceleration in radians per second squared ()
Examples
Calculating the final angular velocity of a spinning wheel given initial angular velocity and angular acceleration
Determining the time required for a rotating object to reach a specific angular displacement
Analysis of fixed-axis rotation
Understand the relationships between angular displacement, angular velocity, and angular acceleration
Angular velocity is the rate of change of angular displacement (ω=dtdθ)
Angular acceleration is the rate of change of angular velocity (α=dtdω)
Interpret graphs of angular displacement, angular velocity, and angular acceleration vs. time
Angular displacement vs. time
Slope of the graph represents angular velocity
Curvature of the graph represents angular acceleration
Angular velocity vs. time
Slope of the graph represents angular acceleration
Area under the curve represents angular displacement
Angular acceleration vs. time
Constant value indicates constant angular acceleration
Changing value indicates non-constant angular acceleration
Use calculus to analyze rotational motion
Differentiate angular displacement to obtain angular velocity (ω=dtdθ)
Differentiate angular velocity to obtain angular acceleration (α=dtdω)
Integrate angular acceleration to obtain angular velocity (ω=∫αdt)
Integrate angular velocity to obtain angular displacement (θ=∫ωdt)
Connecting Rotational and Linear Kinematics
Relate linear and angular quantities for objects undergoing fixed-axis rotation
Understand the relationship between linear and angular quantities
Linear displacement s is related to angular displacement θ by the radius of rotation r: s=rθ

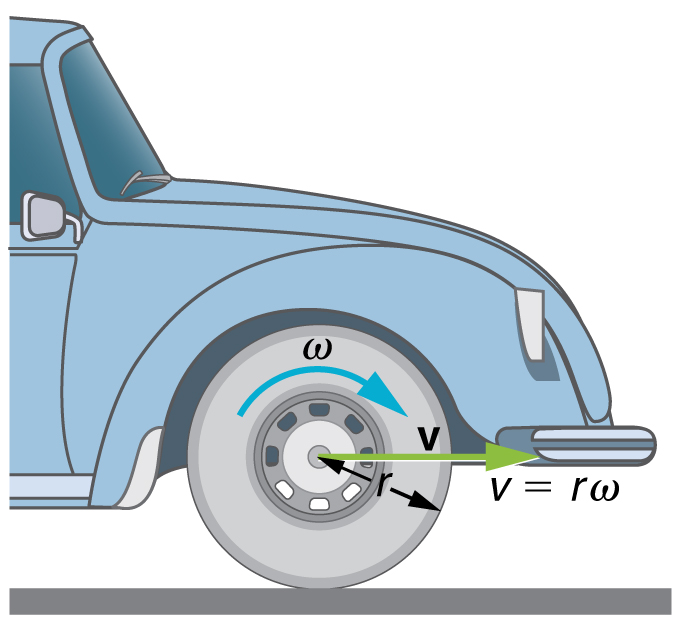

Linear velocity v is related to angular velocity ω by the radius of rotation r: v=rω
at is related to angular acceleration α by the radius of rotation r: at=rα
Apply these relationships to solve problems involving both linear and angular quantities
Example: Calculating the linear velocity of a point on a rotating wheel given its angular velocity and radius
Recognize that the direction of linear velocity is always tangential to the circular path of rotation
Note the presence of ac in addition to
Centripetal acceleration is directed towards the center of rotation and is given by ac=rv2=rω2
It is responsible for keeping the object in circular motion
Rotational Dynamics and Energy
Rotational inertia and torque
(I) represents an object's resistance to rotational acceleration
Depends on the mass distribution of the object relative to the axis of rotation
(τ) is the rotational equivalent of force, causing angular acceleration
τ = r × F, where r is the position vector from the axis of rotation to the point of force application
Newton's Second Law for rotation: τ = Iα, relating torque, , and angular acceleration
Angular momentum and energy
(L) is the rotational analog of linear momentum
L = Iω, where I is the moment of inertia and ω is the angular velocity
Conservation of applies in the absence of external torques
is given by KE = 1/2 Iω²
Contributes to the total energy of a rotating system
Parallel axis theorem
Allows calculation of moment of inertia about any axis parallel to an axis through the center of mass
I = I_cm + Md², where I_cm is the moment of inertia about the center of mass, M is the total mass, and d is the distance between the parallel axes
Key Terms to Review (20)
Angular acceleration: Angular acceleration is the rate of change of angular velocity over time. It describes how quickly an object is rotating or spinning.
Angular Acceleration: Angular acceleration is the rate of change of angular velocity with respect to time. It describes the rotational analog of linear acceleration, quantifying the change in the rotational motion of an object around a fixed axis or point.
Angular Displacement: Angular displacement is a measure of the change in the angular position of an object or a system. It describes the rotation or the change in the orientation of an object around a fixed axis or point. This concept is fundamental in understanding rotational motion and its relationship with linear motion in various physics topics.
Angular momentum: Angular momentum is a measure of the quantity of rotation of an object and is a vector quantity. It is given by the product of the moment of inertia and angular velocity.
Angular Momentum: Angular momentum is a fundamental concept in physics that describes the rotational motion of an object. It is the measure of an object's rotational inertia and its tendency to continue rotating around a specific axis. Angular momentum is a vector quantity, meaning it has both magnitude and direction, and it plays a crucial role in understanding the behavior of rotating systems across various topics in physics.
Angular velocity: Angular velocity is the rate at which an object rotates around a fixed axis. It is measured in radians per second (rad/s).
Angular Velocity: Angular velocity is a measure of the rate of change of the angular position of an object. It describes the speed of rotation or the change in the orientation of an object around a fixed axis or point. This concept is fundamental in understanding the motion of objects undergoing circular or rotational motion.
Centripetal Acceleration: Centripetal acceleration is the acceleration experienced by an object moving in a circular path, directed towards the center of the circular motion. It is the rate of change in the direction of the velocity vector, causing the object to continuously change direction and move in a curved trajectory.
Fixed-Axis Rotation: Fixed-axis rotation refers to the rotational motion of an object around a fixed, stationary axis. This type of rotation is a fundamental concept in the study of rotational dynamics and is central to understanding the behavior of rotating systems.
Kinematics of rotational motion: Kinematics of rotational motion describes the motion of objects rotating around a fixed axis. It involves quantities like angular displacement, angular velocity, and angular acceleration.
Moment of inertia: Moment of inertia is a measure of an object's resistance to changes in its rotational motion about a fixed axis. It depends on the mass distribution relative to the axis of rotation.
Moment of Inertia: The moment of inertia is a measure of an object's resistance to rotational acceleration. It is a scalar quantity that depends on the mass and distribution of an object's mass about a given axis of rotation. The moment of inertia is a crucial concept in the study of rotational dynamics, as it determines how an object will respond to applied torques.
Parallel Axis Theorem: The parallel axis theorem is a fundamental principle in rotational dynamics that relates the moment of inertia of an object about any arbitrary axis to its moment of inertia about a parallel axis passing through the object's center of mass. This theorem is crucial in understanding the rotational motion and energy of rigid bodies.
Rad/s²: The unit of angular acceleration, which measures the rate of change of angular velocity over time. It represents the number of radians per second squared, indicating the acceleration of an object rotating around a fixed axis.
Radians: Radians are a unit of angular measurement used in mathematics and physics, defined as the angle subtended at the center of a circle by an arc whose length is equal to the radius of that circle. This unit connects linear and angular dimensions, making it essential for understanding circular motion, rotation, and oscillatory motion.
Rotational Kinematics Equations: Rotational kinematics equations describe the motion of objects undergoing rotational motion, similar to how linear kinematics equations describe the motion of objects in linear motion. These equations relate the angular position, angular velocity, angular acceleration, and time of a rotating object.
Rotational kinetic energy: Rotational kinetic energy is the energy an object possesses due to its rotation. It is given by $$KE_{rot} = \frac{1}{2} I \omega^2$$, where $I$ is the moment of inertia and $\omega$ is the angular velocity.
Tangential acceleration: Tangential acceleration is the rate of change of the tangential velocity of an object moving along a circular path. It is directed along the tangent to the path of motion.
Tangential Acceleration: Tangential acceleration is the acceleration component that is perpendicular to the radius of a curved path, causing an object to change its speed along the curve. It is a crucial concept in understanding the motion of objects undergoing uniform circular motion, rotation with constant angular acceleration, and the relationship between angular and translational quantities.
Torque: Torque is a measure of the rotational force applied to an object, which causes it to rotate about an axis. It is influenced by the magnitude of the force applied, the distance from the axis of rotation, and the angle at which the force is applied, making it crucial for understanding rotational motion and equilibrium.
