9.4 Reducing Communication Overhead
4 min read•july 30, 2024
Communication overhead can significantly impact parallel systems, slowing performance and reducing . This section explores sources of overhead, including , , and requirements, and their effects on system performance and .
To combat these issues, various techniques are discussed. These include message optimization strategies, hardware and protocol enhancements, and data partitioning approaches. The goal is to minimize communication costs while maintaining system efficiency and scalability.
Communication Overhead in Parallel Systems
Sources of Communication Overhead
Top images from around the web for Sources of Communication Overhead

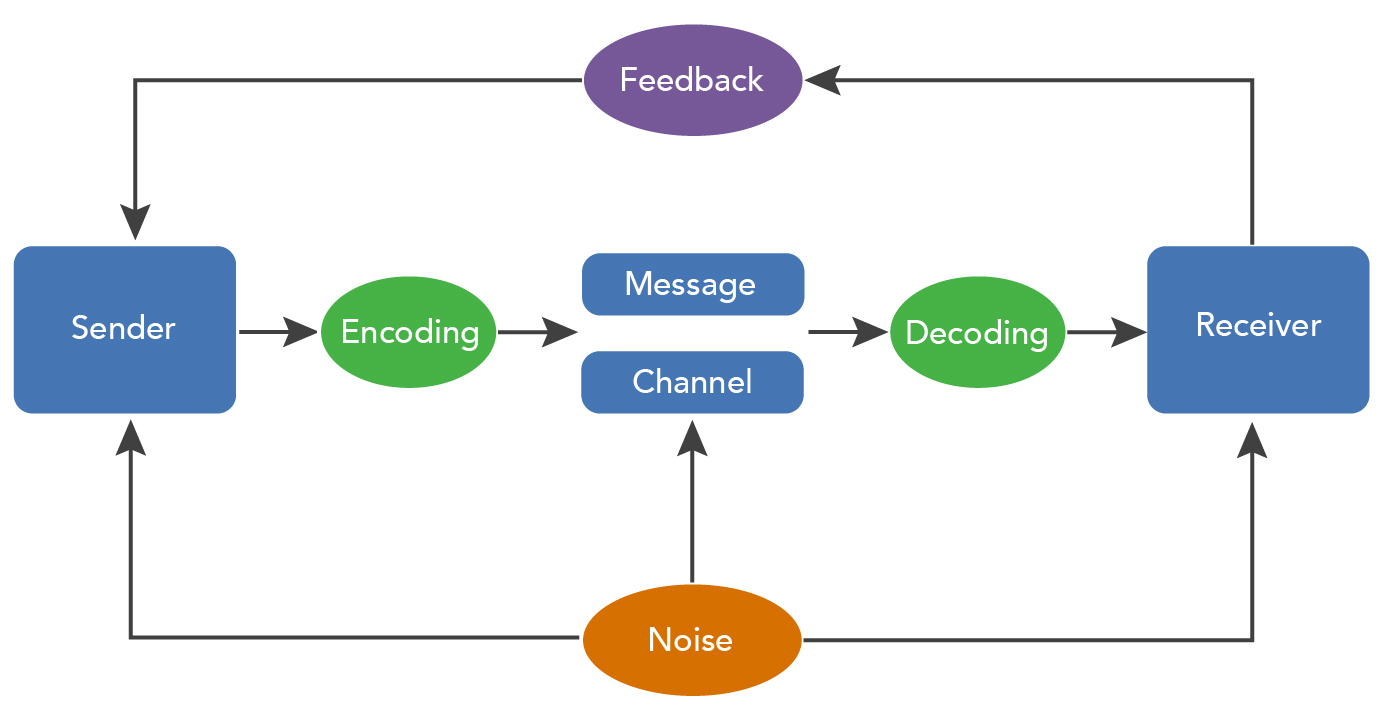

The Process of Communication | Organizational Behavior and Human Relations View original
Is this image relevant?

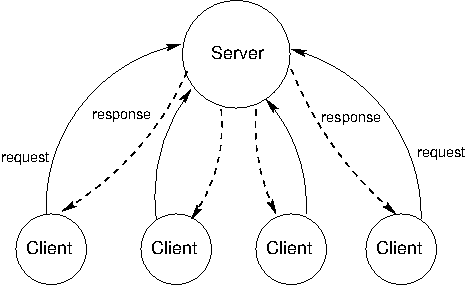

Distributed computing - Wikipedia View original
Is this image relevant?
4.6 Distributed Computing View original
Is this image relevant?
The Process of Communication | Organizational Behavior and Human Relations View original
Is this image relevant?
Distributed computing - Wikipedia View original
Is this image relevant?
1 of 3
Top images from around the web for Sources of Communication Overhead
The Process of Communication | Organizational Behavior and Human Relations View original
Is this image relevant?
Distributed computing - Wikipedia View original
Is this image relevant?
4.6 Distributed Computing View original
Is this image relevant?
The Process of Communication | Organizational Behavior and Human Relations View original
Is this image relevant?
Distributed computing - Wikipedia View original
Is this image relevant?
1 of 3
- Communication overhead increases time and resource requirements for information exchange in parallel and distributed systems
- Network latency creates delay between sending and receiving data
- Bandwidth limitations form bottlenecks in data transfer
- protocols add overheads (handshaking, acknowledgments)
- Synchronization requirements between processes lead to idle time
- and deserialization processes contribute to communication costs
- for shared network resources among multiple processes exacerbates overhead
- Multiple processes competing for the same network interface
- Congestion in shared communication channels
Impact on System Performance
- Increased execution time due to communication delays
- Reduced scalability as system size grows
- Decreased overall system efficiency
- Higher energy consumption from prolonged computations
- Potential load imbalances caused by varying communication patterns
- Increased complexity in application design and optimization
- Challenges in achieving linear in parallel applications
Techniques for Minimizing Overhead
Message Optimization Strategies
- combines multiple small messages into larger packets
- Reduces total number of network transmissions
- Improves network utilization efficiency
- techniques decrease volume of transferred data
- Lossless compression preserves exact data (ZIP, LZ77)
- Lossy compression allows some data loss for higher compression ratios (JPEG for images)
- methods allow processes to continue execution without waiting for immediate responses
- Non-blocking send and receive operations
- Message queues for decoupling sender and receiver
- frequently accessed data locally minimizes repeated network requests
- Distributed caching systems (Redis, Memcached)
- Application-level caching strategies
Hardware and Protocol Optimizations
- Specialized hardware accelerators bypass traditional networking stacks
- (Remote Direct Memory Access) enables direct memory access across network
- for GPU-to-GPU communication
- Protocol optimizations streamline network communications
- (adjusting window sizes, congestion control algorithms)
- Lightweight protocols designed for high-performance computing ()
- Efficient strategies distribute communication tasks evenly
- Dynamic load balancing algorithms
- Task scheduling techniques considering communication costs
- Network topology-aware communication optimizations
- Utilizing locality information in job scheduling
- Optimizing collective communication patterns based on network structure
Data Partitioning for Reduced Communication
Data Locality and Partitioning Strategies
- principles guide placement of data close to processes that use it
- Spatial locality: placing related data elements together
- Temporal locality: keeping recently accessed data nearby
- Partitioning strategies divide data and tasks efficiently among nodes
- splits data based on spatial or temporal dimensions
- divides tasks based on different operations or functions
- Load balancing techniques ensure even distribution of data and workload
- Static load balancing: predetermined data distribution
- Dynamic load balancing: runtime adjustments based on workload
- of frequently accessed data across multiple nodes reduces remote data fetches
- Full replication for small, critical datasets
- Partial replication based on access patterns
Advanced Data Distribution Techniques
- Hierarchical data structures and algorithms localize communication
- for multi-level partitioning
- Hierarchical matrix algorithms for scientific computing
- techniques adapt to changing workload patterns
- Monitoring system performance and communication patterns
- Triggering data migration based on predefined thresholds
- Network topology considerations in data distribution decisions
- Mapping data partitions to physical network layout
- Optimizing for rack-level or cluster-level communication
Evaluating Communication Optimization Techniques
Performance Metrics and Analysis Tools
- quantify impact of communication optimization techniques
- Speedup: ratio of sequential to parallel execution time
- Efficiency: speedup divided by number of processors
- Scalability: performance improvement as system size increases
- Profiling tools and communication libraries provide detailed insights
- MPI profiling tools (, )
- Network performance analyzers (, )
- Simulation and modeling techniques evaluate optimization strategies
- for large-scale systems
- Analytical models for quick performance estimates
Benchmarking and Scenario Analysis
- Benchmark suites compare effectiveness of optimization techniques
- for high-performance computing
- for data-intensive supercomputer applications
- Analysis of communication-to-computation ratios identifies high-impact scenarios
- for understanding limits of parallelization
- for scaling problems with system size
- Consideration of system heterogeneity in evaluation
- Performance variability in cloud environments
- Mixed CPU-GPU systems with different communication characteristics
- Trade-offs assessment between communication reduction and other factors
- Load balance vs. communication minimization
- Fault tolerance implications of data replication
- Algorithm complexity increase for communication optimization
Key Terms to Review (35)
Amdahl's Law: Amdahl's Law is a formula that helps to find the maximum improvement of a system's performance when only part of the system is improved. This concept is crucial in parallel computing, as it illustrates the diminishing returns of adding more processors or resources when a portion of a task remains sequential. Understanding Amdahl's Law allows for better insights into the limits of parallelism and guides the optimization of both software and hardware systems.
Asynchronous communication: Asynchronous communication refers to the exchange of messages between processes that do not require the sender and receiver to be synchronized in time. This allows for more flexibility in programming as the sender can continue its operation without waiting for the receiver to process the message, which is particularly useful in distributed systems where latency can vary. The use of asynchronous communication is essential for managing parallel tasks efficiently, optimizing resource utilization, and reducing the overall wait time in message passing scenarios.
Bandwidth limitations: Bandwidth limitations refer to the constraints on the amount of data that can be transmitted over a communication channel in a given period of time. These limitations can significantly impact the performance of parallel and distributed systems by affecting data transfer rates, latency, and overall communication efficiency, making it essential to manage and reduce these limitations for optimal system performance.
Caching: Caching is a technique used to temporarily store frequently accessed data in a location that allows for quicker retrieval. This process reduces the need to repeatedly fetch data from a slower source, thereby enhancing performance and efficiency. By keeping commonly used information closer to where it’s needed, caching helps to minimize latency and reduce the workload on underlying systems.
Contention: Contention refers to the competition for shared resources among multiple processes or threads in parallel computing, which can lead to delays and decreased performance. This competition often arises when processes need access to the same memory locations, I/O devices, or other shared resources, resulting in potential bottlenecks. Understanding contention is crucial in optimizing performance and designing efficient parallel systems.
Data compression: Data compression is the process of reducing the size of data by encoding information more efficiently. This technique helps in minimizing the amount of data that needs to be transferred or stored, which is crucial for improving performance and reducing communication overhead in parallel and distributed computing environments.
Data locality: Data locality refers to the concept of placing data close to the computation that processes it, minimizing the time and resources needed to access that data. This principle enhances performance in computing environments by reducing latency and bandwidth usage, which is particularly important in parallel and distributed systems.
Data serialization: Data serialization is the process of converting data structures or objects into a format that can be easily stored and transmitted, then reconstructed later. This process is crucial for effective communication between distributed systems, as it allows for the efficient exchange of complex data types over a network, reducing overhead and ensuring data integrity.
Discrete Event Simulation: Discrete event simulation is a modeling technique used to represent the operation of a system as a discrete sequence of events in time. This approach focuses on the changes in state that occur at specific points in time, allowing for the analysis of complex systems and the evaluation of performance metrics. By capturing events and their interactions, this method helps in understanding system behavior, optimizing processes, and reducing unnecessary communication overhead among components.
Domain Decomposition: Domain decomposition is a method used in parallel computing to break down a large problem into smaller subproblems that can be solved concurrently. This technique improves computational efficiency by allowing multiple processors to work on different sections of the problem simultaneously, ultimately reducing the overall execution time. Efficient domain decomposition can also help minimize communication overhead among processors, which is crucial for maintaining performance in distributed systems.
Dynamic data redistribution: Dynamic data redistribution is the process of reorganizing data across different nodes in a distributed computing environment in real-time, aiming to optimize workload distribution and minimize communication overhead. This technique allows for improved resource utilization, as it adjusts data allocation based on current computational demands and data access patterns. It is crucial in enhancing performance, particularly when dealing with large datasets and varying workloads.
Efficiency: Efficiency in computing refers to the ability of a system to maximize its output while minimizing resource usage, such as time, memory, or energy. In parallel and distributed computing, achieving high efficiency is crucial for optimizing performance and resource utilization across various models and applications.
Functional Decomposition: Functional decomposition is the process of breaking down a complex problem or system into smaller, more manageable components or functions. This approach helps in understanding the individual parts and their relationships, making it easier to design and implement parallel and distributed systems. By isolating functions, it becomes possible to optimize performance, enhance scalability, and improve resource allocation across different computing nodes.
Gpudirect rdma: GPUDirect RDMA is a technology that allows direct communication between GPUs and remote memory over a network without involving the CPU, significantly enhancing data transfer efficiency. This technology optimizes communication in distributed systems by bypassing traditional bottlenecks associated with CPU involvement, allowing for faster and more efficient data processing, especially important in applications requiring high-performance computing.
Graph500: Graph500 is a benchmark suite designed to evaluate the performance of supercomputers and parallel systems specifically for graph processing tasks. It focuses on measuring the ability to handle large-scale graph problems, which are increasingly important in fields like social networks, bioinformatics, and data analysis. By emphasizing the efficiency of algorithms used in these contexts, Graph500 helps to highlight innovations in reducing communication overhead in distributed computing environments.
Gustafson's Law: Gustafson's Law is a principle in parallel computing that argues that the speedup of a program is not limited by the fraction of code that can be parallelized but rather by the overall problem size that can be scaled with more processors. This law highlights the potential for performance improvements when the problem size increases with added computational resources, emphasizing the advantages of parallel processing in real-world applications.
Load Balancing: Load balancing is the process of distributing workloads across multiple computing resources to optimize resource use, minimize response time, and avoid overload of any single resource. This technique is essential in maximizing performance in both parallel and distributed computing environments, ensuring that tasks are allocated efficiently among available processors or nodes.
Message aggregation: Message aggregation is the process of combining multiple messages into a single message to optimize communication efficiency in parallel and distributed systems. This approach reduces the number of messages that need to be sent across the network, minimizing latency and resource consumption, which is crucial for maintaining high performance in applications that rely on extensive inter-process communication.
Message Passing: Message passing is a method used in parallel and distributed computing where processes communicate and synchronize by sending and receiving messages. This technique allows different processes, often running on separate machines, to share data and coordinate their actions without needing to access shared memory directly.
MPI: MPI, or Message Passing Interface, is a standardized and portable message-passing system designed for parallel programming, which allows processes to communicate with one another in a distributed computing environment. It provides a framework for developing parallel applications by enabling data exchange between processes, regardless of whether they are on the same machine or across different nodes in a cluster. Its design addresses challenges in synchronization, performance, and efficient communication that arise in high-performance computing.
Mpip: mpip stands for MPI Profiling Interface, which is an extension of the Message Passing Interface (MPI) designed for performance analysis and debugging of parallel applications. It allows developers to gather performance data and insights about their MPI programs, making it easier to identify bottlenecks and optimize communication patterns, which are critical for enhancing overall system performance and minimizing communication overhead.
NAS Parallel Benchmarks: The NAS Parallel Benchmarks (NPB) are a set of standardized test problems designed to evaluate the performance of parallel supercomputers. They focus on various computational aspects, such as communication, computation, and I/O performance, and are essential for understanding how efficiently a system can handle parallel processing tasks while minimizing communication overhead.
Network latency: Network latency refers to the time it takes for data to travel from the source to the destination across a network. This delay can significantly affect the performance of applications, particularly in parallel and distributed computing, where quick communication between nodes is crucial for efficiency. Understanding and reducing network latency is essential for optimizing data transfer and enhancing overall system performance.
Performance metrics: Performance metrics are quantitative measures used to assess the efficiency and effectiveness of a system, process, or component in achieving its intended objectives. In the context of parallel and distributed computing, these metrics help evaluate how well a system is functioning, focusing on aspects like speed, resource utilization, and communication overhead.
RDMA: RDMA, or Remote Direct Memory Access, is a technology that allows data to be transferred directly from the memory of one computer to the memory of another without involving the operating system or CPU. This method significantly reduces communication overhead, enabling faster data transfer rates and lower latency, which are crucial for high-performance computing environments and applications that require rapid access to large datasets.
Replication: Replication refers to the process of creating copies of data or computational tasks to enhance reliability, performance, and availability in distributed and parallel computing environments. It is crucial for fault tolerance, as it ensures that even if one copy fails, others can still provide the necessary data or services. This concept is interconnected with various system architectures and optimization techniques, highlighting the importance of maintaining data integrity and minimizing communication overhead.
Scalability: Scalability refers to the ability of a system, network, or process to handle a growing amount of work or its potential to be enlarged to accommodate that growth. It is crucial for ensuring that performance remains stable as demand increases, making it a key factor in the design and implementation of parallel and distributed computing systems.
Scalability Metrics: Scalability metrics are quantitative measures that assess the ability of a system to handle increased load without compromising performance. These metrics help in understanding how effectively a system can scale up or down in response to varying demands, which is crucial when aiming to reduce communication overhead in distributed systems. By evaluating these metrics, developers can identify bottlenecks and optimize resource allocation to maintain efficiency as system demands grow.
Scalasca: Scalasca is a performance analysis tool specifically designed for parallel applications, particularly those using MPI (Message Passing Interface). It helps users understand the performance of their applications by providing insights into communication patterns, computational efficiency, and scalability, which are essential for optimizing parallel and distributed computing environments. The tool offers a variety of features, including profiling, tracing, and visualizations to identify performance bottlenecks and improve overall efficiency.
Speedup: Speedup is a performance metric that measures the improvement in execution time of a parallel algorithm compared to its sequential counterpart. It provides insights into how effectively a parallel system utilizes resources to reduce processing time, highlighting the advantages of using multiple processors or cores in computation.
Synchronization: Synchronization is the coordination of processes or threads in parallel computing to ensure that shared data is accessed and modified in a controlled manner. It plays a critical role in managing dependencies between tasks, preventing race conditions, and ensuring that the results of parallel computations are consistent and correct. In the realm of parallel computing, effective synchronization helps optimize performance while minimizing potential errors.
Tcp/ip tuning: TCP/IP tuning refers to the process of optimizing the parameters and settings of the Transmission Control Protocol (TCP) and Internet Protocol (IP) to enhance network performance and reduce latency. This process is essential for improving the efficiency of data transmission, particularly in systems that rely heavily on network communication, by adjusting factors such as buffer sizes, congestion control algorithms, and timeout settings.
Tcpdump: Tcpdump is a powerful command-line packet analyzer tool that allows users to capture and display network packets transmitted over a network interface. This tool is invaluable for network troubleshooting, performance monitoring, and security analysis, as it helps identify communication overhead by showing the data packets exchanged between systems and applications.
Tree-based data structures: Tree-based data structures are hierarchical models that organize data in a way that enables efficient access, storage, and manipulation. They consist of nodes connected by edges, where each node represents a data point and has a parent-child relationship. This structure allows for faster search, insertion, and deletion operations compared to linear structures, making them essential for reducing communication overhead in distributed systems.
Wireshark: Wireshark is a network protocol analyzer that allows users to capture and inspect data packets traveling across a network in real-time. It provides a detailed view of the network traffic, helping to identify issues such as communication overhead by revealing how data is transmitted and where potential bottlenecks or inefficiencies might arise. This capability is crucial for optimizing network performance and reducing communication overhead.
