2.1 Flynn's Taxonomy and Classification of Parallel Systems
5 min read•july 30, 2024
Flynn's Taxonomy classifies parallel systems based on instruction and data streams. It provides a simple framework for understanding different approaches to parallel processing, helping analyze potential parallelism in computer architectures.
The four categories - , , , and - represent varying levels of parallelism. This classification guides the design of parallel algorithms and architectures, influencing the development of programming models for parallel computing.
Flynn's Taxonomy of Parallel Systems
Classification Principles
Top images from around the web for Classification Principles

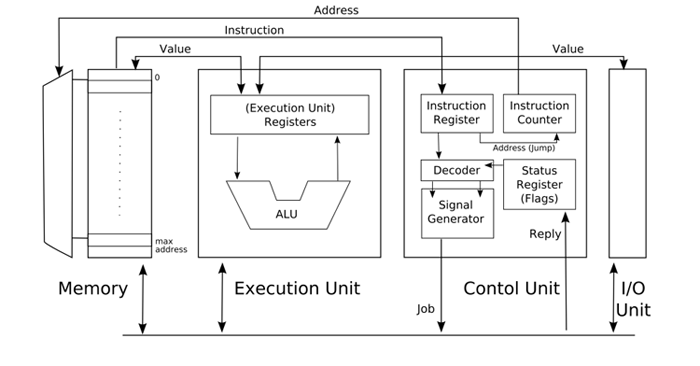

Taxonomia Flynn [CS Open CourseWare] View original
Is this image relevant?
Flynn's taxonomy - Wikipedia View original
Is this image relevant?
Flynn's taxonomy - Wikipedia View original
Is this image relevant?
Taxonomia Flynn [CS Open CourseWare] View original
Is this image relevant?
Flynn's taxonomy - Wikipedia View original
Is this image relevant?
1 of 3
Top images from around the web for Classification Principles
Taxonomia Flynn [CS Open CourseWare] View original
Is this image relevant?
Flynn's taxonomy - Wikipedia View original
Is this image relevant?
Flynn's taxonomy - Wikipedia View original
Is this image relevant?
Taxonomia Flynn [CS Open CourseWare] View original
Is this image relevant?
Flynn's taxonomy - Wikipedia View original
Is this image relevant?
1 of 3
- Flynn's Taxonomy classifies parallel computer architectures based on instruction and data streams
- Proposed by Michael J. Flynn in 1966 to categorize concurrent systems
- Utilizes two key factors for classification
- Number of concurrent instruction streams
- Number of concurrent data streams
- Provides a framework for understanding different approaches to parallel processing
- Helps in analyzing the potential parallelism in computer architectures
- Serves as a foundation for discussing parallel computing concepts
Four Categories of Flynn's Taxonomy
- (SISD)
- Represents traditional sequential computing
- One processor executes one instruction stream on one data stream
- Examples include early personal computers and simple microcontrollers
- (SIMD)
- Multiple processing elements perform the same operation on multiple data points simultaneously
- Commonly used in and GPU architectures
- Effective for tasks with high (image processing, scientific simulations)
-
- Theoretical category with limited practical applications
- Multiple instruction streams operate on a single data stream
- Potential use in fault-tolerant systems for error checking
- (MIMD)
- Multiple processors execute different instruction streams on different data streams independently
- Most flexible and scalable parallel architecture
- Further classified into and architectures
- Examples include and computer clusters
Significance and Evolution
- Provides a simple yet powerful framework for categorizing parallel systems
- Helps in understanding the fundamental approaches to parallel processing
- Guides the design and analysis of parallel algorithms and architectures
- Influences the development of programming models for parallel computing
- Continues to be relevant in discussing modern hybrid architectures
- Serves as a starting point for more detailed classifications of parallel systems
- Facilitates communication and comparison between different parallel computing approaches
SISD vs SIMD vs MISD vs MIMD
Key Characteristics and Differences
- SISD (Single Instruction Single Data)
- Sequential execution of instructions on a single data stream
- One control unit and one processing unit
- Simple to program and understand
- Limited by the speed of a single processor
- Examples include early desktop computers and simple embedded systems
- SIMD (Single Instruction Multiple Data)
- One instruction applied to multiple data elements simultaneously
- Multiple processing elements controlled by a single control unit
- Exploits data-level parallelism
- Efficient for tasks with regular data structures (matrices, vectors)
- Examples include vector processors and GPUs
- MISD (Multiple Instruction Single Data)
- Multiple instructions applied to a single data stream
- Rarely implemented in practice
- Potential applications in fault-tolerant systems
- Theoretical model with limited real-world examples
- MIMD (Multiple Instruction Multiple Data)
- Multiple processors execute different instructions on different data independently
- Most flexible and general-purpose parallel architecture
- Supports both task-level and data-level parallelism
- Includes shared memory and distributed memory variants
- Examples include multi-core processors and computer clusters
Performance and Scalability Considerations
- SISD
- Performance limited by single instruction execution
- No inherent parallelism, relies on instruction-level optimizations
- constrained by sequential nature
- SIMD
- High performance for data-parallel tasks
- Scalability depends on problem's ability to be vectorized
- May suffer from poor utilization on irregular data structures
- MISD
- Limited practical implementations affect performance analysis
- Potential for high redundancy and
- Scalability challenges due to single data stream bottleneck
- MIMD
- Highest flexibility and potential for scalability
- Performance can vary based on problem decomposition and load balancing
- Scalability may be limited by communication and synchronization overhead
- Hybrid architectures often combine multiple categories to optimize performance
- Choice of architecture depends on specific problem characteristics and requirements
Real-world Examples of Parallel Systems
SISD and SIMD Systems
- SISD examples
- Traditional single-core processors (early Intel x86 CPUs)
- Simple microcontrollers in embedded systems (Arduino Uno)
- Basic calculators and early personal computers
- SIMD examples
- Vector processors (Cray-1 supercomputer)
- Graphics Processing Units (NVIDIA GeForce, AMD Radeon)
- Digital Signal Processors (DSPs) in audio equipment
- NEON SIMD architecture in ARM processors
- Intel's SSE (Streaming SIMD Extensions) and AVX (Advanced Vector Extensions)
MISD and MIMD Systems
- MISD examples (rare in practice)
- Systolic arrays for matrix multiplication
- Some pipelined architectures in signal processing
- Theoretical fault-tolerant systems with redundant processing
- MIMD examples
- Multi-core processors (Intel Core i7, AMD Ryzen)
- Symmetric Multiprocessing (SMP) systems
- Distributed computing systems (Hadoop clusters)
- Grid computing networks (SETI@home project)
- Cloud computing infrastructures (Amazon EC2, Google Cloud)
- Massively parallel processors (MPPs) in supercomputers (IBM Blue Gene)
Hybrid and Modern Architectures
- Modern smartphones combining multi-core CPUs (MIMD) with GPUs (SIMD)
- Heterogeneous computing systems with CPUs, GPUs, and specialized accelerators
- Supercomputers utilizing MIMD at node level and SIMD within nodes
- AI and machine learning systems combining various parallel processing techniques
- Field-Programmable Gate Arrays (FPGAs) capable of implementing multiple Flynn categories
- Quantum computers exploring new paradigms beyond classical Flynn's Taxonomy
- Edge computing devices integrating multiple parallel processing capabilities
Advantages and Limitations of Flynn's Taxonomy
Strengths and Applications
- Provides a simple and intuitive framework for categorizing parallel architectures
- Facilitates understanding of fundamental approaches to parallel processing
- Useful for initial analysis of parallel algorithms and their suitability for different architectures
- Helps in teaching basic concepts of parallel computing
- Serves as a common language for discussing parallel systems across different domains
- Guides the design of parallel programming models and languages
- Applicable to a wide range of computing systems, from embedded devices to supercomputers
Limitations and Challenges
- Oversimplifies complex modern architectures that combine multiple categories
- Does not account for memory organization (shared vs distributed) within categories
- Lacks granularity to distinguish between different implementations within a category
- MISD category has limited practical relevance in real-world systems
- Does not address important factors like communication patterns and synchronization mechanisms
- Struggles to classify emerging paradigms like quantum computing and neuromorphic architectures
- Does not consider the impact of software and programming models on system behavior
Extensions and Modern Perspectives
- Extended classifications have been proposed to address limitations (e.g., adding memory organization dimension)
- Hybrid architectures blur the lines between traditional Flynn categories
- Focus shifting towards more detailed taxonomies for specific domains (e.g., GPU architectures, AI accelerators)
- Incorporation of new metrics like energy and scalability in modern classification schemes
- Growing importance of software-defined architectures challenging hardware-centric classifications
- Emergence of domain-specific architectures requiring more nuanced categorization approaches
- Continued relevance as a foundational concept while acknowledging the need for more sophisticated models
Key Terms to Review (23)
BSP Model: The Bulk Synchronous Parallel (BSP) model is a parallel computing model that divides computation into a series of supersteps, each consisting of local computations, communication, and synchronization. This model emphasizes a structured approach to parallel programming, making it easier to analyze performance and scalability. Its design allows programmers to focus on the computation's structure without needing to manage the complexities of low-level synchronization.
Cluster Computing: Cluster computing is a type of computing where multiple interconnected computers work together as a single system to perform tasks more efficiently and reliably. This setup enhances processing power, storage, and redundancy, making it a popular choice for high-performance computing, particularly in environments requiring large-scale data processing or complex calculations.
Data parallelism: Data parallelism is a parallel computing paradigm where the same operation is applied simultaneously across multiple data elements. It is especially useful for processing large datasets, allowing computations to be divided into smaller tasks that can be executed concurrently on different processing units, enhancing performance and efficiency.
Distributed Memory: Distributed memory refers to a computer architecture in which each processor has its own private memory, and processors communicate by passing messages. This model is crucial for parallel and distributed computing because it allows for scalability, where multiple processors can work on different parts of a problem simultaneously without interfering with each other's data.
Efficiency: Efficiency in computing refers to the ability of a system to maximize its output while minimizing resource usage, such as time, memory, or energy. In parallel and distributed computing, achieving high efficiency is crucial for optimizing performance and resource utilization across various models and applications.
Emergence of GPUs: The emergence of GPUs (Graphics Processing Units) refers to the development and increasing importance of these specialized processors designed to accelerate the rendering of images and graphics. Initially used primarily for gaming and visual effects, GPUs have evolved to become vital in parallel computing, enabling faster processing and execution of complex calculations, especially in fields like machine learning and scientific simulations.
Fault Tolerance: Fault tolerance is the ability of a system to continue operating properly in the event of a failure of some of its components. This is crucial in parallel and distributed computing, where multiple processors or nodes work together, and the failure of one can impact overall performance and reliability. Achieving fault tolerance often involves redundancy, error detection, and recovery strategies that ensure seamless operation despite hardware or software issues.
MIMD: MIMD stands for Multiple Instruction Multiple Data, which is a type of parallel computing architecture where multiple processors execute different instructions on different pieces of data simultaneously. This allows for a high level of flexibility and efficiency, as each processor can work independently on separate tasks, making it suitable for complex applications and real-time processing.
MISD: MISD stands for Multiple Instruction streams, Single Data stream, a classification in Flynn's Taxonomy that describes a computing architecture where multiple processors execute different instructions on the same data set. This model is particularly useful for tasks where the same data needs to be processed in various ways simultaneously, showcasing a level of parallelism that can significantly enhance computational efficiency.
Multi-core processors: Multi-core processors are central processing units (CPUs) that contain two or more processing cores on a single chip, allowing them to perform multiple tasks simultaneously. This architecture enhances computational power and efficiency, making it possible to run parallel processes more effectively, which is essential in modern computing environments where performance is crucial.
Multiple Instruction Multiple Data: Multiple Instruction Multiple Data (MIMD) is a parallel computing architecture where multiple processors execute different instructions on different data simultaneously. This model allows for significant flexibility and efficiency as it can perform a variety of tasks concurrently, adapting to the needs of complex applications and workloads. MIMD is a key component in understanding how parallel systems can be categorized based on their instruction and data handling capabilities.
Multiple Instruction Single Data (MISD): Multiple Instruction Single Data (MISD) refers to a parallel computing architecture where multiple processors execute different instructions on the same data stream simultaneously. This architecture is often utilized in specialized applications, such as signal processing and fault-tolerant systems, where the same data needs to be processed in various ways to enhance performance or reliability.
PRAM Model: The PRAM (Parallel Random Access Machine) model is an abstract computational model that facilitates the study of parallel algorithms by providing a simplified framework for understanding parallel computation. It assumes multiple processors that can access a shared memory simultaneously, making it easier to analyze and design efficient algorithms for parallel systems. This model is crucial for understanding how complexity and performance can be evaluated in parallel computing.
Scalability: Scalability refers to the ability of a system, network, or process to handle a growing amount of work or its potential to be enlarged to accommodate that growth. It is crucial for ensuring that performance remains stable as demand increases, making it a key factor in the design and implementation of parallel and distributed computing systems.
Shared memory: Shared memory is a memory management technique where multiple processes or threads can access the same memory space for communication and data sharing. This allows for faster data exchange compared to other methods like message passing, as it avoids the overhead of sending messages between processes.
SIMD: SIMD, which stands for Single Instruction, Multiple Data, is a parallel computing architecture that allows a single instruction to process multiple data points simultaneously. This model is particularly effective for data parallelism, enabling efficient execution of operations on large datasets by applying the same operation across different elements in parallel. SIMD is foundational for GPU architecture and programming, enhancing performance in applications such as graphics processing and scientific simulations.
Single Instruction Multiple Data: Single Instruction Multiple Data (SIMD) is a parallel computing architecture that allows a single instruction to operate on multiple data points simultaneously. This method enhances computational efficiency, especially in tasks that involve processing large arrays or vectors of data, making it particularly valuable in applications like image processing and scientific simulations.
Single Instruction Single Data: Single Instruction Single Data (SISD) is a computing architecture where a single instruction is executed on a single piece of data at any given time. This model is the most straightforward approach to computing, reflecting traditional serial processing. In SISD, instructions are processed sequentially, leading to simpler control mechanisms and easier programming compared to more complex architectures that allow for parallel processing.
SISD: SISD stands for Single Instruction stream Single Data stream, referring to a type of computer architecture where a single control unit issues one instruction to a single processing unit that operates on a single data stream. This architecture is fundamental in understanding how traditional sequential processing systems work, as it serves as a baseline for comparing more complex parallel architectures. SISD is the simplest form of Flynn's Taxonomy and represents systems that process instructions in a linear fashion without simultaneous parallel execution.
Speedup: Speedup is a performance metric that measures the improvement in execution time of a parallel algorithm compared to its sequential counterpart. It provides insights into how effectively a parallel system utilizes resources to reduce processing time, highlighting the advantages of using multiple processors or cores in computation.
Supercomputing era: The supercomputing era refers to the period characterized by the development and use of supercomputers, which are high-performance computing systems designed to process large amounts of data at incredibly high speeds. This era has transformed scientific research, complex simulations, and data analysis across various fields, enabling breakthroughs in areas like climate modeling, molecular biology, and astrophysics.
Task parallelism: Task parallelism is a computing model where multiple tasks or processes are executed simultaneously, allowing different parts of a program to run concurrently. This approach enhances performance by utilizing multiple processing units to perform distinct operations at the same time, thereby increasing efficiency and reducing overall execution time.
Vector processors: Vector processors are a type of computer architecture designed to efficiently handle vector operations, which are mathematical operations that involve one or more vectors. These processors can perform the same operation on multiple data points simultaneously, making them well-suited for applications requiring high-performance computing like scientific simulations and graphics processing. Their ability to process large datasets in parallel aligns with the principles of parallel computing.
