📊Order Theory

📊order theory review

10.4 Ordered data structures

9 min readLast Updated on August 21, 2024

Ordered data structures form the backbone of many computational systems, providing a framework for organizing and analyzing information. These structures leverage mathematical principles from order theory to establish relationships between elements, enabling efficient storage, retrieval, and manipulation of data.

Understanding ordered structures is crucial for designing algorithms and solving complex problems in computer science. From binary search trees to topological sorting, these concepts play a vital role in optimizing performance and modeling real-world scenarios across various applications.

Fundamentals of ordered structures

  • Order theory provides a mathematical framework for analyzing relationships between elements in sets
  • Ordered structures form the foundation for understanding complex systems and hierarchies in various fields
  • Applications of order theory extend to computer science, mathematics, and logic

Definition and properties

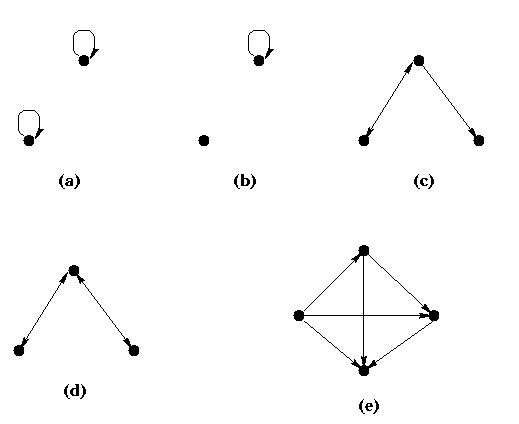

Top images from around the web for Definition and properties
Top images from around the web for Definition and properties
  • Ordered structure consists of a set and a binary relation that satisfies specific properties
  • Reflexivity ensures every element is related to itself
  • Antisymmetry guarantees no two distinct elements are mutually related
  • Transitivity allows for logical deduction of relationships between elements
  • Formal definition of an ordered set (poset) P=(X,)P = (X, \leq) where X is a set and ≤ is the order relation

Types of ordered structures

  • Linear orders arrange all elements in a single sequence (total orders)
  • Partial orders allow for incomparable elements within the structure
  • Weak orders permit ties between elements while maintaining transitivity
  • Preorders relax antisymmetry condition, allowing cycles in the ordering
  • Interval orders represent relationships between intervals on a real line

Partial vs total orders

  • Partial orders allow for incomparability between certain elements
  • Total orders require every pair of elements to be comparable
  • Partial orders generalize total orders, providing more flexibility in modeling relationships
  • Hasse diagrams visually represent partial orders, showing direct relationships between elements
  • Real-world examples of partial orders include subset inclusion and divisibility of integers

Lattices and semilattices

  • Lattices and semilattices are specialized ordered structures with additional algebraic properties
  • These structures play crucial roles in abstract algebra, computer science, and logic
  • Understanding lattices provides insights into optimization problems and decision-making processes

Lattice theory basics

  • Lattice defined as a partially ordered set where every pair of elements has a unique supremum and infimum
  • Join operation (∨) represents the least upper bound of two elements
  • Meet operation (∧) represents the greatest lower bound of two elements
  • Algebraic definition of a lattice requires both join and meet operations to be idempotent, commutative, and associative
  • Duality principle in lattice theory states that every statement about lattices remains true if ∨ and ∧ are interchanged

Complete vs bounded lattices

  • Complete lattices contain suprema and infima for all subsets, not just pairs of elements
  • Bounded lattices have a greatest element (top) and a least element (bottom)
  • Complete lattices are always bounded, but the converse is not necessarily true
  • Finite lattices are always complete and bounded
  • Power set lattice (ordered by subset inclusion) serves as an example of a complete and bounded lattice

Distributive and modular lattices

  • Distributive lattices satisfy the distributive law: a(bc)=(ab)(ac)a ∧ (b ∨ c) = (a ∧ b) ∨ (a ∧ c)
  • Modular lattices satisfy a weaker condition: acimpliesa(bc)=(ab)ca ≤ c implies a ∨ (b ∧ c) = (a ∨ b) ∧ c
  • Boolean algebras are complemented distributive lattices
  • Modular lattices generalize vector spaces and projective geometries
  • Non-distributive lattices include the pentagon lattice and the diamond lattice

Chains and antichains

  • Chains and antichains represent fundamental concepts in order theory
  • These structures help analyze the complexity and structure of partially ordered sets
  • Understanding chains and antichains aids in solving optimization problems and proving theorems in order theory

Chain properties

  • Chain defined as a totally ordered subset of a partially ordered set
  • Maximal chains cannot be extended by adding more elements
  • Chain decomposition partitions a poset into disjoint chains
  • Length of a chain determined by the number of elements minus one
  • Infinite chains exist in certain posets (natural numbers under usual ordering)

Antichain characteristics

  • Antichain defined as a subset where no two distinct elements are comparable
  • Maximal antichains cannot be extended by adding more elements
  • Width of a poset equals the size of its largest antichain
  • Antichains represent independent sets in the corresponding comparability graph
  • Sperner's theorem relates the size of the largest antichain in a Boolean lattice to binomial coefficients

Dilworth's theorem

  • Dilworth's theorem states that in a finite poset, the size of a maximum antichain equals the minimum number of chains in a chain decomposition
  • Provides a duality between chains and antichains in finite posets
  • Generalizes Hall's marriage theorem for bipartite graphs
  • Applications in scheduling theory and network flow problems
  • Proof involves constructing a bipartite graph and applying the max-flow min-cut theorem

Hasse diagrams

  • Hasse diagrams provide visual representations of partially ordered sets
  • These diagrams serve as powerful tools for analyzing and communicating the structure of ordered sets
  • Understanding Hasse diagrams is crucial for interpreting complex relationships in order theory

Construction and interpretation

  • Hasse diagram represents elements as vertices and order relations as edges
  • Transitive reduction removes redundant edges to simplify the diagram
  • Elements are arranged vertically with greater elements placed higher
  • Covering relations shown as edges connecting elements
  • Reading a Hasse diagram involves tracing paths upward to determine order relations

Applications in order theory

  • Visualizing lattice structures and identifying special elements (top, bottom)
  • Analyzing distributive and modular properties of lattices
  • Identifying chains and antichains within a poset
  • Determining comparability and incomparability of elements
  • Facilitating proofs and counterexamples in order theory research

Limitations of Hasse diagrams

  • Difficulty in representing large or infinite posets
  • Potential ambiguity in three-dimensional representations
  • Challenges in showing weighted or probabilistic order relations
  • Limited ability to display additional information about elements
  • Complexity increases rapidly with the number of elements and relations

Well-ordered sets

  • Well-ordered sets form a special class of totally ordered sets with unique properties
  • These structures play a crucial role in set theory and the foundations of mathematics
  • Understanding well-ordered sets is essential for grasping concepts in transfinite arithmetic and ordinal numbers

Ordinal numbers

  • Ordinal numbers represent the order type of well-ordered sets
  • Successor ordinals follow immediately after another ordinal
  • Limit ordinals have no immediate predecessor
  • Transfinite ordinals extend beyond finite numbers
  • Von Neumann construction defines ordinals as sets of all smaller ordinals

Transfinite induction

  • Transfinite induction extends mathematical induction to well-ordered sets
  • Proves properties hold for all ordinals by considering three cases
    • Base case: property holds for the least element
    • Successor case: if property holds for α, it holds for α+1
    • Limit case: if property holds for all β < λ, it holds for limit ordinal λ
  • Enables proofs involving infinite structures
  • Applications in set theory and analysis

Zorn's lemma

  • Zorn's lemma states that a partially ordered set with upper bounds for all chains contains at least one maximal element
  • Equivalent to the Axiom of Choice in set theory
  • Useful for proving the existence of maximal elements in various mathematical structures
  • Applications in algebra (existence of maximal ideals) and functional analysis
  • Provides a powerful tool for non-constructive existence proofs

Order-preserving maps

  • Order-preserving maps maintain the structure of ordered sets when transforming elements
  • These functions play a crucial role in analyzing relationships between different ordered structures
  • Understanding order-preserving maps is essential for studying homomorphisms and isomorphisms in order theory

Monotone functions

  • Monotone functions preserve the order relation between elements
  • Increasing functions maintain the direction of the order (x ≤ y implies f(x) ≤ f(y))
  • Decreasing functions reverse the order direction (x ≤ y implies f(x) ≥ f(y))
  • Strictly monotone functions preserve strict inequalities
  • Real-valued monotone functions have important properties (continuity, differentiability)

Order isomorphisms

  • Order isomorphisms establish a one-to-one correspondence between two ordered sets
  • Bijective functions that preserve order relations in both directions
  • Isomorphic ordered sets have identical structural properties
  • Automorphisms are order isomorphisms from a set to itself
  • Cantor-Bernstein-Schroeder theorem relates to order isomorphisms between partially ordered sets

Galois connections

  • Galois connections consist of two monotone functions between partially ordered sets
  • Adjoint pair of functions (f, g) satisfies x ≤ g(y) if and only if f(x) ≤ y
  • Closure operators derived from Galois connections (g ∘ f and f ∘ g)
  • Applications in abstract algebra, topology, and formal concept analysis
  • Fundamental theorem of Galois theory based on Galois connections

Order ideals and filters

  • Order ideals and filters represent important substructures within partially ordered sets
  • These concepts play crucial roles in lattice theory and abstract algebra
  • Understanding order ideals and filters provides insights into the structure and properties of ordered sets

Principal vs non-principal ideals

  • Order ideal defined as a downward-closed subset of a poset
  • Principal ideal generated by a single element (all elements below it)
  • Non-principal ideals cannot be generated by a single element
  • Ideal lattice represents all ideals of a poset ordered by inclusion
  • Applications in ring theory and algebraic geometry

Filter properties

  • Filter defined as an upward-closed subset of a poset
  • Dual concept to order ideals
  • Proper filters do not contain the bottom element of the poset
  • Ultrafilters are maximal proper filters
  • Applications in topology (neighborhood filters) and model theory

Dual concepts in order theory

  • Order-theoretic duality principle allows conversion between dual concepts
  • Ideals and filters form a dual pair
  • Join-irreducible elements correspond to meet-irreducible elements in the dual lattice
  • Minimal elements become maximal elements under duality
  • Dual isomorphism theorem relates a lattice to its dual through order-reversing bijections

Applications of ordered structures

  • Ordered structures find widespread applications across various disciplines
  • These concepts provide powerful tools for modeling and analyzing complex systems
  • Understanding applications of order theory demonstrates its practical relevance and importance

Computer science applications

  • Binary search trees utilize ordered structures for efficient data storage and retrieval
  • Topological sorting algorithms rely on partial orders to sequence tasks or events
  • Formal concept analysis uses lattice theory for knowledge representation and data analysis
  • Interval orders model scheduling problems and temporal reasoning
  • Domain theory in programming language semantics based on partially ordered sets

Mathematical logic connections

  • Boolean algebras provide a foundation for propositional logic
  • Heyting algebras model intuitionistic logic
  • Kripke semantics use partially ordered sets to interpret modal logic
  • Proof theory utilizes well-founded orderings for termination arguments
  • Lattice-theoretic approaches to fuzzy logic and many-valued logics

Optimization problems

  • Linear programming uses partially ordered vector spaces
  • Constraint satisfaction problems modeled using lattices and semilattices
  • Multicriteria optimization employs partially ordered sets to represent trade-offs
  • Scheduling algorithms utilize chain and antichain decompositions
  • Game theory strategies represented as partially ordered sets

Advanced topics

  • Advanced topics in order theory explore deeper mathematical structures and connections
  • These concepts build upon fundamental ideas to address more complex problems
  • Understanding advanced topics provides insights into cutting-edge research in order theory

Fixed point theorems

  • Knaster-Tarski fixed point theorem guarantees existence of fixed points in complete lattices
  • Kleene fixed point theorem applies to continuous functions on directed-complete partial orders
  • Applications in program semantics and recursive function theory
  • Banach fixed point theorem extends to metric spaces with partial orders
  • Fixed point theorems in domain theory crucial for denotational semantics

Order dimension theory

  • Order dimension defined as the minimum number of linear extensions needed to represent a poset
  • Dushnik-Miller theorem relates order dimension to the intersection of linear orders
  • Dimension two posets characterized by forbidden substructures
  • Connections to graph theory through comparability and cocomparability graphs
  • Applications in computational geometry and database theory

Ordered algebraic structures

  • Partially ordered groups combine group structure with a compatible partial order
  • Ordered fields extend the concept of ordering to algebraic structures with division
  • Residuated lattices generalize Boolean algebras and provide models for substructural logics
  • Quantales combine complete lattices with a compatible monoid structure
  • Applications in abstract algebra, functional analysis, and quantum logic


© 2025 Fiveable Inc. All rights reserved.
AP® and SAT® are trademarks registered by the College Board, which is not affiliated with, and does not endorse this website.

© 2025 Fiveable Inc. All rights reserved.
AP® and SAT® are trademarks registered by the College Board, which is not affiliated with, and does not endorse this website.
