12.3 Quantum computing and operating systems

Quantum Computing Fundamentals

Quantum computing represents a fundamentally different approach to computation, and it poses unique challenges for operating system design. Classical OS concepts like scheduling, memory management, and resource allocation all need rethinking when the underlying hardware operates on quantum mechanical principles. This section covers the quantum foundations you need before diving into OS-specific concerns.

Quantum Mechanics Principles and Qubits

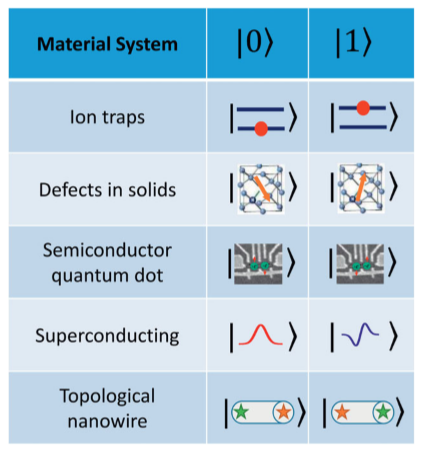

A qubit is the fundamental unit of quantum information, analogous to a classical bit. Unlike a classical bit, which is either 0 or 1, a qubit can exist in a superposition of both states simultaneously. This is represented mathematically as:

$|\psi\rangle = \alpha|0\rangle + \beta|1\rangle$

where $|\alpha|^2 + |\beta|^2 = 1$. The coefficients $\alpha$ and $\beta$ are complex probability amplitudes. When you measure the qubit, it collapses to $|0\rangle$ with probability $|\alpha|^2$ or $|1\rangle$ with probability $|\beta|^2$.

Entanglement creates correlations between qubits that have no classical equivalent. Two entangled qubits share a joint quantum state, meaning measuring one instantly determines information about the other. A classic example is the Bell state:

$|\Phi^+\rangle = \frac{1}{\sqrt{2}}(|00\rangle + |11\rangle)$

In this state, measuring the first qubit as 0 guarantees the second qubit will also be 0, and vice versa. Superposition and entanglement together are what give quantum computers their potential for exponential computational power on certain problems.

Quantum Gates and Algorithms

Quantum gates manipulate qubits to perform operations, forming the building blocks of quantum circuits. Common gates include:

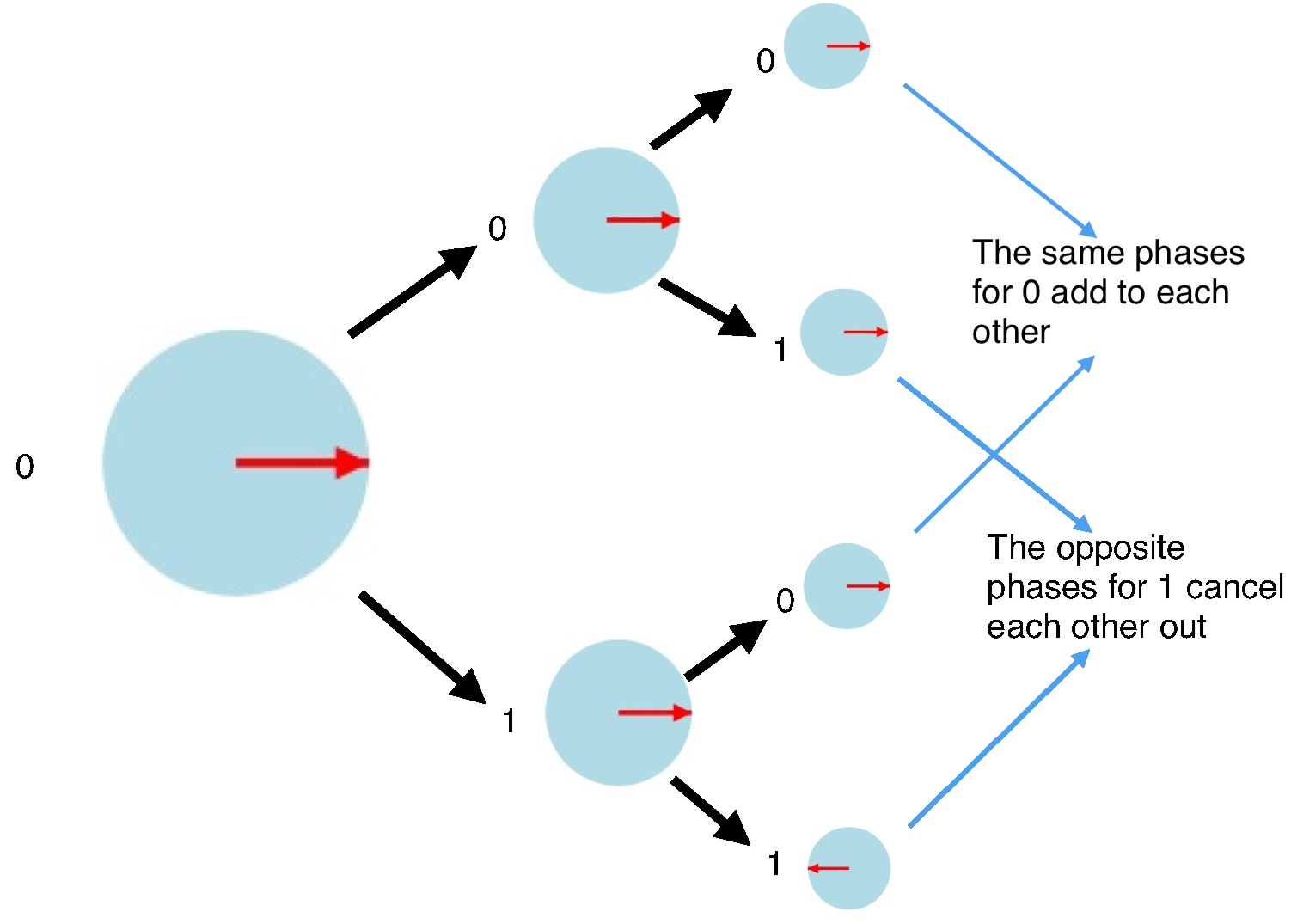

• Hadamard (H): Places a qubit into an equal superposition of $|0\rangle$ and $|1\rangle$
• CNOT: A two-qubit gate that flips the target qubit if the control qubit is $|1\rangle$; essential for creating entanglement
• Pauli gates (X, Y, Z): Single-qubit rotations; the X gate, for instance, acts like a classical NOT

These gates combine into circuits that implement quantum algorithms. Two landmark algorithms illustrate quantum advantage:

• Shor's algorithm factors large integers exponentially faster than the best-known classical methods. A classical computer might take thousands of years to factor a 2048-bit number; a sufficiently large quantum computer could do it in hours.
• Grover's algorithm searches an unsorted database of $N$ items in $O(\sqrt{N})$ time, compared to $O(N)$ classically. That's a quadratic speedup.

The Quantum Fourier Transform (QFT) is a key subroutine used in both Shor's algorithm and quantum phase estimation. It's the quantum analog of the discrete Fourier transform and runs exponentially faster than its classical counterpart.

Quantum Error Correction and Potential Impact

Qubits are extremely fragile. Decoherence (loss of quantum state due to environmental noise) and gate errors mean that raw quantum computations are unreliable. Quantum error correction (QEC) encodes logical qubits across multiple physical qubits to detect and correct errors without destroying the quantum information.

• Surface codes are among the most promising QEC approaches. They arrange qubits in a 2D grid and use repeated stabilizer measurements to detect errors, offering a practical path toward fault-tolerant quantum computing.
• Topological error correction encodes information in global properties of the system, making it inherently more resistant to local noise.

The potential impact of reliable quantum computing spans several domains:

• Cryptography: Shor's algorithm threatens RSA and ECC encryption, driving the development of quantum-resistant (post-quantum) cryptographic standards
• Drug discovery: Simulating molecular interactions at the quantum level could dramatically accelerate identification of drug candidates
• Financial modeling: Portfolio optimization and risk analysis involve combinatorial problems well-suited to quantum approaches
• Logistics and optimization: Complex supply chain and routing problems could see significant speedups

Operating Systems for Quantum Computing

Quantum Hardware Management Challenges

Designing an OS for quantum hardware is fundamentally different from classical OS design because of three properties:

1. Short coherence times. Qubits maintain their quantum state for only microseconds to milliseconds (depending on the hardware platform). The OS scheduler must ensure quantum operations complete within this window, or the computation becomes meaningless.
2. High error rates. Current quantum hardware has gate error rates on the order of $10^{-3}$ to $10^{-2}$, far higher than classical hardware. The OS must factor error rates into task allocation and decide when error correction overhead is worthwhile.
3. Probabilistic measurement. Measuring a qubit collapses its superposition, and results are inherently probabilistic. The OS must manage repeated executions (called "shots") and aggregate results, which is unlike anything in classical resource management.

Scheduling for quantum tasks must account for qubit connectivity (not all qubits can directly interact on a given chip), gate fidelities (some qubit pairs produce more reliable operations than others), and opportunities for parallel gate execution to maximize throughput within coherence limits.

Quantum memory management is also a new challenge. You can't simply copy a quantum state (the no-cloning theorem forbids it), and storing quantum information requires actively preserving coherence. These constraints demand entirely new memory management abstractions.

Quantum-Classical Hybrid Architectures

No current quantum computer operates in isolation. Every quantum system today relies on a classical computer to handle compilation, optimization, control signal generation, and result processing. The OS must manage this quantum-classical interface seamlessly.

On the programming side, several layers of abstraction exist:

• OpenQASM (Open Quantum Assembly Language) provides a low-level interface for describing quantum circuits, similar to how assembly language relates to classical hardware
• High-level frameworks like Qiskit (IBM) and Cirq (Google) let developers write quantum algorithms in Python, with the framework handling compilation down to hardware-specific instructions

Many practical quantum algorithms are explicitly hybrid. The Variational Quantum Eigensolver (VQE), for example, works like this:

1. A classical optimizer proposes parameters for a quantum circuit
2. The quantum processor prepares a quantum state using those parameters
3. The quantum processor measures the state to estimate an energy value
4. The classical optimizer adjusts parameters based on the result
5. Steps 2-4 repeat until convergence

The OS must coordinate data transfer and synchronization between classical and quantum processors at each iteration, handling the latency and timing constraints of both.

Operating Systems for Quantum Hardware Management

Qubit Allocation and Gate Operations

Qubit allocation in a quantum OS is more constrained than classical memory allocation. The OS must:

• Dynamically allocate and deallocate qubits as circuits execute, since holding qubits longer than necessary wastes coherence time
• Map logical qubits to physical qubits on the actual hardware, respecting connectivity constraints (e.g., on IBM's superconducting chips, only neighboring qubits can interact directly)
• Insert SWAP operations when two qubits need to interact but aren't physically adjacent, while minimizing the overhead these extra gates introduce

Gate execution requires pulse-level control, where the OS (or its firmware layer) translates abstract gate operations into precisely timed microwave or laser pulses. Optimizing pulse sequences can improve gate fidelity and reduce total execution time.

Measurement coordination is equally critical. Since measurement collapses quantum states, the OS must schedule measurements carefully. Adaptive measurement schemes adjust later operations based on intermediate measurement results (called mid-circuit measurement), which is essential for error correction and certain algorithms like quantum teleportation.

Quantum Error Correction and Resource Management

Running quantum error correction is one of the most resource-intensive tasks a quantum OS must handle. Consider the Surface Code as an example:

1. Logical qubits are encoded across a grid of many physical qubits (current estimates suggest roughly 1,000 physical qubits per logical qubit for useful error rates)
2. Ancilla qubits (helper qubits) are measured repeatedly to detect errors without disturbing the encoded data
3. Syndrome measurements identify which errors occurred, and classical decoding algorithms determine the correction
4. The OS must coordinate all of this in real time, within the coherence window

Resource management extends beyond qubits to the physical infrastructure. Superconducting qubits, the most common type today, operate at temperatures around 10-15 millikelvin, requiring dilution refrigerators. The OS must be aware of cooling capacity, wiring constraints, and energy consumption when managing workloads.

Quantum-aware scheduling ties all of this together. The scheduler must map logical circuits onto physical hardware while minimizing communication overhead (SWAP gates), balancing error rates across different qubit regions, and maximizing parallel execution where the circuit structure allows it.

Quantum Computing's Impact on Operating Systems

Adapting Classical OS Concepts

Classical OS concepts don't disappear in the quantum era; they transform.

Process scheduling must handle quantum task dependencies that don't exist classically. A quantum subroutine might need specific qubits held in a particular state while a classical optimizer runs, creating scheduling constraints that span both processing domains.

Memory management must address quantum state preservation (no copying, limited storage duration) alongside classical data. The non-deterministic nature of quantum measurement means the OS may need to manage statistical ensembles of results rather than single deterministic values.

Security is perhaps the most urgent area of adaptation. Quantum computers threaten widely used public-key cryptography, so OS security stacks must integrate post-quantum cryptographic algorithms:

• Lattice-based schemes (e.g., CRYSTALS-Kyber, now standardized by NIST)
• Hash-based signature schemes (e.g., SPHINCS+)
• Secure boot processes and firmware verification must also transition to quantum-resistant methods to maintain system integrity

Performance Optimization and New Paradigms

Measuring quantum system performance requires new metrics beyond classical benchmarks:

• Quantum Volume captures the effective size of quantum circuits a system can reliably execute, accounting for qubit count, connectivity, and error rates together
• CLOPS (Circuit Layer Operations Per Second) measures how quickly a system can execute circuits end-to-end, including classical overhead

File systems and I/O in quantum environments are still largely open research questions. Quantum data can't be stored the way classical data can (again, no-cloning), so any "quantum file system" would need to manage references to quantum states, handle coherence during storage and retrieval, and potentially implement quantum memory hierarchies analogous to classical L1/L2/L3 caches, where faster but more expensive quantum memory sits closer to the processor.

Debugging quantum programs is notoriously difficult because you can't inspect a quantum state without collapsing it. Quantum-specific development tools are emerging to address this:

• Circuit visualizers display the structure of quantum algorithms graphically
• Quantum state tomography reconstructs the full quantum state from many measurements, useful for verifying small circuits during development
• Noise simulators model realistic hardware errors so developers can test error correction strategies before running on actual quantum hardware
