8.1 Jacobi method

The Jacobi method is a key iterative technique for solving linear equations in numerical analysis. It breaks down complex systems into simpler components, gradually refining the solution through repeated calculations.

This method is particularly useful for large, sparse matrices common in scientific computing. By avoiding direct matrix inversion, it offers computational efficiency and parallelization potential, making it valuable for modern high-performance computing applications.

Jacobi method fundamentals

• Iterative numerical technique for solving systems of linear equations in Numerical Analysis II
• Crucial component in the broader context of matrix computations and linear algebra applications
• Forms foundation for understanding more advanced iterative methods in numerical linear algebra

Definition and purpose

Top images from around the web for Definition and purpose

•

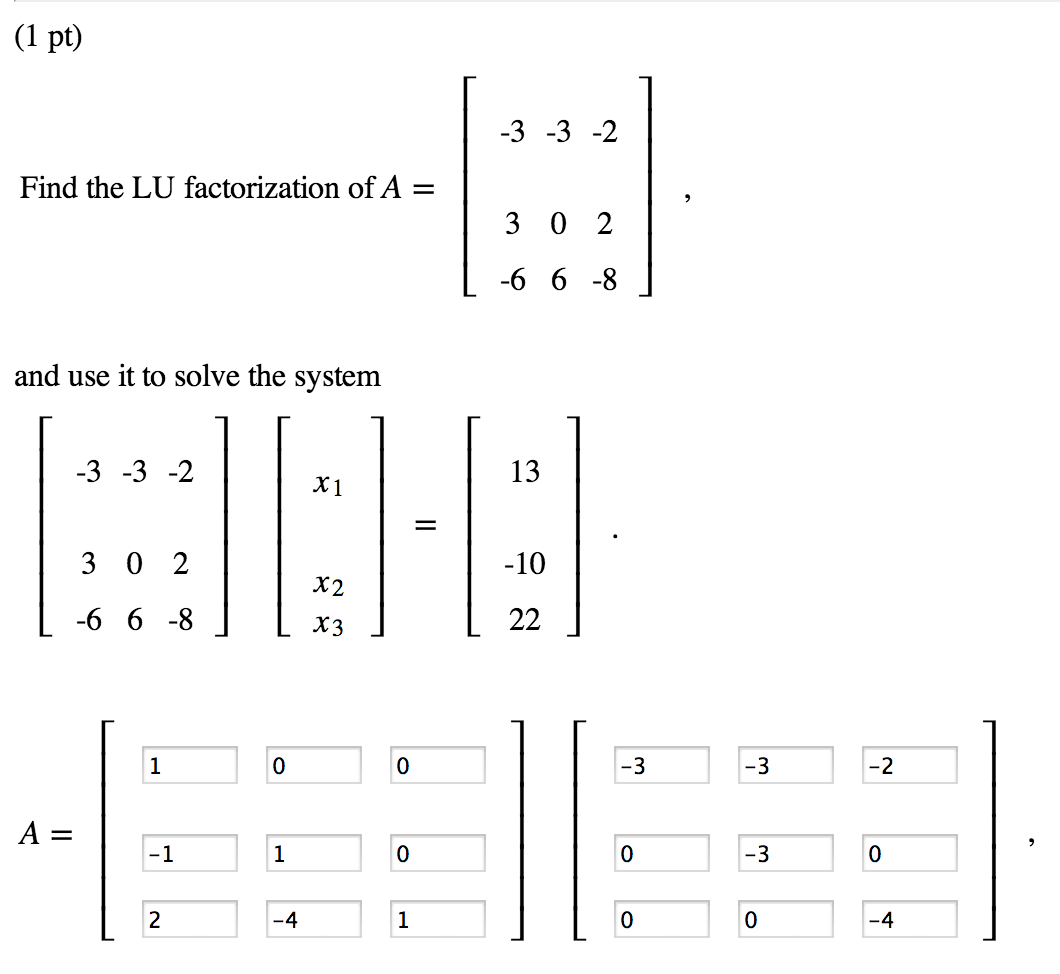

  Easiest way to solve a system using LU decomposition in Linear Algebra? - Mathematics Stack Exchange View original

  Is this image relevant?

•

  linear algebra - Jacobi iteration method - Mathematics Stack Exchange View original

  Is this image relevant?

•

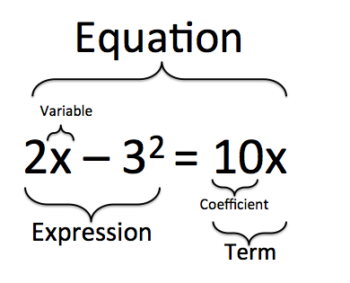

  Solving Linear Equations | Beginning Algebra View original

  Is this image relevant?

•

  Easiest way to solve a system using LU decomposition in Linear Algebra? - Mathematics Stack Exchange View original

  Is this image relevant?

•

  linear algebra - Jacobi iteration method - Mathematics Stack Exchange View original

  Is this image relevant?

1 of 3

Top images from around the web for Definition and purpose

•

  Easiest way to solve a system using LU decomposition in Linear Algebra? - Mathematics Stack Exchange View original

  Is this image relevant?

•

  linear algebra - Jacobi iteration method - Mathematics Stack Exchange View original

  Is this image relevant?

•

  Solving Linear Equations | Beginning Algebra View original

  Is this image relevant?

•

  Easiest way to solve a system using LU decomposition in Linear Algebra? - Mathematics Stack Exchange View original

  Is this image relevant?

•

  linear algebra - Jacobi iteration method - Mathematics Stack Exchange View original

  Is this image relevant?

1 of 3

• Solves systems of linear equations $Ax = b$ where A is a square matrix
• Decomposes matrix A into diagonal and off-diagonal components
• Iteratively refines solution estimate until convergence achieved
• Particularly effective for diagonally dominant matrices

Iterative nature

• Starts with initial guess for solution vector
• Repeatedly updates each component of solution vector using current estimates
• Continues until desired accuracy reached or maximum iterations exceeded
• Allows for gradual refinement of solution without direct matrix inversion

Convergence criteria

• Requires spectral radius of iteration matrix to be less than 1
• Monitors relative change in solution vector between iterations
• Uses predetermined tolerance level to determine convergence
• May employ residual-based stopping criteria for enhanced accuracy

Matrix formulation

• Fundamental to understanding Jacobi method's mathematical underpinnings
• Provides framework for analyzing convergence properties and computational efficiency
• Enables comparison with other iterative methods in Numerical Analysis II

Diagonal dominance requirement

• Matrix A must be strictly or weakly diagonally dominant
• Diagonal elements larger in magnitude than sum of off-diagonal elements in same row
• Ensures convergence of Jacobi method for most practical cases
• Can be relaxed for certain special matrix structures

Splitting matrix approach

• Decomposes matrix A into A = D - L - U
• D represents diagonal matrix
• L and U represent strictly lower and upper triangular matrices
• Facilitates derivation of iteration formula and convergence analysis

Iteration matrix

• Defined as $G = D^{-1}(L + U)$
• Determines convergence rate and behavior of Jacobi method
• Spectral radius of G must be less than 1 for convergence
• Eigenvalues of G provide insight into convergence characteristics

Algorithm implementation

• Translates mathematical concepts into practical computational procedures
• Focuses on efficient and accurate implementation of Jacobi method
• Crucial for applying method to real-world problems in Numerical Analysis II

Initial guess selection

• Often uses zero vector or random values as starting point
• Can incorporate problem-specific knowledge for better initial approximation
• Impacts convergence speed and number of iterations required
• May employ techniques like extrapolation from previous solutions in time-dependent problems

Iteration formula

• Updates solution vector x using formula $x^{(k+1)} = D^{-1}(b - (L + U)x^{(k)})$
• Computes each component independently based on previous iteration values
• Allows for easy parallelization of computations
• Can be optimized for specific matrix structures or sparsity patterns

Stopping conditions

• Implements relative error criterion $\frac{||x^{(k+1)} - x^{(k)}||}{||x^{(k+1)}||} < \epsilon$
• Uses maximum number of iterations as safeguard against non-convergence
• May incorporate residual-based criteria $||Ax^{(k)} - b|| < \delta$
• Balances accuracy requirements with computational efficiency

Convergence analysis

• Essential for understanding behavior and reliability of Jacobi method
• Provides theoretical foundation for method's applicability in various scenarios
• Guides selection of parameters and stopping criteria in practical implementations

Spectral radius condition

• Requires spectral radius ρ(G) < 1 for convergence
• Relates to eigenvalues of iteration matrix G
• Determines whether method will converge for given matrix A
• Can be estimated using matrix norms or power iteration techniques

Rate of convergence

• Asymptotic rate given by -log(ρ(G))
• Faster convergence for smaller spectral radius values
• Influenced by matrix properties like condition number and eigenvalue distribution
• Can be improved through preconditioning or acceleration techniques

Error estimation

• Bounds error using inequality $||x^{(k)} - x^*|| ≤ \frac{ρ(G)^k}{1 - ρ(G)}||x^{(1)} - x^{(0)}||$
• Provides a priori estimate of iterations required for desired accuracy
• Helps in comparing Jacobi method with other iterative solvers
• Can be refined using a posteriori error estimates based on residuals

Advantages and limitations

• Crucial for understanding when to apply Jacobi method in Numerical Analysis II
• Guides selection of appropriate solution techniques for specific problem types
• Informs development of hybrid or adaptive solution strategies

Parallelization potential

• Naturally parallelizable due to independent component updates
• Scales well on distributed memory systems and GPUs
• Enables efficient solution of large-scale problems
• Particularly advantageous for modern high-performance computing architectures

Jacobi vs Gauss-Seidel

• Jacobi method generally converges slower than Gauss-Seidel
• Jacobi allows for easier parallelization and vectorization
• Gauss-Seidel often requires fewer iterations for convergence
• Choice between methods depends on problem structure and computational resources

Computational complexity

• Per-iteration cost of O(n^2) for dense matrices
• Can be reduced to O(n) for sparse matrices with efficient storage schemes
• Overall complexity depends on number of iterations required for convergence
• Trade-off between per-iteration cost and convergence rate compared to direct methods

Applications in linear systems

• Demonstrates practical relevance of Jacobi method in Numerical Analysis II
• Illustrates how theoretical concepts translate to real-world problem-solving
• Provides context for understanding method's strengths and limitations

Large sparse systems

• Efficiently solves systems arising from discretization of PDEs
• Well-suited for structural analysis and finite element method applications
• Exploits sparsity patterns for reduced memory usage and computational cost
• Often combined with reordering techniques for improved convergence

Preconditioning techniques

• Applies Jacobi method as preconditioner for other iterative methods (Krylov subspace)
• Uses diagonal scaling as simple yet effective preconditioning strategy
• Improves convergence rate and stability of solution process
• Can be combined with more sophisticated preconditioners (incomplete factorizations)

Multigrid methods

• Incorporates Jacobi method as smoother in multigrid cycles
• Effectively reduces high-frequency error components on fine grids
• Complements coarse-grid corrections in V-cycles or W-cycles
• Crucial for solving large-scale elliptic PDEs efficiently

Variations and extensions

• Expands applicability of basic Jacobi method to wider range of problems
• Demonstrates flexibility and adaptability of iterative methods in Numerical Analysis II
• Provides foundation for developing more advanced solution techniques

Block Jacobi method

• Partitions matrix into blocks for improved convergence
• Updates blocks of variables simultaneously instead of individual components
• Particularly effective for systems with natural block structure
• Balances increased per-iteration cost with potential for faster convergence

Weighted Jacobi method

• Introduces relaxation parameter ω to iteration formula
• Computes weighted average of Jacobi update and current solution
• Can accelerate convergence for certain problem classes
• Requires careful selection of optimal weight parameter

Jacobi-Richardson iteration

• Combines Jacobi method with Richardson iteration
• Introduces additional parameter to control step size
• Can improve convergence rate for well-conditioned systems
• Provides framework for developing more sophisticated iterative methods

Numerical stability

• Critical for ensuring reliability and accuracy of Jacobi method in practice
• Addresses challenges arising from finite precision arithmetic in computer implementations
• Guides development of robust and stable numerical algorithms

Round-off error accumulation

• Analyzes impact of finite precision arithmetic on iteration process
• Monitors growth of round-off errors over multiple iterations
• Implements techniques like iterative refinement to mitigate error accumulation
• Considers use of extended precision arithmetic for sensitive calculations

Ill-conditioned systems

• Examines behavior of Jacobi method for matrices with high condition number
• Analyzes sensitivity of solution to small perturbations in input data
• Implements regularization techniques to improve stability
• Considers alternative methods or preconditioning for severely ill-conditioned problems

Scaling techniques

• Applies row and column scaling to improve matrix conditioning
• Normalizes diagonal elements to enhance diagonal dominance
• Implements equilibration methods to balance matrix entries
• Considers impact of scaling on convergence rate and solution accuracy

Software implementation

• Bridges gap between theoretical understanding and practical application
• Focuses on efficient and portable implementation of Jacobi method
• Crucial for leveraging modern computing architectures in Numerical Analysis II

Vectorization strategies

• Utilizes SIMD instructions for parallel processing of vector operations
• Implements loop unrolling and cache-friendly data access patterns
• Exploits compiler auto-vectorization capabilities
• Considers use of intrinsic functions for architecture-specific optimizations

Parallel computing considerations

• Implements domain decomposition for distributed memory systems
• Utilizes OpenMP for shared memory parallelism on multicore processors
• Explores GPU acceleration using CUDA or OpenCL
• Addresses load balancing and communication overhead in parallel implementations

Numerical libraries

• Leverages optimized BLAS libraries for matrix-vector operations
• Utilizes sparse matrix formats and operations from libraries like SuiteSparse
• Integrates with high-level numerical computing environments (MATLAB, NumPy)
• Considers use of specialized iterative solver libraries (PETSc, Trilinos)

Case studies and examples

• Demonstrates practical application of Jacobi method in real-world scenarios
• Reinforces understanding of method's strengths and limitations
• Provides context for selecting appropriate solution techniques in Numerical Analysis II

Engineering applications

• Solves heat conduction problems in thermal engineering
• Analyzes stress distribution in structural mechanics
• Models fluid flow in porous media for reservoir simulation
• Computes electric field distribution in electromagnetic problems

Scientific computing scenarios

• Solves discretized Poisson equations in computational physics
• Performs image reconstruction in medical imaging (CT scans)
• Analyzes network dynamics in complex systems
• Computes steady-state solutions in chemical reaction networks

Performance benchmarks

• Compares Jacobi method against direct solvers for various problem sizes
• Analyzes scalability on different parallel computing architectures
• Evaluates impact of preconditioning on convergence and overall performance
• Compares Jacobi method with other iterative methods (Gauss-Seidel, SOR) for specific problem classes
