1.6 Stiff differential equations
7 min read•august 21, 2024
Stiff differential equations pose unique challenges in numerical analysis, requiring specialized methods for efficient and accurate solutions. These equations arise when systems exhibit multiple time scales or widely varying rates of change, often leading to stability issues with standard numerical techniques.
Solving stiff equations demands a delicate balance between stability and accuracy. Implicit methods, like and certain Runge-Kutta schemes, offer better stability for stiff problems. Adaptive step size control and specialized solvers help manage the computational complexities inherent in these challenging systems.
Concept of stiffness
- Stiffness arises in differential equations when systems exhibit multiple time scales or widely varying rates of change
- Numerical methods for solving stiff equations require special considerations to maintain stability and accuracy
- Stiff problems frequently occur in real-world applications, making their efficient solution crucial in numerical analysis
Characteristics of stiff systems
Top images from around the web for Characteristics of stiff systems

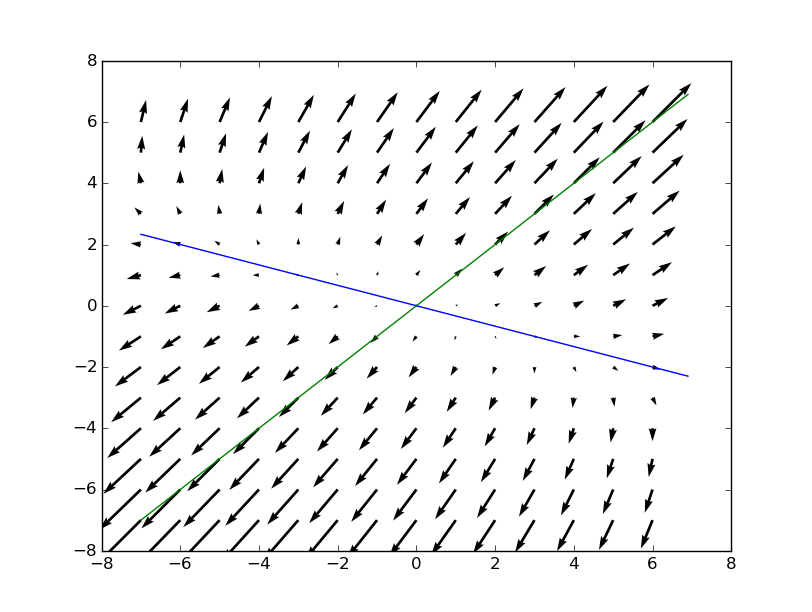

differential equations - How to interpret complex eigenvectors of the Jacobian matrix of a ... View original
Is this image relevant?
Frontiers | Numerical Solutions of Quantum Mechanical Eigenvalue Problems View original
Is this image relevant?
differential equations - How to interpret complex eigenvectors of the Jacobian matrix of a ... View original
Is this image relevant?
Frontiers | Numerical Solutions of Quantum Mechanical Eigenvalue Problems View original
Is this image relevant?
1 of 2
Top images from around the web for Characteristics of stiff systems
differential equations - How to interpret complex eigenvectors of the Jacobian matrix of a ... View original
Is this image relevant?
Frontiers | Numerical Solutions of Quantum Mechanical Eigenvalue Problems View original
Is this image relevant?
differential equations - How to interpret complex eigenvectors of the Jacobian matrix of a ... View original
Is this image relevant?
Frontiers | Numerical Solutions of Quantum Mechanical Eigenvalue Problems View original
Is this image relevant?
1 of 2
- Presence of both rapidly decaying and slowly varying components
- Large disparity between the smallest and largest eigenvalues of the system's Jacobian matrix
- Requires extremely small step sizes for explicit methods to maintain stability
- Often involves nonlinear terms or coupling between fast and slow processes
- Can lead to numerical instability if not handled properly
Stability vs accuracy issues
- Stiff problems create a tension between numerical stability and solution accuracy
- Stability constraints often force step sizes much smaller than required for accuracy
- Implicit methods provide better stability but may sacrifice some accuracy
- Trade-off between computational efficiency and solution precision
- Requires careful selection of numerical methods to balance stability and accuracy needs
Sources of stiffness
Multiple time scales
- Occurs when a system contains processes operating at vastly different rates
- Fast transients coexist with slow, long-term behavior
- Challenges arise in capturing both rapid changes and overall system evolution
- Often seen in chemical reactions with both fast and slow reaction rates
- Atmospheric models with processes ranging from seconds to years
Large variations in eigenvalues
- Stiffness characterized by a large ratio between the largest and smallest eigenvalues
- Condition number of the Jacobian matrix indicates degree of stiffness
- Leads to rapid decay of some solution components while others change slowly
- Can result from systems with both stiff and non-stiff subsystems
- Affects the choice of numerical method and step size selection
Stability analysis
A-stability and L-stability
- ensures numerical solution remains bounded for all step sizes
- A-stable methods have stability region containing entire left half-plane
- provides additional damping for very stiff components
- L-stable methods approach zero as step size approaches infinity for test equation
- Implicit methods often possess A-stability or L-stability properties
- Backward Euler method (A-stable and L-stable)
- Trapezoidal method (A-stable but not L-stable)
Order reduction phenomenon
- Higher-order methods may exhibit reduced order of convergence for stiff problems
- Occurs when stiffness ratio is large compared to step size
- Can lead to unexpected loss of accuracy in numerical solutions
- Affects both implicit and explicit methods
- Requires careful analysis of error behavior in stiff regimes
Explicit methods limitations
Step size restrictions
- Explicit methods suffer from severe step size limitations for stiff problems
- Stability constraints force extremely small steps, even when accuracy allows larger ones
- Can lead to prohibitively long computation times for stiff systems
- Step size often determined by fastest time scale, even if not of interest
- Explicit Runge-Kutta methods particularly affected by stiffness-induced restrictions
Computational inefficiency
- Small step sizes result in a large number of function evaluations
- Increased computational cost due to numerous iterations
- May require excessive memory usage for storing intermediate results
- Often impractical for long-time integration of stiff systems
- Can lead to accumulation of round-off errors over many small steps
Implicit methods for stiff problems
Backward differentiation formulas (BDF)
- Family of implicit multi-step methods well-suited for stiff problems
- Offer good stability properties, including A-stability for lower orders
- BDF methods of order 1 to 6 commonly used in stiff solvers
- Require solution of nonlinear equations at each step
- Often solved using Newton's method or variants
- Higher-order BDF methods may suffer from order reduction in very stiff regimes
Runge-Kutta methods for stiffness
- provide excellent stability for stiff problems
- Diagonally Implicit Runge-Kutta (DIRK) methods balance efficiency and stability
- Singly Diagonally Implicit Runge-Kutta (SDIRK) methods popular for stiff ODEs
- Radau IIA and Lobatto IIIC methods offer high order and favorable stability
- Rosenbrock methods combine features of implicit RK and techniques
Specialized stiff solvers
GEAR algorithm
- Developed by C.W. Gear, pioneering method for solving stiff ODEs
- Implements variable-order, variable-step BDF methods
- Automatically selects order and step size based on local error estimates
- Utilizes predictor-corrector approach for efficiency
- Forms basis for many modern stiff ODE solvers
VODE and CVODE packages
- VODE (Variable-coefficient Ordinary Differential Equation solver)
- Fortran implementation of variable-order, variable-step BDF methods
- Handles both stiff and non-stiff problems efficiently
- CVODE (part of SUNDIALS suite)
- C implementation, modernized version of VODE
- Offers both BDF and Adams-Moulton methods
- Provides advanced features like and root-finding
Adaptive step size control
Error estimation techniques
- estimated using embedded Runge-Kutta pairs
- Richardson extrapolation used to obtain higher-order error estimates
- Predictive error estimates based on previous step behavior
- Error per unit step (EPUS) and error per step (EPS) approaches
- Careful handling of error estimates near steady-state solutions
Step size adjustment strategies
- PI (Proportional-Integral) controllers for smooth step size changes
- Safety factors applied to prevent overly aggressive step size increases
- Step size rejection and retrying for steps exceeding error tolerances
- Gustafsson's predictive controller for improved step size selection
- Consideration of problem-specific features (discontinuities, periodic behavior)
Test problems for stiff equations
Van der Pol oscillator
- Nonlinear oscillator equation with a stiffness parameter μ
- Exhibits limit cycle behavior with rapid transitions and slow evolution
- Stiffness increases with larger values of μ
- Challenges numerical methods due to its nonlinearity and varying time scales
- Useful for benchmarking stiff ODE solvers across different stiffness levels
Robertson's chemical reaction system
- Models a simple chemical reaction with widely varying reaction rates
- System of three ODEs representing concentrations of reacting species
- Exhibits both very fast initial transients and long-term slow evolution
- Stiffness ratio can exceed 10^9, making it a severe test for stiff solvers
- Often used to evaluate performance and accuracy of stiff ODE methods
Numerical stability considerations
Absolute vs relative stability
- Absolute stability ensures bounded solutions for linear test equations
- Relative stability compares numerical solution growth to exact solution
- Stiff problems often require absolute stability for all step sizes (A-stability)
- Relative stability important for capturing long-term behavior accurately
- Balance between absolute and relative stability crucial for stiff solvers
Stiff decay test equation
- Simple linear ODE: y' = λy, with λ having large negative real part
- Serves as a model problem for analyzing stability of numerical methods
- Solution decays rapidly, challenging numerical methods to capture behavior
- Used to derive stability regions for various numerical schemes
- Helps in understanding behavior of methods when applied to stiff components
Software implementation
MATLAB's ode15s and ode23s
- ode15s: variable-order, variable-step solver based on numerical differentiation formulas (NDFs)
- Suitable for stiff problems and differential-algebraic equations (DAEs)
- Offers options for Jacobian sparsity and mass matrix handling
- ode23s: low-order method based on modified Rosenbrock formula
- Efficient for mildly stiff problems or with crude error tolerances
- Single-step method, useful when frequent solution output is needed
Fortran and C++ stiff solvers
- LSODE (Livermore Solver for Ordinary Differential Equations)
- Fortran implementation of GEAR algorithm
- Handles both stiff and non-stiff problems
- RADAU5: Implicit Runge-Kutta method of order 5 based on Radau IIA formula
- DASSL: Differential-Algebraic System Solver, uses BDF methods
- Boost.Numeric.Odeint: C++ library offering various methods for stiff and non-stiff problems
Real-world applications
Chemical kinetics modeling
- Simulation of complex reaction networks with fast and slow reactions
- Combustion processes involving multiple time scales
- Atmospheric chemistry models with varying reaction rates
- Biochemical systems with enzyme kinetics and metabolic pathways
- Polymerization reactions with initiation, propagation, and termination steps
Electrical circuit simulations
- Analysis of circuits with both fast-switching components and slow-changing states
- Power electronics systems with widely varying time constants
- Modeling of transmission lines with high-frequency effects
- Semiconductor device simulations involving carrier transport and recombination
- with fast actuators and slow plant dynamics
Advanced topics
Partitioned and multirate methods
- Separate treatment of fast and slow components in partitioned systems
- Multirate methods use different time steps for different parts of the system
- Allows efficient handling of problems with localized stiffness
- Waveform relaxation methods for large-scale stiff systems
- Parareal algorithms for parallel-in-time integration of stiff ODEs
Exponential integrators for stiffness
- Incorporate exact solution of linear part of the differential equation
- Particularly effective for problems with stiff linear terms
- Exponential Runge-Kutta methods combine stability and accuracy
- Rosenbrock-type exponential integrators for nonlinear stiff problems
- Krylov subspace techniques for efficient implementation of matrix exponentials
Key Terms to Review (16)
A-stability: A-stability refers to a property of numerical methods for solving ordinary differential equations, particularly when dealing with stiff equations. A method is said to be a-stable if it can effectively handle the stiffness without producing numerical instabilities, allowing for reliable solutions over long time intervals. This characteristic is crucial in ensuring convergence and accuracy when working with stiff systems, which may have rapid changes and require careful numerical treatment.
Backward Differentiation Formulas: Backward differentiation formulas (BDF) are implicit methods used for solving ordinary differential equations, especially effective for stiff problems. These formulas calculate the solution at a new time step based on information from previous time steps, making them particularly useful in handling stiff equations where solutions can change rapidly. BDF methods provide a way to maintain stability and accuracy when traditional explicit methods may fail due to stiffness.
Chemical Kinetics: Chemical kinetics is the branch of physical chemistry that studies the rates of chemical reactions and the factors that affect them. It involves understanding how reaction conditions such as concentration, temperature, and pressure influence the speed at which reactants turn into products. This field plays a critical role in determining the mechanisms of reactions and is essential for predicting how chemical processes will behave under different conditions.
Control Systems: Control systems are mathematical models or frameworks that manage the behavior of dynamic systems by controlling inputs to achieve desired outputs. They are essential in engineering and science for maintaining stability, improving performance, and responding to changes in external conditions. Understanding control systems is crucial when dealing with stiff differential equations, as they help model systems that exhibit rapid changes and require precise adjustments.
Convergence Rate: The convergence rate refers to the speed at which a numerical method approaches its solution as the number of iterations or subdivisions increases. This concept is crucial for assessing the efficiency of algorithms in various computational contexts, as a faster convergence rate means fewer iterations are required to achieve a desired level of accuracy, impacting both performance and resource utilization.
Discretization: Discretization is the process of transforming continuous models and equations into discrete counterparts, allowing for numerical analysis and computation. By breaking down continuous domains into finite elements or intervals, it enables the application of various numerical methods to solve complex problems, including those involving differential equations and boundary conditions.
Implicit runge-kutta methods: Implicit Runge-Kutta methods are numerical techniques used to solve ordinary differential equations, particularly effective for stiff equations where standard explicit methods struggle. These methods involve formulating a system of equations that must be solved at each time step, allowing for greater stability and accuracy when dealing with rapid changes in the solution. Their ability to handle stiff systems makes them a vital tool in computational mathematics, especially in applications where precision is crucial.
L-stability: L-stability is a property of numerical methods used to solve stiff ordinary differential equations, where the method remains stable as the time step size approaches zero, particularly for problems with rapidly decaying solutions. This characteristic is crucial when dealing with stiff systems, ensuring that the numerical solution behaves appropriately without growing unbounded, even for large negative eigenvalues. L-stability also ties into convergence analysis, as it helps guarantee that the method not only remains stable but also converges to the exact solution as the time step diminishes.
Linearization: Linearization is the process of approximating a nonlinear function by a linear function at a given point. This technique helps simplify complex differential equations, making them easier to analyze and solve, especially when dealing with stiff differential equations, where rapid changes can occur in some components but not others. Linearization provides insight into the system's behavior near an equilibrium point, allowing for a more manageable representation of the underlying dynamics.
Local Truncation Error: Local truncation error is the error made in a single step of a numerical method when approximating the solution to a differential equation. It measures the difference between the exact solution and the numerical solution obtained at each step, assuming that previous steps were exact. This concept is critical for understanding how various numerical methods perform and converge as they approximate solutions to both ordinary differential equations and integrals.
Ordinary stiff equations: Ordinary stiff equations are a class of differential equations characterized by the presence of widely varying timescales in their solutions, leading to difficulties in numerical stability when using standard methods. These equations often arise in modeling chemical reactions, fluid dynamics, and other systems where rapid changes occur alongside slower dynamics. The challenge with stiff equations is that they require very small time steps for stability, making them computationally expensive to solve accurately.
Partial Stiff Equations: Partial stiff equations are a specific class of differential equations characterized by having both rapidly and slowly varying components within their solutions. This unique behavior makes them challenging to solve numerically, as standard methods may struggle to achieve accuracy without taking excessively small time steps. The stiffness arises because of significant differences in the rates at which these components change, often leading to numerical instability and requiring specialized techniques for effective resolution.
Rapid Transients: Rapid transients refer to quick changes in the behavior of a system, often observed in the context of differential equations when a solution exhibits steep gradients or sudden shifts. These phenomena are typically associated with stiff differential equations, which can lead to numerical instability if not handled properly. Understanding rapid transients is crucial for accurately modeling systems that experience abrupt changes, as they can significantly affect stability and convergence in numerical solutions.
Sensitivity Analysis: Sensitivity analysis is a technique used to determine how the variation in the output of a model can be attributed to different variations in its inputs. It helps to assess the impact of uncertainties and changes in parameters on the results of optimization problems, numerical solutions, and computational models. This analysis is crucial in various mathematical contexts, as it provides insights into how sensitive a system or solution is to changes, guiding decisions and understanding stability.
Slow dynamics: Slow dynamics refer to the behavior of systems in which changes occur gradually over time, typically in contrast to fast dynamics where changes happen rapidly. In the context of stiff differential equations, slow dynamics often emerge when there are large disparities in the rates of change among different components of a system, leading to challenges in numerical analysis and solution methods. This characteristic can complicate the numerical integration of these equations, requiring specialized approaches to ensure accuracy and stability.
Spectral Analysis: Spectral analysis is a mathematical technique used to analyze the properties of differential equations by examining the spectrum of eigenvalues and eigenvectors associated with linear operators. This approach is particularly relevant in the context of stiff differential equations, where the behavior of solutions can vary significantly across different time scales, leading to challenges in numerical solutions. By understanding the spectral properties, one can gain insights into stability and the appropriate selection of numerical methods for solving these types of equations.
