2.1 Floating-Point Arithmetic
4 min read•august 1, 2024
Floating-point arithmetic is a crucial concept in computer science, enabling representation of real numbers in binary format. It's the backbone of numerical computations, allowing for a wide range of values while balancing precision and memory usage.
Understanding floating-point arithmetic is essential for accurate scientific calculations and software development. It involves grasping standards, conversion techniques, and arithmetic operations, as well as recognizing limitations like rounding errors and issues.
Floating-point Representation
IEEE 754 Standard Components
Top images from around the web for IEEE 754 Standard Components

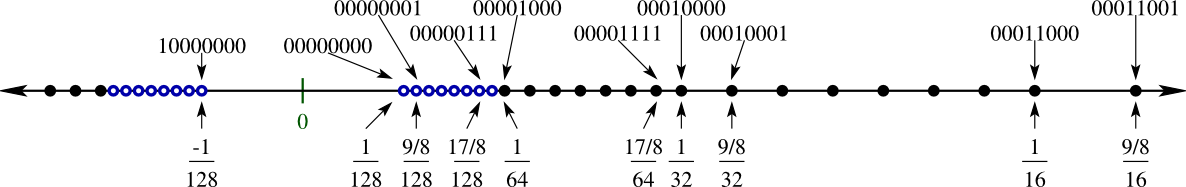

Floating-point representation View original
Is this image relevant?
IEEE 754 - Wikipedia View original
Is this image relevant?
Double-precision floating-point format - Wikipedia View original
Is this image relevant?
Floating-point representation View original
Is this image relevant?
IEEE 754 - Wikipedia View original
Is this image relevant?
1 of 3
Top images from around the web for IEEE 754 Standard Components
Floating-point representation View original
Is this image relevant?
IEEE 754 - Wikipedia View original
Is this image relevant?
Double-precision floating-point format - Wikipedia View original
Is this image relevant?
Floating-point representation View original
Is this image relevant?
IEEE 754 - Wikipedia View original
Is this image relevant?
1 of 3
- IEEE 754 standard defines binary representation for floating-point numbers
- Includes formats for (32-bit) and (64-bit) numbers
- Floating-point number structure consists of three parts
- Sign bit determines number positivity (0) or negativity (1)
- field uses biased representation for positive and negative exponents
- (mantissa) represents fractional part with implicit leading 1 for normalized numbers
- Special values in IEEE 754
- Positive and negative infinity
- Not a Number (NaN)
- Signed zero
- Standard defines rounding modes for handling numbers not exactly representable in binary floating-point format
Conversion and Representation
- Converting decimal to IEEE 754 floating-point involves several steps
- Normalizing the number
- Determining sign bit
- Calculating biased exponent
- Computing significand
- Normalization ensures binary representation has leading 1 in significand (implicit in stored format)
- Converting floating-point to decimal requires
- Extracting sign, exponent, and significand
- Performing reverse calculations to obtain decimal value
- Rounding may be necessary during conversions (decimal to floating-point and vice versa)
- concept crucial for understanding precision limits
- Difference between 1 and next representable floating-point number
- Subnormal (denormalized) numbers extend range of representable values near zero (reduced precision)
- Programming tools and functions aid in examining exact bit patterns of floating-point representations
- Useful for understanding and debugging floating-point issues
Floating-point Arithmetic
Basic Arithmetic Operations
- and subtraction of floating-point numbers require decimal point alignment
- Adjust smaller number's exponent to match larger number's exponent
- of floating-point numbers involves two steps
- Multiply significands
- Add exponents
- of floating-point numbers requires two steps
- Divide significands
- Subtract exponents
- Rounding errors can accumulate during arithmetic operations
- Potentially lead to significant inaccuracies in complex calculations (matrix operations)
- Arithmetic properties not always preserved in floating-point operations
- Associative property: (due to rounding and finite precision)
- Distributive property: (due to rounding and finite precision)
Error Minimization Techniques
- minimizes rounding errors in floating-point addition
- Useful for summing long lists of numbers (large datasets)
- techniques improve accuracy of floating-point sums
- Store and propagate rounding errors for later correction
- Fused multiply-add operations enhance precision in certain calculations
- Perform multiplication and addition in one step with a single rounding
- Arbitrary-precision arithmetic libraries provide extended precision
- Useful for applications requiring high accuracy (financial calculations)
Floating-point Limitations
Precision and Representation Issues
- Floating-point numbers have limited precision
- Lead to rounding errors and loss of significance in calculations
- occurs when number is too small for given floating-point format
- Results in loss of precision or rounding to zero (very small probabilities)
- Overflow happens when number is too large to be represented
- Typically results in infinity or largest representable number (exponential growth)
- Catastrophic cancellation occurs when subtracting nearly equal numbers
- Results in significant loss of precision (numerical instability in algorithms)
- Finite nature of floating-point representation means not all real numbers can be exactly represented
- Leads to approximation errors (irrational numbers like π)
- Comparing floating-point numbers for equality problematic due to rounding errors
- Necessitates use of tolerance-based comparisons (epsilon comparisons)
Specific Representation Challenges
- Some decimal fractions cannot be exactly represented in binary floating-point
- Leads to unexpected results in calculations (0.1 + 0.2 ≠ 0.3 exactly)
- Gradual underflow affects computations near the smallest representable numbers
- Can lead to loss of precision in iterative algorithms (numerical integration)
- Floating-point exceptions (divide by zero, invalid operation) require careful handling
- Proper exception handling prevents program crashes (robust scientific computing)
- Different hardware implementations may produce slightly different results
- Affects reproducibility of numerical simulations across platforms
Decimal vs Floating-point
Representation Differences
- Decimal arithmetic uses base-10 representation
- Accurately represents common decimal fractions (0.1, 0.01)
- Floating-point arithmetic uses base-2 representation
- Cannot exactly represent some common decimal fractions (0.1, 0.2)
- Decimal representation preserves human-readable format
- Useful for financial and monetary calculations (currency values)
- Floating-point representation optimized for computational efficiency
- Widely used in scientific and engineering applications (physics simulations)
Practical Implications
- Decimal arithmetic provides exact representation for monetary values
- Eliminates rounding errors in financial calculations (banking systems)
- Floating-point arithmetic offers wider range and faster computations
- Suitable for scientific computing and graphics rendering (3D modeling)
- Conversion between decimal and floating-point can introduce errors
- Requires careful handling in applications interfacing between the two (user input processing)
- Choice between decimal and floating-point depends on application requirements
- Consider precision needs, performance constraints, and domain-specific standards
Key Terms to Review (21)
Addition: Addition is a fundamental arithmetic operation that combines two or more numbers to produce a sum. This process is essential in floating-point arithmetic, where it involves the manipulation of real numbers represented in a limited format, considering factors like precision and rounding errors.
Compensated summation: Compensated summation is a numerical technique used to reduce the errors that can occur when adding a series of floating-point numbers, particularly when the values have vastly different magnitudes. This method involves maintaining an additional variable to store a correction term, which compensates for the loss of precision during the summation process. By adjusting the sum with this correction term, compensated summation helps improve accuracy and minimize round-off errors in calculations.
Condition Number: The condition number is a measure that quantifies the sensitivity of the output of a mathematical function to small changes in the input. A high condition number indicates that small perturbations in the input can lead to large variations in the output, which is crucial when dealing with numerical methods and their reliability. Understanding the condition number helps in assessing stability, error propagation, and the efficiency of various computational techniques.
Division: Division is a mathematical operation that involves splitting a quantity into equal parts or determining how many times one number is contained within another. In the context of floating-point arithmetic, division can lead to significant challenges due to precision errors and rounding issues, particularly when dealing with very small or very large numbers. Understanding how division operates with floating-point numbers is essential for ensuring accurate computations in numerical analysis.
Donald Knuth: Donald Knuth is an influential computer scientist known for his work in algorithms and typesetting, particularly through his multi-volume series 'The Art of Computer Programming'. His contributions extend to the development of TeX, a typesetting system that revolutionized the way mathematical and scientific documents are produced, making precision and clarity more accessible. His work has had a profound impact on the field of numerical analysis, especially in understanding and implementing floating-point arithmetic.
Double precision: Double precision refers to a computer number format that uses 64 bits to represent real numbers, allowing for greater accuracy and a wider range of values compared to single precision. This format is essential in numerical analysis as it helps to minimize rounding errors and enhance computational accuracy, especially in complex calculations that require high levels of precision.
Exponent: An exponent is a mathematical notation that indicates how many times a number, known as the base, is multiplied by itself. In floating-point arithmetic, exponents play a crucial role in representing very large or very small numbers efficiently, impacting how calculations are performed and how roundoff errors can occur during these processes.
Floating-point addition algorithm: The floating-point addition algorithm is a method used to perform arithmetic operations on numbers represented in floating-point format. This algorithm manages the differences in magnitude between numbers by aligning their exponents before performing the addition, ensuring precision and accuracy in results. It is critical for numerical computing, where operations involving very small or very large values occur frequently.
Floating-point multiplication algorithm: A floating-point multiplication algorithm is a systematic method used to perform multiplication operations on floating-point numbers, which are numbers represented in a form that can handle a wide range of values through scientific notation. This algorithm is crucial in numerical analysis because it enables efficient computations while accounting for the precision and rounding errors inherent in floating-point arithmetic. The accuracy and performance of these algorithms significantly affect the results of calculations in various scientific and engineering applications.
IEEE 754: IEEE 754 is a standard for floating-point arithmetic that defines how computers should represent and handle real numbers. It specifies the formats for representing floating-point numbers, including binary and decimal formats, along with rules for rounding, exceptions, and operations. This standard is crucial for ensuring consistency and accuracy in numerical computations across different computing systems.
John von Neumann: John von Neumann was a Hungarian-American mathematician, physicist, and computer scientist, who made foundational contributions to various fields including game theory, quantum mechanics, and computing. He is widely regarded as one of the key figures in the development of modern computing, particularly for his work on the architecture of digital computers and floating-point arithmetic.
Kahan Summation Algorithm: The Kahan Summation Algorithm is a numerical method used to reduce the error that occurs when adding a sequence of floating-point numbers. This technique addresses the issue of lost precision during floating-point arithmetic, particularly when small numbers are added to large numbers, by keeping track of a compensation term that corrects for the error. By implementing this algorithm, one can achieve more accurate results in summation operations, which is crucial for minimizing the sources of numerical errors.
Machine Epsilon: Machine epsilon is the smallest positive number that, when added to one, results in a value different from one in floating-point arithmetic. This concept is crucial for understanding how computers handle numerical calculations, as it directly relates to sources of errors, particularly roundoff errors, in numerical analysis. Recognizing machine epsilon helps in assessing the precision of computations and understanding convergence behavior in algorithms.
Multiplication: Multiplication is a mathematical operation that combines two numbers to produce a product. In floating-point arithmetic, multiplication involves specific rules and considerations that help maintain precision and handle the representation of real numbers in a limited format. This operation is crucial for many calculations, as it impacts how numbers are stored and manipulated in computer systems.
Overflow: Overflow occurs when a calculation exceeds the maximum limit that can be represented within a given number format, particularly in floating-point arithmetic. When this happens, the result cannot be accurately stored, leading to incorrect values, loss of precision, or unintended behaviors in computations. This phenomenon is critical to understand, as it highlights the limitations of representing real numbers in computer systems.
Rounding Error: Rounding error refers to the difference between the actual value of a number and its rounded representation due to limitations in numerical precision. This error occurs in various computational processes and can accumulate over multiple operations, potentially leading to significant inaccuracies in results. Understanding rounding error is essential for ensuring the reliability and stability of numerical algorithms and calculations.
Significand: The significand, also known as the mantissa, is the part of a floating-point number that contains its significant digits. This component is crucial for determining the precision of the number and is combined with an exponent to represent the overall value in scientific notation. Understanding the significand helps in grasping how numerical values are stored and manipulated in computer systems, particularly in relation to precision and rounding behaviors.
Single precision: Single precision is a computer representation format for floating-point numbers that uses 32 bits to store a number. This format allows for a balance between range and precision, making it suitable for many computing applications, particularly where memory efficiency is important. In this format, the bits are divided into three sections: the sign bit, the exponent, and the fraction (or significand), enabling computers to perform arithmetic operations on real numbers.
Stability Analysis: Stability analysis refers to the study of how errors and perturbations affect the solutions of numerical methods, determining whether the computed solutions will converge to the true solution as calculations proceed. This concept is crucial in understanding how small changes, whether from roundoff errors or discretization, influence the reliability and accuracy of numerical methods across various contexts.
Truncation error: Truncation error is the difference between the exact mathematical solution and the approximation obtained using a numerical method. It arises when an infinite process is approximated by a finite one, such as using a finite number of terms in a series or stopping an iterative process before it converges fully. Understanding truncation error is essential for assessing the accuracy and stability of numerical methods across various applications.
Underflow: Underflow occurs in floating-point arithmetic when a number that is too small to be represented in the given format is rounded to zero. This phenomenon can lead to significant errors in calculations, especially when dealing with very small values or when performing operations that involve such numbers. Understanding underflow is crucial as it affects the precision and accuracy of numerical computations.
