7.3 Self-tuning regulators (STR)
5 min read•august 14, 2024
Self-tuning regulators (STRs) are systems that automatically adjust controller parameters based on observed system behavior. They're a key part of adaptive control, helping systems handle unknown or changing parameters.
STRs use a parameter estimator and controller design block to update control strategies in real-time. This makes them great for applications with nonlinear dynamics, uncertainties, or disturbances, like process control and robotics.
Self-tuning Regulators: Concept and Structure
Basic Principles and Components of STRs
Top images from around the web for Basic Principles and Components of STRs

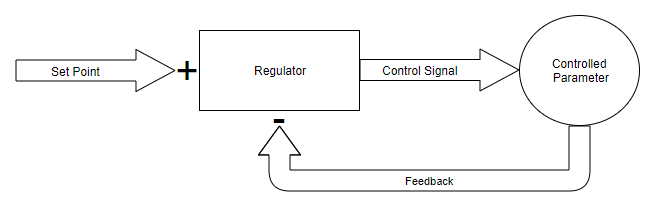

Software based PID regulators - OH-Engineering View original
Is this image relevant?
pid - Non linear control system? - Robotics Stack Exchange View original
Is this image relevant?

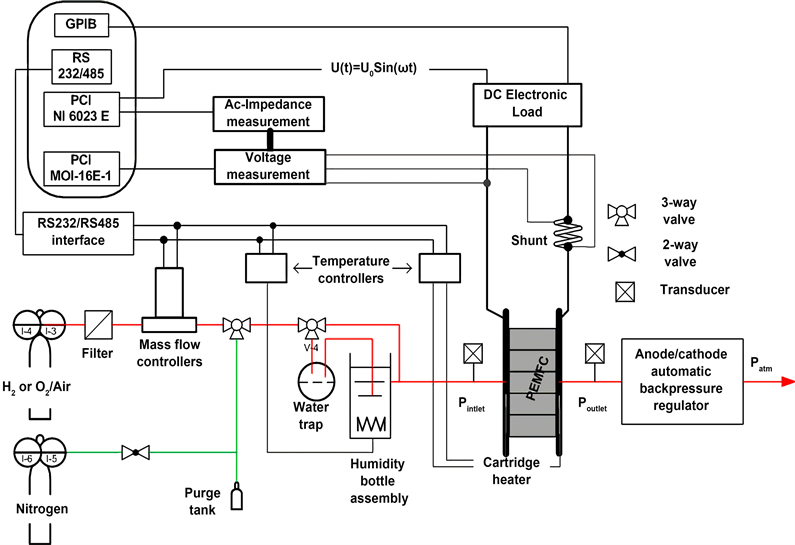

Experimental Evaluation of Parameterized Nonlinear MPC Applied to PEM Fuel Cell View original
Is this image relevant?
Software based PID regulators - OH-Engineering View original
Is this image relevant?
pid - Non linear control system? - Robotics Stack Exchange View original
Is this image relevant?
1 of 3
Top images from around the web for Basic Principles and Components of STRs
Software based PID regulators - OH-Engineering View original
Is this image relevant?
pid - Non linear control system? - Robotics Stack Exchange View original
Is this image relevant?
Experimental Evaluation of Parameterized Nonlinear MPC Applied to PEM Fuel Cell View original
Is this image relevant?
Software based PID regulators - OH-Engineering View original
Is this image relevant?
pid - Non linear control system? - Robotics Stack Exchange View original
Is this image relevant?
1 of 3
- Self-tuning regulators (STR) are adaptive control systems that automatically adjust controller parameters based on the observed behavior of the system being controlled
- The structure of an STR consists of two main components: a parameter estimator and a controller design block
- The parameter estimator recursively estimates the unknown system parameters using input-output data and an identification algorithm ( (RLS), extended least squares (ELS))
- The controller design block computes the controller parameters based on the estimated system parameters and a chosen control strategy (minimum variance control, pole placement)
Advantages and Applications of STRs
- STRs can handle systems with unknown or time-varying parameters, making them suitable for applications where the system dynamics may change over time or are not fully known a priori
- STRs provide a flexible and adaptive approach to control system design, as they can automatically tune the controller parameters to maintain desired performance
- STRs have been successfully applied in various domains, including process control, robotics, automotive systems, and power systems
- The ability of STRs to adapt to changing system conditions makes them particularly useful in applications with nonlinear dynamics, parameter uncertainties, or external disturbances
STR Algorithms for System Classes
Minimum Variance STR
- Minimum variance STR aims to minimize the variance of the system output while ensuring and satisfying control constraints
- The minimum variance control law is derived by minimizing a cost function that penalizes the deviation of the output from its desired value
- The control law is expressed in terms of the estimated system parameters and can be updated recursively as new estimates become available
- Minimum variance STR is well-suited for systems with stochastic disturbances and can provide optimal control performance in terms of output variance minimization
Pole Placement STR
- Pole placement STR allows the designer to specify the desired closed-loop pole locations, which determine the system's dynamic response characteristics
- The pole placement control law is obtained by solving a system of linear equations that relate the desired pole locations to the controller parameters
- The controller parameters are updated based on the estimated system parameters to maintain the desired closed-loop behavior
- Pole placement STR enables the designer to shape the system response by placing the closed-loop poles at desired locations in the complex plane (dominant pole, settling time)
Other STR Algorithms
- Generalized minimum variance (GMV) STR incorporates control weighting and noise models to provide a more flexible control design framework
- Linear quadratic Gaussian (LQG) STR minimizes a quadratic cost function subject to Gaussian disturbances and provides optimal control in the presence of measurement noise and process disturbances
- Adaptive pole placement with sensitivity functions allows for the specification of desired closed-loop sensitivity functions in addition to pole locations
- Robust STR algorithms, such as dead-zone modifications and parameter projection, enhance the of the control system against modeling errors and parameter uncertainties
Convergence and Robustness of STR Schemes
Convergence Analysis
- Convergence analysis of STR schemes involves studying the conditions under which the estimated parameters converge to their true values and the control performance approaches the desired behavior
- The convergence of the parameter estimator depends on factors such as the excitation condition, which ensures that the input signal is sufficiently rich to allow accurate
- The convergence of the controller design block depends on the stability and robustness of the chosen control strategy and its ability to handle estimation errors and system uncertainties
- Persistence of excitation and sufficient richness conditions are crucial for ensuring the convergence of STR schemes (input signal, frequency content)
Robustness Considerations
- Robustness analysis of STR schemes assesses their ability to maintain satisfactory performance in the presence of modeling errors, disturbances, and parameter variations
- Robust STR designs incorporate techniques such as dead-zone modifications, parameter projection, and adaptive control with guaranteed stability to enhance the robustness of the overall system
- Dead-zone modifications prevent excessive parameter adaptation in the presence of small estimation errors or noise
- Parameter projection ensures that the estimated parameters remain within a feasible region, preventing instability due to parameter drift
- Adaptive control with guaranteed stability utilizes Lyapunov-based techniques to ensure boundedness of the parameter estimates and closed-loop stability
Stability and Performance Guarantees
- Stability analysis of STR schemes involves deriving conditions that ensure the boundedness of the parameter estimates and the closed-loop system signals
- is commonly used to establish stability guarantees for STR schemes (Lyapunov function, negative definite derivative)
- Performance guarantees, such as bounded-input bounded-output (BIBO) stability and tracking error convergence, can be derived under certain assumptions on the system and the STR algorithm
- Robust stability margins, such as gain and phase margins, can be analyzed to assess the robustness of the STR scheme to modeling errors and parameter variations
STR Applications in Industrial Control
Application Process and Design Considerations
- When applying STR to a specific problem, the first step is to identify the system model structure and select an appropriate parameter estimation algorithm
- The control strategy is then chosen based on the desired performance objectives and the characteristics of the system being controlled
- Simulation studies and experimental validation are conducted to evaluate the performance of the STR scheme in terms of tracking accuracy, disturbance rejection, and robustness to uncertainties
- Practical considerations, such as sampling time, measurement noise, and actuator constraints, should be taken into account when designing and implementing STR schemes
Performance Evaluation and Comparative Analysis
- Performance metrics, such as the integral of absolute error (IAE), the integral of squared error (ISE), and the total variance, can be used to quantify the effectiveness of the STR scheme
- Comparison with other control approaches, such as fixed-gain controllers or model predictive control, can provide insights into the benefits and limitations of STR in the given application
- Robustness analysis, including Monte Carlo simulations and worst-case scenarios, helps assess the performance of the STR scheme under various operating conditions and uncertainties
- Real-time implementation aspects, such as computational complexity and memory requirements, should be considered when evaluating the feasibility of STR for a specific industrial control problem
Successful Industrial Applications
- STRs have been successfully applied in process control industries, such as chemical plants and oil refineries, for controlling variables like temperature, pressure, and flow rates
- In robotics, STRs have been used for adaptive motion control, force control, and trajectory tracking of robotic manipulators
- Automotive applications of STRs include adaptive cruise control, engine management systems, and active suspension control
- STRs have also been employed in power systems for adaptive voltage regulation, frequency control, and power quality improvement
Key Terms to Review (18)
Adaptive Control: Adaptive control is a control strategy that adjusts its parameters in real-time to cope with changes in system dynamics or uncertainties. This type of control is particularly useful for nonlinear systems where model inaccuracies and external disturbances are prevalent, ensuring that the system can maintain desired performance despite these variations.
B. A. Francis: B. A. Francis is a key figure in the development of self-tuning regulators (STR), known for his contributions to the adaptive control theory that allows systems to adjust their parameters automatically based on the changing dynamics of the process being controlled. His work emphasizes how self-tuning regulators can optimize performance in nonlinear control systems by continuously adapting to variations in system behavior, making them highly relevant for various industrial applications.
Controller tuning: Controller tuning is the process of adjusting the parameters of a control system to achieve desired performance characteristics, such as stability, responsiveness, and accuracy. This process is critical for ensuring that control systems operate effectively under various conditions. Proper tuning enhances system performance and helps minimize errors in tracking the desired output, ultimately contributing to more robust control strategies.
Fuzzy control: Fuzzy control is a control strategy that utilizes fuzzy logic to handle the uncertainties and imprecision inherent in many real-world systems. It allows for reasoning and decision-making based on vague or qualitative information rather than requiring precise mathematical models. This approach is particularly useful in environments where systems are complex, nonlinear, and difficult to model accurately, making it applicable in adaptive and intelligent control systems.
Gain Scheduling: Gain scheduling is a control strategy that adjusts the controller parameters based on the operating conditions or state of a nonlinear system. By modifying the controller gains according to specific ranges of system behavior, gain scheduling improves performance across various operational scenarios. This approach is particularly useful for handling the nonlinearity in systems that behave differently under varying conditions.
Kalman Filter: The Kalman Filter is an optimal recursive algorithm used for estimating the state of a dynamic system from a series of noisy measurements. It combines predictions from a system model with observed data to produce estimates that minimize the mean of the squared errors, effectively providing a means to filter out noise and enhance accuracy in state estimation. This powerful technique is vital in various fields, connecting seamlessly with adaptive control methods, robust control strategies, and observer design principles.
Lyapunov Stability Theory: Lyapunov Stability Theory is a mathematical framework used to analyze the stability of dynamical systems, focusing on determining whether the solutions of a system will remain close to an equilibrium point over time. This theory is essential for understanding the behavior of nonlinear systems, as it provides tools to establish conditions under which these systems exhibit stability, and connects with methods for designing adaptive control strategies and observers.
MIT Rule: The MIT Rule, or Minimum Information Theorem, is a principle used in control systems to guide the design of adaptive controllers, particularly in relation to parameter estimation. This rule emphasizes using the least amount of information necessary to achieve a desired performance, which is crucial for creating efficient algorithms that adjust parameters in real-time as system dynamics change.
Model Reference Adaptive Control: Model Reference Adaptive Control (MRAC) is a control strategy that uses a reference model to dictate the desired behavior of a system, adjusting the control parameters in real-time to minimize the difference between the actual system output and the output of the reference model. This approach is particularly useful in scenarios where system dynamics are uncertain or vary over time, allowing for improved performance by continuously adapting to changes. MRAC is closely related to self-tuning regulators and finds practical applications in complex systems like aerospace and automotive control.
Parameter Estimation: Parameter estimation refers to the process of determining the parameters of a mathematical model that best fit the observed data. This is crucial for the development and implementation of control strategies, enabling systems to adapt and respond effectively to varying conditions by continuously refining model parameters based on performance feedback.
PID Control: PID control, or Proportional-Integral-Derivative control, is a widely used control loop feedback mechanism that adjusts the output of a system based on the difference between a desired setpoint and a measured process variable. This method combines three control actions: proportional, integral, and derivative, to improve system stability and performance. The integration of these actions allows for effective handling of dynamic systems and can be extended to more complex control strategies like higher-order sliding mode control and self-tuning regulators.
Recursive Least Squares: Recursive least squares (RLS) is an adaptive filtering algorithm that recursively updates the estimates of unknown parameters in a linear model as new data becomes available. This method allows for real-time parameter estimation and adaptation by minimizing the cumulative squared error between predicted and observed values, making it especially useful for dynamic systems where conditions can change over time.
Reference model: A reference model is a theoretical framework that provides a standard for comparing and designing control systems by establishing a desired behavior or performance criteria. It acts as a benchmark that the adaptive control system aims to achieve, facilitating adjustments and modifications in real-time to match this ideal response. This concept is crucial in the design of adaptive controllers, as it defines the goals for system performance and stability.
Robotic systems: Robotic systems refer to the integration of various components, including sensors, actuators, and control algorithms, that enable machines to perform tasks autonomously or semi-autonomously. These systems are crucial for applications in manufacturing, healthcare, exploration, and many other fields, demonstrating the importance of advanced control techniques to achieve precise and reliable performance.
Robustness: Robustness refers to the ability of a system to maintain performance and stability despite uncertainties, disturbances, or variations in its parameters. This quality is essential in control systems, as it ensures that the system can adapt to changes in the environment or internal dynamics without significant degradation in performance.
Stability: Stability refers to the ability of a system to return to its equilibrium state after a disturbance. In control systems, it is crucial for ensuring that the system behaves predictably and does not diverge uncontrollably from desired performance. Various methods and concepts are used to analyze stability, including feedback mechanisms and control strategies that can shape system dynamics.
Temperature control: Temperature control refers to the process of maintaining a desired temperature within a specific environment or system, ensuring stability and comfort. This involves using sensors, controllers, and actuators to continuously monitor and adjust temperature levels, preventing fluctuations that could lead to inefficiencies or safety hazards. Effective temperature control is crucial in various applications, including industrial processes, HVAC systems, and food storage.
W. M. Wonham: W. M. Wonham is a prominent figure in the field of control theory, particularly known for his contributions to self-tuning regulators and adaptive control systems. His work focuses on designing systems that can automatically adjust their parameters in response to changing conditions, enabling improved performance and stability. This adaptability is crucial in nonlinear control systems, where traditional fixed-parameter controllers may fail to maintain optimal performance under varying operating conditions.
