11.1 Fuzzy logic control systems
5 min read•august 14, 2024
control systems bridge the gap between human reasoning and machine control. They use and to handle uncertainty, allowing for more intuitive control strategies based on and natural language rules.
Unlike traditional control methods, fuzzy logic controllers can effectively manage nonlinear systems and imprecise inputs. This approach offers increased flexibility and , making it valuable for complex systems where conventional techniques may fall short.
Fuzzy Logic Control Fundamentals
Fuzzy Logic and Fuzzy Sets
Top images from around the web for Fuzzy Logic and Fuzzy Sets
Lógica difusa: función de pertenencia View original
Is this image relevant?
Design of a Fuzzy Logic Based Controller for Fluid Level Application View original
Is this image relevant?
diagrams - Drawing membership functions and fuzzy sets with LaTeX - TeX - LaTeX Stack Exchange View original
Is this image relevant?
Lógica difusa: función de pertenencia View original
Is this image relevant?
Design of a Fuzzy Logic Based Controller for Fluid Level Application View original
Is this image relevant?
1 of 3
Top images from around the web for Fuzzy Logic and Fuzzy Sets
Lógica difusa: función de pertenencia View original
Is this image relevant?
Design of a Fuzzy Logic Based Controller for Fluid Level Application View original
Is this image relevant?
diagrams - Drawing membership functions and fuzzy sets with LaTeX - TeX - LaTeX Stack Exchange View original
Is this image relevant?
Lógica difusa: función de pertenencia View original
Is this image relevant?
Design of a Fuzzy Logic Based Controller for Fluid Level Application View original
Is this image relevant?
1 of 3
- Fuzzy logic is a mathematical approach for handling uncertainty and imprecision, allowing for degrees of truth rather than just true or false
- Fuzzy sets are the foundation of fuzzy logic, representing a range of values with varying degrees of membership

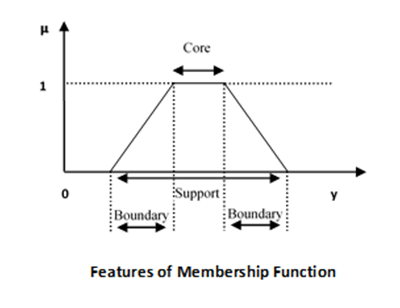

- Membership functions define the degree to which an element belongs to a fuzzy set (triangular, trapezoidal, Gaussian)
- Linguistic variables are used in fuzzy logic to describe system states and control actions using natural language terms (low, medium, high)
Fuzzy Rules and Inference
- , typically in the form of IF-THEN statements, map input fuzzy sets to output fuzzy sets, capturing expert knowledge and control strategies
- Example: IF temperature is high AND humidity is low THEN fan speed is high
- is the process of converting crisp input values into fuzzy sets using membership functions
- is the process of evaluating fuzzy rules and combining their results to determine the overall control action
- and are two common methods
- is the process of converting the fuzzy control output into a crisp value that can be applied to the system
- Methods include centroid, mean of maximum, and weighted average
Fuzzy Logic Controller Design
System Analysis and Input/Output Definition
- Identify the system inputs, outputs, and control objectives, considering the nonlinear characteristics of the system
- Example inputs: temperature, pressure, flow rate
- Example outputs: valve position, motor speed, heater power
- Define appropriate linguistic variables and their corresponding fuzzy sets for the system inputs and outputs
- Example linguistic variables: temperature (low, medium, high), valve position (closed, partially open, fully open)
Membership Functions and Rule Base Development
- Determine the number and shape of membership functions for each fuzzy set, ensuring adequate coverage of the input and output spaces
- Triangular, trapezoidal, and Gaussian membership functions are commonly used
- Develop a that captures the desired control strategy, using expert knowledge and understanding of the system dynamics
- Rules should cover all possible combinations of input fuzzy sets
- Example rule: IF error is positive large AND change in error is positive small THEN control output is positive medium
- Implement the fuzzification, fuzzy inference, and defuzzification processes in software or hardware
- Tools like MATLAB or dedicated fuzzy logic controllers can be used
Controller Tuning and Validation
- Tune the membership functions and rule base to optimize controller performance
- Consider factors such as response time, , and
- Iterative tuning may be required to achieve desired performance
- Validate the fuzzy logic controller through simulations and experimental testing
- Compare its performance to traditional control methods (PID, state-feedback)
- Ensure the controller meets the specified control objectives and performance criteria
Fuzzy Logic Control System Analysis
Stability Assessment
- Assess the closed-loop stability of the fuzzy logic control system using techniques such as or describing function methods
- Lyapunov involves finding a Lyapunov function that proves system stability
- Describing function methods approximate the nonlinear system as a linear system with a nonlinear gain
- Evaluate the robustness of the fuzzy logic controller to parameter variations, external disturbances, and modeling uncertainties
- Perform to determine the impact of parameter changes on system stability and performance
Performance Evaluation
- Analyze the transient and of the fuzzy logic control system
- Consider metrics like rise time, , overshoot, and steady-state error
- Compare the performance to the desired specifications and control objectives
- Investigate the effects of shapes, rule base complexity, and defuzzification methods on system performance and stability
- Different membership function shapes (triangular, trapezoidal, Gaussian) may impact the smoothness of the control action
- Increasing rule base complexity can improve control accuracy but may increase computational requirements
- Identify potential limitations or challenges in ensuring the stability and performance of fuzzy logic control systems
- Highly nonlinear or complex systems may require more advanced analysis techniques or
Fuzzy Logic vs Traditional Control
Handling Uncertainty and Nonlinearity
- Traditional control methods, such as PID and state-feedback control, rely on precise mathematical models and crisp input-output relationships
- These methods may struggle with highly nonlinear systems or systems with significant uncertainties
- Fuzzy logic control can handle imprecision and uncertainty through the use of fuzzy sets and linguistic rules
- It can effectively handle nonlinearities through appropriate rule design and membership function tuning
Incorporation of Expert Knowledge
- Fuzzy logic control can incorporate expert knowledge and linguistic rules, making it more intuitive and easier to understand than traditional control methods
- This allows for the capture of qualitative information and experience-based control strategies
- Traditional control methods rely on complex mathematical formulations, which may be less accessible to non-experts
- Extensive system identification and parameter estimation may be required to develop accurate models
Robustness and Adaptability
- Fuzzy logic control can be more robust to parameter variations and external disturbances compared to traditional control methods
- The use of fuzzy sets and rules allows for a degree of flexibility in handling system uncertainties
- Traditional control methods often require precise system models and may be more sensitive to modeling errors or parameter changes
- Hybrid approaches, such as fuzzy-PID or , can combine the benefits of both fuzzy logic and traditional control methods
- These approaches can leverage the robustness of fuzzy logic while incorporating the well-established performance of traditional control techniques
Computational Requirements
- Fuzzy logic control may be computationally more intensive than traditional control methods due to the fuzzification, inference, and defuzzification processes
- The computational complexity increases with the number of fuzzy sets, rules, and input/output variables
- Traditional control methods, particularly PID control, are generally less computationally demanding and can be implemented more easily on resource-constrained systems
- However, advanced control techniques like model predictive control or optimal control may have higher computational requirements
Key Terms to Review (29)
Adaptive Fuzzy Control: Adaptive fuzzy control is a type of control system that utilizes fuzzy logic principles to adjust its behavior based on changing conditions in real-time. This approach combines the flexibility of fuzzy logic with adaptive mechanisms, allowing the controller to modify its parameters and rules as the system dynamics evolve or as new information becomes available. This makes it particularly useful for systems that are complex, nonlinear, or poorly understood.
Controller tuning: Controller tuning is the process of adjusting the parameters of a control system to achieve desired performance characteristics, such as stability, responsiveness, and accuracy. This process is critical for ensuring that control systems operate effectively under various conditions. Proper tuning enhances system performance and helps minimize errors in tracking the desired output, ultimately contributing to more robust control strategies.
Defuzzification: Defuzzification is the process of converting fuzzy set outputs from a fuzzy inference system into a single, crisp output value. This step is essential in fuzzy logic control systems, where the outcomes are often represented as ranges or degrees of truth rather than precise values. By transforming these fuzzy outputs into specific values, defuzzification facilitates decision-making and control actions based on imprecise information.
Expert knowledge: Expert knowledge refers to the specialized understanding and skills that individuals acquire through extensive experience and education in a particular field. This type of knowledge is often essential in making informed decisions, particularly in complex systems where intuition may not suffice. In control systems, expert knowledge is crucial for formulating rules and heuristics that guide decision-making processes, especially when dealing with uncertain or imprecise information.
Fuzzification: Fuzzification is the process of transforming crisp input values into fuzzy sets, allowing for the representation of uncertain or imprecise information in a fuzzy logic control system. This step is crucial because it enables systems to process data in a way that mimics human reasoning, accommodating the vagueness of real-world situations. By using membership functions, fuzzification assigns degrees of membership to input values, which helps in making decisions based on fuzzy rules.
Fuzzy inference: Fuzzy inference is the process of formulating the mapping from a given input to an output using fuzzy logic, which is based on degrees of truth rather than the usual true or false (1 or 0) Boolean logic. This technique allows systems to reason about uncertain or imprecise information, enabling them to make decisions in a more human-like way. Fuzzy inference is fundamental in fuzzy logic control systems, where it translates input variables into output decisions based on a set of rules and membership functions.
Fuzzy logic: Fuzzy logic is a form of many-valued logic that deals with reasoning that is approximate rather than fixed and exact. This approach allows for a more nuanced interpretation of truth values, making it particularly useful in control systems where uncertainty and vagueness are present. By mimicking human reasoning, fuzzy logic enhances decision-making processes and enables systems to manage complex environments effectively.
Fuzzy pid controller: A fuzzy PID controller is a type of control system that combines the traditional Proportional-Integral-Derivative (PID) control approach with fuzzy logic principles. This hybrid controller uses fuzzy rules to adjust the PID parameters dynamically based on system behavior, allowing it to handle uncertainties and nonlinearities in the process being controlled more effectively than conventional PID controllers.
Fuzzy rules: Fuzzy rules are the fundamental components of fuzzy logic systems that define how inputs are mapped to outputs based on degrees of truth rather than binary true or false values. These rules typically take the form of 'IF-THEN' statements, where the antecedent and consequent can be expressed in terms of fuzzy sets, allowing for a more flexible and human-like reasoning process. This approach enables systems to handle uncertain or imprecise information effectively.
Fuzzy sets: Fuzzy sets are mathematical representations of imprecise or uncertain concepts where an element's membership is described by degrees of truth rather than a strict binary categorization. This allows for a more flexible and realistic modeling of situations in which the boundaries between categories are not clear-cut. In fuzzy logic control systems, fuzzy sets play a crucial role in handling uncertain information and facilitating decision-making processes.
Gaussian membership function: A Gaussian membership function is a type of fuzzy set representation that defines the degree of membership of elements in a fuzzy set using a bell-shaped curve based on the Gaussian distribution. This function is characterized by its mean and standard deviation, which determine the center and spread of the curve, allowing for smooth transitions between membership values. This property makes it useful in fuzzy logic control systems where it helps model uncertainty and vagueness in decision-making processes.
Hybrid control approaches: Hybrid control approaches combine different control strategies, such as continuous and discrete methods, to achieve better performance in complex systems. This concept allows for more flexible and adaptable control solutions by leveraging the strengths of various techniques, like classical control, fuzzy logic, or reinforcement learning, making it especially useful in dynamic and uncertain environments.
Linguistic variables: Linguistic variables are variables whose values are words or sentences from a natural language, rather than numerical values. In the context of fuzzy logic control systems, these variables enable the representation of imprecise concepts, allowing for a more intuitive way to model complex systems where traditional binary logic might fail. This approach facilitates the communication between humans and machines, bridging the gap between qualitative descriptions and quantitative analysis.
Lyapunov stability analysis: Lyapunov stability analysis is a method used to determine the stability of equilibrium points in dynamical systems by constructing a Lyapunov function. This function helps assess whether a system will converge to an equilibrium state or diverge away from it, thus providing insights into the system's behavior over time. It is especially significant in systems that may not have linear characteristics, making it a powerful tool in the field of control theory.
Mamdani Inference: Mamdani inference is a method used in fuzzy logic systems to derive conclusions from fuzzy rules. It involves mapping inputs through a set of fuzzy rules and then combining the results to produce a fuzzy output, which is later defuzzified to get a crisp value. This technique is especially significant in fuzzy control systems where human-like reasoning is modeled for decision-making processes.
Membership function: A membership function is a mathematical representation that defines how each element in a given set is mapped to a membership value between 0 and 1, indicating the degree of membership of that element to a fuzzy set. It plays a crucial role in fuzzy logic control systems, allowing for the handling of uncertainty and imprecision by enabling a gradual transition between membership and non-membership, rather than a strict binary approach. This concept allows for more flexible decision-making based on fuzzy rules and linguistic variables.
Nonlinearity: Nonlinearity refers to a property of a system in which the output is not directly proportional to the input, often leading to complex behavior that cannot be accurately represented by linear equations. This characteristic is crucial in various systems, as it introduces phenomena like bifurcations, chaos, and multi-stability, which significantly impact control strategies and system stability.
Overshoot: Overshoot refers to the phenomenon where a system exceeds its desired output or target value during the response to a change in input. It is often observed in control systems when a system's response oscillates around the setpoint, leading to values that temporarily exceed the intended goal. This behavior is critical in understanding system stability and performance, especially when designing controllers that must manage dynamic responses effectively.
Robustness: Robustness refers to the ability of a system to maintain performance and stability despite uncertainties, disturbances, or variations in its parameters. This quality is essential in control systems, as it ensures that the system can adapt to changes in the environment or internal dynamics without significant degradation in performance.
Rule base: A rule base is a collection of conditional statements that define how a fuzzy logic system operates, serving as the foundation for decision-making and control. It consists of a set of rules, typically in the form of 'IF-THEN' statements, that relate input variables to output actions based on fuzzy sets. This structure allows the system to handle uncertainty and imprecision in data, making it crucial for the effective functioning of fuzzy logic control systems.
Sensitivity Analysis: Sensitivity analysis is a technique used to determine how the variation in output of a model can be attributed to different variations in its inputs. This method is crucial in evaluating the robustness of a system and understanding the relationship between inputs and outputs, particularly when dealing with uncertainties in system parameters. In control systems, especially fuzzy logic control systems, sensitivity analysis helps in assessing how changes in membership functions or rules impact system performance.
Settling Time: Settling time is the duration required for a control system's response to reach and remain within a specified range of the desired output after a disturbance or change in input. This term reflects how quickly a system can stabilize after being perturbed and is critical for evaluating performance in various control strategies. A shorter settling time indicates a more responsive system, which is essential in ensuring minimal delay in achieving desired operational states across different control methodologies.
Stability Analysis: Stability analysis is the process of determining the behavior of a dynamical system in response to perturbations or changes in initial conditions. It helps identify whether a system will return to equilibrium after a disturbance, remain in that state, or diverge away from it. This analysis is crucial for designing control systems that maintain desired performance and safety in various applications.
Steady-state error: Steady-state error refers to the difference between the desired output of a control system and the actual output as time approaches infinity. This error is crucial for evaluating the accuracy and performance of control systems, as it indicates how well a system can maintain its desired output despite disturbances or changes in input. Understanding steady-state error is essential when designing controllers that aim to minimize this error across various control methodologies.
Steady-state performance: Steady-state performance refers to the behavior of a control system once it has settled into a stable operating condition, following any transient response due to initial conditions or disturbances. In this phase, the system maintains consistent output characteristics over time, which is crucial for evaluating the effectiveness and reliability of control strategies. Understanding steady-state performance helps in assessing how well a system can achieve desired goals without fluctuations or variations.
Takagi-Sugeno Inference: Takagi-Sugeno inference is a method used in fuzzy logic systems where the output of each rule is represented as a mathematical function, often linear, instead of just a fuzzy set. This approach allows for the creation of more precise and mathematically analyzable models that can better approximate complex nonlinear systems. The strength of Takagi-Sugeno inference lies in its ability to blend fuzzy reasoning with traditional mathematical modeling techniques, enabling effective decision-making in uncertain environments.
Transient performance: Transient performance refers to how a control system responds to changes in input or disturbances over time before reaching a steady state. This concept is crucial in evaluating the effectiveness of a control strategy, as it encompasses characteristics like rise time, settling time, overshoot, and steady-state error. Good transient performance ensures that a system reacts quickly and accurately to changes without excessive oscillations or delays.
Trapezoidal membership function: A trapezoidal membership function is a type of fuzzy set characterized by a trapezoidal shape, defined by four parameters: the lower and upper bounds of the set, and the points where the membership value transitions from 0 to 1 and back to 0. This function is widely used in fuzzy logic control systems because it effectively models uncertainty and imprecision in data, allowing for a smoother representation of membership than simpler triangular functions.
Triangular Membership Function: A triangular membership function is a type of fuzzy set defined by a triangular shape on a graph, representing the degree of truth as a continuous value ranging from 0 to 1. It is characterized by a lower limit, an upper limit, and a peak point where the membership degree reaches its maximum. This function is widely used in fuzzy logic control systems because it provides a simple yet effective way to model uncertainty and vagueness in decision-making processes.
