12.1 Fuzzy Relations and Compositions
6 min read•july 30, 2024
Fuzzy relations extend the concept of crisp relations to handle uncertainty. They use membership functions to represent the degree of relationship between elements. This allows for more nuanced modeling of connections between sets.
Compositions of fuzzy relations combine multiple relations to create new ones. The max-min and max-product compositions are common methods. These operations enable complex reasoning with fuzzy relationships and help analyze interconnected fuzzy systems.
Fuzzy Relations and Properties
Definition and Membership Function
Top images from around the web for Definition and Membership Function

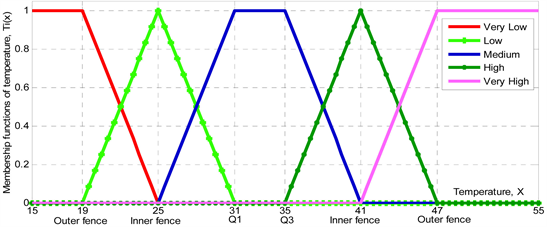

Describing Fuzzy Membership Function and Detecting the Outlier by Using Five Number Summary of Data View original
Is this image relevant?
Describing Fuzzy Membership Function and Detecting the Outlier by Using Five Number Summary of Data View original
Is this image relevant?
Lógica difusa: función de pertenencia View original
Is this image relevant?
Describing Fuzzy Membership Function and Detecting the Outlier by Using Five Number Summary of Data View original
Is this image relevant?
Describing Fuzzy Membership Function and Detecting the Outlier by Using Five Number Summary of Data View original
Is this image relevant?
1 of 3
Top images from around the web for Definition and Membership Function
Describing Fuzzy Membership Function and Detecting the Outlier by Using Five Number Summary of Data View original
Is this image relevant?
Describing Fuzzy Membership Function and Detecting the Outlier by Using Five Number Summary of Data View original
Is this image relevant?
Lógica difusa: función de pertenencia View original
Is this image relevant?
Describing Fuzzy Membership Function and Detecting the Outlier by Using Five Number Summary of Data View original
Is this image relevant?
Describing Fuzzy Membership Function and Detecting the Outlier by Using Five Number Summary of Data View original
Is this image relevant?
1 of 3
- A fuzzy relation R(X, Y) is a fuzzy set defined on the Cartesian product X × Y, where X and Y are two crisp sets
- The of R is denoted as μR(x, y), where x ∈ X and y ∈ Y
- Example: Let X = {1, 2, 3} and Y = {a, b}. A fuzzy relation R(X, Y) can be defined with membership function values μR(1, a) = 0.7, μR(1, b) = 0.4, μR(2, a) = 0.9, μR(2, b) = 0.2, μR(3, a) = 0.5, and μR(3, b) = 0.8
Properties and Inverse Relation
- The properties of fuzzy relations include , symmetry, and , which are extensions of the corresponding properties of crisp relations
- A fuzzy relation R on a set X is reflexive if and only if μR(x, x) = 1 for all x ∈ X
- A fuzzy relation R on sets X and Y is symmetric if and only if μR(x, y) = μR(y, x) for all x ∈ X and y ∈ Y
- A fuzzy relation R on a set X is transitive if and only if μR(x, z) ≥ max_y min(μR(x, y), μR(y, z)) for all x, y, z ∈ X
- The inverse of a fuzzy relation R(X, Y) is a fuzzy relation R^(-1)(Y, X) with membership function μR^(-1)(y, x) = μR(x, y) for all x ∈ X and y ∈ Y
- Example: If R(X, Y) has membership function values μR(1, a) = 0.7, μR(1, b) = 0.4, μR(2, a) = 0.9, μR(2, b) = 0.2, μR(3, a) = 0.5, and μR(3, b) = 0.8, then the inverse relation R^(-1)(Y, X) has membership function values μR^(-1)(a, 1) = 0.7, μR^(-1)(b, 1) = 0.4, μR^(-1)(a, 2) = 0.9, μR^(-1)(b, 2) = 0.2, μR^(-1)(a, 3) = 0.5, and μR^(-1)(b, 3) = 0.8
Fuzzy Set Operations for Relations
Union, Intersection, and Complement
- Fuzzy set operations, such as union, intersection, and complement, can be applied to fuzzy relations using the corresponding operations on their membership functions
- The union of two fuzzy relations R and S on sets X and Y is a fuzzy relation R ∪ S with membership function μ(R ∪ S)(x, y) = max(μR(x, y), μS(x, y)) for all x ∈ X and y ∈ Y
- Example: If R(X, Y) has membership function values μR(1, a) = 0.7, μR(1, b) = 0.4, μR(2, a) = 0.9, μR(2, b) = 0.2, and S(X, Y) has membership function values μS(1, a) = 0.5, μS(1, b) = 0.8, μS(2, a) = 0.3, μS(2, b) = 0.6, then the union R ∪ S has membership function values μ(R ∪ S)(1, a) = 0.7, μ(R ∪ S)(1, b) = 0.8, μ(R ∪ S)(2, a) = 0.9, μ(R ∪ S)(2, b) = 0.6
- The intersection of two fuzzy relations R and S on sets X and Y is a fuzzy relation R ∩ S with membership function μ(R ∩ S)(x, y) = min(μR(x, y), μS(x, y)) for all x ∈ X and y ∈ Y
- Example: Using the same fuzzy relations R and S from the previous example, the intersection R ∩ S has membership function values μ(R ∩ S)(1, a) = 0.5, μ(R ∩ S)(1, b) = 0.4, μ(R ∩ S)(2, a) = 0.3, μ(R ∩ S)(2, b) = 0.2
- The complement of a fuzzy relation R on sets X and Y is a fuzzy relation ¬R with membership function μ(¬R)(x, y) = 1 - μR(x, y) for all x ∈ X and y ∈ Y
- Example: If R(X, Y) has membership function values μR(1, a) = 0.7, μR(1, b) = 0.4, μR(2, a) = 0.9, μR(2, b) = 0.2, then the complement ¬R has membership function values μ(¬R)(1, a) = 0.3, μ(¬R)(1, b) = 0.6, μ(¬R)(2, a) = 0.1, μ(¬R)(2, b) = 0.8
Composition of Fuzzy Relations
Max-Min and Max-Product Composition
- The composition of two fuzzy relations R(X, Y) and S(Y, Z) is a fuzzy relation T(X, Z) that represents the combined effect of R and S
- The max-min composition (also known as the sup-min composition) of R and S is denoted as R ∘ S, with membership function μ(R ∘ S)(x, z) = max_y min(μR(x, y), μS(y, z)) for all x ∈ X, y ∈ Y, and z ∈ Z
- Example: Let R(X, Y) have membership function values μR(1, a) = 0.7, μR(1, b) = 0.4, μR(2, a) = 0.9, μR(2, b) = 0.2, and S(Y, Z) have membership function values μS(a, c) = 0.6, μS(a, d) = 0.8, μS(b, c) = 0.5, μS(b, d) = 0.3. The max-min composition R ∘ S has membership function values μ(R ∘ S)(1, c) = 0.6, μ(R ∘ S)(1, d) = 0.7, μ(R ∘ S)(2, c) = 0.6, μ(R ∘ S)(2, d) = 0.8
- The of R and S is denoted as R ⋄ S, with membership function μ(R ⋄ S)(x, z) = max_y(μR(x, y) · μS(y, z)) for all x ∈ X, y ∈ Y, and z ∈ Z
- Example: Using the same fuzzy relations R and S from the previous example, the max-product composition R ⋄ S has membership function values μ(R ⋄ S)(1, c) = 0.42, μ(R ⋄ S)(1, d) = 0.56, μ(R ⋄ S)(2, c) = 0.54, μ(R ⋄ S)(2, d) = 0.72
Other Types of Composition
- Other types of fuzzy relation compositions include the min-max composition and the min-product composition
- The min-max composition of R and S is denoted as R ⊙ S, with membership function μ(R ⊙ S)(x, z) = min_y max(μR(x, y), μS(y, z)) for all x ∈ X, y ∈ Y, and z ∈ Z
- The min-product composition of R and S is denoted as R ⊗ S, with membership function μ(R ⊗ S)(x, z) = min_y(μR(x, y) · μS(y, z)) for all x ∈ X, y ∈ Y, and z ∈ Z
Properties of Fuzzy Relation Compositions
Associativity and Distributivity
- The properties of fuzzy relation compositions, such as associativity, distributivity, and idempotence, can be analyzed to understand the behavior of the composed relations
- The max-min composition is associative, i.e., (R ∘ S) ∘ T = R ∘ (S ∘ T) for fuzzy relations R(X, Y), S(Y, Z), and T(Z, W)
- Example: Let R(X, Y), S(Y, Z), and T(Z, W) be fuzzy relations. The associative property ensures that the order of composition does not affect the result, i.e., (R ∘ S) ∘ T and R ∘ (S ∘ T) yield the same fuzzy relation
- The max-min composition is distributive over union, i.e., R ∘ (S ∪ T) = (R ∘ S) ∪ (R ∘ T) and (S ∪ T) ∘ R = (S ∘ R) ∪ (T ∘ R) for fuzzy relations R(X, Y), S(Y, Z), and T(Y, Z)
- Example: Let R(X, Y), S(Y, Z), and T(Y, Z) be fuzzy relations. The distributive property allows the composition to be distributed over the union operation, simplifying the calculation of the composed relation
Idempotence and Simplification
- A fuzzy relation R(X, X) is idempotent under max-min composition if and only if R ∘ R = R
- Example: If R(X, X) is an idempotent fuzzy relation, then composing R with itself using max-min composition yields the same relation R
- The properties of fuzzy relation compositions can be used to simplify calculations and reason about the relationships between fuzzy sets
- Example: When dealing with complex fuzzy relations, the associative, distributive, and idempotent properties can be applied to reduce the number of computations required and to derive insights about the relationships between the involved fuzzy sets
