X-ray diffraction is a powerful technique for determining the atomic structure of crystals. It uses X-rays to scatter off atoms, creating patterns that reveal how they're arranged. This method is crucial in nanobiotechnology for studying biomolecules and nanomaterials.
Understanding X-ray diffraction starts with electromagnetic radiation basics and . These principles explain how X-rays interact with matter and the conditions for diffraction. Various techniques like powder and single-crystal diffraction are used, each with specific applications in nanobiotechnology.
Principles of X-ray diffraction
X-ray diffraction is a powerful analytical technique used to determine the atomic and molecular structure of crystalline materials, including biological macromolecules and nanomaterials
The principles of X-ray diffraction are based on the interaction of electromagnetic radiation with matter, specifically the scattering of X-rays by the electron clouds surrounding atoms in a crystal lattice
Understanding the fundamentals of X-ray diffraction is crucial for its application in nanobiotechnology, as it enables the characterization of biomolecules and nanomaterials at the atomic level
Electromagnetic radiation fundamentals
Top images from around the web for Electromagnetic radiation fundamentals
16.5 The Electromagnetic Spectrum – University Physics Volume 2 View original

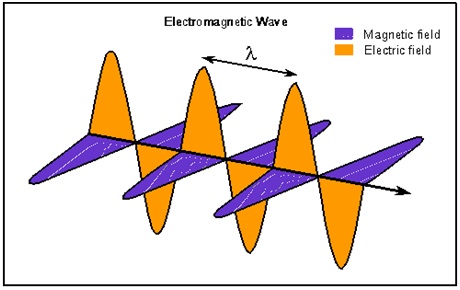

Electromagnetic radiation consists of oscillating electric and magnetic fields that propagate through space as waves
X-rays are a form of electromagnetic radiation with wavelengths ranging from 0.01 to 10 nanometers, positioned between ultraviolet light and gamma rays in the electromagnetic spectrum
The properties of X-rays, such as their short wavelength and high energy, make them suitable for probing the atomic structure of materials
Wavelength vs photon energy
The energy of a photon is inversely proportional to its wavelength, as described by the equation E=hc/λ, where E is the photon energy, h is Planck's constant, c is the speed of light, and λ is the wavelength
X-rays used in diffraction experiments typically have energies ranging from a few keV to tens of keV, corresponding to wavelengths of a few angstroms (0.1 nm)
The choice of X-ray wavelength depends on the size of the and the desired resolution of the diffraction data
Interaction of X-rays with matter
When X-rays interact with matter, they can be absorbed, transmitted, or scattered by the atoms in the material
Scattering occurs when X-rays interact with the electron clouds surrounding the atoms, causing the electrons to oscillate and emit secondary X-rays in various directions
The intensity and direction of the scattered X-rays depend on the arrangement of atoms in the crystal lattice and the electron density distribution within the unit cell
Bragg's law
Bragg's law is a fundamental principle in X-ray diffraction that describes the conditions necessary for constructive interference of scattered X-rays, leading to the formation of diffraction patterns
The law relates the wavelength of the X-rays, the spacing between lattice planes, and the angle at which constructive interference occurs
Bragg's law is essential for interpreting X-ray diffraction data and determining the crystal structure of materials
Derivation of Bragg's equation
Bragg's equation is derived by considering the path difference between X-rays scattered from adjacent lattice planes
For constructive interference to occur, the path difference must be an integer multiple of the X-ray wavelength
The equation is expressed as nλ=2dsinθ, where n is an integer (order of reflection), λ is the X-ray wavelength, d is the spacing between lattice planes, and θ is the angle of incidence and reflection
Lattice planes and Miller indices
Lattice planes are imaginary planes that pass through the points of a crystal lattice, describing the periodic arrangement of atoms in the crystal
Miller indices (hkl) are a notation system used to identify lattice planes and their orientations within a crystal
The spacing between lattice planes () is related to the unit cell parameters and the Miller indices, and can be calculated using the formula specific to each crystal system
Relationship between wavelength, lattice spacing, and diffraction angle
Bragg's law establishes a relationship between the X-ray wavelength (λ), the lattice plane spacing (d), and the (θ)
For a given X-ray wavelength, the diffraction angle increases as the lattice spacing decreases, and vice versa
By measuring the diffraction angles and knowing the X-ray wavelength, the lattice spacings can be calculated, providing information about the size and shape of the unit cell
X-ray diffraction techniques
Various X-ray diffraction techniques have been developed to suit different sample types, experimental requirements, and desired information
The choice of technique depends on factors such as sample crystallinity, available instrumentation, and the level of structural detail needed
Each technique has its advantages and limitations, and often a combination of techniques is used to obtain a comprehensive understanding of the material's structure
Powder X-ray diffraction
Powder X-ray diffraction (PXRD) is used to analyze polycrystalline or powdered samples, where many small crystals are randomly oriented
PXRD provides information about the phase composition, crystallinity, and average structural properties of the sample
The diffraction pattern appears as a series of concentric rings, with each ring corresponding to a specific lattice plane (hkl)
Single-crystal X-ray diffraction
Single-crystal X-ray diffraction (SCXRD) is used to determine the complete three-dimensional structure of a single crystal
SCXRD provides high-resolution data, enabling the determination of atomic positions, bond lengths, and bond angles within the unit cell
The diffraction pattern consists of discrete spots, each representing a unique reflection from a specific lattice plane
Laue method
The Laue method uses a polychromatic X-ray beam (a mixture of wavelengths) to obtain diffraction patterns from single crystals
This method is useful for quickly determining the orientation of a crystal and assessing its quality before performing a full data collection
Laue patterns are complex and require specialized software for indexing and analysis
Rotating crystal method
The rotating crystal method, also known as the oscillation method, is a common technique for collecting single-crystal X-ray diffraction data
The crystal is mounted on a goniometer and rotated step-wise around an axis perpendicular to the X-ray beam, with diffraction images recorded at each step
This method allows for the collection of a complete dataset, which is then processed to determine the crystal structure
Crystallographic data analysis
Crystallographic data analysis involves processing the collected X-ray diffraction data to determine the atomic structure of the material
This process includes several steps, such as indexing, integration, scaling, phasing, and refinement
Specialized software packages (MOSFLM, XDS, SHELX, PHENIX) are used to handle the complex mathematical and computational aspects of data analysis
Reciprocal lattice and Ewald sphere
The is a mathematical construct that represents the periodic structure of a crystal in reciprocal space
Each point in the reciprocal lattice corresponds to a set of lattice planes (hkl) in the real space crystal lattice
The Ewald sphere is a geometric construction used to visualize the conditions for diffraction in reciprocal space, with its radius equal to the reciprocal of the X-ray wavelength (1/λ)
Structure factor and electron density
The structure factor (Fhkl) is a complex number that represents the amplitude and phase of the X-ray wave scattered by the atoms in the unit cell for a given reflection (hkl)
The electron density (ρ(xyz)) is a three-dimensional function that describes the distribution of electrons in the unit cell
The structure factors and electron density are related by a Fourier transform, which allows the calculation of one from the other
Phase problem and its solutions
The phase problem arises because the diffraction experiment only measures the intensities of the reflections, but not their phases, which are essential for determining the electron density
Several methods have been developed to solve the phase problem, including:
Direct methods: using statistical relationships between structure factor amplitudes to estimate phases
Molecular replacement: using the structure of a similar molecule as a starting model
Isomorphous replacement: introducing heavy atoms into the crystal and comparing diffraction patterns
Anomalous scattering: exploiting the wavelength-dependent scattering of certain atoms
Fourier synthesis and refinement
Once the phases are determined, a Fourier synthesis is performed to calculate the electron density map from the structure factors
The initial model is built into the electron density map, and the structure is refined using least-squares or maximum-likelihood methods to minimize the difference between the observed and calculated structure factors
Refinement includes adjusting atomic positions, occupancies, and temperature factors (B-factors) to improve the agreement between the model and the experimental data
Applications in nanobiotechnology
X-ray diffraction has numerous applications in nanobiotechnology, enabling the structural characterization of biological macromolecules and nanomaterials
The atomic-level information obtained from X-ray diffraction is crucial for understanding the function, interactions, and properties of these systems
X-ray diffraction studies in nanobiotechnology often involve a multidisciplinary approach, combining expertise from biology, chemistry, physics, and materials science
Protein crystallography
is the application of X-ray diffraction to determine the three-dimensional structure of proteins at atomic resolution
This technique has revolutionized our understanding of protein function, enzyme mechanisms, and drug-target interactions
Protein structures obtained from X-ray crystallography are deposited in the Protein Data Bank (PDB) and serve as a valuable resource for researchers worldwide
Nucleic acid structure determination
X-ray diffraction is also used to elucidate the structures of nucleic acids, such as DNA and RNA
Nucleic acid structures provide insights into the mechanisms of replication, transcription, and translation, as well as the basis for DNA-protein interactions and gene regulation
Notable examples include the double helix structure of DNA (Watson and Crick) and the various conformations of RNA (A-form, B-form, Z-form)
Nanoparticle characterization
X-ray diffraction is a powerful tool for characterizing the crystal structure, size, and shape of nanoparticles
Nanoparticles have unique properties that depend on their size and structure, making X-ray diffraction essential for their design and optimization
Examples include the characterization of metallic nanoparticles (gold, silver), semiconductor quantum dots (CdSe, InP), and metal oxide nanoparticles (TiO2, ZnO)
Biomineralization studies
Biomineralization is the process by which living organisms produce mineralized tissues, such as bones, teeth, and shells
X-ray diffraction is used to study the crystal structure and composition of these biominerals, providing insights into their formation mechanisms and mechanical properties
Examples include the characterization of hydroxyapatite in bone, calcium carbonate in mollusk shells, and silica in diatom frustules
Instrumentation and sample preparation
Advances in X-ray diffraction instrumentation and sample preparation techniques have greatly improved the quality and efficiency of data collection
Modern X-ray diffractometers are equipped with high-intensity sources, sensitive detectors, and precise goniometers, enabling the study of a wide range of samples
Proper sample preparation is crucial for obtaining high-quality diffraction data, as it affects the crystal size, morphology, and quality
X-ray sources and detectors
X-ray sources for diffraction experiments include sealed tube X-ray generators, rotating anode generators, and synchrotron radiation facilities
Sealed tube generators are the most common in laboratory settings, while synchrotrons provide high-intensity, tunable X-rays for demanding experiments
X-ray detectors have evolved from photographic films to electronic detectors, such as charge-coupled devices (CCDs) and pixel array detectors (PADs), offering improved sensitivity and dynamic range
Monochromators and collimators
Monochromators are used to select a specific wavelength from the X-ray source, reducing background scattering and improving data quality
Common monochromator crystals include graphite, silicon, and germanium, each with different reflectivity and resolution properties
Collimators are used to control the size and divergence of the X-ray beam, ensuring that it is focused on the sample and reducing unwanted scattering
Sample mounting and alignment
Proper sample mounting and alignment are essential for obtaining accurate and reproducible diffraction data
Single crystals are typically mounted on thin loops or micromeshes made of low-absorbing materials (nylon, mylar) and flash-cooled in liquid nitrogen to reduce radiation damage
Powder samples are loaded into capillaries or flat plate holders, ensuring a random distribution of crystallite orientations
Alignment procedures involve centering the sample in the X-ray beam and adjusting the goniometer angles to optimize the diffraction geometry
Low-temperature and high-pressure techniques
Low-temperature (cryogenic) techniques are commonly used in protein crystallography to mitigate radiation damage and improve data quality
Crystals are flash-cooled in liquid nitrogen or helium and maintained at 100 K or lower during data collection using a cold nitrogen gas stream or a helium cryostat
High-pressure techniques, such as diamond anvil cells, are used to study the effects of pressure on the structure and properties of materials, including proteins and nanomaterials
These techniques enable the exploration of conformational changes, phase transitions, and the stability of biomolecules and nanomaterials under extreme conditions
Limitations and challenges
Despite the power and versatility of X-ray diffraction, several limitations and challenges exist in its application to biological and nanoscale systems
These limitations can affect the quality and interpretability of the data, requiring careful experimental design and advanced data analysis techniques
Overcoming these challenges is an active area of research, driving the development of new methods and technologies in X-ray diffraction
Radiation damage to biological samples
Biological samples, particularly proteins and nucleic acids, are susceptible to radiation damage caused by the intense X-ray beams used in diffraction experiments
Radiation damage can lead to the breakage of chemical bonds, the generation of free radicals, and the aggregation or denaturation of the sample
Strategies to mitigate radiation damage include using cryogenic techniques, employing high-speed detectors, and merging data from multiple crystals
Crystallization of biomolecules
Obtaining high-quality single crystals is a major bottleneck in the structure determination of proteins and other biomolecules
Crystallization depends on numerous factors, such as the purity and concentration of the sample, the buffer composition, and the temperature and humidity of the environment
High-throughput screening methods and advanced crystallization techniques (microfluidics, lipidic cubic phase) have been developed to improve the success rate of crystallization
Resolution limits and data quality
The resolution of an X-ray diffraction experiment determines the level of detail that can be observed in the electron density map and the resulting structural model
The resolution is limited by factors such as the crystal size and quality, the X-ray source intensity, and the detector sensitivity
Improving the resolution and data quality requires optimization of the sample preparation, data collection, and data processing strategies
Interpretation of complex structures
Interpreting the electron density maps and building accurate structural models can be challenging for complex biological systems, such as large macromolecular assemblies and membrane proteins
These systems often have multiple subunits, flexible regions, and disordered segments, making it difficult to trace the polypeptide chain and assign side-chain conformations
Advances in computational methods, such as automated model building and refinement algorithms, have greatly facilitated the interpretation of complex structures
Integration of X-ray diffraction data with complementary techniques, such as cryo-electron microscopy and small-angle X-ray scattering, can provide a more comprehensive understanding of these systems
Key Terms to Review (18)
Bragg's Law: Bragg's Law is a fundamental principle in X-ray diffraction that relates the angles at which X-rays are scattered by a crystalline material to the spacing between the crystal planes. It states that constructive interference of scattered X-rays occurs when the path difference between rays reflected from adjacent crystal planes is an integer multiple of the wavelength of the incident X-rays, leading to the equation $$n\lambda = 2d\sin\theta$$. This law is crucial for determining crystal structures and understanding material properties.
Crystal Symmetry: Crystal symmetry refers to the orderly and repetitive arrangement of atoms within a crystal structure, which defines its geometric shape and properties. This concept is essential for understanding how crystals interact with X-rays, allowing scientists to determine their internal arrangements through techniques like X-ray diffraction. Symmetry in crystals helps classify them into specific systems, making it crucial for the study of materials in nanobiotechnology.
D-spacing: D-spacing refers to the distance between parallel planes of atoms in a crystalline material. This measurement is crucial in X-ray diffraction as it helps in identifying the structure of materials by providing insight into their atomic arrangement. Understanding d-spacing is essential for interpreting diffraction patterns, as it influences the angles at which X-rays are diffracted, allowing researchers to determine the crystalline properties of materials.
Diffraction angle: The diffraction angle is the angle at which waves, such as X-rays, are scattered as they pass through a crystalline material or around an obstacle. This angle is crucial for understanding the arrangement of atoms within a crystal and plays a significant role in techniques like X-ray diffraction, where the pattern of diffracted rays provides information about the material's structure.
Interplanar Spacing: Interplanar spacing refers to the distance between parallel planes of atoms in a crystal lattice. This measurement is crucial for understanding how X-ray diffraction patterns are formed, as it influences the angles at which X-rays are diffracted by the crystal structure, leading to constructive or destructive interference that produces distinctive patterns used in material analysis.
Nanomaterials characterization: Nanomaterials characterization refers to the set of techniques and methods used to analyze and understand the physical, chemical, and structural properties of nanomaterials. This process is essential because it helps in determining the effectiveness and potential applications of these materials in various fields, including medicine, electronics, and environmental science. Understanding these properties allows researchers to manipulate nanomaterials for desired functionalities, ensuring they can be integrated effectively into existing technologies or developed for new applications.
Peak intensity: Peak intensity refers to the maximum strength of the X-ray diffraction pattern, indicating how effectively X-rays are scattered by a crystalline material. This term is crucial because it provides insights into the material's structural properties and can help identify the presence of specific phases or changes in a material's crystallinity. High peak intensity often correlates with better crystallinity and a higher degree of order within the material.
Phase Identification: Phase identification is the process of determining the different phases present in a material based on its structural characteristics, often using techniques like X-ray diffraction. This process is crucial for understanding the material's properties and behavior, as each phase can exhibit unique physical and chemical attributes that influence overall performance.
Powder diffraction: Powder diffraction is a technique used to analyze the crystalline structure of materials by measuring the scattering of X-rays or neutrons off a powdered sample. This method provides valuable information about the atomic arrangement, phase identification, and crystallite size of materials, making it essential in fields like materials science and chemistry.
Protein crystallography: Protein crystallography is a scientific technique used to determine the three-dimensional structure of proteins at atomic resolution by analyzing the pattern of X-ray diffraction produced when X-rays are directed at a protein crystal. This method provides crucial insights into the protein's function, interactions, and role in biological processes, as it allows researchers to visualize the arrangement of atoms within the protein. By understanding protein structures, scientists can design drugs and therapies that target specific proteins.
Reciprocal lattice: A reciprocal lattice is a mathematical construct used in crystallography that represents the periodicity of a crystal in momentum space rather than real space. It is crucial for understanding diffraction patterns, as it helps visualize how waves, such as X-rays, interact with the crystal structure. The reciprocal lattice is defined by vectors that correspond to the periodic arrangement of the atoms in the crystal and is instrumental in determining the allowed scattering angles and conditions for constructive interference.
Rietveld Refinement: Rietveld refinement is a mathematical technique used to extract precise structural information from X-ray or neutron diffraction data, particularly for crystalline materials. It enables the simultaneous refinement of multiple parameters in a model, such as atomic positions and thermal vibrations, providing a comprehensive understanding of the crystal structure. This method is crucial for analyzing complex materials and enhances the accuracy of structural determinations.
Single crystal diffraction: Single crystal diffraction is a technique used to determine the atomic and molecular structure of a crystalline material by analyzing the pattern of X-rays scattered by the crystal. This method is essential for revealing how atoms are arranged in a crystal lattice and provides insights into the material's properties, making it a key tool in material science and structural biology.
Structural Analysis: Structural analysis is the process of determining the arrangement and relationships between the different parts of a material or biological structure at a molecular or atomic level. This technique provides insights into how the structure affects the function of a material or biological system, making it essential for applications in fields like nanobiotechnology, where understanding molecular interactions can lead to advancements in drug delivery and material design.
Unit cell: A unit cell is the smallest repeating unit in a crystal lattice that, when stacked together with other identical units, forms the entire crystal structure. It defines the symmetry, dimensions, and arrangement of atoms within the crystal, making it crucial for understanding the material's properties and behaviors, especially in fields like nanobiotechnology and materials science.
William Henry Bragg: William Henry Bragg was an English physicist and chemist known for his pioneering work in X-ray crystallography, which laid the groundwork for understanding atomic structures and crystal formations. He, along with his son William Lawrence Bragg, developed the Bragg's Law of diffraction, which describes how X-rays interact with crystal lattices, allowing scientists to determine the arrangement of atoms within a crystal.
William Lawrence Bragg: William Lawrence Bragg was a renowned physicist who, alongside his father, developed the technique of X-ray diffraction, which is crucial for understanding the structure of crystalline materials. His work laid the foundation for the field of crystallography, providing essential insights into molecular structures and significantly impacting the study of materials at the atomic level.
X-ray fluorescence: X-ray fluorescence (XRF) is an analytical technique used to determine the elemental composition of materials by measuring the characteristic X-rays emitted from a sample when it is excited by high-energy X-rays or gamma rays. This method is particularly useful for identifying the presence and concentration of various elements in complex samples, making it a valuable tool in fields like materials science and environmental analysis.
