3.5 Tangent Planes and Linear Approximations

2 min read•july 25, 2024

Tangent planes and linear approximations are powerful tools for understanding surfaces in 3D space. They allow us to simplify complex shapes by finding the best-fitting flat surface at a specific point, making calculations and predictions easier.

These concepts extend our knowledge of derivatives to multiple dimensions. By using partial derivatives, we can approximate function values, find normal lines, and make linear estimates for multivariable functions, all crucial skills in various fields.

Tangent Planes and Linear Approximations

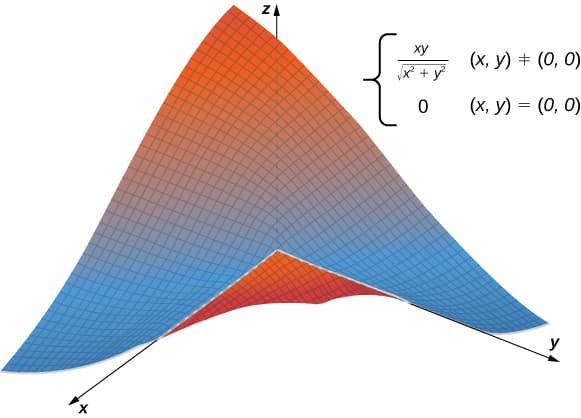

Tangent plane equation for surfaces

Top images from around the web for Tangent plane equation for surfaces

  • Tangent Planes and Linear Approximations · Calculus View original

    Is this image relevant?

  • Multivariable Calculus - Wikiversity View original

    Is this image relevant?

  • Tangent Planes and Linear Approximations · Calculus View original

    Is this image relevant?

1 of 3

Top images from around the web for Tangent plane equation for surfaces

  • Tangent Planes and Linear Approximations · Calculus View original

    Is this image relevant?

  • Multivariable Calculus - Wikiversity View original

    Is this image relevant?

  • Tangent Planes and Linear Approximations · Calculus View original

    Is this image relevant?

1 of 3
  • touches surface at single point and provides best near that point (sphere tangent to plane)
  • Components for include (x0,y0,z0)(x_0, y_0, z_0) and partial derivatives fx(x0,y0)f_x(x_0, y_0) and fy(x0,y0)f_y(x_0, y_0)
  • General form of tangent plane equation: z−z0=fx(x0,y0)(x−x0)+fy(x0,y0)(y−y0)z - z_0 = f_x(x_0, y_0)(x - x_0) + f_y(x_0, y_0)(y - y_0)
  • Calculate partial derivatives at point of tangency using techniques like power rule or chain rule
  • Substitute calculated values into tangent plane equation for specific surface and point

Function approximation using tangent planes

  • Tangent plane serves as of surface, most accurate near point of tangency (estimating height on topographic map)
  • Apply tangent plane equation for approximation using point of interest (x,y)(x, y)
  • Estimate function value: f(x,y)≈f(x0,y0)+fx(x0,y0)(x−x0)+fy(x0,y0)(y−y0)f(x, y) \approx f(x_0, y_0) + f_x(x_0, y_0)(x - x_0) + f_y(x_0, y_0)(y - y_0)
  • Assess approximation accuracy by considering distance from point of tangency (closer points yield better estimates)

Normal lines to surfaces

  • perpendicular to tangent plane at point of tangency (plumb line on building)
  • Components for include point of tangency (x0,y0,z0)(x_0, y_0, z_0) and ⟨fx(x0,y0),fy(x0,y0),−1⟩\langle f_x(x_0, y_0), f_y(x_0, y_0), -1 \rangle
  • : x=x0+tfx(x0,y0)x = x_0 + tf_x(x_0, y_0) y=y0+tfy(x0,y0)y = y_0 + tf_y(x_0, y_0) z=z0−tz = z_0 - t
  • Calculate direction vector using partial derivatives evaluated at point of tangency
  • Substitute computed values into normal line equations for specific surface and point

Linear approximations for multivariable functions

  • Multivariable linear approximation extends single-variable concept to functions of several variables (economic modeling)
  • Components include base point (x0,y0,z0)(x_0, y_0, z_0), function value f(x0,y0,z0)f(x_0, y_0, z_0), and partial derivatives at base point
  • Linear approximation formula: f(x,y,z)≈f(x0,y0,z0)+fx(x0,y0,z0)(x−x0)+fy(x0,y0,z0)(y−y0)+fz(x0,y0,z0)(z−z0)f(x, y, z) \approx f(x_0, y_0, z_0) + f_x(x_0, y_0, z_0)(x - x_0) + f_y(x_0, y_0, z_0)(y - y_0) + f_z(x_0, y_0, z_0)(z - z_0)
  • Calculate partial derivatives at base point using appropriate differentiation techniques
  • Substitute values into formula and evaluate for points near base point
  • Accuracy of approximation decreases as distance from base point increases (climate predictions)

Key Terms to Review (18)

Approximating Surface Behavior: Approximating surface behavior refers to the process of using linear approximations, specifically tangent planes, to estimate how a surface behaves near a given point. By utilizing the tangent plane at that point, one can simplify complex surfaces to linear functions, making it easier to analyze and understand their properties in a localized area. This technique is essential for understanding gradients, directional derivatives, and the overall geometry of multivariable functions.
Differentiability: Differentiability refers to the property of a function that allows it to have a well-defined tangent plane at a point, indicating that the function can be locally approximated by a linear function. This concept is crucial when dealing with functions of several variables, as it ensures that small changes in input result in small changes in output, thus enabling the use of calculus tools such as gradients and directional derivatives. Understanding differentiability also plays a key role in transforming variables in multiple integrals, facilitating more complex calculations and analyses.
Direction Vector: A direction vector is a vector that indicates the direction of a line or path in space. It is typically expressed in terms of its components along the coordinate axes and is crucial for describing lines and planes in a three-dimensional setting. Understanding direction vectors allows for the formulation of equations that represent lines and helps in determining tangent planes to surfaces.
Error Estimation: Error estimation refers to the process of quantifying the uncertainty or discrepancy between a true value and its approximation. In relation to tangent planes and linear approximations, it helps us understand how well our linear models represent the actual surface of a function near a given point. By assessing the error, we can gauge the reliability of our approximations and make informed decisions about their use in calculations.
Evaluating at a point: Evaluating at a point means finding the value of a function or an expression by substituting specific values for its variables. This process is essential in understanding how functions behave at particular locations, and it connects deeply with concepts such as continuity, limits, and derivatives. In the context of linear approximations, this technique helps in estimating the value of a function near a given point by using tangent lines.
Gradient vector: The gradient vector is a vector that represents the direction and rate of the steepest ascent of a scalar function. It combines all the partial derivatives of a function into a single vector, which can help in understanding how changes in multiple variables affect the function's output. This concept connects to various aspects, such as how tangent planes approximate surfaces and how directional derivatives provide insight into changing functions along specific paths.
Linear Approximation: Linear approximation is a method used to estimate the value of a multivariable function near a specific point using its tangent plane. It provides a way to approximate the function's behavior around the point $(x_0, y_0, z_0)$ by employing the function's value and its partial derivatives at that point, allowing for simpler calculations when dealing with complex functions.
Local Approximation: Local approximation refers to the process of estimating the value of a function near a specific point using simpler linear functions, typically through tangent lines or planes. This concept relies on the idea that a function can be closely modeled by its tangent at a nearby point, allowing for easier calculations and insights into the function's behavior. Local approximation is crucial for understanding how small changes in input can affect outputs in multivariable settings, where complexity increases.
Local linearity: Local linearity refers to the property of a function that behaves like a linear function in a small neighborhood around a point. In the context of multivariable calculus, this concept is crucial because it helps us understand how functions can be approximated by tangent planes at specific points, which is key for understanding changes in behavior near those points.
Normal Line: A normal line is a line that is perpendicular to a surface at a given point. In the context of calculus, it relates to how we understand curves and surfaces, especially when exploring tangent planes and linear approximations. The normal line helps us analyze the behavior of functions in multivariable settings, giving insight into their geometry and offering a method for estimating distances and angles between various features of a surface.
Normal Line Equation: The normal line equation describes a line that is perpendicular to a surface at a given point. In the context of functions of multiple variables, it helps in understanding the geometric properties of surfaces and their interactions with tangent planes, providing insight into rates of change and optimization.
Parametric Equations of Normal Line: Parametric equations of the normal line represent the set of equations that define a line perpendicular to a surface at a specific point. This concept connects to the idea of tangent planes and linear approximations, as the normal line helps in understanding the geometric properties of a surface in relation to its tangent plane at a given point.
Partial Derivative: A partial derivative is a derivative of a function of multiple variables with respect to one variable while keeping the other variables constant. This concept is essential in understanding how functions behave in higher dimensions, revealing how changes in one variable affect the function's value without interference from other variables. It plays a critical role in applications like optimization, physics, and economics, as well as in determining the behavior of surfaces and gradients.
Point of Tangency: A point of tangency is a specific point where a tangent line or plane touches a curve or surface without crossing it. This point serves as a connection between the curve and the tangent, representing where the slope of the tangent equals the slope of the curve. At this point, the tangent provides a linear approximation of the function near that location.
Tangent Plane: A tangent plane is a flat surface that touches a curved surface at a single point, representing the local linear approximation of the curved surface at that point. This concept is fundamental in understanding how multivariable functions behave and provides insights into rates of change in multiple dimensions, connecting closely to gradients and surface representations.
Tangent plane equation: The tangent plane equation is a mathematical representation of the plane that best approximates a surface at a given point. It provides a linear approximation of the surface around that point and is essential for understanding how functions behave in multiple dimensions. This concept connects deeply with the ideas of differentiability and gradients, showcasing how changes in one variable can affect others in a multivariable context.
Using Directional Derivatives: Using directional derivatives refers to the concept of measuring the rate at which a multivariable function changes as you move in a specific direction. This concept is crucial for understanding how functions behave in space, particularly in relation to tangent planes and linear approximations, as it allows for the calculation of instantaneous rates of change at any point along a given direction.
Z = f(x_0, y_0) + f_x(x_0, y_0)(x - x_0) + f_y(x_0, y_0)(y - y_0): This equation represents the formula for the tangent plane of a surface at a specific point (x_0, y_0). It connects the concept of linear approximations to a multivariable function by expressing how the function behaves around that point, using partial derivatives to capture the slope in both directions. The formula shows that you can approximate the function's value near (x_0, y_0) by adding small changes in x and y multiplied by their respective rates of change.
