(SVMs) are versatile tools in machine learning. They can handle multi-class problems, regression tasks, and even unsupervised learning. This flexibility makes SVMs adaptable to various real-world applications beyond simple binary classification.

SVMs shine in text classification and natural language processing. Their ability to work with high-dimensional data and capture complex relationships makes them ideal for tasks like and . These applications showcase SVMs' practical value in diverse fields.

Multi-class SVM Strategies

Extending SVM to Multi-class Problems

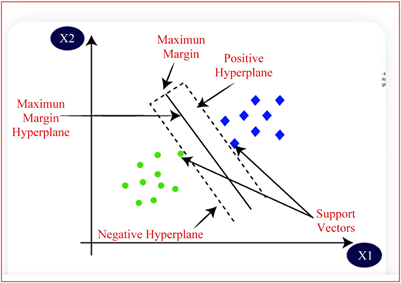

Top images from around the web for Extending SVM to Multi-class Problems

  • Support Vector Machine Machine learning algorithm with example and code - Codershood View original

    Is this image relevant?

  • Basic Tenets of Classification Algorithms K-Nearest-Neighbor, Support Vector Machine, Random ... View original

    Is this image relevant?

  • Support Vector Machine Machine learning algorithm with example and code - Codershood View original

    Is this image relevant?

1 of 3

Top images from around the web for Extending SVM to Multi-class Problems

  • Support Vector Machine Machine learning algorithm with example and code - Codershood View original

    Is this image relevant?

  • Basic Tenets of Classification Algorithms K-Nearest-Neighbor, Support Vector Machine, Random ... View original

    Is this image relevant?

  • Support Vector Machine Machine learning algorithm with example and code - Codershood View original

    Is this image relevant?

1 of 3
  • extends the binary SVM classifier to handle problems with more than two classes
  • Requires strategies to decompose the multi-class problem into multiple binary classification tasks
  • Common approaches include and strategies
  • Enables SVM to be applied to a wider range of classification problems (, )

One-vs-All (OvA) Strategy

  • One-vs-All strategy trains a separate binary SVM classifier for each class
  • Each classifier distinguishes one class from all the other classes combined
  • During prediction, the class with the highest output score from its corresponding classifier is selected
  • Requires training kk binary classifiers for a problem with kk classes
  • Can be computationally efficient compared to other multi-class strategies

One-vs-One (OvO) Strategy

  • One-vs-One strategy trains a binary SVM classifier for each pair of classes
  • Each classifier distinguishes between two specific classes, ignoring the other classes
  • During prediction, a voting scheme is used to determine the final class based on the outputs of all the pairwise classifiers
  • Requires training k(k−1)2\frac{k(k-1)}{2} binary classifiers for a problem with kk classes
  • Can be more accurate than One-vs-All, especially when dealing with imbalanced class distributions

SVM Regression and Loss Functions

SVM Regression (SVR)

  • SVM can be adapted for regression tasks, known as ()
  • SVR aims to find a function that approximates the target values with a maximum deviation of ε\varepsilon
  • The objective is to find a that fits the data points within a tolerance of ε\varepsilon
  • SVR allows for a certain amount of error in the predictions while still maintaining a flat regression function
  • Can be used for tasks such as stock price prediction, weather forecasting, and demand estimation

ε\varepsilon-Insensitive Loss Function

  • SVR uses the ε\varepsilon-insensitive loss function to measure the error between the predicted and actual values
  • The loss function ignores errors that are within the ε\varepsilon margin and penalizes errors outside this margin
  • Defined as Lε(y,f(x))=max⁡(0,∣y−f(x)∣−ε)L_\varepsilon(y, f(x)) = \max(0, |y - f(x)| - \varepsilon), where yy is the actual value and f(x)f(x) is the predicted value
  • The ε\varepsilon parameter controls the width of the insensitive region and the tolerance for errors
  • Allows for a balance between model complexity and prediction

SVM for Unsupervised Learning and Feature Selection

Outlier Detection with SVM

  • SVM can be used for unsupervised by identifying data points that lie far from the decision boundary
  • The idea is to train an SVM classifier on the dataset and consider data points with large distances from the decision boundary as potential outliers
  • Outliers are data points that have a significant impact on the position and orientation of the decision boundary
  • Can be useful for detecting anomalies, fraud, or unusual patterns in data (credit card fraud detection, network intrusion detection)

Feature Selection with SVM

  • SVM can be leveraged for by assigning importance scores to features based on their contribution to the classification task
  • Features that have a significant impact on the decision boundary are considered more important
  • (RFE) is a common technique that iteratively removes the least important features based on SVM weights
  • SVM-based feature selection can help identify relevant features and improve model interpretability and efficiency

Kernel PCA with SVM

  • is a non-linear dimensionality reduction technique that combines the with Principal Component Analysis (PCA)
  • SVM kernels can be used in Kernel PCA to capture non-linear relationships between features
  • The kernel function maps the data to a higher-dimensional feature space where PCA is applied
  • Kernel PCA with SVM allows for non-linear feature extraction and dimensionality reduction
  • Can be useful for visualizing high-dimensional data and improving the performance of SVM classifiers

SVM in Natural Language Processing

SVM for Text Classification

  • SVM is widely used for text classification tasks, such as sentiment analysis, topic categorization, and
  • Text data is typically represented using bag-of-words or TF-IDF features, which capture the occurrence and importance of words in documents
  • SVM learns a hyperplane in the high-dimensional feature space to separate different classes of text documents
  • The kernel trick allows SVM to handle the high dimensionality and sparsity of text features efficiently
  • SVM has been shown to perform well on various text classification benchmarks (sentiment analysis of movie reviews, topic classification of news articles)
  • Preprocessing techniques like stemming, stop word removal, and n-gram extraction can further improve SVM's performance on text data
  • SVM's ability to handle high-dimensional feature spaces and its robustness to irrelevant features make it a popular choice for text classification tasks

Key Terms to Review (26)

Accuracy: Accuracy is a measure of how well a model correctly predicts or classifies data compared to the actual outcomes. It is expressed as the ratio of the number of correct predictions to the total number of predictions made, providing a straightforward assessment of model performance in classification tasks.
Alexey Chervonenkis: Alexey Chervonenkis is a prominent Russian mathematician and statistician known for his foundational work in statistical learning theory, particularly the development of the Vapnik-Chervonenkis (VC) dimension. This concept is crucial in understanding the capacity of a statistical model to generalize from training data to unseen data, which directly relates to the effectiveness of various machine learning algorithms and their applications, especially in support vector machines.
Cross-validation: Cross-validation is a statistical technique used to assess the performance of a predictive model by dividing the dataset into subsets, training the model on some of these subsets while validating it on the remaining ones. This process helps to ensure that the model generalizes well to unseen data and reduces the risk of overfitting by providing a more reliable estimate of its predictive accuracy.
F1 Score: The F1 Score is a performance metric for classification models that combines precision and recall into a single score, providing a balance between the two. It is especially useful in situations where class distribution is imbalanced, making it important for evaluating model performance across various applications.
Feature Selection: Feature selection is the process of selecting a subset of relevant features (variables, predictors) for use in model construction. It plays a crucial role in improving model accuracy, reducing overfitting, and minimizing computational costs by eliminating irrelevant or redundant data.
Grid search: Grid search is a hyperparameter optimization technique used to systematically explore combinations of parameter values for a machine learning model in order to find the best configuration that maximizes model performance. This method allows practitioners to evaluate multiple models and their respective hyperparameters using cross-validation, ensuring that the chosen parameters are not only suitable but also robust against overfitting and underfitting.
Hyperplane: A hyperplane is a flat affine subspace of one dimension less than its ambient space, used in machine learning as a decision boundary that separates different classes in the feature space. In the context of support vector machines, hyperplanes are crucial as they help classify data points by maximizing the margin between the nearest points of different classes, leading to robust predictions. The concept of hyperplanes extends beyond linear separability, applying to both linear and non-linear classification tasks.
Image classification: Image classification is the process of assigning a label or category to an image based on its visual content. This technique is fundamental in many areas, such as computer vision, where algorithms learn from labeled datasets to identify and categorize objects within images, helping machines understand visual data. It connects closely to various machine learning approaches that aim to enhance accuracy and efficiency in recognizing patterns within images.
Kernel PCA: Kernel PCA is an extension of Principal Component Analysis (PCA) that uses kernel methods to perform nonlinear dimensionality reduction. By applying the kernel trick, Kernel PCA can transform data into a higher-dimensional space where it becomes linearly separable, allowing for more complex structures to be captured in the reduced dimensions.
Kernel trick: The kernel trick is a method used in machine learning that enables algorithms to operate in a high-dimensional space without explicitly mapping data points into that space. It simplifies computations by using kernel functions, which compute the dot product of data points in the transformed space directly, allowing for more complex decision boundaries while maintaining computational efficiency.
Margin: In the context of support vector machines, margin refers to the distance between the closest data points (support vectors) of different classes and the decision boundary that separates them. A larger margin indicates better generalization capability of the model, as it reflects a clear distinction between classes, reducing the likelihood of misclassification for unseen data.
Multi-class svm: Multi-class SVM (Support Vector Machine) is an extension of the traditional SVM that allows for the classification of data points into more than two classes. While standard SVMs are designed to separate data into two distinct categories using hyperplanes, multi-class SVMs employ strategies such as 'one-vs-one' or 'one-vs-all' to handle multiple classes. This makes them particularly useful in applications where data belongs to several categories and requires robust classification capabilities.
One-vs-all: One-vs-all is a classification strategy used in machine learning where a single classifier is trained to distinguish one class from all other classes. This approach involves creating multiple binary classifiers, each dedicated to a specific class, allowing for the identification of a particular category while treating others as a combined group. This method is particularly useful for multi-class problems where traditional binary classifiers need to be adapted for multiple outputs.
One-vs-one: One-vs-one is a strategy in machine learning, particularly used in multi-class classification problems, where a separate binary classifier is trained for every pair of classes. This approach simplifies the multi-class problem into multiple binary problems, allowing for more focused decision boundaries between class pairs. It’s particularly useful when dealing with algorithms like Support Vector Machines (SVM), where the complexity of directly handling multiple classes can be high.
Outlier Detection: Outlier detection refers to the process of identifying data points that deviate significantly from the majority of the data within a dataset. These outliers can result from variability in the data or may indicate measurement errors or novel phenomena, making their detection crucial for accurate model performance and analysis in various applications, including support vector machines (SVM). In the context of SVM applications, outlier detection helps improve the robustness of models by ensuring that unusual or extreme observations do not unduly influence the resulting classifications.
Recursive feature elimination: Recursive feature elimination is a feature selection technique used to improve model performance by recursively removing the least important features based on a specific model's performance. This process helps identify the most relevant features for the predictive task, enhancing the model's accuracy and efficiency. It is particularly useful in high-dimensional datasets where the presence of irrelevant or redundant features can lead to overfitting.
Sentiment analysis: Sentiment analysis is the computational technique used to identify and categorize opinions expressed in text, especially to determine whether the sentiment is positive, negative, or neutral. This process often involves natural language processing (NLP) and machine learning algorithms to analyze large volumes of data, such as social media posts, reviews, or news articles, enabling businesses and researchers to gain insights into public perception and emotional responses.
Spam detection: Spam detection is the process of identifying and filtering out unsolicited or unwanted messages, typically in the context of email, using algorithms and statistical techniques. This practice is crucial for enhancing user experience and security by preventing spam from cluttering inboxes and potentially containing malicious content. Spam detection often employs supervised learning methods to classify messages based on labeled data and can further utilize advanced techniques like support vector machines to improve accuracy and efficiency.
Support Vector Machines: Support Vector Machines (SVM) are supervised learning models used for classification and regression tasks. They work by finding the hyperplane that best separates data points of different classes in a high-dimensional space, maximizing the margin between the nearest points of each class. This approach leads to effective classification, especially in high-dimensional datasets, and connects to various aspects like model selection and evaluation metrics.
Support Vector Regression: Support Vector Regression (SVR) is a type of regression analysis that uses the principles of Support Vector Machines (SVM) to predict continuous outcomes. SVR aims to find a function that deviates from actual target values by a value no greater than a specified margin, allowing for robust predictions even in the presence of outliers. By transforming the input space into higher dimensions through kernel functions, SVR can effectively model complex relationships between variables.
Svm ensemble methods: SVM ensemble methods are techniques that combine multiple Support Vector Machine (SVM) classifiers to improve overall prediction performance. By leveraging the strengths of different SVM models, these methods can enhance accuracy, robustness, and generalization ability in various applications. Ensemble methods often reduce the impact of noise and overfitting, leading to better performance on unseen data.
SVR: SVR, or Support Vector Regression, is a type of regression analysis technique that utilizes the principles of Support Vector Machines (SVM) to predict continuous outcomes. SVR aims to find a function that deviates from the actual observed targets by a value no greater than a specified margin while being as flat as possible. This method is particularly effective in dealing with high-dimensional data and is widely used in various applications where predictive modeling is required.
Text categorization: Text categorization is the process of assigning predefined categories or labels to text documents based on their content. This task is essential in various applications, such as spam detection, sentiment analysis, and topic classification, enabling efficient organization and retrieval of information from vast amounts of unstructured data.
Topic categorization: Topic categorization is the process of classifying text into predefined categories based on its content, enabling efficient organization and retrieval of information. This concept is particularly important in machine learning applications, as it allows for automated sorting of data, enhancing the ability to analyze large volumes of unstructured text effectively.
Vladimir Vapnik: Vladimir Vapnik is a prominent Russian-American computer scientist best known for his contributions to statistical learning theory and the development of Support Vector Machines (SVM). His work laid the foundation for many modern machine learning algorithms, specifically in the context of linear and non-linear classification problems, as well as various SVM applications and extensions.
ε-insensitive loss function: The ε-insensitive loss function is a type of loss function used in support vector regression (SVR) that ignores errors smaller than a specified threshold, ε. This approach allows the model to maintain a degree of robustness against small fluctuations in the data, focusing instead on larger deviations that truly impact predictions. The concept of ignoring small errors connects to the broader goal of achieving a balance between fitting the training data and maintaining generalizability.
