11.2 Convolutional Neural Networks (CNNs) for Image Analysis
3 min read•august 7, 2024
Convolutional Neural Networks (CNNs) revolutionize image analysis by mimicking the human visual system. They use specialized layers to extract features, reduce dimensions, and classify images, making them ideal for tasks like and .
CNNs shine in various applications, from autonomous driving to medical imaging. Their power lies in , which allows to tackle new tasks with limited data, saving time and boosting performance across diverse fields.
CNN Architecture
Convolutional Layer and Filters
Top images from around the web for Convolutional Layer and Filters
bagustris@/home: Deep Learning: CNN View original
Is this image relevant?
Convolutional Autoencoders – P. Galeone's blog View original
Is this image relevant?

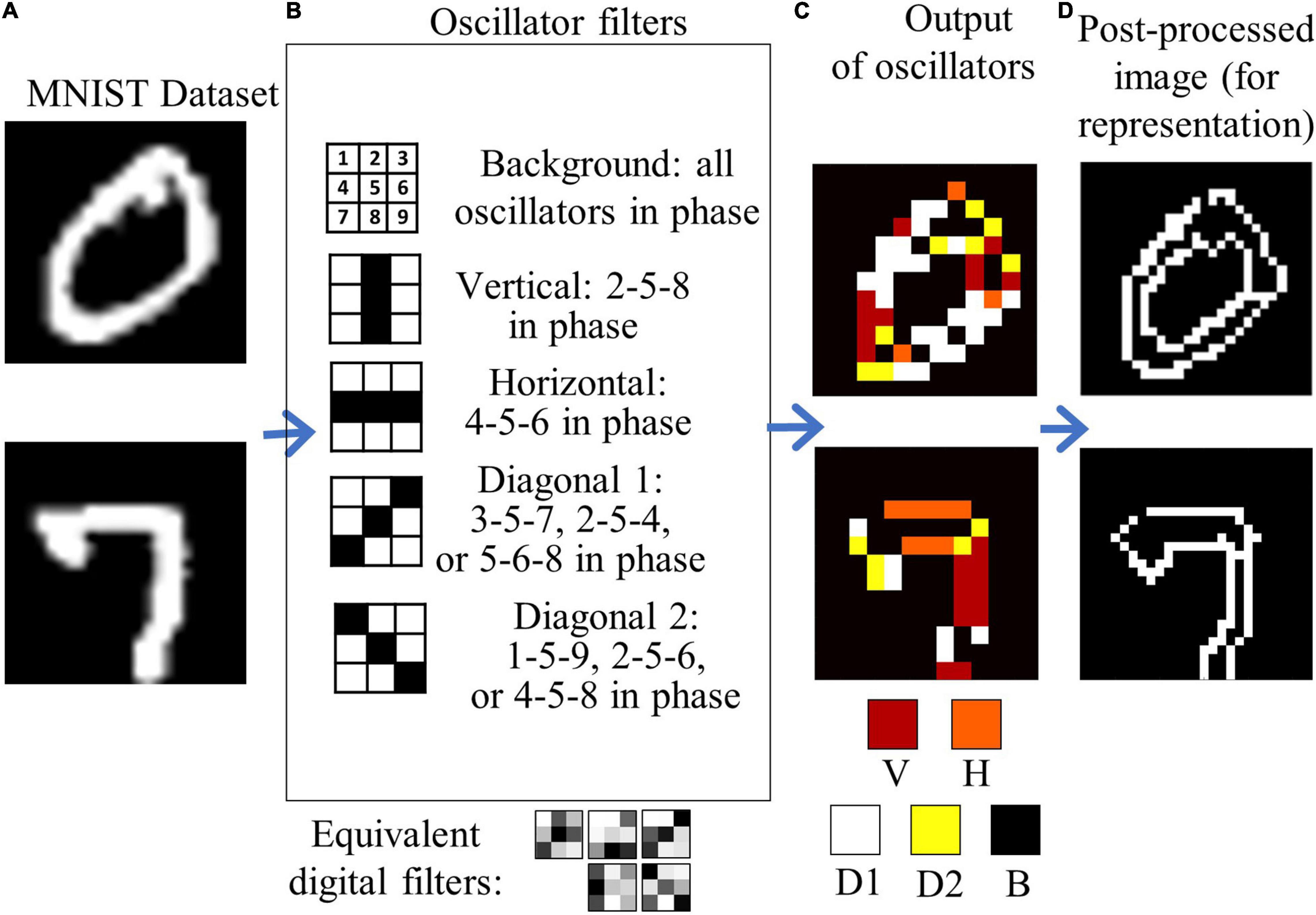

Frontiers | Coupled VO2 Oscillators Circuit as Analog First Layer Filter in Convolutional Neural ... View original
Is this image relevant?
bagustris@/home: Deep Learning: CNN View original
Is this image relevant?
Convolutional Autoencoders – P. Galeone's blog View original
Is this image relevant?
1 of 3
Top images from around the web for Convolutional Layer and Filters
bagustris@/home: Deep Learning: CNN View original
Is this image relevant?
Convolutional Autoencoders – P. Galeone's blog View original
Is this image relevant?
Frontiers | Coupled VO2 Oscillators Circuit as Analog First Layer Filter in Convolutional Neural ... View original
Is this image relevant?
bagustris@/home: Deep Learning: CNN View original
Is this image relevant?
Convolutional Autoencoders – P. Galeone's blog View original
Is this image relevant?
1 of 3
- applies filters (kernels) to input image to extract features
- Filters are small matrices (typically 3x3 or 5x5) that slide over input image and perform element-wise multiplication
- Each is designed to detect specific features (edges, textures, patterns)
- Multiple filters are applied to input image, creating multiple feature maps
- Filters are learned during training process to optimize feature extraction for specific task
Pooling Layer and Stride
- reduces spatial dimensions of feature maps, while retaining important features
- Most common pooling operation is , which selects maximum value within each pooling window
- Pooling window slides over with a specified (number of pixels shifted in each step)
- Stride determines amount of downsampling applied to feature maps
- Pooling helps to reduce and provides translation invariance
Padding and Fully Connected Layer
- adds extra pixels (usually zeros) around edges of input image or feature maps
- Padding allows filters to be applied to border pixels and maintains spatial dimensions of output
- takes flattened output from convolutional and pooling layers and performs classification or regression
- Each neuron in fully connected layer is connected to all neurons in previous layer
- Fully connected layer learns to combine extracted features and make final predictions based on learned weights
CNN Applications
Image Classification and Object Detection
- involves assigning a class label to an input image based on its content
- CNNs excel at image classification tasks due to their ability to learn hierarchical features
- Examples of image classification include identifying objects (cats, dogs, cars), scenes (indoor, outdoor, landscapes), and emotions (happy, sad, neutral)
- Object detection involves locating and classifying multiple objects within an image
- CNNs can be used as for object detection models (, , )
- Object detection has applications in autonomous driving, surveillance, and robotics
Transfer Learning in CNNs
- Transfer learning leverages pre-trained models to solve new tasks with limited training data
- Pre-trained models (, , ) are trained on large datasets () and learn general features
- Transfer learning involves fine-tuning pre-trained models on a new dataset for a specific task
- Fine-tuning can be done by freezing earlier layers and training only later layers, or by training all layers with a lower
- Transfer learning reduces training time, improves performance, and enables effective learning with small datasets
- Examples of transfer learning include using pre-trained models for medical image analysis, facial recognition, and style transfer
Key Terms to Review (26)
Backbone: In the context of Convolutional Neural Networks (CNNs), the term 'backbone' refers to the primary architecture or framework that extracts features from input images. This foundational structure is crucial as it influences the model's ability to capture important patterns and representations in the data. The backbone typically consists of a series of convolutional layers, pooling layers, and sometimes normalization layers, which work together to process and downsample the input effectively.
CNN: CNN, or Convolutional Neural Network, is a type of deep learning model primarily used for processing and analyzing visual data. These networks leverage convolutional layers to automatically detect and learn features from images, making them particularly powerful for tasks like image classification, object detection, and image segmentation. CNNs significantly reduce the need for manual feature extraction, as they can learn complex patterns directly from the data.
Computational complexity: Computational complexity is a measure of the amount of resources required to solve a given problem, particularly in terms of time and space as the size of the input data increases. It helps to evaluate the efficiency of algorithms, especially in fields like machine learning where large datasets are common. Understanding computational complexity is crucial for optimizing models, as it allows researchers to balance accuracy with performance in tasks like image analysis.
Convolutional layer: A convolutional layer is a fundamental building block of Convolutional Neural Networks (CNNs) that applies convolution operations to input data, typically images, to extract features. This layer uses filters or kernels that slide over the input data to create feature maps, capturing spatial hierarchies and patterns in the data while reducing dimensionality. The convolutional layer plays a crucial role in the effectiveness of CNNs for tasks like image recognition and classification.
Convolutional Neural Network: A Convolutional Neural Network (CNN) is a specialized type of deep learning model primarily designed for analyzing visual data. It mimics the way human brains process images by using layers of convolutions, which apply filters to the input data to capture spatial hierarchies in the features. This makes CNNs particularly effective in tasks such as image recognition, object detection, and image segmentation.
Facial recognition: Facial recognition is a technology that can identify or verify a person's identity using their facial features. It works by analyzing patterns based on the unique geometry of the face and converting those patterns into data that can be compared to known identities in a database. This technology has gained traction in various applications, including security, social media tagging, and even marketing.
Faster R-CNN: Faster R-CNN is an advanced deep learning framework used for object detection in images, combining region proposal networks (RPN) with convolutional neural networks (CNNs) to improve both speed and accuracy. It significantly reduces the time taken for detecting objects by integrating the proposal generation and object detection processes into a single, unified model, enhancing its efficiency for real-time applications.
Feature Map: A feature map is a collection of features extracted from input data, specifically in the context of convolutional neural networks (CNNs) where it represents the output of a convolutional layer. It highlights different aspects of the input, such as edges or textures, and is crucial for recognizing patterns within images. Feature maps are created by applying filters that slide over the input data, capturing relevant characteristics while reducing dimensionality.
Filter: In the context of image analysis using Convolutional Neural Networks (CNNs), a filter is a small matrix or kernel that is applied to an input image to extract specific features. Filters slide over the image in a process called convolution, performing element-wise multiplication and summing the results to create a feature map. This operation helps the network learn important characteristics, such as edges, textures, or patterns, that are essential for tasks like classification or detection.
Fully connected layer: A fully connected layer is a type of neural network layer where each neuron in the layer is connected to every neuron in the previous layer. This layer is crucial in the context of building complex models for tasks like image analysis, as it helps to combine features extracted by previous layers to produce final outputs, such as classifications or predictions.
Image classification: Image classification is the process of assigning a label or category to an image based on its visual content. This technique is fundamental in many areas, such as computer vision, where algorithms learn from labeled datasets to identify and categorize objects within images, helping machines understand visual data. It connects closely to various machine learning approaches that aim to enhance accuracy and efficiency in recognizing patterns within images.
Imagenet: ImageNet is a large visual database designed for use in visual object recognition software research. It contains over 14 million images that have been hand-annotated to indicate what objects are present, which serves as a key resource for training and testing algorithms, particularly Convolutional Neural Networks (CNNs). Its extensive dataset has propelled advancements in machine learning, especially in image classification tasks.
Inception: Inception refers to the process of introducing new concepts or techniques, particularly in the context of deep learning and Convolutional Neural Networks (CNNs). It is associated with a specific architecture that enhances model efficiency and improves performance by using a modular design that allows for different levels of abstraction in feature extraction.
Kernel: In the context of image analysis using convolutional neural networks (CNNs), a kernel refers to a small matrix of weights that is used to perform convolution operations on images. The kernel slides over the input image, applying a dot product to capture features such as edges, textures, and patterns, which are essential for the network to learn and recognize objects within the image. By using different kernels, CNNs can extract various features from the images, enabling more accurate predictions and classifications.
Learning Rate: The learning rate is a hyperparameter that determines the step size at each iteration while moving toward a minimum of the loss function during model training. It influences how quickly a model learns from the training data and impacts the convergence of algorithms, with implications for both underfitting and overfitting. Choosing an appropriate learning rate is crucial for effective training, as too high of a rate can cause the model to diverge while too low can lead to slow convergence.
Max pooling: Max pooling is a down-sampling technique used in Convolutional Neural Networks (CNNs) to reduce the spatial dimensions of feature maps while retaining the most important information. By selecting the maximum value from a defined region (or 'pool') of the input feature map, max pooling helps to capture dominant features and reduce the computational load for subsequent layers, leading to improved efficiency and robustness in image analysis tasks.
Object Detection: Object detection is a computer vision technique that identifies and locates objects within an image or video. This involves both classifying the objects and determining their positions, often represented by bounding boxes. It plays a crucial role in various applications, such as autonomous driving, surveillance, and image retrieval, where knowing the location and identity of objects is essential for understanding scenes.
Padding: Padding refers to the technique of adding extra pixels around the edges of an input image or feature map before it is processed by a convolutional layer. This practice is essential in convolutional neural networks (CNNs) as it helps preserve spatial dimensions, allowing the network to learn features without losing important information at the borders of the input data.
Pooling layer: A pooling layer is a component in Convolutional Neural Networks (CNNs) that reduces the spatial dimensions of feature maps, helping to minimize the number of parameters and computation in the network. It effectively condenses information by summarizing nearby values, often using operations like max or average pooling. This process is crucial for retaining essential features while making the model more efficient and robust against variations in input images.
Pre-trained models: Pre-trained models are machine learning models that have already been trained on a large dataset and can be fine-tuned or used as is for specific tasks. These models save time and resources by leveraging existing knowledge learned from comprehensive data, making them particularly valuable in areas like image analysis and transfer learning.
ResNet: ResNet, or Residual Network, is a type of deep learning architecture designed to improve the training of convolutional neural networks by introducing skip connections, or shortcuts, that bypass one or more layers. This innovative design helps alleviate the vanishing gradient problem, allowing for the training of very deep networks without losing performance. ResNet is particularly significant in the context of image analysis as it enhances feature learning and enables better accuracy in tasks such as image classification and object detection.
Ssd: SSD, or Single Shot MultiBox Detector, is a deep learning model specifically designed for object detection in images. It processes images using a single pass through a convolutional neural network, enabling it to detect multiple objects within an image while also classifying them. This efficiency and speed make SSD a popular choice in real-time image analysis tasks.
Stride: Stride refers to the step size used when sliding a filter or kernel across an input image during the convolution process in convolutional neural networks (CNNs). It determines how much the filter moves across the image at each step, impacting the spatial dimensions of the output feature map. The stride value influences both the computational efficiency and the level of detail captured by the network.
Transfer Learning: Transfer learning is a machine learning technique where a model developed for one task is reused as the starting point for a model on a second task. This approach helps to improve the learning process by leveraging knowledge gained from previously solved problems, making it particularly useful when there is limited data for the new task. Transfer learning is commonly applied in deep learning, especially with Convolutional Neural Networks (CNNs), where pre-trained models are fine-tuned for specific image analysis tasks, facilitating faster and more efficient training.
VGG: VGG refers to a type of deep convolutional neural network architecture known for its simplicity and effectiveness in image classification tasks. Developed by the Visual Geometry Group at the University of Oxford, VGG networks use very small convolution filters (3x3) and are notable for their depth, consisting of many layers, which helps them capture intricate features from images. This architecture has made significant contributions to the field of computer vision, particularly in benchmark image classification challenges.
YOLO: YOLO, which stands for 'You Only Look Once', is a real-time object detection system that uses deep learning to identify and locate objects in images or videos. This approach processes the entire image in a single evaluation, allowing it to achieve high speed and accuracy. YOLO's ability to detect multiple objects simultaneously makes it highly effective for tasks requiring quick responses, like self-driving cars and surveillance systems.
