12.1 Microbes and the Tools of Genetic Engineering

Molecular Genetics Tools and Techniques

Molecular genetics tools let us cut, copy, paste, and amplify DNA with precision. Most of these tools were originally discovered in microorganisms, and they now form the backbone of genetic engineering and biotechnology.

Molecular Genetics Tools from Microorganisms

Restriction endonucleases are enzymes derived from bacteria, where they naturally defend against viral invasion by cleaving foreign DNA at specific recognition sequences. For example, EcoRI (from E. coli) cuts at the sequence GAATTC, while BamHI cuts at GGATCC. In the lab, restriction enzymes let us cut DNA into predictable fragments for cloning, mapping, and analysis.

DNA ligase does the opposite job: it joins DNA fragments together. Bacterial DNA ligase (from E. coli) and phage DNA ligase (T4 ligase) both catalyze the formation of phosphodiester bonds between the 3' hydroxyl and 5' phosphate groups of adjacent nucleotides. After you cut DNA with a restriction enzyme, DNA ligase is what seals the pieces back together to create recombinant DNA molecules.

Plasmids are small, circular DNA molecules found naturally in bacteria (such as the F plasmid and R plasmid) that replicate independently of the chromosome. A useful cloning plasmid typically contains three things:

• An origin of replication so it can copy itself inside the host cell
• A selectable marker (usually antibiotic resistance) so you can identify which cells took up the plasmid
• A multiple cloning site with restriction enzyme recognition sequences for inserting foreign DNA

Plasmids serve as vectors to carry, amplify, and transfer recombinant DNA in applications like protein production and gene therapy.

Polymerase chain reaction (PCR) amplifies a specific DNA sequence into millions of copies. It relies on Taq DNA polymerase, isolated from the thermophilic bacterium Thermus aquaticus, which thrives in hot springs and can withstand the high temperatures required during the reaction. Each PCR cycle has three steps:

1. Denaturation (~95°C): Heat separates the double-stranded DNA into single strands.
2. Annealing (~50–65°C): Short DNA primers bind to complementary sequences flanking the target region.
3. Extension (~72°C): Taq polymerase synthesizes new DNA strands starting from the primers.

After 30 or so cycles, you have millions of copies of your target sequence. PCR is used in forensics (DNA fingerprinting), medical diagnostics (detecting pathogens), and gene cloning.

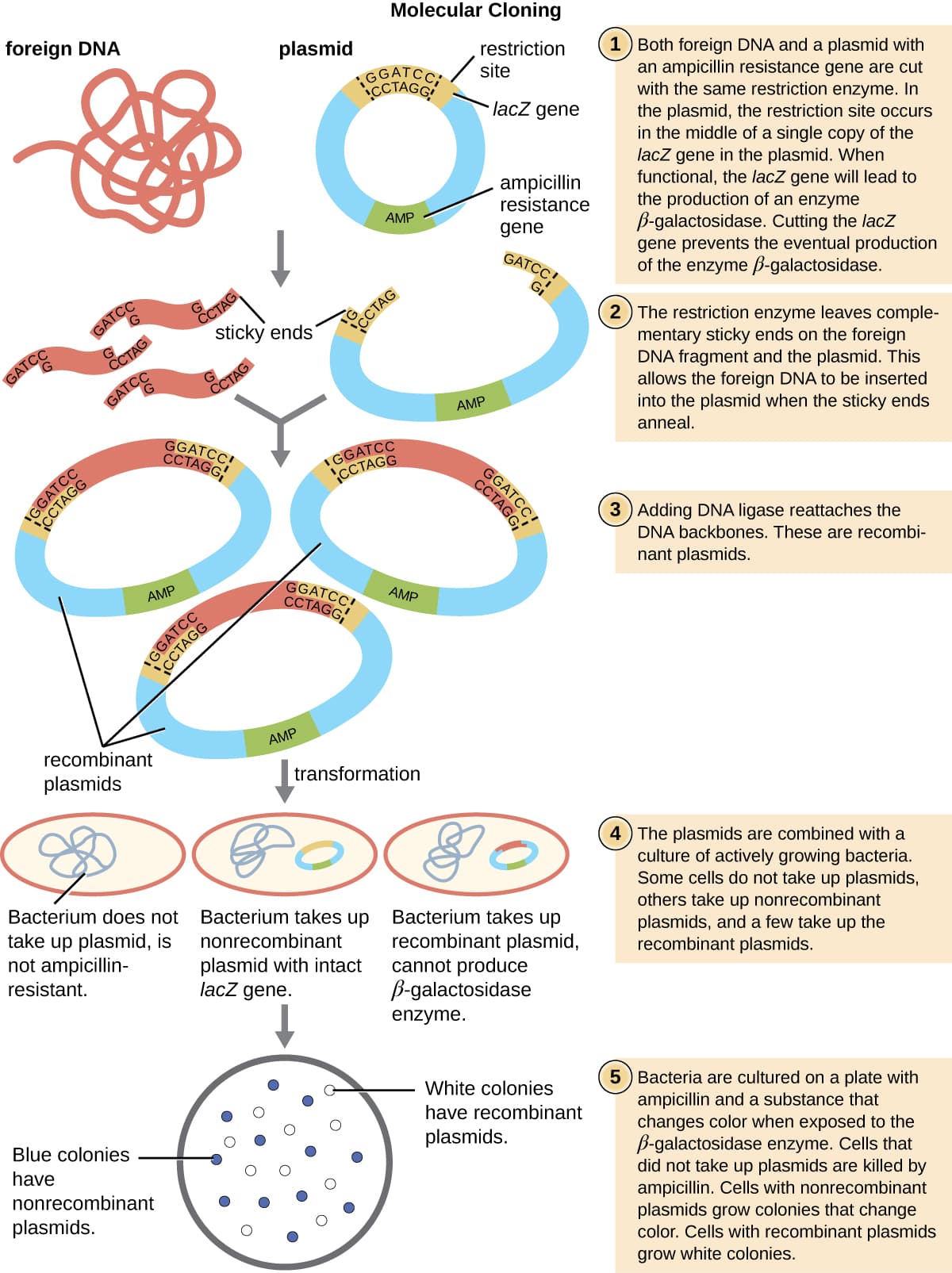

Process of Recombinant DNA Creation

1. Isolate DNA from the source organism that contains your gene of interest (e.g., the human insulin gene).
2. Cut the DNA with a restriction endonuclease that recognizes a specific sequence (e.g., EcoRI cuts at GAATTC), generating fragments with sticky ends.
3. Select a vector, such as a plasmid that has the same restriction sites and a selectable marker (e.g., pBR322 with ampicillin resistance).
4. Cut the vector with the same restriction enzyme so it has compatible sticky ends.
5. Ligate the fragments: Mix the cut insert DNA and the cut vector with DNA ligase, which joins them to form a recombinant DNA molecule.
6. Transform host cells: Introduce the recombinant plasmid into a host organism like E. coli for amplification and expression.
7. Select transformants: Plate the cells on media containing the antibiotic. Only cells that took up the plasmid (and its resistance gene) will grow.
8. Screen colonies for the presence of the inserted gene using PCR, restriction digestion, or blue-white screening to confirm successful cloning.

DNA Introduction in Prokaryotes

There are four main ways to get DNA into bacterial cells:

• Transformation: Cells are treated with calcium chloride to make the membrane permeable, then given a brief heat shock (typically 42°C) to drive DNA uptake. Cells need to be in log phase growth ($OD_{600}$ of about 0.4–0.6) for efficient transformation.
• Electroporation: A high-voltage electric pulse (1–2 kV) is applied to cells suspended in a conductive buffer. This creates transient pores in the membrane, allowing plasmids and other molecules to enter. Electroporation tends to be more efficient than chemical transformation for many bacterial strains.
• Conjugation: A donor cell physically transfers DNA to a recipient cell through a pilus that forms a mating bridge (F⁺ to F⁻). The donor must carry a conjugative plasmid (like the F plasmid) that encodes the transfer machinery and origin of transfer.
• Transduction: A bacteriophage accidentally packages bacterial DNA and transfers it to a new host cell during infection. Generalized transduction (e.g., P1 phage) can transfer any part of the bacterial genome. Specialized transduction (e.g., lambda phage) transfers only specific genes adjacent to the phage integration site.

Genomic Libraries and Their Applications

A library in molecular biology is a collection of DNA fragments cloned into vectors, representing some or all of an organism's genetic information. Different types of libraries serve different purposes.

• Genomic DNA libraries contain random fragments of an organism's entire genome, generated by partial restriction enzyme digestion. These fragments are cloned into large-capacity vectors like BACs (bacterial artificial chromosomes) or YACs (yeast artificial chromosomes). Genomic libraries were essential for projects like the Human Genome Project and are used to identify disease-associated genes (e.g., BRCA1) and for comparative genomics.
• cDNA libraries contain complementary DNA copies of mRNA transcripts, synthesized using the enzyme reverse transcriptase. Because they're made from mRNA, cDNA libraries represent only the genes being expressed in a particular tissue or under specific conditions (e.g., a brain cDNA library captures genes active in brain tissue). They're useful for studying gene expression patterns and isolating coding sequences without introns.
• Expression libraries contain DNA fragments cloned into vectors designed to actually produce proteins from the inserts in a host cell (e.g., a pET vector in E. coli). These are used to produce recombinant proteins like insulin and growth hormone, and they enable functional screening for genes encoding proteins with desired activities, such as novel enzymes for industrial use.

Methods for Eukaryotic DNA Introduction

Getting DNA into eukaryotic cells is more challenging than with bacteria because of the more complex membrane and nuclear envelope. Several methods exist, each with trade-offs:

• Calcium phosphate transfection: DNA is mixed with calcium chloride and phosphate buffer, forming a fine precipitate that sticks to the cell surface. Cells take up the precipitate by endocytosis. This is a simple, inexpensive method commonly used with cell lines like HEK293, though efficiency can be variable.
• Liposome-mediated transfection: DNA is encapsulated in artificial lipid vesicles (liposomes). Cationic lipids interact with negatively charged DNA to form complexes that fuse with the cell membrane and deliver DNA into the cytoplasm. Commercial reagents like Lipofectamine make this straightforward and relatively efficient for many cell types.
• Electroporation: Similar to the prokaryotic method, a brief high-voltage pulse creates transient pores in the cell membrane. Voltage, pulse duration, and buffer conditions need to be optimized for each cell type (mammalian cells, plant protoplasts, etc.).
• Microinjection: A fine glass needle is used to inject DNA directly into the nucleus of an individual cell under a microscope. This gives precise control over the amount and location of DNA delivery, but it's very low throughput since you're working one cell at a time. It's commonly used for oocytes and embryos.
• Viral transduction: Recombinant viruses (retroviruses, lentiviruses, adenoviruses) are engineered to carry a gene of interest. They infect target cells and can integrate the gene into the host genome, providing stable, long-term expression. Lentiviruses are particularly useful because they can transduce non-dividing cells like neurons and stem cells. Viral vectors are typically made replication-defective to minimize safety risks like insertional mutagenesis and immune responses.

Advanced Genetic Engineering Techniques

Genome editing allows precise modification of DNA sequences in living cells using engineered nucleases. The most widely used system is CRISPR-Cas9, which works in two parts: a guide RNA (gRNA) directs the Cas9 nuclease to a specific location in the genome, and Cas9 makes a double-stranded cut at that site. The cell's own repair machinery then fixes the break, and researchers can exploit this process to knock out genes, insert new sequences, or correct mutations. CRISPR has transformed both basic research and the development of potential gene therapies.

Biotechnology applications build on all of these genetic engineering techniques. They include production of recombinant proteins (like therapeutic antibodies), creation of genetically modified organisms (GMOs) for agriculture, and gene therapy approaches for treating genetic diseases.

Gene expression analysis examines which genes are active in a cell and how their activity changes under different conditions. Techniques like RNA-seq (sequencing all mRNA in a sample) and microarrays (hybridizing mRNA to a chip with thousands of gene-specific probes) allow genome-wide profiling of transcription. These tools help researchers understand how cells respond to drugs, disease, or environmental changes at the molecular level.
