13.3 Weather map analysis and interpretation
5 min read•july 31, 2024
Weather maps are crucial tools for understanding and predicting atmospheric conditions. They display key meteorological data, including pressure systems, fronts, and wind patterns. By analyzing these maps, forecasters can identify weather features and trends.
Interpreting weather maps requires knowledge of various symbols and conventions. Surface maps show ground-level conditions, while upper-air maps reveal atmospheric layers. Together, they provide a comprehensive view of the atmosphere, enabling accurate forecasts and severe weather predictions.
Weather Map Interpretation
Surface and Upper-Air Map Analysis
Top images from around the web for Surface and Upper-Air Map Analysis
LABORATORY 4: MID-LATITUDE CYCLONES, WEATHER MAPS, AND FORECASTING – Physical Geography Lab ... View original
Is this image relevant?

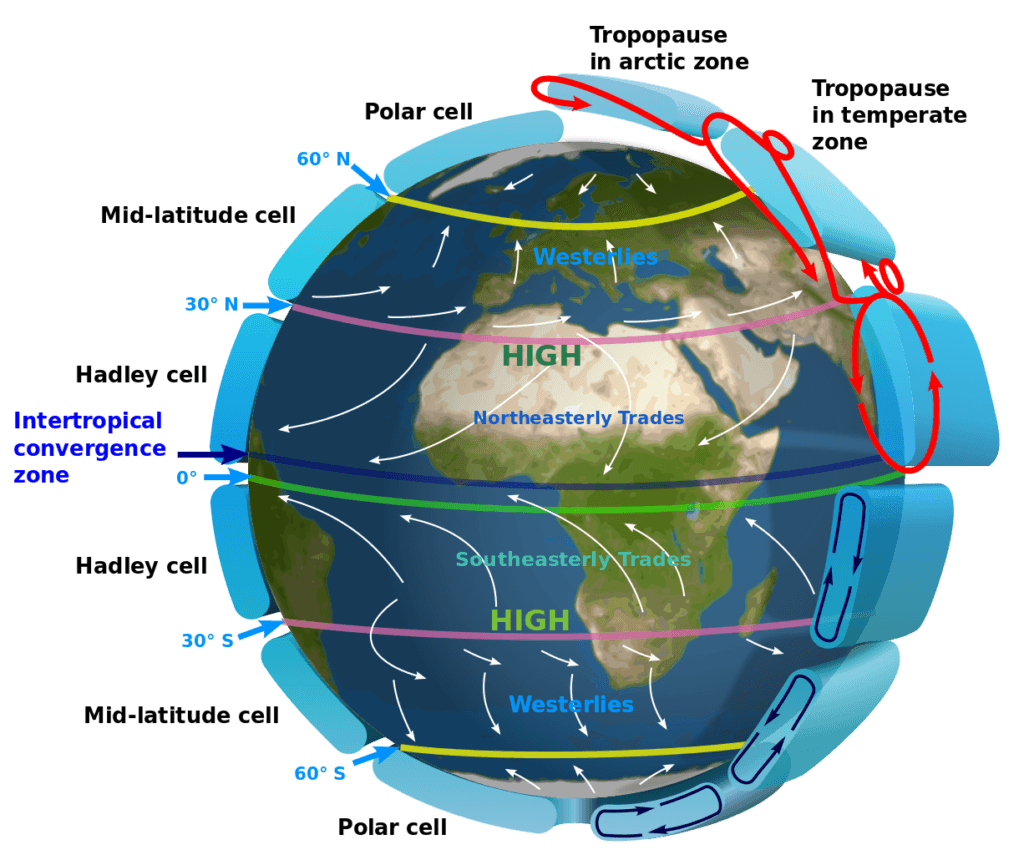

Global Atmospheric Circulations | Physical Geography View original
Is this image relevant?
LABORATORY 4: MID-LATITUDE CYCLONES, WEATHER MAPS, AND FORECASTING – Physical Geography Lab ... View original
Is this image relevant?
LABORATORY 4: MID-LATITUDE CYCLONES, WEATHER MAPS, AND FORECASTING – Physical Geography Lab ... View original
Is this image relevant?
Global Atmospheric Circulations | Physical Geography View original
Is this image relevant?
1 of 3
Top images from around the web for Surface and Upper-Air Map Analysis
LABORATORY 4: MID-LATITUDE CYCLONES, WEATHER MAPS, AND FORECASTING – Physical Geography Lab ... View original
Is this image relevant?
Global Atmospheric Circulations | Physical Geography View original
Is this image relevant?
LABORATORY 4: MID-LATITUDE CYCLONES, WEATHER MAPS, AND FORECASTING – Physical Geography Lab ... View original
Is this image relevant?
LABORATORY 4: MID-LATITUDE CYCLONES, WEATHER MAPS, AND FORECASTING – Physical Geography Lab ... View original
Is this image relevant?
Global Atmospheric Circulations | Physical Geography View original
Is this image relevant?
1 of 3
- Surface weather maps display meteorological data at ground level while upper-air maps show conditions at various altitudes in the atmosphere
- Key features on weather maps include:
- Isobars (lines of constant pressure)
- Isotherms (lines of constant temperature)
- Wind barbs indicating wind speed and direction
- Upper-air maps commonly use constant pressure surfaces (500 mb) to represent atmospheric conditions at different heights
- Troughs and ridges on upper-air maps indicate areas of lower and higher pressure respectively and are crucial for identifying large-scale weather patterns
- Jet streams visible on upper-air maps are narrow bands of strong winds in the upper troposphere that influence the movement of weather systems (polar jet, subtropical jet)
Pressure Systems and Circulation Patterns
- High-pressure systems are typically associated with fair weather and clockwise circulation in the Northern Hemisphere
- Low-pressure systems often bring unsettled weather and counterclockwise circulation in the Northern Hemisphere
- Circulation patterns reverse in the Southern Hemisphere (clockwise for lows, counterclockwise for highs)
- Pressure system strength impacts wind speeds (stronger gradients lead to higher winds)
- Size of pressure systems affects the area of influence (larger systems impact broader regions)
Three-Dimensional Atmospheric Structure
- Interpretation of both surface and upper-air maps is essential for understanding the three-dimensional structure of the atmosphere
- Vertical temperature profiles reveal atmospheric stability (lapse rates)
- Moisture distribution throughout the atmosphere impacts cloud formation and precipitation potential
- Wind shear analysis helps identify areas prone to severe weather development
- Combining surface and upper-level data provides a comprehensive view of atmospheric conditions (temperature advection, moisture transport)
Pressure Systems and Fronts
Frontal Characteristics and Weather Impacts
- Cold fronts characterized by a wedge of cold air displacing warmer air result in:
- Sharp temperature drops
- Gusty winds
- Potential for thunderstorms
- Narrow band of intense precipitation
- Warm fronts occur when warm air gradually replaces cooler air bringing:
- Steady precipitation
- Gradual increase in temperature
- Widespread cloud cover
- Potential for freezing precipitation in winter
- Occluded fronts form when a overtakes a leading to:
- Complex weather patterns
- Potential for prolonged precipitation
- Temperature changes varying based on the type of occlusion (cold, warm, or neutral)
Pressure System and Frontal Interactions
- Pressure systems drive the formation and movement of frontal boundaries between air masses
- Interaction between pressure systems and fronts influences the development of cyclones and anticyclones responsible for large-scale weather patterns
- Frontal lifting where air is forced upward along frontal boundaries is a primary mechanism for cloud formation and precipitation
- Strength and speed of pressure systems directly impact the intensity and movement of associated fronts affecting the severity and duration of weather phenomena
- Convergence and divergence patterns associated with pressure systems influence frontal development and dissipation
Cyclogenesis and Weather Evolution
- Cyclogenesis process involves the development and intensification of low-pressure systems
- Stages of development include:
- Incipient stage (frontal wave formation)
- Developing stage (pressure deepening, frontal organization)
- Mature stage ( formation, maximum intensity)
- Dissipating stage (frontal dissolution, filling of low pressure)
- Anticyclogenesis involves the formation and strengthening of high-pressure systems
- Evolution of pressure systems and fronts over time leads to changing weather conditions (frontal passages, pressure trends)
Weather Map Symbols and Conventions
Station Model Interpretation
- Station models on weather maps use a standardized format to display multiple meteorological variables at a single location including:
- Temperature
- Dew point
- Wind speed and direction
- Cloud cover
- Pressure and pressure tendency
- Present weather
- Wind barbs on weather maps indicate both wind speed (using feathers or flags) and direction (pointing towards the direction from which the wind is blowing)
- Cloud cover symbols represent the fraction of sky covered by clouds (clear, scattered, broken, overcast)
- Pressure tendency arrows show the 3-hour pressure change and trend (rising, falling, steady)
Isobar and Contour Analysis
- Isobars on surface maps connect points of equal atmospheric pressure with closer spacing indicating stronger pressure gradients and higher wind speeds
- Upper-air maps typically use height contours instead of isobars to represent pressure surfaces:
- Lower heights indicate lower pressure
- Higher heights indicate higher pressure
- Spacing between isobars or contours indicates the strength of the pressure or height gradient
- and contour patterns reveal atmospheric features (troughs, ridges, closed lows and highs)
Frontal and Weather Phenomena Symbols
- Frontal symbols on weather maps use specific line types and colors to represent different frontal boundaries:
- Cold fronts (blue lines with triangles)
- Warm fronts (red lines with semicircles)
- Occluded fronts (purple lines with alternating triangles and semicircles)
- Stationary fronts (alternating red semicircles and blue triangles)
- Specialized symbols represent various weather phenomena:
- Precipitation types (rain, snow, sleet)
- Thunderstorms
- Fog
- Areas of high or low pressure
- Color-coding on weather maps often represents different variables such as:
- Temperature gradients
- Precipitation intensity
- Severe weather risk levels
Weather Forecasting from Maps
Integrating Multiple Data Sources
- Weather forecasting involves the analysis of current conditions identification of weather patterns and prediction of future atmospheric states using meteorological principles and data
- Process of forecasting requires the integration of multiple data sources:
- Surface observations
- Upper-air measurements
- Satellite imagery (visible, infrared, water vapor channels)
- data (reflectivity, velocity products)
- Numerical weather prediction models simulate atmospheric processes using complex mathematical equations:
- Global models (GFS, ECMWF)
- Regional models (NAM, WRF)
- Ensemble forecasting uses multiple model runs with slightly different initial conditions to assess forecast uncertainty and potential weather scenarios
Short-term and Medium-range Forecasting Techniques
- Short-term forecasting (0-48 hours) relies heavily on:
- Analysis of current weather maps
- Recent trends
- Nowcasting techniques
- High-resolution model guidance
- Medium-range forecasts (3-7 days) incorporate:
- More model guidance
- Pattern recognition
- Teleconnections (NAO, PNA)
- Ensemble mean and spread analysis
- Forecasters must consider local effects which can significantly influence weather patterns:
- Topography (mountain ranges, valleys)
- Bodies of water (sea breezes, lake effect snow)
- Urban heat islands
Advanced Forecasting Methods and Skill Development
- Interpretation of model output statistics (MOS) refines raw model forecasts by accounting for systematic biases
- Application of forecaster experience and pattern recognition skills crucial for improving upon model guidance
- Analog forecasting compares current patterns to historical events with similar characteristics
- Machine learning and artificial intelligence increasingly used to process large datasets and identify subtle patterns
- Continuous verification and skill assessment help forecasters improve techniques and understand forecast limitations
Key Terms to Review (23)
Anemometer: An anemometer is an instrument used to measure wind speed and, in some cases, wind direction. It plays a crucial role in meteorological observations, helping scientists understand atmospheric conditions and the dynamics of the atmosphere, as well as informing various applications such as aviation and weather forecasting.
Anticyclone: An anticyclone is a weather system characterized by high atmospheric pressure at its center, where air descends and spreads outwards, leading to clear skies and stable weather conditions. This phenomenon plays a significant role in shaping the atmospheric composition and behavior, influencing pressure variations, global wind patterns, and how weather maps are analyzed for forecasting purposes.
Barometer: A barometer is an instrument used to measure atmospheric pressure, which plays a crucial role in weather forecasting and understanding meteorological processes. By tracking changes in pressure, barometers help indicate weather patterns, such as high and low-pressure systems, which are essential for predicting storms and other weather events.
Cold front: A cold front is a boundary where a colder air mass replaces a warmer air mass, leading to various weather changes. This process typically causes a noticeable drop in temperature, shifts in wind direction, and often brings precipitation and storms as the warm air is forced to rise rapidly over the cold air.
Cyclone: A cyclone is a large-scale air mass that rotates around a center of low atmospheric pressure, characterized by strong winds and heavy precipitation. Cyclones are significant weather phenomena that can influence global wind patterns, atmospheric pressure systems, and weather map interpretations, affecting local and regional climates dramatically.
Frontogenesis: Frontogenesis is the process that creates and strengthens weather fronts, occurring when there is a temperature gradient in the atmosphere, often associated with the interaction of air masses. This process plays a vital role in determining weather patterns and can lead to the development of significant storm systems. Understanding frontogenesis helps meteorologists analyze and predict various weather phenomena, including precipitation and temperature changes.
Frontolysis: Frontolysis refers to the process in which a weather front weakens or dissipates, often leading to a decrease in the associated weather patterns and conditions. This phenomenon is crucial in understanding the life cycle of frontal systems, as it indicates the decline of temperature contrasts between air masses and can signal changes in weather patterns. Recognizing frontolysis helps meteorologists predict shifts in air mass characteristics, changes in frontal boundaries, and subsequent weather developments.
High-pressure system: A high-pressure system is an area where the atmospheric pressure is higher than that of the surrounding regions, typically associated with clear skies and calm weather. These systems result from descending air that warms and dries as it compresses, leading to stable atmospheric conditions. High-pressure systems often influence local weather patterns, steering storm systems and impacting temperature variations.
Isobar: An isobar is a line on a weather map that connects points of equal atmospheric pressure. These lines help meteorologists visualize pressure patterns and analyze weather systems, including cyclones and anticyclones, providing critical insight into wind patterns and storm movements.
Isotherm: An isotherm is a line on a weather map that connects points of equal temperature at a specific time. These lines help meteorologists visualize temperature distributions across different regions, indicating patterns of warmth and coldness. By analyzing isotherms, one can interpret weather changes, identify fronts, and understand atmospheric conditions affecting weather patterns.
Jet stream: The jet stream is a fast-flowing ribbon of air located high in the atmosphere, typically between 6 to 12 miles above the Earth's surface, that plays a crucial role in shaping weather patterns and influencing the movement of air masses. These narrow bands of strong winds can impact temperature and precipitation across regions, connecting different layers of the atmosphere and affecting various weather phenomena.
Long-range forecast: A long-range forecast refers to a prediction of weather conditions that extends beyond the typical short-term forecasting period, often covering a time frame of several weeks to months. These forecasts rely on complex models and historical data to estimate atmospheric patterns, providing insights into potential weather trends such as temperature and precipitation that may occur in the future. Understanding these predictions is crucial for planning in agriculture, disaster management, and various industries affected by weather changes.
Low-pressure system: A low-pressure system is a region in the atmosphere where the atmospheric pressure is lower than that of surrounding areas. These systems are associated with rising air, which leads to cloud formation and precipitation, making them key players in weather patterns, especially in the context of cyclones and anticyclones and when analyzing weather maps.
Occluded front: An occluded front occurs when a cold front overtakes a warm front, causing the warm air to be lifted off the ground entirely. This type of front is significant in weather systems as it typically leads to complex weather patterns and precipitation. Understanding occluded fronts is crucial for predicting the development and intensity of storms, as they can result in varying weather conditions and are often associated with low-pressure systems.
Orographic Lift: Orographic lift occurs when an air mass is forced to rise over a topographical barrier, such as mountains or hills, leading to cooling and condensation of moisture in the air. This process significantly impacts weather patterns, influencing atmospheric stability, precipitation types, cloud development, and how weather maps are analyzed and interpreted.
Radar: Radar, which stands for Radio Detection and Ranging, is a technology that uses radio waves to detect and locate objects, measure distances, and determine the speed of moving targets. In meteorology, radar is crucial for observing precipitation patterns, monitoring severe weather events, and providing real-time data that enhances our understanding of atmospheric phenomena.
Rain shadow effect: The rain shadow effect is a meteorological phenomenon that occurs when moist air rises over a mountain range, cools, and loses its moisture as precipitation on the windward side, creating a drier area on the leeward side. This leads to distinct climate differences, where one side of the mountain can be lush and wet while the other is arid and dry. Understanding this effect is essential for interpreting weather patterns and predicting climate variations in different regions.
Short-range forecast: A short-range forecast is a weather prediction that typically covers a time frame of one to three days ahead. This type of forecasting relies on current weather data and numerical weather prediction models to provide timely and accurate information about imminent weather events, making it essential for daily planning and immediate decision-making.
Station Model: A station model is a symbolic representation of weather data for a specific location, providing crucial information about the atmospheric conditions at that site. This model uses a standardized format to convey various meteorological elements such as temperature, pressure, humidity, wind speed, and precipitation in a compact manner. By analyzing these station models on weather maps, meteorologists can interpret and predict weather patterns effectively.
Surface weather map: A surface weather map is a graphical representation of meteorological conditions at the Earth's surface, showing various weather elements such as temperature, pressure, wind direction, and precipitation. These maps provide a snapshot of weather patterns and are essential for analyzing and predicting weather phenomena.
Thunderstorm: A thunderstorm is a localized weather phenomenon characterized by the presence of thunder, lightning, and often heavy rainfall. These storms typically form in warm, humid conditions when the atmosphere becomes unstable, leading to the rapid rise of warm air and the development of cumulonimbus clouds. Thunderstorms are connected to various atmospheric processes, cloud formation, electrical discharge, and weather patterns, making them a crucial subject in understanding severe weather events.
Upper-level weather map: An upper-level weather map is a type of atmospheric chart that displays weather patterns at altitudes typically above 500 millibars, which corresponds to approximately 5,500 feet above sea level. These maps are crucial for understanding the behavior of the jet stream, pressure systems, and the overall flow of air in the atmosphere. They help meteorologists analyze and predict weather conditions by showing the distribution of temperature, moisture, and wind at different heights.
Warm front: A warm front is a transition zone where warm air mass replaces a cooler air mass, typically moving at a slower pace. As the warm air rises over the cooler, denser air, it leads to cloud formation and precipitation, which is often steady and prolonged. Understanding warm fronts is crucial as they interact with pressure gradients and the Coriolis effect, contribute to the development of mid-latitude cyclones, and influence weather patterns.
