11.2 Hurricane structure and intensity classification
5 min read•july 31, 2024
Hurricanes are nature's most powerful storms, with complex structures that dictate their strength. The , , and work together to create a massive weather system capable of causing widespread destruction. Understanding these components is crucial for predicting hurricane behavior.
Intensity classification helps meteorologists and the public gauge a hurricane's potential impact. The , based on wind speeds, provides a quick reference. However, other factors like central pressure, size, and also play vital roles in determining a hurricane's destructive power.
Hurricane Structure

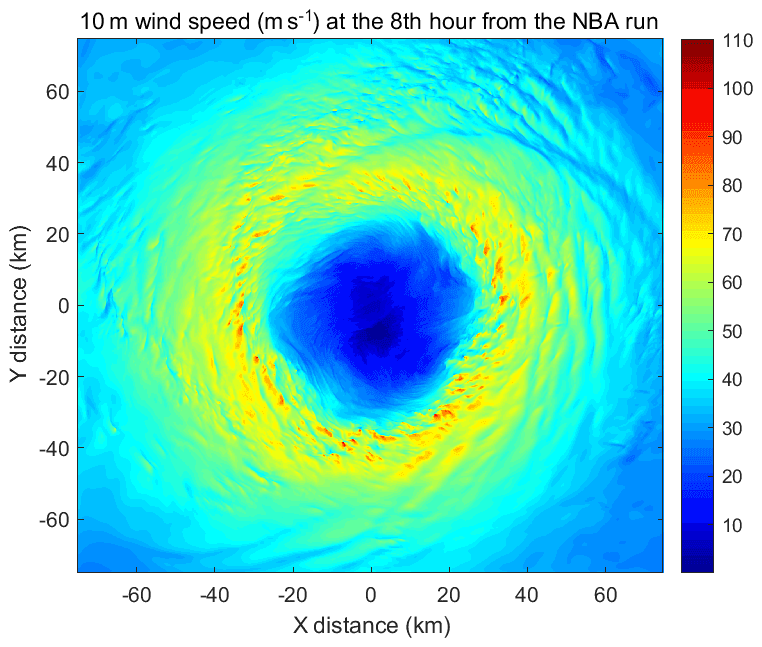

Eye and Eyewall Characteristics
Top images from around the web for Eye and Eyewall Characteristics
ACP - Role of eyewall and rainband eddy forcing in tropical cyclone intensification View original
Is this image relevant?
ACP - Role of eyewall and rainband eddy forcing in tropical cyclone intensification View original
Is this image relevant?
Hurricanes View original
Is this image relevant?
ACP - Role of eyewall and rainband eddy forcing in tropical cyclone intensification View original
Is this image relevant?
ACP - Role of eyewall and rainband eddy forcing in tropical cyclone intensification View original
Is this image relevant?
1 of 3
Top images from around the web for Eye and Eyewall Characteristics
ACP - Role of eyewall and rainband eddy forcing in tropical cyclone intensification View original
Is this image relevant?
ACP - Role of eyewall and rainband eddy forcing in tropical cyclone intensification View original
Is this image relevant?
Hurricanes View original
Is this image relevant?
ACP - Role of eyewall and rainband eddy forcing in tropical cyclone intensification View original
Is this image relevant?
ACP - Role of eyewall and rainband eddy forcing in tropical cyclone intensification View original
Is this image relevant?
1 of 3
- Eye forms calm center of hurricane with light winds, clear skies, and low surface pressure
- Typically ranges from 20 to 40 miles in diameter
- Acts as the storm's "center of rotation"
- Eyewall surrounds eye with ring of intense thunderstorms
- Contains strongest winds and heaviest precipitation
- Extends 5 to 30 miles outward from eye
- Drives hurricane's energy and circulation
Rainbands and Overall Structure
- Rainbands spiral inward toward hurricane center
- Curved bands of clouds and thunderstorms
- Extend outward for hundreds of miles (sometimes over 300 miles)
- Produce heavy rainfall and occasional tornadoes
- Hurricane shape roughly circular or oval
- Vertical extent reaches up to 50,000 feet in troposphere
- Diameter can range from 100 to over 1000 miles
- Rotation direction determined by Coriolis effect
- Counterclockwise in Northern Hemisphere
- Clockwise in Southern Hemisphere
Circulation Components
- Inflow layer near surface crucial for hurricane maintenance
- Draws warm, moist air into storm's core
- Typically extends from surface to about 3000 feet altitude
- Outflow layer at upper levels essential for intensity
- Allows rising air to exit storm at high altitudes
- Usually occurs above 40,000 feet
- Circulation creates pressure gradient
- Low pressure at center, higher pressure outside
- Drives wind flow and energy transport within storm
Hurricane Intensity Categories
Saffir-Simpson Hurricane Wind Scale
- Categorizes hurricanes from 1 to 5 based on sustained wind speeds
- : 74-95 mph
- : 96-110 mph
- : 111-129 mph
- : 130-156 mph
- : 157 mph or higher
- Wind gusts can exceed sustained speeds by 20-30%
- Category 3 hurricane with 120 mph sustained winds might have gusts to 150 mph
- Scale focuses solely on wind speeds
- Does not account for storm surge, rainfall, or tornado potential
- Limitations have led to discussions about revising or replacing the scale
Central Pressure and Intensity Relationship
- Central pressure generally decreases as hurricane intensity increases
- Category 1: typically 980-989 millibars
- Category 5: often below 920 millibars
- Relationship between wind speed and central pressure not linear
- Significant pressure drops can occur between categories
- Example: Category 4 hurricane might have 935 mb pressure, while Category 5 could reach 915 mb
- Lowest recorded pressure in Atlantic basin: 882 mb (Hurricane Wilma, 2005)
- Pressure gradient between center and outer edges drives wind speeds
- Steeper gradient generally results in stronger winds
Hurricane Intensity and Damage
Wind-Related Damage
- Higher intensity hurricanes cause more extensive wind damage
- Can destroy buildings, especially mobile homes and older structures
- Uproots trees and creates dangerous projectiles
- Example: Category 5 (1992) leveled entire neighborhoods in Florida
- Size of hurricane affects damage extent independent of intensity
- Larger storms impact wider areas
- Prolong duration of hazardous conditions
- Example: (2012) caused widespread damage despite lower intensity due to its massive size
Storm Surge and Flooding
- Storm surge potential increases with hurricane intensity
- Stronger winds push more water onshore
- Can lead to severe coastal flooding and erosion
- Example: (2005) produced a 28-foot storm surge, devastating the Gulf Coast
- Rainfall totals and inland flooding often correlate with intensity
- Stronger storms typically have more moisture
- Better-organized precipitation patterns
- Example: (2017) dropped over 60 inches of rain in parts of Texas
Additional Hazards and Economic Impact
- Tornado formation likelihood increases with hurricane intensity
- Stronger hurricanes generally produce more tornadoes
- Example: (2004) spawned 120 tornadoes across the southeastern United States
- Economic losses tend to increase exponentially with intensity
- Critical infrastructure becomes more vulnerable
- Large population centers at greater risk
- Example: (2017) caused an estimated $50 billion in damages
- Damage potential influenced by factors beyond intensity
- Population density
- Building codes and construction quality
- Local topography and natural barriers
Tracking Hurricane Intensity
Satellite-Based Techniques
- Satellite imagery analysis estimates intensity based on cloud patterns and temperatures
- Dvorak technique widely used since the 1970s
- Assigns T-numbers to estimate maximum wind speeds
- Microwave imagery penetrates cloud tops
- Reveals internal structure of hurricanes
- Helps assess intensity by showing eyewall definition and rainband organization
- Scatterometers measure ocean surface wind speeds and directions
- Provide data on hurricane wind fields over open water
- Example: Advanced Scatterometer (ASCAT) on MetOp satellites
In-Situ Measurements
- Reconnaissance aircraft fly directly into hurricanes
- NOAA Hurricane Hunters and Air Force Reserve Hurricane Hunters
- Measure wind speeds, pressure, and other parameters
- Use dropsondes to collect vertical profiles of atmosphere
- Surface observations provide valuable data
- Weather stations on land
- Buoys and ships at sea
- Measure wind speeds, pressure, and wave heights
- Example: National Data Buoy Center operates network of buoys in hurricane-prone areas
Remote Sensing and Modeling
- Doppler weather radar measures wind speeds and precipitation intensity
- Used as hurricanes approach land
- Provides detailed look at storm structure and intensity
- Advanced computer models integrate observational data
- Create intensity forecasts and track predictions
- Examples include HWRF (Hurricane Weather Research and Forecasting) model and ECMWF (European Centre for Medium-Range Weather Forecasts) model
- Ensemble forecasting combines multiple model runs
- Accounts for uncertainties in initial conditions and model physics
- Provides probabilistic intensity forecasts
