10.1 Thunderstorm formation and development stages
4 min read•july 31, 2024
Thunderstorms are nature's powerhouses, unleashing fury through rain, wind, and . They form when unstable air, , and a lifting force combine. Understanding their stages—cumulus, mature, and dissipating—helps predict their behavior and potential dangers.
Thunderstorms come in different flavors: , , and . Each type has unique characteristics and severe weather potential. Knowing the differences helps meteorologists forecast storms and issue timely warnings to keep people safe.
Thunderstorm Formation Conditions
Atmospheric Instability and Moisture
Top images from around the web for Atmospheric Instability and Moisture
New at Dis Hour: Severe thunderstorms possible Wednesday afternoon View original
Is this image relevant?
Thunderstorms | Physical Geography View original
Is this image relevant?
New at Dis Hour: Severe thunderstorms possible Wednesday afternoon View original
Is this image relevant?
Thunderstorms | Physical Geography View original
Is this image relevant?
1 of 2
Top images from around the web for Atmospheric Instability and Moisture
New at Dis Hour: Severe thunderstorms possible Wednesday afternoon View original
Is this image relevant?
Thunderstorms | Physical Geography View original
Is this image relevant?
New at Dis Hour: Severe thunderstorms possible Wednesday afternoon View original
Is this image relevant?
Thunderstorms | Physical Geography View original
Is this image relevant?
1 of 2
- Atmospheric drives thunderstorm formation characterized by rapid temperature decrease with height exceeding dry adiabatic lapse rate
- Sufficient lower atmosphere moisture measured by dew point temperature or relative humidity fuels storm development
- Convective Available Potential Energy (CAPE) indicates atmosphere's thunderstorm development potential
- Higher CAPE values (1000-4000 J/kg) suggest greater instability and stronger updrafts
- Examples: 2000 J/kg moderate instability, 4000 J/kg extreme instability
- Lifted Index (LI) and K-Index assess thunderstorm formation likelihood
- LI < 0 indicates instability (LI of -4 suggests strong instability)
- K-Index > 30 suggests high thunderstorm potential
Lifting Mechanisms and Wind Shear
- initiates convection through various processes
- Frontal systems force air masses to collide and rise (cold front lifting warm air)
- Orographic lifting occurs when air flows over mountains or hills (Rocky Mountains)
- Localized surface heating creates thermal bubbles that rise (afternoon heating in summer)
- Wind shear influences thunderstorm organization and longevity
- Speed shear affects storm tilt and precipitation distribution
- Directional shear contributes to storm rotation and supercell formation
- Level of free convection (LFC) and equilibrium level (EL) define potential thunderstorm vertical extent
- LFC altitude where lifted air becomes warmer than surroundings
- EL altitude where lifted air cools to match environment temperature

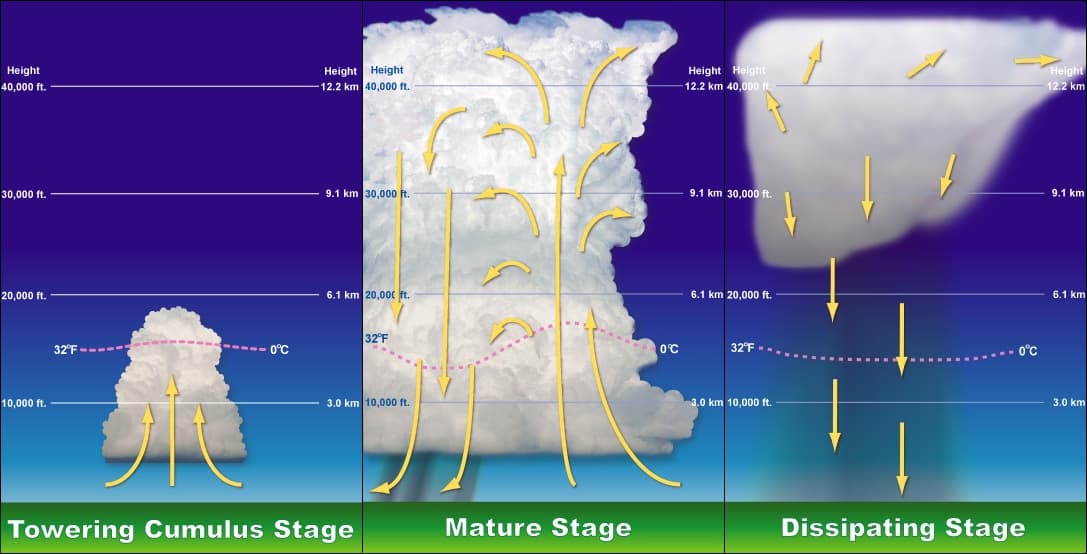

Thunderstorm Development Stages
Cumulus Stage
- Strong updrafts drive rapid vertical growth forming towering cumulus cloud
- speeds typically range from 20-50 mph (9-22 m/s)
- Little to no precipitation occurs as cloud consists primarily of water droplets
- Cloud base forms at condensation level, often 1000-2000 meters above ground
- Duration of varies from 10-20 minutes depending on atmospheric conditions
Mature Stage
- Both strong updrafts and downdrafts present within storm structure
- Updrafts can exceed 100 mph (45 m/s) in severe thunderstorms
- Heavy precipitation, lightning, and characterize this stage
- Precipitation rates can reach 1-2 inches (25-50 mm) per hour
- Cloud top often reaches tropopause forming anvil shape due to upper-level wind shear
- Anvil can extend 50-100 miles (80-160 km) downwind from storm core
- typically lasts 20-30 minutes but can persist longer in organized storms
Dissipating Stage
- Downdrafts dominate storm structure cutting off warm, moist air supply
- Cold pool formation at surface spreads outward disrupting inflow
- Precipitation gradually weakens as cloud evaporates from bottom up
- Rainfall intensity decreases to light or moderate
- Storm's electrical activity diminishes during final stage
- Lightning frequency reduces significantly compared to mature stage
- duration varies but typically lasts 20-30 minutes
Updrafts and Downdrafts in Thunderstorms
Updraft Dynamics
- Updrafts transport warm, moist air from lower levels to higher altitudes fueling storm growth
- Vertical velocities can range from 10-50 m/s (22-112 mph) in strong storms
- Updraft strength directly relates to atmospheric instability and available CAPE
- Higher CAPE values correlate with stronger updrafts
- Updrafts contribute to cloud electrification through charge separation within storm cloud
- Collision of ice crystals and graupel particles creates charge differences
Downdraft Characteristics
- Descending columns of cooler air initiated by precipitation drag and evaporative cooling
- speeds typically range from 5-20 m/s (11-45 mph)
- Interaction between updrafts and downdrafts creates thunderstorm's internal circulation
- Circulation patterns vary based on storm type and environmental conditions
- Downdrafts strengthen and spread at surface potentially cutting off warm, moist air inflow
- Gust fronts form as downdrafts spread horizontally at ground level
- Balance between updrafts and downdrafts determines thunderstorm longevity and severity
- Sustained updrafts with limited downdraft interference promote longer-lived storms
Single-Cell vs Multi-Cell vs Supercell Thunderstorms
Single-Cell Thunderstorms
- Also known as pulse storms, typically last 30-60 minutes and undergo all three development stages
- Short-lived nature limits severe weather potential
- Usually isolated and occur in environments with weak wind shear
- Vertical wind speed change less than 20 knots (10 m/s) through lowest 6 km
- Common in summer afternoons due to daytime heating and localized convection
- Often produce brief heavy rain, occasional small , and gusty winds
Multi-Cell Thunderstorms
- Consist of cluster of individual cells in various development stages
- New cells continually form on leading edge of storm complex
- Persist for several hours as new cells replace dissipating ones
- Overall storm system can travel long distances (100+ miles)
- Moderate wind shear present in multi-cell storm environments
- Vertical wind speed change 20-40 knots (10-20 m/s) through lowest 6 km
- Capable of producing a variety of severe weather hazards
- Large hail, damaging winds, heavy rainfall, and occasionally weak tornadoes
Supercell Thunderstorms
- Characterized by deep, persistent rotating updraft called mesocyclone
- Rotation visible on as hook echo or velocity couplet
- Form in environments with strong wind shear and can persist for several hours
- Vertical wind speed change greater than 40 knots (20 m/s) through lowest 6 km
- Capable of producing severe weather phenomena
- Giant hail (2+ inches in diameter), strong tornadoes (EF3+), and destructive winds
- Radar signatures help distinguish supercells
- Hook echoes indicate potential tornado formation
- Bounded weak echo regions (BWER) suggest intense updrafts and severe potential
Key Terms to Review (24)
Barometer: A barometer is an instrument used to measure atmospheric pressure, which plays a crucial role in weather forecasting and understanding meteorological processes. By tracking changes in pressure, barometers help indicate weather patterns, such as high and low-pressure systems, which are essential for predicting storms and other weather events.
Convective heating: Convective heating is the process by which heat is transferred through the movement of fluids, typically air or water, as they circulate due to differences in temperature and density. In meteorology, this process plays a crucial role in the development of thunderstorms, as warm, moist air rises, cools, and can lead to cloud formation and precipitation. The interaction of warm air rising and cooler air descending is essential for understanding the dynamics of storm development.
Cumulus stage: The cumulus stage is the initial phase of thunderstorm development, characterized by the formation of cumulus clouds as warm, moist air rises and cools, leading to condensation. During this stage, updrafts are dominant, causing the growth of these clouds vertically. As the clouds grow, they may develop into larger cumulonimbus clouds, which can lead to severe weather conditions.
David Bodine: David Bodine is a meteorologist known for his research on thunderstorms, specifically focusing on their formation and development stages. His work has contributed significantly to understanding how various atmospheric conditions lead to the creation and intensification of thunderstorms, including the roles of moisture, instability, and lifting mechanisms. His findings help in improving forecasting techniques and warning systems for severe weather events associated with thunderstorms.
Dissipating Stage: The dissipating stage is the final phase of a thunderstorm's life cycle, characterized by a decrease in the storm's intensity and the eventual cessation of precipitation. During this stage, the updrafts weaken significantly, and the storm's structure begins to collapse, leading to the dissipation of cloud cover and rainfall. This stage is crucial as it marks the transition from an active storm system to clear skies.
Downdraft: A downdraft is a downward-moving current of air that occurs within a thunderstorm, playing a crucial role in storm dynamics. This phenomenon typically forms when cooler, denser air descends rapidly through the storm, leading to various weather effects such as gusty winds and heavy precipitation. Downdrafts contribute to the overall structure and life cycle of thunderstorms, influencing their development, intensity, and potential for severe weather.
Gust front: A gust front is a boundary that forms at the leading edge of cold air that is displaced by downdrafts from a thunderstorm. This cold air can produce a surge of wind, sometimes resulting in severe weather conditions, including the development of new thunderstorms. The gust front plays a crucial role in thunderstorm dynamics by helping to organize and initiate new convective activity.
Hail: Hail is a type of solid precipitation that consists of balls or irregular lumps of ice, known as hailstones, which form in thunderstorms with strong updrafts. The process of hail formation involves the repeated cycling of water droplets within a storm cloud, allowing them to freeze and accumulate layers of ice before falling to the ground. This phenomenon is closely tied to various meteorological processes, particularly in the context of severe weather events.
Instability: Instability refers to a condition where the atmosphere is prone to rapid changes, often leading to the development of severe weather phenomena. This concept is crucial in understanding how disturbances in the atmosphere can result in thunderstorms, tornadoes, and severe weather patterns, as unstable air allows for vigorous vertical motion and enhances storm development.
Latent heat release: Latent heat release is the energy that is released when water vapor condenses into liquid water. This process is crucial in meteorology, especially in the development of thunderstorms, as it fuels the storm's growth by providing additional heat to the surrounding air, leading to further convection and instability in the atmosphere.
Lifting mechanism: A lifting mechanism refers to a process that causes air to rise in the atmosphere, which is essential for the formation of clouds and precipitation. These mechanisms can include various factors such as surface heating, topography, and weather fronts. Understanding lifting mechanisms is crucial in analyzing the development stages of thunderstorms, as they play a significant role in determining how moisture-laden air ascends, cools, and condenses into storm clouds.
Lightning: Lightning is a natural electrical discharge that occurs during thunderstorms, resulting from the buildup of electrical charges within a cloud. This phenomenon usually manifests as a bright flash of light and can occur within clouds, between clouds, or between a cloud and the ground. The occurrence of lightning is closely related to the processes of charge separation and discharge that happen during thunderstorm development.
Mature stage: The mature stage of a thunderstorm is the phase where the storm reaches its peak intensity, showcasing strong updrafts, heavy rainfall, and potentially severe weather phenomena. This stage is characterized by the organization of the storm, including well-defined structures like the anvil top and downdrafts, which can lead to significant precipitation and hazardous conditions such as hail or tornadoes.
Moisture: Moisture refers to the presence of water in the atmosphere, typically in the form of vapor, droplets, or ice particles. It plays a crucial role in weather phenomena, particularly in the formation and development of thunderstorms, where it serves as a key ingredient for energy release and cloud formation. As moisture rises, it cools and condenses, leading to the development of clouds and precipitation, which are essential for thunderstorm activity.
Multi-cell: Multi-cell refers to a type of thunderstorm system that consists of multiple individual cells, or convective units, that can develop simultaneously or sequentially. These thunderstorms are typically organized and can produce severe weather over a larger area than single-cell storms due to their ability to maintain and recycle energy from the surrounding atmosphere.
Radar: Radar, which stands for Radio Detection and Ranging, is a technology that uses radio waves to detect and locate objects, measure distances, and determine the speed of moving targets. In meteorology, radar is crucial for observing precipitation patterns, monitoring severe weather events, and providing real-time data that enhances our understanding of atmospheric phenomena.
Roger G. Barry: Roger G. Barry is a prominent meteorologist and climatologist known for his extensive contributions to the field of atmospheric sciences, particularly in the areas of climate variability and change. He has significantly impacted the understanding of meteorological phenomena through his research, teaching, and writings, including his well-known textbook on climatology.
Severe Thunderstorm Warning: A severe thunderstorm warning is an alert issued by meteorological authorities to inform the public that a severe thunderstorm is occurring or imminent in a specific area. This warning indicates that the storm is capable of producing damaging winds, large hail, or tornadoes, and that immediate action should be taken to ensure safety. Understanding this warning is crucial as it relates to the formation and intensity of thunderstorms, particularly those that develop into severe thunderstorms and supercells.
Single-cell: A single-cell thunderstorm, also known as a pulse storm, is a type of thunderstorm characterized by its relatively short lifespan, typically lasting less than an hour. These storms develop from a singular updraft and are often isolated in nature, meaning they do not form in clusters or as part of a larger system. Single-cell thunderstorms can produce localized heavy rain, lightning, and sometimes hail, but generally do not lead to severe weather conditions like tornadoes or damaging winds.
Supercell: A supercell is a highly organized thunderstorm characterized by a rotating updraft called a mesocyclone, capable of producing severe weather phenomena such as large hail, tornadoes, and intense rainfall. Supercells are distinct from other types of thunderstorms due to their unique structure and longevity, often leading to severe impacts on the environment and communities they affect.
Thermometer: A thermometer is an instrument used to measure temperature, typically by utilizing the expansion of liquids or the resistance of materials to changes in temperature. Thermometers play a vital role in understanding heat transfer mechanisms, temperature measurements across different scales, and variations in temperature distribution, especially in the study of weather phenomena like thunderstorms.
Thunder: Thunder is the sound produced by the rapid expansion and contraction of air surrounding a lightning strike. This explosive sound occurs when the intense heat from lightning causes air to expand quickly, creating a shockwave that travels through the atmosphere. The connection between thunder and thunderstorms is crucial, as it indicates the presence of lightning, which is a key feature of storm development and intensity.
Tornado watch: A tornado watch is a notification issued by meteorological authorities indicating that conditions are favorable for the formation of tornadoes in a particular area. It serves as a warning for residents to stay alert and be prepared for the possibility of severe weather, especially in the context of thunderstorms and supercell development, where tornadoes are most likely to occur.
Updraft: An updraft is a vertical movement of air that is crucial in the formation and development of thunderstorms. It plays a vital role in lifting warm, moist air into the atmosphere, where it can cool and condense to form clouds and precipitation. The intensity of the updraft determines the strength of the storm, influencing the overall structure and severity of thunderstorms, including severe thunderstorms and supercells.
