11.3 Solving Differential Equations with Laplace Transforms
4 min read•july 30, 2024
Laplace transforms revolutionize how we tackle differential equations. By converting time-domain problems into algebraic equations in the , we simplify the solving process. This method is especially powerful for and equations with discontinuous forcing functions.
The beauty of Laplace transforms lies in their versatility. They handle various types of equations, incorporate initial conditions seamlessly, and provide a unified approach to solving both homogeneous and non-homogeneous differential equations. This technique is a game-changer in many fields of science and engineering.
Laplace Transforms for Initial Value Problems
Fundamentals of Laplace Transforms
Top images from around the web for Fundamentals of Laplace Transforms

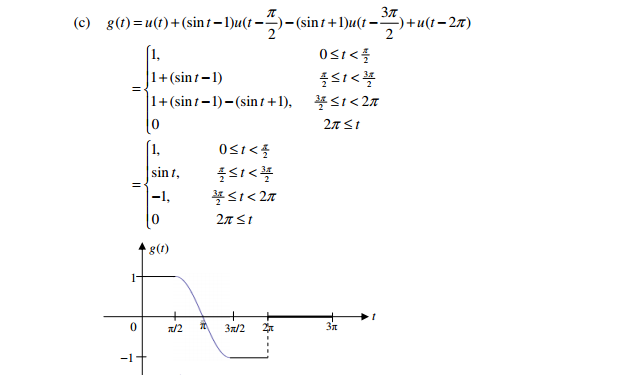

laplace transform - Unit step function value - Mathematics Stack Exchange View original
Is this image relevant?
How do you find the Inverse Laplace transformation for a product of $2$ functions? - Mathematics ... View original
Is this image relevant?

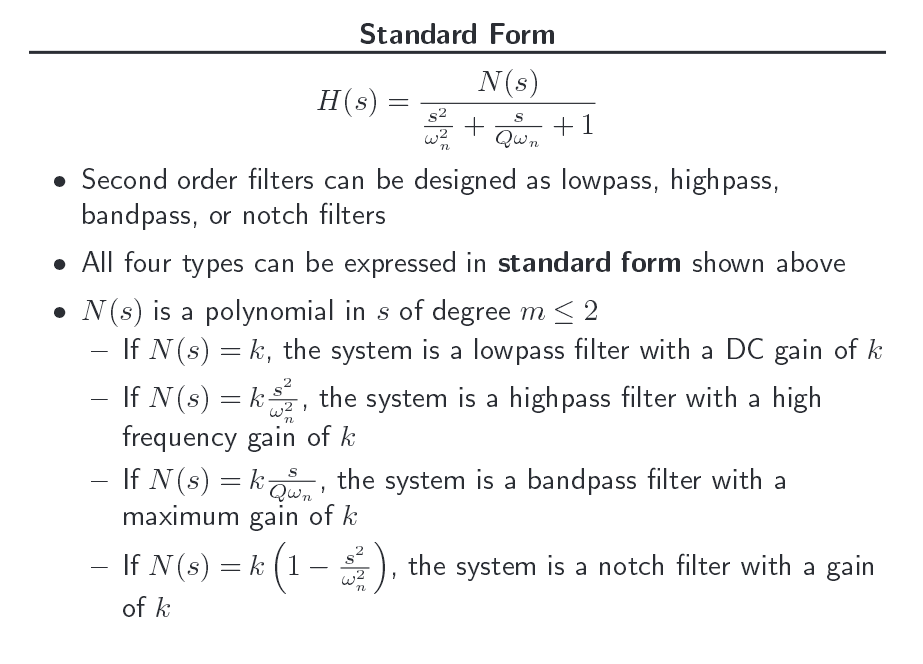

Standard form of 2nd order transfer function (Laplace transform)? - Electrical Engineering Stack ... View original
Is this image relevant?
laplace transform - Unit step function value - Mathematics Stack Exchange View original
Is this image relevant?
How do you find the Inverse Laplace transformation for a product of $2$ functions? - Mathematics ... View original
Is this image relevant?
1 of 3
Top images from around the web for Fundamentals of Laplace Transforms
laplace transform - Unit step function value - Mathematics Stack Exchange View original
Is this image relevant?
How do you find the Inverse Laplace transformation for a product of $2$ functions? - Mathematics ... View original
Is this image relevant?
Standard form of 2nd order transfer function (Laplace transform)? - Electrical Engineering Stack ... View original
Is this image relevant?
laplace transform - Unit step function value - Mathematics Stack Exchange View original
Is this image relevant?
How do you find the Inverse Laplace transformation for a product of $2$ functions? - Mathematics ... View original
Is this image relevant?
1 of 3
- Laplace transform converts a function of time f(t) into a function of complex frequency F(s)
- Defined as = F(s) = ∫₀^∞ e^(-st)f(t)dt, where s represents complex number frequency parameter
- Transforms common functions including exponentials, trigonometric functions, and polynomials
- Exhibits L{af(t) + bg(t)} = aL{f(t)} + bL{g(t)}, where a and b are constants
- Transforms derivatives following pattern L{f'(t)} = sF(s) - f(0), L{f''(t)} = s²F(s) - sf(0) - f'(0), etc.
Application to Initial Value Problems
- Incorporates initial conditions of differential equations into Laplace transform
- Converts initial value problems into algebraic equations in s-domain
- Solves resulting algebraic equations using standard techniques (factoring, partial fractions)
- Avoids complex differential equation solving methods
- Simplifies process of finding
- Handles various types of forcing functions (constant, exponential, sinusoidal)
- Applies inverse Laplace transform to obtain time-domain solution
Solving Process and Examples
- Convert differential equation and initial conditions to s-domain
- Solve for transform of solution Y(s)
- Apply inverse Laplace transform to find y(t)
- Example: Solve y'' + 4y = 2sin(3t), y(0) = 1, y'(0) = 0
- Take Laplace transform: s²Y(s) - sy(0) - y'(0) + 4Y(s) = 2(3/(s² + 9))
- Solve for Y(s): Y(s) = (s/(s² + 4)) + (6/(s² + 4)(s² + 9))
- Apply inverse Laplace transform: y(t) = cos(2t) + (1/5)sin(2t) - (1/5)sin(3t)
Solving Differential Equations with Discontinuous Forcing
Representing Discontinuous Functions
- Discontinuous forcing functions involve piecewise-defined functions with jumps or discontinuities
- Unit u(t-a) represents key component in discontinuous functions
- Defined as u(t-a) = 0 for t < a and u(t-a) = 1 for t ≥ a
- Laplace transform of unit step function L{u(t-a)} = e^(-as)/s
- Expresses piecewise-defined functions using combinations of unit step functions and continuous functions
- Handles various types of discontinuities (step changes, ramp functions, pulse functions)
- Example: f(t) = t for 0 ≤ t < 2, f(t) = 4 for t ≥ 2 expressed as f(t) = t - (t-2)u(t-2) + 4u(t-2)
Laplace Transform Method for Discontinuous Forcing
- Incorporates discontinuities directly into solution process
- Avoids need for separate solutions in different intervals
- Applies for solving equations with discontinuous forcing
- Uses partial fraction decomposition for inverse Laplace transforms
- Handles impulse responses in systems
- Example: Solve y'' + 2y' + y = u(t-π), y(0) = 0, y'(0) = 0
- Take Laplace transform: s²Y(s) + 2sY(s) + Y(s) = e^(-πs)/s
- Solve for Y(s): Y(s) = e^(-πs)/(s(s² + 2s + 1))
- Apply inverse Laplace transform: y(t) = (1 - e^(-(t-π)) - (t-π))u(t-π)
Particular Solutions to Non-homogeneous Equations
Laplace Transform Approach
- Non-homogeneous differential equations include non-zero forcing function on right-hand side
- Takes Laplace transform of entire equation including non-homogeneous term
- Solves resulting s-domain algebraic equation for transform of solution Y(s)
- Applies partial fraction decomposition to break down complex fractions in Y(s)
- Uses inverse Laplace transform to obtain particular solution y(t) in time domain
- Combines homogeneous and particular solutions using principle of superposition
- Example: Solve y'' + 4y = 2e^(-t), y(0) = 1, y'(0) = 0
- Take Laplace transform: s²Y(s) - s + 4Y(s) = 2/(s+1)
- Solve for Y(s): Y(s) = (s/(s² + 4)) + (2/((s+1)(s² + 4)))
- Apply inverse Laplace transform: y(t) = cos(2t) + (1/5)e^(-t) - (1/5)cos(2t) + (2/5)sin(2t)
Alternative Methods and Considerations
- Applies method of undetermined coefficients for specific forcing function types
- Handles forcing functions like polynomials, exponentials, and sinusoids
- Compares efficiency of Laplace transform method with classical techniques
- Addresses limitations and special cases in non-homogeneous equation solving
- Example: Solve y'' + y = t² using method of undetermined coefficients
- Assume particular solution form yp = At² + Bt + C
- Substitute into equation and solve for coefficients
- Obtain particular solution yp = (t² - 2)/2
Interpreting Solutions in Context
Physical Interpretations of Solutions
- Models various phenomena (mechanical vibrations, electrical circuits, population dynamics)
- Represents system's response over time with y(t)
- Identifies steady-state and transient components of solution
- Analyzes long-term behavior using
- Performs stability analysis by examining poles of transfer function in s-domain
- Relates solution parameters to physical properties (natural frequency, damping ratio)
- Example: In a spring-mass system, y(t) = Ae^(-ζωt)cos(ωd t + φ) + F/k
- A: initial amplitude, ζ: damping ratio, ω: natural frequency, ωd: damped frequency, F/k: steady-state displacement
Analyzing Discontinuous Solutions
- Interprets solutions with distinct behavior in different time intervals
- Relates discontinuities to system changes or external influences
- Examines impact of step inputs on system response
- Analyzes transient and steady-state behavior across discontinuities
- Considers physical meaning of discontinuous forcing functions
- Example: Temperature control system with thermostat
- Solution may show distinct heating and cooling phases
- Discontinuities represent thermostat switching on/off
Key Terms to Review (18)
Convergence conditions: Convergence conditions refer to the criteria that must be satisfied for a series or integral to converge to a specific value. In the context of solving differential equations with Laplace transforms, these conditions are crucial for ensuring that the transform exists and provides valid solutions. Understanding these conditions helps in determining the range of values for which the Laplace transform is applicable, thereby allowing for accurate analysis and interpretation of differential equations.
Convolution Theorem: The convolution theorem states that the Laplace transform of the convolution of two functions is equal to the product of their individual Laplace transforms. This fundamental property connects the time domain operations of convolution with the frequency domain operations represented by Laplace transforms, making it a powerful tool for analyzing linear systems, especially when dealing with differential equations and system responses.
Final Value Theorem: The final value theorem provides a method for determining the steady-state behavior of a system as time approaches infinity, using the Laplace transform. This theorem states that if a function is stable and has a limit as time goes to infinity, then the final value can be computed from its Laplace transform. This connects to properties of Laplace transforms, the process of finding inverse transforms, and is particularly useful in solving differential equations, allowing for quick insights into long-term system behavior without directly solving the equations.
Homogeneous solutions: Homogeneous solutions refer to the set of solutions to a linear differential equation where the non-homogeneous part is equal to zero. In the context of differential equations, homogeneous solutions are fundamental because they represent the behavior of the system without any external influences or forcing functions. Understanding these solutions helps in building the complete solution to the differential equation by combining them with particular solutions that account for external effects.
Impulse Function: The impulse function, often denoted as $$ ext{δ(t)}$$, is a mathematical representation of an idealized instantaneous input or force applied to a system. This function is crucial in solving differential equations using Laplace transforms, as it represents a sudden change or shock that occurs at a single point in time, effectively allowing for the analysis of systems' responses to such inputs.
Initial Value Problems: Initial value problems (IVPs) are a type of differential equation that require the solution to satisfy specific conditions at a given point, usually the starting point in time. These conditions typically involve specifying the value of the function and possibly its derivatives at that point. IVPs are crucial when applying methods like Laplace transforms, as they allow us to find unique solutions to differential equations by imposing these constraints.
Inverting the Laplace Transform: Inverting the Laplace Transform is the process of determining the original time-domain function from its Laplace transform. This technique is crucial for solving linear ordinary differential equations, as it allows one to transform complex differential equations into algebraic equations in the Laplace domain and then return to the time domain for interpretation and analysis of solutions.
L{f(t)}: The notation l{f(t)} represents the Laplace transform of a function f(t), which is a powerful integral transform used to convert a time-domain function into a complex frequency-domain representation. This transformation simplifies the process of solving linear ordinary differential equations by turning them into algebraic equations, making it easier to manipulate and find solutions. The Laplace transform is defined as the integral from 0 to infinity of e^{-st}f(t) dt, where s is a complex number, providing insights into system dynamics and behaviors in engineering and physics.
Linear differential equations: Linear differential equations are equations that relate a function and its derivatives, where the function and its derivatives appear linearly, meaning they are not multiplied or raised to any power. These equations can be of various orders and are significant because they often model real-world phenomena in physics, engineering, and other fields. Understanding linear differential equations is essential for solving more complex problems using methods like transforms and numerical approximations.
Linearity property: The linearity property refers to the principle that the Laplace transform is a linear operator. This means that if you have two functions, their Laplace transforms can be combined in a straightforward manner. Specifically, if you take the Laplace transform of a sum of functions or a scaled function, the results can be added or scaled correspondingly, which makes it easier to work with complex functions and differential equations.
Ordinary differential equations: Ordinary differential equations (ODEs) are mathematical equations that relate a function to its derivatives, representing how a quantity changes with respect to one independent variable. ODEs play a crucial role in modeling real-world phenomena in various fields, particularly in understanding dynamic systems and processes, which can be analyzed using techniques like Laplace transforms and applications in engineering and physics.
Particular Solutions: Particular solutions refer to specific solutions of differential equations that satisfy both the differential equation and initial or boundary conditions. These solutions are distinct from general solutions, which encompass a family of solutions that include arbitrary constants. Particular solutions play a critical role in solving real-world problems where specific values or conditions must be met.
Region of Convergence: The region of convergence is the set of values in the complex plane for which a given series converges to a finite limit. In the context of Laplace transforms, it is crucial for determining the validity and behavior of the transform, as it helps identify the conditions under which the transformed function can be analyzed and used to solve differential equations.
S-domain: The s-domain is a complex frequency domain used in Laplace transforms, where the variable 's' represents a complex number combining both real and imaginary parts. This domain allows for the analysis of linear time-invariant systems by transforming differential equations into algebraic equations, making it easier to solve them. The s-domain is crucial in understanding system behavior, stability, and response to inputs in engineering and control systems.
Shifting Theorem: The shifting theorem is a principle used in Laplace transforms that allows for the manipulation of functions to simplify the transformation process. This theorem states that if you have a function multiplied by an exponential function, you can shift the transform in the s-domain. This property is particularly useful when dealing with initial value problems, as it helps to account for step functions or delays in the system being analyzed.
Step Function: A step function is a piecewise constant function that jumps from one value to another at specific points, often used to model situations where changes occur suddenly. In the context of Laplace transforms, step functions can represent inputs or forcing functions that are activated at certain times, making them essential for analyzing systems that respond to abrupt changes.
System response analysis: System response analysis is the process of evaluating how a system behaves over time when subjected to external inputs or disturbances. This analysis helps in understanding the stability, performance, and characteristics of dynamic systems, especially in engineering and control theory, where the goal is to predict how systems respond to various stimuli using mathematical models.
Taking the Laplace Transform: Taking the Laplace transform is a mathematical operation that converts a function of time, typically a time-domain signal, into a function of a complex variable, usually denoted as 's'. This transformation simplifies the process of solving linear ordinary differential equations by turning them into algebraic equations, which can be easier to manipulate and solve. The Laplace transform is particularly useful in systems where initial conditions are involved, as it allows for straightforward incorporation of these conditions into the solution process.
