10.2 Eigenvalue Approach for Homogeneous Systems

4 min read•july 30, 2024

The approach for homogeneous systems is a powerful tool for solving and analyzing systems of differential equations. It simplifies complex problems by transforming them into algebraic equations, making it easier to understand the long-term behavior of solutions.

This method uses eigenvalues and eigenvectors to break down the system into simpler components. By examining these components, we can predict stability, classify critical points, and determine the dominant behavior of solutions over time, which is crucial in many real-world applications.

Eigenvalues and eigenvectors for matrices

Calculating eigenvalues

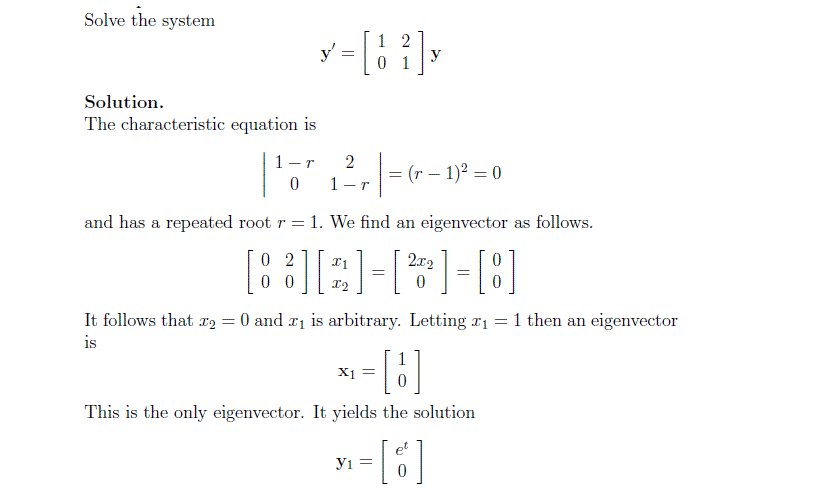

Top images from around the web for Calculating eigenvalues

  • eigenvalues eigenvectors - A linear algebra problem - Mathematics Stack Exchange View original

    Is this image relevant?

  • eigenvalues eigenvectors - A linear algebra problem - Mathematics Stack Exchange View original

    Is this image relevant?

1 of 2

Top images from around the web for Calculating eigenvalues

  • eigenvalues eigenvectors - A linear algebra problem - Mathematics Stack Exchange View original

    Is this image relevant?

  • eigenvalues eigenvectors - A linear algebra problem - Mathematics Stack Exchange View original

    Is this image relevant?

1 of 2
  • Eigenvalues (λ) satisfy the characteristic equation det(A−λI)=0det(A - λI) = 0, where A represents the coefficient matrix and I denotes the identity matrix
  • Obtain the by expanding det(A−λI)det(A - λI)
    • Roots of this polynomial yield the eigenvalues
  • Complex eigenvalues occur in conjugate pairs
  • refers to an eigenvalue's multiplicity as a root of the characteristic polynomial
  • denotes the dimension of the corresponding eigenspace

Finding eigenvectors

  • Eigenvectors (v) satisfy the equation Av=λvAv = λv, where A represents the coefficient matrix and λ denotes an eigenvalue
  • Calculate eigenvectors by solving the homogeneous system (A−λI)v=0(A - λI)v = 0 for each eigenvalue
  • Eigenspace for λ comprises the nullspace of (A−λI)(A - λI), containing all associated eigenvectors
  • Complex eigenvalues yield complex conjugate eigenvectors

Eigenvalue and eigenvector properties

  • Non-zero vectors serve as eigenvectors
  • Eigenvalues may be real or complex numbers
  • For an n × n matrix, there exist n eigenvalues (counting multiplicity)
  • Eigenvectors corresponding to distinct eigenvalues remain linearly independent
  • Trace of a matrix equals the sum of its eigenvalues
  • Determinant of a matrix equals the product of its eigenvalues

Solving homogeneous systems

General solution formulation

  • Express to x′=Axx' = Ax as a linear combination of solutions: x(t)=c1eλ1tv1+c2eλ2tv2+...+cneλntvnx(t) = c₁e^{λ₁t}v₁ + c₂e^{λ₂t}v₂ + ... + c_ne^{λ_nt}v_n
  • Real, distinct eigenvalues produce exponential function terms multiplied by corresponding eigenvectors
  • Complex conjugate eigenvalues yield solutions with sine and cosine functions multiplied by real and imaginary parts of eigenvectors
  • Repeated eigenvalues may require generalized eigenvectors for a complete set of linearly independent solutions

Solution process

  • Find eigenvalues of coefficient matrix A
  • Calculate corresponding eigenvectors
  • Form general solution using eigenvalue-eigenvector pairs
  • Apply initial conditions to determine constants c₁, c₂, ..., c_n
  • Eigenvalue method proves particularly effective for systems with constant coefficients
  • Reduces differential equation system to a set of algebraic equations

Examples and applications

  • Population dynamics (predator-prey models)
    • Two-species system yields 2 × 2 coefficient matrix
    • Eigenvalues and eigenvectors reveal population growth or decline patterns
  • Mechanical systems (coupled oscillators)
    • Mass-spring systems produce second-order equations convertible to first-order systems
    • Eigenvalues determine natural frequencies and damping characteristics
  • Electrical circuits (RLC circuits)
    • Convert circuit equations to state-space form
    • Eigenvalues indicate circuit behavior (overdamped, underdamped, critically damped)

Stability of critical points

Classification criteria

  • Critical points (equilibrium solutions) occur where Ax=0Ax = 0, typically at the origin for homogeneous systems
  • Stability determined by real parts of eigenvalues of coefficient matrix A
  • Asymptotically stable (sink) when all eigenvalues have negative real parts
  • Unstable (source or saddle) if at least one eigenvalue has a positive real part
  • Stability indeterminate for eigenvalues with zero real parts using linear analysis alone

Two-dimensional systems analysis

  • Use trace and determinant of A to classify critical point types
  • Node occurs with real, distinct eigenvalues of same sign
  • Spiral arises from complex conjugate eigenvalues with non-zero real parts
  • Center results from purely imaginary eigenvalues
  • Saddle emerges from real eigenvalues of opposite signs

Phase portrait interpretation

  • near critical point determined by eigenvalue nature (real, complex, repeated) and corresponding eigenvectors
  • Stable node exhibits trajectories converging to critical point
  • Unstable node shows trajectories diverging from critical point
  • Stable spiral displays inward spiraling trajectories
  • Unstable spiral reveals outward spiraling trajectories
  • Saddle point demonstrates trajectories approaching along stable manifold and departing along unstable manifold

Long-term behavior of solutions

Dominant eigenvalue analysis

  • Dominant eigenvalue (largest real part) determines asymptotic behavior as t→∞t → ∞
  • Real, positive dominant eigenvalue leads to exponential growth along corresponding eigenvector direction
  • Real, negative dominant eigenvalue results in exponential decay towards origin along eigenvector direction
  • Complex conjugate dominant eigenvalues with positive real parts cause outward spiraling from origin
  • Complex conjugate dominant eigenvalues with negative real parts produce inward spiraling towards origin

Special cases and considerations

  • Conservative systems with purely imaginary eigenvalues exhibit periodic behavior without growth or decay
  • Repeated eigenvalues may lead to polynomial growth in addition to exponential behavior
  • Degenerate cases (e.g., zero eigenvalues) require careful analysis of higher-order terms
  • Decompose solution into different modes associated with eigenvalue-eigenvector pairs
  • Understand contribution of each mode to overall system behavior
  • Applications in vibration analysis (structural engineering)
    • Identify natural frequencies and mode shapes of structures
  • Signal processing and control systems
    • Design filters and controllers based on system modes
  • Economic models
    • Analyze long-term trends and stability of economic systems

Key Terms to Review (18)

Algebraic Multiplicity: Algebraic multiplicity refers to the number of times a particular eigenvalue appears as a root of the characteristic polynomial of a matrix. This concept is crucial because it helps determine the behavior of eigenvalues and their associated eigenvectors in various contexts, including solving systems of equations and diagonalizing matrices. Understanding algebraic multiplicity also plays a key role when analyzing the stability of solutions in differential equations.
Cayley-Hamilton Theorem: The Cayley-Hamilton Theorem states that every square matrix satisfies its own characteristic polynomial. This means if you take a matrix and find its characteristic polynomial, substituting the matrix itself into that polynomial will yield the zero matrix. This theorem is crucial for understanding the properties of matrices and their eigenvalues, linking directly to concepts like eigenvalue-eigenvector equations and applications in differential equations.
Characteristic Polynomial: The characteristic polynomial is a polynomial expression derived from a square matrix that encapsulates key information about the matrix, especially its eigenvalues. Specifically, it is calculated by taking the determinant of the matrix subtracted by a scalar multiple of the identity matrix, set equal to zero. This polynomial is crucial in determining eigenvalues, as its roots correspond to the eigenvalues of the matrix, linking it closely to various applications involving linear transformations and system dynamics.
Diagonalization: Diagonalization is the process of transforming a square matrix into a diagonal form, where all non-diagonal entries are zero, using a similarity transformation. This transformation simplifies many matrix operations and makes it easier to analyze linear transformations, especially when dealing with eigenvalues and eigenvectors. It is closely tied to understanding the properties of matrices and their applications in solving systems of equations and differential equations.
Eigenvalue: An eigenvalue is a scalar that indicates how a linear transformation changes a vector's magnitude or direction when that vector is multiplied by a matrix. It plays a critical role in understanding the behavior of linear systems and can provide insights into the stability and dynamics of such systems. In essence, eigenvalues help simplify complex problems by revealing underlying patterns in linear transformations.
Eigenvector: An eigenvector is a non-zero vector that changes only by a scalar factor when a linear transformation is applied to it. It represents a direction in which the transformation acts, making it crucial for understanding various linear systems and their behaviors, especially when analyzing matrices and their properties, stability of systems, and solutions of differential equations.
General solution: A general solution is a form of a solution to a differential equation that encompasses all possible solutions by including arbitrary constants. It represents the complete set of solutions, allowing one to derive specific solutions based on initial or boundary conditions. The general solution is essential for understanding the behavior of differential equations and serves as the foundation for finding particular solutions in various contexts.
Geometric Multiplicity: Geometric multiplicity refers to the number of linearly independent eigenvectors associated with a given eigenvalue of a matrix. This concept is crucial because it provides insights into the behavior of a matrix and its eigenvalues, particularly in understanding the structure of eigenspaces and their dimensions, which are essential for determining whether a matrix can be diagonalized or how it behaves in dynamical systems.
Homogeneous Linear Differential Equation: A homogeneous linear differential equation is a type of differential equation that can be expressed in the form $a_n(t)y^{(n)} + a_{n-1}(t)y^{(n-1)} + ... + a_1(t)y' + a_0(t)y = 0$, where the function on the right-hand side is zero. These equations are important in understanding the behavior of linear systems and can be solved using various methods, including the eigenvalue approach, which provides a systematic way to find solutions through the characteristics of associated matrices.
Jordan Form: Jordan form is a canonical representation of a matrix that simplifies the study of linear transformations and their properties, particularly regarding eigenvalues and eigenvectors. It connects with various concepts, including how matrices can be transformed into simpler forms for easier analysis, specifically through diagonalization and understanding the structure of solutions in systems of differential equations. The Jordan form allows us to represent matrices with generalized eigenvectors, providing insights into the behavior of systems near eigenvalues, especially when dealing with defective matrices that lack a complete set of linearly independent eigenvectors.
Linear system: A linear system is a collection of one or more linear equations involving the same variables. Each equation in the system represents a straight line in a multi-dimensional space, and the solution to the system corresponds to the intersection points of these lines. Understanding linear systems is crucial in various fields, especially when analyzing homogeneous systems using eigenvalue approaches.
Matrix Exponentiation: Matrix exponentiation refers to the process of raising a square matrix to a power, which is analogous to raising numbers to a power. This operation is especially useful in solving linear differential equations and analyzing systems of linear equations, particularly when considering the behavior of systems over time. Matrix exponentiation is commonly performed using techniques like diagonalization and the eigenvalue approach to simplify the computation and provide insights into the system's dynamics.
Particular Solution: A particular solution is a specific solution to a differential equation that satisfies the initial or boundary conditions imposed on the problem. It represents a single function that fulfills both the differential equation and any given constraints, distinguishing it from the general solution, which includes arbitrary constants.
Phase Portrait: A phase portrait is a graphical representation that illustrates the trajectories of a dynamical system in the state space. It provides insight into the behavior of solutions over time by showing how initial conditions evolve, helping to visualize stability, equilibrium points, and the nature of oscillations within systems. This concept becomes particularly useful when analyzing linear systems through eigenvalues and eigenvectors or when studying real-world applications in engineering and physics.
Spectral Theorem: The spectral theorem states that any symmetric matrix can be diagonalized by an orthogonal matrix, meaning that it can be represented in a form that reveals its eigenvalues and eigenvectors. This theorem is crucial because it establishes a connection between linear algebra and geometry, providing insights into how linear transformations behave in relation to the eigenvalues and eigenvectors of a matrix.
Stability Analysis: Stability analysis is the study of the behavior of dynamical systems as they evolve over time, particularly focusing on whether small disturbances to the system will lead to divergent or convergent behavior. It helps in understanding the long-term behavior of systems and their responses to changes in initial conditions or parameters.
Stiffness Matrix: The stiffness matrix is a mathematical representation used in structural analysis and dynamics that relates the forces applied to a system to the resulting displacements of its nodes. It is a square matrix that captures the rigidity of a structure, where each entry corresponds to the relationship between displacements and forces for different degrees of freedom. Understanding the stiffness matrix is essential when using the eigenvalue approach to analyze homogeneous systems, as it plays a crucial role in determining natural frequencies and mode shapes.
Transition Matrix: A transition matrix is a square matrix that describes the probabilities of transitioning from one state to another in a stochastic process. In the context of linear algebra, it plays a crucial role in analyzing systems of linear equations and dynamics, particularly when dealing with eigenvalues and eigenvectors for homogeneous systems.
