15.2 Process Capability Analysis

3 min read•july 23, 2024

Process capability analysis helps businesses ensure their products meet quality standards. It involves calculating indices like and , which measure how well a process meets specifications. These indices compare the spread of data to the allowable range.

Interpreting capability indices is crucial for quality control. Values above 1 indicate a capable process, while values below 1 suggest improvements are needed. The analysis assumes , but methods exist for non-normal data too.

Process Capability Analysis

Calculation of capability indices

Top images from around the web for Calculation of capability indices

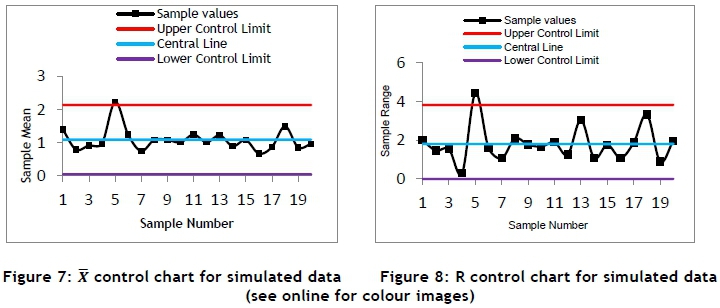

  • Process capability index-based control chart for variables View original

    Is this image relevant?

  • Process capability index-based control chart for variables View original

    Is this image relevant?

  • Process capability index-based control chart for variables View original

    Is this image relevant?

1 of 3

Top images from around the web for Calculation of capability indices

  • Process capability index-based control chart for variables View original

    Is this image relevant?

  • Process capability index-based control chart for variables View original

    Is this image relevant?

  • Process capability index-based control chart for variables View original

    Is this image relevant?

1 of 3
  • quantify how well a process meets specifications
    • Cp: Process Capability Index measures the potential capability of a process to meet specifications
      • Formula: Cp=[USL](https://www.fiveableKeyTerm:usl)−[LSL](https://www.fiveableKeyTerm:lsl)6σCp = \frac{[USL](https://www.fiveableKeyTerm:usl) - [LSL](https://www.fiveableKeyTerm:lsl)}{6\sigma}
        • USL: Upper Specification Limit (maximum allowable value)
        • LSL: Lower Specification Limit (minimum allowable value)
        • σ\sigma: Process standard deviation (measure of variability)
    • Cpk: Process Capability Index adjusted for process centering measures the actual capability of a process to meet specifications
      • Formula: Cpk=min⁡(USL−μ3σ,μ−LSL3σ)Cpk = \min(\frac{USL - \mu}{3\sigma}, \frac{\mu - LSL}{3\sigma})
        • μ\mu: Process mean (average value)
      • Cpk considers the process center relative to the (how well the process is centered between USL and LSL)

Interpretation of capability indices

  • Cp and Cpk values indicate the process capability
    • Cp and Cpk > 1: Process is capable of meeting specifications (producing parts within the allowable range)
      • Higher values indicate greater capability (more room for error)
    • Cp and Cpk < 1: Process is not capable of meeting specifications (producing out-of-spec parts)
    • Cp > Cpk: Process is not centered within the specification limits (off-center, closer to one limit)
    • Cp = Cpk: Process is centered within the specification limits (equal room for error on both sides)
  • Minimum acceptable values for Cp and Cpk depend on the industry and criticality of the product
    • Typical minimum values range from 1.33 (less critical) to 2.00 (highly critical, like aerospace)

Process capability for normal distributions

  • Process capability analysis assumes that the data follows a normal distribution (bell-shaped curve)
  • Steps to determine process capability for normally distributed data:
    1. Collect data on the process characteristic of interest (measurements, dimensions)
    2. Test the data for normality using graphical methods or statistical tests
      • Graphical methods: (shape), normal probability plot (straight line)
      • Statistical tests: Anderson-Darling, Shapiro-Wilk (p-value > 0.05 indicates normality)
    3. If the data is normally distributed, calculate the process mean (μ\mu) and standard deviation (σ\sigma)
    4. Calculate Cp and Cpk using the formulas provided
    5. Interpret the results based on the calculated values and the specific requirements of the process

Process capability for non-normal data

  • If the data is not normally distributed, process capability analysis can still be performed with some adjustments
  • Methods for assessing process capability with non-normal data:
    • Transform the data to achieve normality
      • Box-Cox transformation (power transformation to stabilize variance and make data more normal)
      • After transformation, follow the steps for normally distributed data
    • Use non-parametric methods, such as percentile-based indices
      • : Index
        • Formula: Pp=USL−LSL6sPp = \frac{USL - LSL}{6s}, where ss is the sample standard deviation
      • : Process Performance Index adjusted for process centering
        • Formula: Ppk=min⁡(USL−x~3s,x~−LSL3s)Ppk = \min(\frac{USL - \tilde{x}}{3s}, \frac{\tilde{x} - LSL}{3s}), where x~\tilde{x} is the sample median
    • Use distribution-specific capability indices
      • for Weibull distribution (used for reliability analysis)
  • Interpret the results based on the chosen method and the specific requirements of the process
